PCard-E3021-SI-D9 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Module/solution> PCard-E3021-SI-D9

Preview

PCard-E3021-SI-D9: DescriptionNetworking Modules Industrial PCIe card 2-port RS-232/422/485 with 2KV Surge & Isolation (DB9 connector); CategoryModule/solution; File Size420KB，3 Pages; ManufacturerORing

Download Datasheet Parametric Compare View All

PCard-E3021-SI-D9 Overview

Networking Modules Industrial PCIe card 2-port RS-232/422/485 with 2KV Surge & Isolation (DB9 connector)

PCard-E3021-SI-D9 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ORing
Product Category	Networking Modules
Product	PCI Express Cards
Data Rate	50 b/s to 921.6 kb/s
Number of Ports	2 RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485
Interface Type	DB9(Male), RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485
Operating Supply Voltage	3.3 V
Maximum Operating Temperature	+ 75 C
Dimensions	85 mm x 101.9 mm
Security	Without Security
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

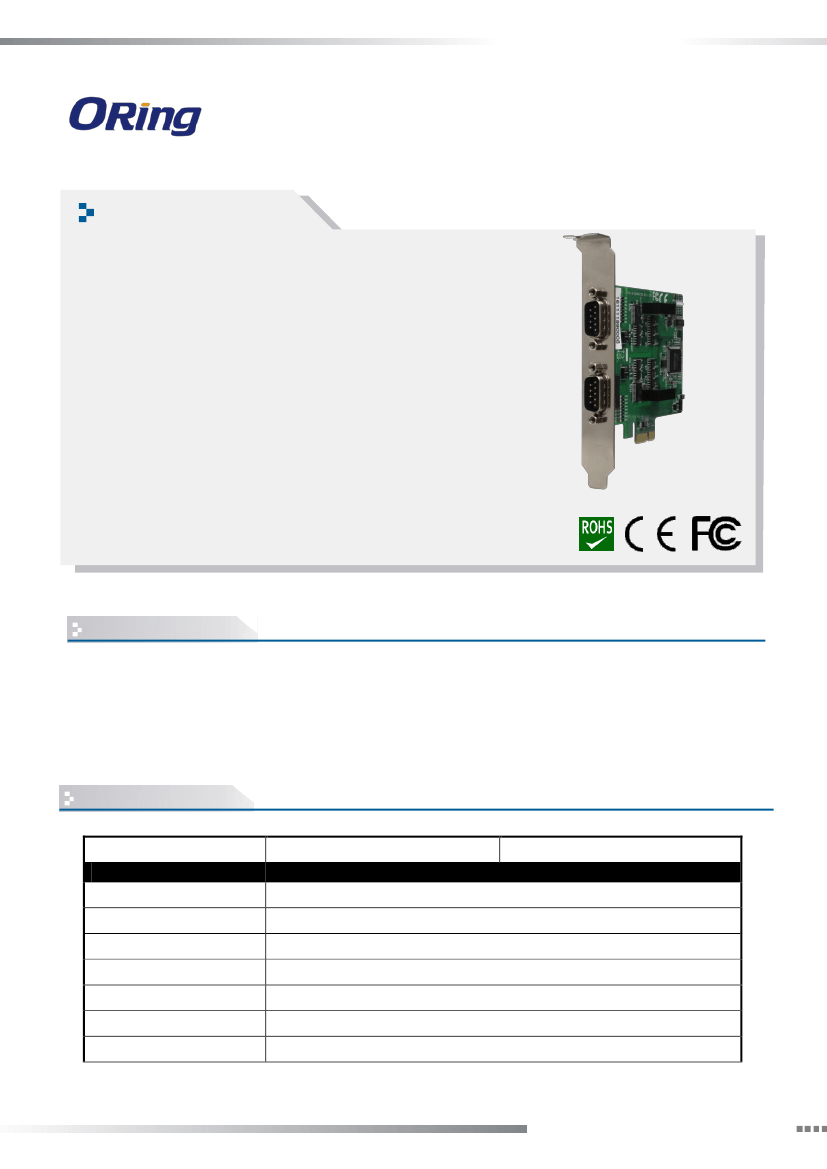

Designed for Rugged Excellence

V1.3

PCard-E1021-SI-D9

PCard-E1021-I-D9

Features

Industrial 2-Ports RS-232 PCI Express Card

With 3KV Serial Isolation



PCI Express x1 compliant



Support Serial Ports for RS-232



Support Baudrate from 150~921.6 Kbps



Support 128-Byte FIFO



Support HW, SW Flow Control



3KV Serial Isolation Protect



Serial Line 6KV Surge Protect for –SI Model

Introduction

The 2 Ports PCI Express Cards are designed for POS, ATM and KIOSK applications. Each card supports

150~921600 baudrate. The PCard-E1021-SI-D9 is for 6KV surge protect model. In addition, the

PCard-E1021-SI-D9 and PCard-E1021-I-D9 provide full modem control signals to ensure compatibility

with a wide range of serial peripherals.

Specifications

ORing Model

Serial Port

Connector

Ports

Operation Mode

Serial Baud Rate

Data Bits

Parity

Stop Bits

DB9(Male) x 2

2

RS-232

150 bps to 921.6 Kbps

5, 6, 7, 8

odd, even, none, mark, space

1, 1.5, 2

PCard-E1021-SI-D9

PCard-E1021-I-D9

* All specifications are subject to change without notice.

PCard-E3021-SI-D9 Related Products

	PCard-E3021-SI-D9	PCard-E3021-I-D9	PCard-E2021-SI-D9	PCard-E1021-I-D9	PCard-E2021-I-D9
Description	Networking Modules Industrial PCIe card 2-port RS-232/422/485 with 2KV Surge & Isolation (DB9 connector)	Networking Modules Industrial PCIe card 2-port RS-232/422/485 with Isolation (DB9 connector)	Networking Modules Industrial PCIe card 2-port RS-422/485 with 2KV Surge & Isolation (DB9 connector)	Networking Modules Industrial PCIe card 2-port RS-232 with Isolation (DB9 connector)	Networking Modules Industrial PCIe card 2-port RS-422/485 with Isolation (DB9 connector)
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	ORing	ORing	ORing	ORing	ORing
Product Category	Networking Modules	Networking Modules	Networking Modules	Networking Modules	Networking Modules
Product	PCI Express Cards	PCI Express Cards	PCI Express Cards	PCI Express Cards	PCI Express Cards
Data Rate	50 b/s to 921.6 kb/s	50 b/s to 921.6 kb/s	50 b/s to 921.6 kb/s	150 b/s to 921.6 kb/s	50 b/s to 921.6 kb/s
Number of Ports	2 RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485	2 RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485	2 RS-422/485	2 RS-232	2 RS-422/485
Interface Type	DB9(Male), RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485	DB9(Male), RS-232, RS-422, 4-Wire RS-485, 2-Wire RS-485	DB9(Male), RS-422, 4-Wire RS-485, 2 Wire RS-485	DB9(Male), RS-232	DB9(Male), RS-422, 4-Wire RS-485, 2 Wire RS-485
Operating Supply Voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Maximum Operating Temperature	+ 75 C	+ 75 C	+ 75 C	+ 75 C	+ 75 C
Dimensions	85 mm x 101.9 mm	85 mm x 101.9 mm	85 mm x 101.9 mm	85 mm x 101.9 mm	85 mm x 101.9 mm
Security	Without Security	Without Security	Without Security	Without Security	Without Security
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory Pack Quantity	1	1	1	1	1
