8017-4251 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8017-4251

8017-4251: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8017-4251 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

8017-4251 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.494 inch
subject depth	0.76 inch
body length	2.091 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8017
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

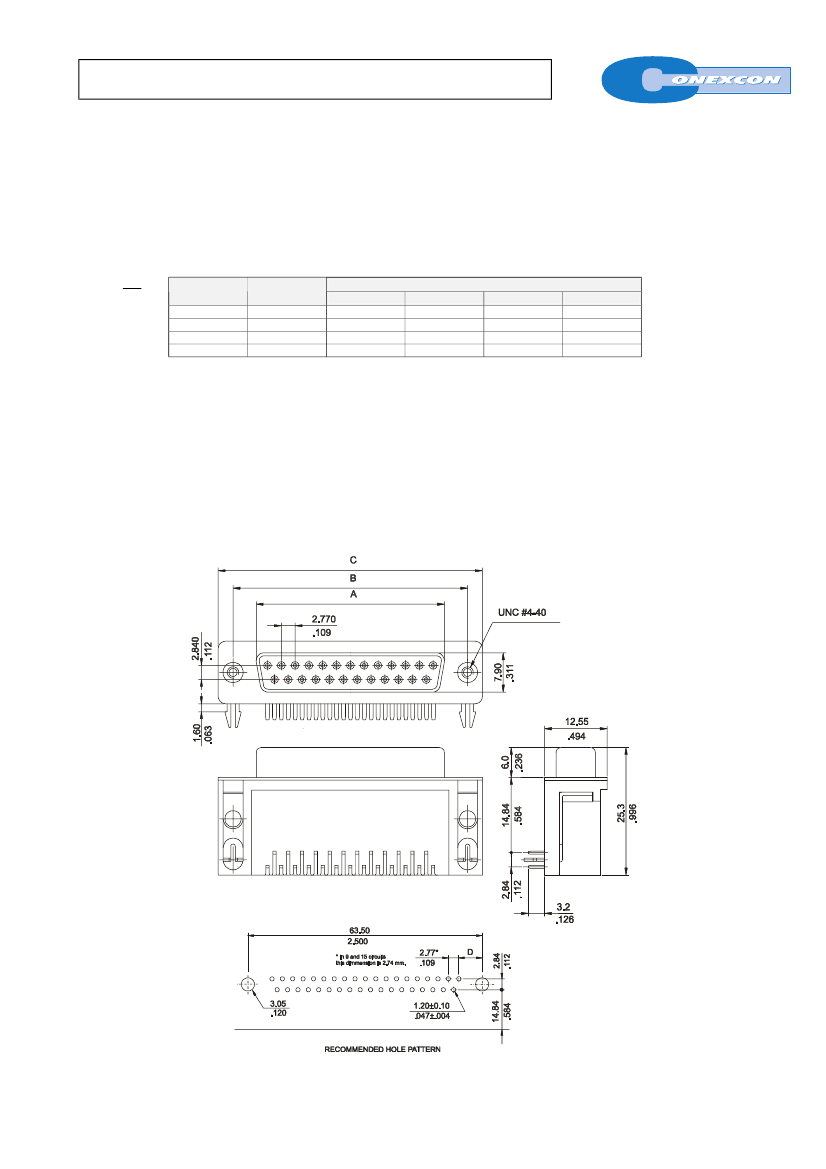

14.80mm FOOTPRINT D-SUB RECEPTACLE

SERIES.

8017 SERIES

For PCB Solder. Right Angle D-Sub

Features

Standard connector C = 1 (Riveted ground hooks with

Insulator Material: Glass filled polyester UL 94V-0

#4-40 UNC open )

Contact Material: Phosphor bronze with different plating

For other options consult the Sales Office

Available in 9, 15, 25 and 37 circuits

Shell: Steel, tin plated as standard

Ordering and Dimensional Information

Part Number

8017 –

T091

8017 –

T151

8017 –

T251

8017 –

T371

Dimension

16.33 (0.643)

24.66 (0.971)

38.38 (1.511)

54.84 (2.159)

25.00 (0.984)

33.30 (1.311)

47.10 (1.854)

63.50 (2.500)

30.80 (1.213)

39.20 (1.543)

53.10 (2.091)

69.40 (2.732)

6.96 (0.274)

6.91 (0.272)

6.82 (0.289)

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

T = Contact Plating

C = Hardware Options

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C =

Riveted ground hooks pre-loaded #4.40

UNC Hexagonal screws (standard)

C =

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8017-4251 Related Products

	8017-4251	8017-3091	8017-4091	8017-3251
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	unknow	unknown	unknown	unknown
Manufacturer's serial number	8017	8017	8017	8017
body width	0.494 inch	-	0.494 inch	0.494 inch
subject depth	0.76 inch	-	0.76 inch	0.76 inch
body length	2.091 inch	-	1.213 inch	2.091 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	-	AU ON NI	AU ON NI
Contact point gender	FEMALE	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	-	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.109 inch	-	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	-	0.112 inch	0.112 inch
Installation option 1	#4-40	-	#4-40	#4-40
Installation option 2	SCREW	-	SCREW	SCREW
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD
PCB row number	2	-	2	2
Number of rows loaded	2	-	2	2
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	-	2.8448 mm	2.8448 mm
Plating thickness	10u inch	-	10u inch	FLASH inch
Guideline	UL	-	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Shell surface	TIN	-	TIN	TIN
Shell material	STEEL	-	STEEL	STEEL
Terminal length	0.126 inch	-	0.126 inch	0.126 inch
Terminal pitch	2.7686 mm	-	2.7686 mm	2.7686 mm
Termination type	SOLDER	-	SOLDER	SOLDER
Total number of contacts	25	-	9	25
ECCN code	-	EAR99	EAR99	EAR99
