KTR series
●
Datasheet

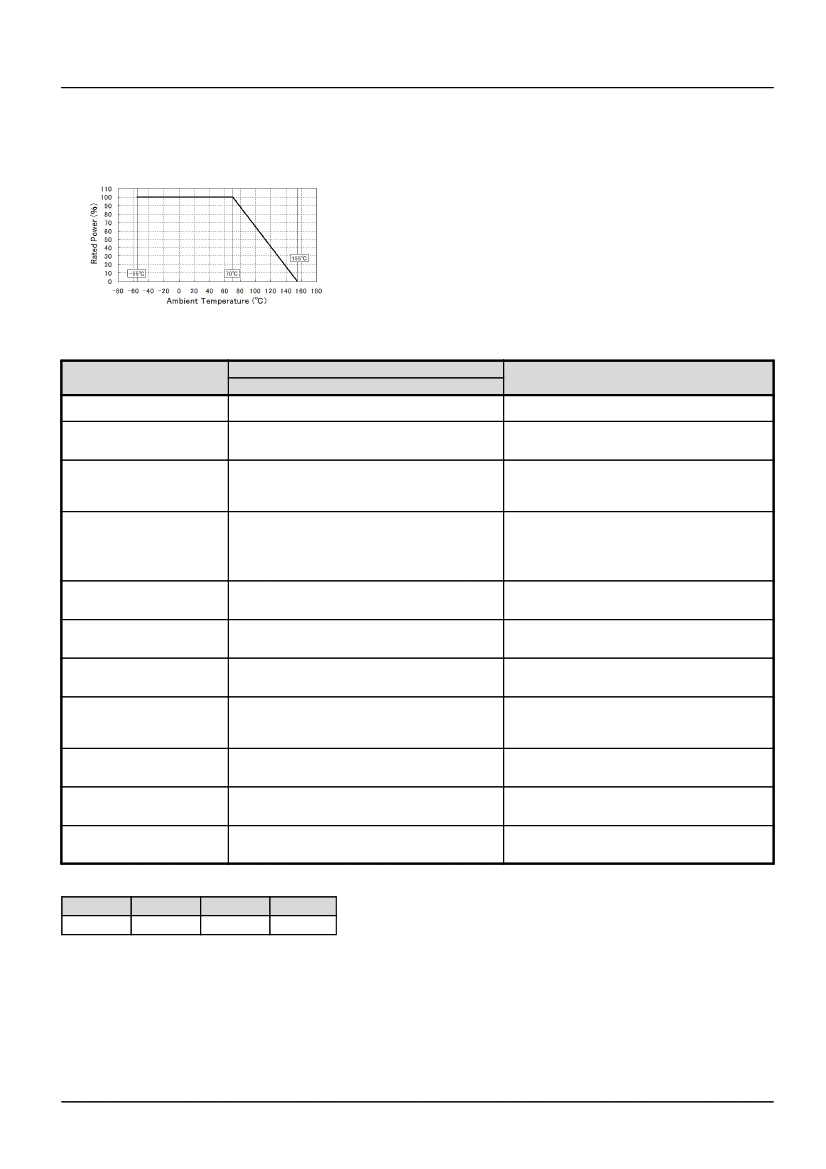

Derating curve
When the ambient temperature exceeds 70°C, power dissipation must be adjusted according to the derating curves below.
■
KTR03/10/18/25
●
Characteristics
T items
est
Guaranteed >
Resistor type
See P.1
See P.1
±(2.0
％＋
0.1Ω)
Anew uniform coating of minimum
of 95% of the surface being
immersed and no soldering
damage.
±(1.0
％＋
0.05Ω)
No remarkable abnormality on the appearance.
±(1.0
％＋
0.05Ω)
±(3.0
％＋
0.1Ω)
±(3.0
％＋
0.1Ω)
±(3.0
％＋
0.1Ω)
±(1.0
％＋
0.05Ω)
±(1.0
％＋
0.05Ω)
Without mechanical damage such as breaks.
T conditions
est
20
℃
Measurement
：
+25/-55, +25/+125
℃
T voltage is the smaller one of
①
or
②
est
①
Rated voltage(current)×2.5
，
2s
②
Maximum overload voltage
※
Rosin-ethanol solution(25% weight)
Soldering condition
：
245±5
℃
Duration of immersion
：
2.0±0.5s
Soldering condition
：
260±5
℃
Duration of immersion
：
10±1s
T temp
：
-55
℃½
+125
℃
5cycle
est
40
℃，
93
％
(Relative humidity)
T time
：
1,000h
est
Rated voltage(current),70
℃
1.5h:ON
－
0.5h:OFF
T time
：
1,000h
est
155
℃
T time
：
1,000h
est
23±5
℃
Immersion cleaning,
Solvent: 2-propanol
-
Compliance Standard(s) : IEC60115-8
JISC 5201-8
Resistance
Variation of resistance
with temperature
Overload
Solderability
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
Endurance at 70
℃
Endurance
Resistance to solvent
Bend strength of
the end face plating
※
Maximum overload voltage (T voltage)
est
KTR03
500V
KTR10
800V
KTR18
1000V
KTR25
1200V
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/4
2018.09 - Rev.F
