CTP4555-12: DescriptionToroidal Inductors Medium Current; File Size53KB，1 Pages; ManufacturerFILTRAN; Websitehttp://www.filtran.com/

Download Datasheet View All

CTP4555-12 Overview

Toroidal Inductors Medium Current

Preview

Download Datasheet

View All

Toroidal Inductors

Medium Current

CTP4555

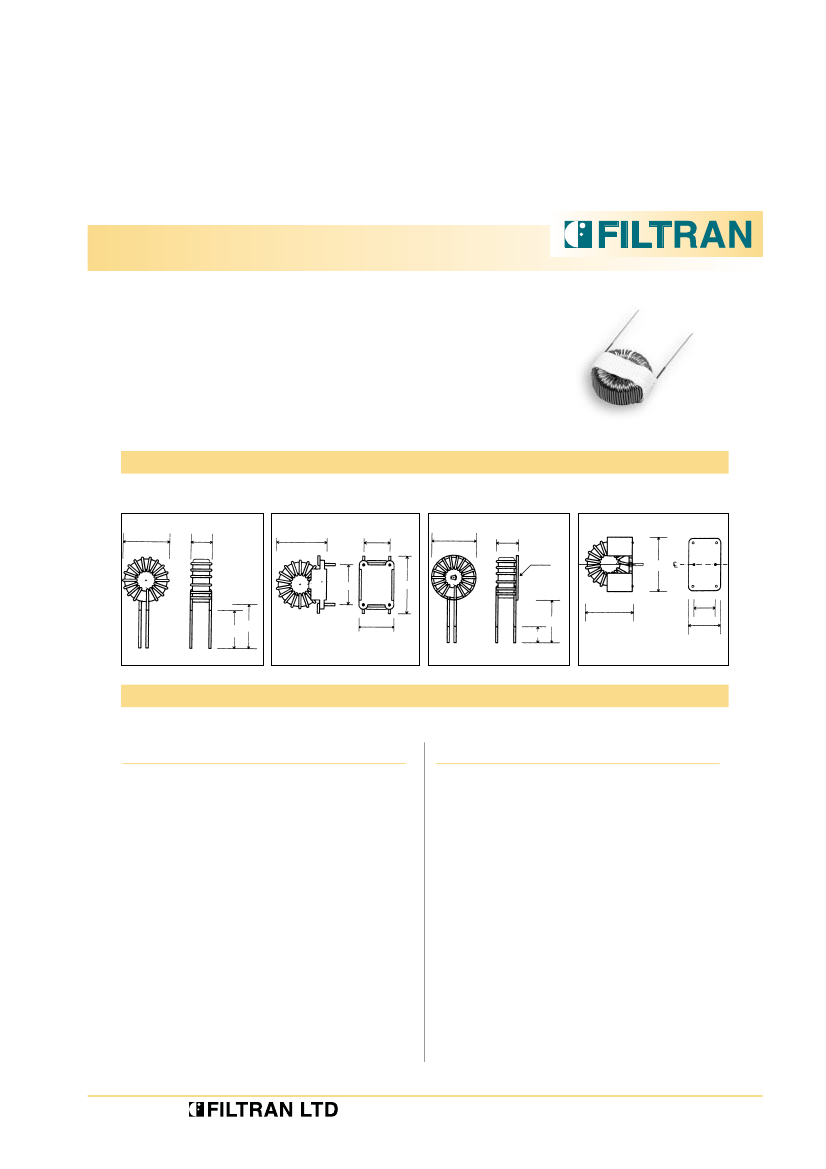

CTP4555 is a medium current inductor with the following data and features:

•

Core type:

1.06” o.d., Moly-Permalloy

Powder, perm 60.

•

Power rating:

2.16 watts for temp.

rise 50˚C.

•

Typical applications:

Switching Inductors in

Switch Mode Power

Supplies.

Four mounting styles are offered:

Flying leads (1.00”), for vertical

or horizontal mounting.

4-pin header, for vertical mounting.

Threaded center hole, flying leads

(2.00”).

2-pin header, for vertical mounting.

MECHANICAL

Style 1

1.25

0.65

Style 2

1.30

0.60

Style 3

1.25

0.72

Thread

#10-32

0.90

1.30

Style 4

1.25

1.30

0.80

1.00

0.80

2.00

0.50

0.75

ELECTRICAL SPECIFICATION

Ordering Information:

Substitute the style number for the asterisk (*). Example: CTP4555, Style 1, 56uH.

Part No.

Ind.

CTP4555 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

I (amp.)

@ Lsat.

10%

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

Part No.

Ind.

CTP4555 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

Order: CTP4555 - 116

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

I (amp.)

@ Lsat.

10%

* 01

* 02

* 03

* 04

* 05

* 06

* 07

* 08

* 09

* 10

* 11

* 12

* 13

* 14

* 15

* 16

3.3

3.9

4.7

5.6

6.8

8.2

0.005

0.006

0.007

0.008

0.009

0.010

0.011

0.013

0.018

0.024

0.026

0.029

16.2

15.5

14.9

14.3

13.6

13.0

12.4

11.9

11.2

10.8

10.2

9.7

8.3

7.1

6.8

6.5

14.4

13.2

12.0

11.0

10.0

9.1

8.2

7.5

6.7

6.1

5.6

5.0

4.5

4.2

3.8

3.5

23.9

22.0

20.1

18.4

16.7

15.2

13.7

12.5

11.2

10.2

9.3

8.4

7.6

7.0

6.3

5.8

39.9

36.7

33.4

30.6

27.8

25.3

22.9

20.9

18.7

17.1

15.4

13.9

12.6

11.6

10.6

9.7

* 17

* 18

* 19

* 20

* 21

* 22

* 23

* 24

* 25

* 26

* 27

* 28

* 29

* 30

* 31

* 32

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

0.032

0.035

0.038

0.042

0.047

0.064

0.090

0.125

0.138

0.190

0.208

0.227

0.251

0.275

0.383

0.531

6.2

5.9

5.6

5.4

5.1

4.3

3.6

3.1

2.9

2.5

2.4

2.3

2.2

2.1

1.8

1.5

3.2

2.9

2.6

2.4

2.1

1.9

1.8

1.6

1.4

1.3

1.2

1.1

1.0

0.9

0.8

5.3

4.8

4.3

4.0

3.5

3.2

2.9

2.6

2.4

2.2

2.0

1.8

1.7

1.5

1.4

1.3

8.8

8.0

7.2

6.6

5.9

5.4

4.9

4.4

4.0

3.7

3.3

3.1

2.8

2.5

2.3

2.1

CTP4555

An ISO 9001 Registered Company

229 Colonnade Road, Nepean, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com

33-4
