SY89200U
Ultra-Precision 1:8 LVDS Fanout Buffer
with Three ÷1/÷2/÷4 Clock Divider
Output Banks
General Description
The SY89200U is a 2.5V precision, high-speed, integrated
clock divider and LVDS fanout buffer capable of handling
clocks up to 1.5GHz. Optimized for communications
applications, the three independently controlled output
banks are phase matched and can be configured for pass
through (÷1), ÷2 or ÷4 divider ratios.
The differential input includes Micrel’s unique, 3-pin input
termination architecture that allows the user to interface to
any differential signal path. The low-skew, low-jitter
outputs are LVDS-compatible with extremely fast rise/fall
times guaranteed to be less than 150ps.
The EN (enable) input guarantees that the ÷1, ÷2 and ÷4
outputs will start from the same state without any runt
pulse after an asynchronous master rest (MR) is asserted.
This is accomplished by enabling the outputs after a four-
clock delay to allow the counters to synchronize.
The SY89200U is part of Micrel’s Precision Edge
®
product
family.
Datasheets and support documentation can be found on
Micrel’s web site at:
www.micrel.com.
Precision Edge
®
Features
•
Three low-skew LVDS output banks with programmable
÷1, ÷2 and ÷4 divider options
•
Three independently programmable output banks
•
Guaranteed AC performance over temperature and
voltage:
– Accepts a clock frequency up to 1.5GHz
– <900ps IN-to-OUT propagation delay
– <150ps rise/fall time
– <50ps bank-to-bank phase offset
•
Ultra-low jitter design:
– <1ps
RMS
random jitter
– <10ps
PP
total jitter (clock)
•
Patent-pending input termination and VT pin accepts
DC- and AC-coupled inputs (CML, PECL, LVDS)
•
LVDS-compatible outputs
•
CMOS/TTL-compatible output enable (EN) and divider
select control
•
2.5V ±5% power supply
•
–40°C to +85°C temperature range
•
Available in 32-pin (5mm x 5mm) MLF
®
package

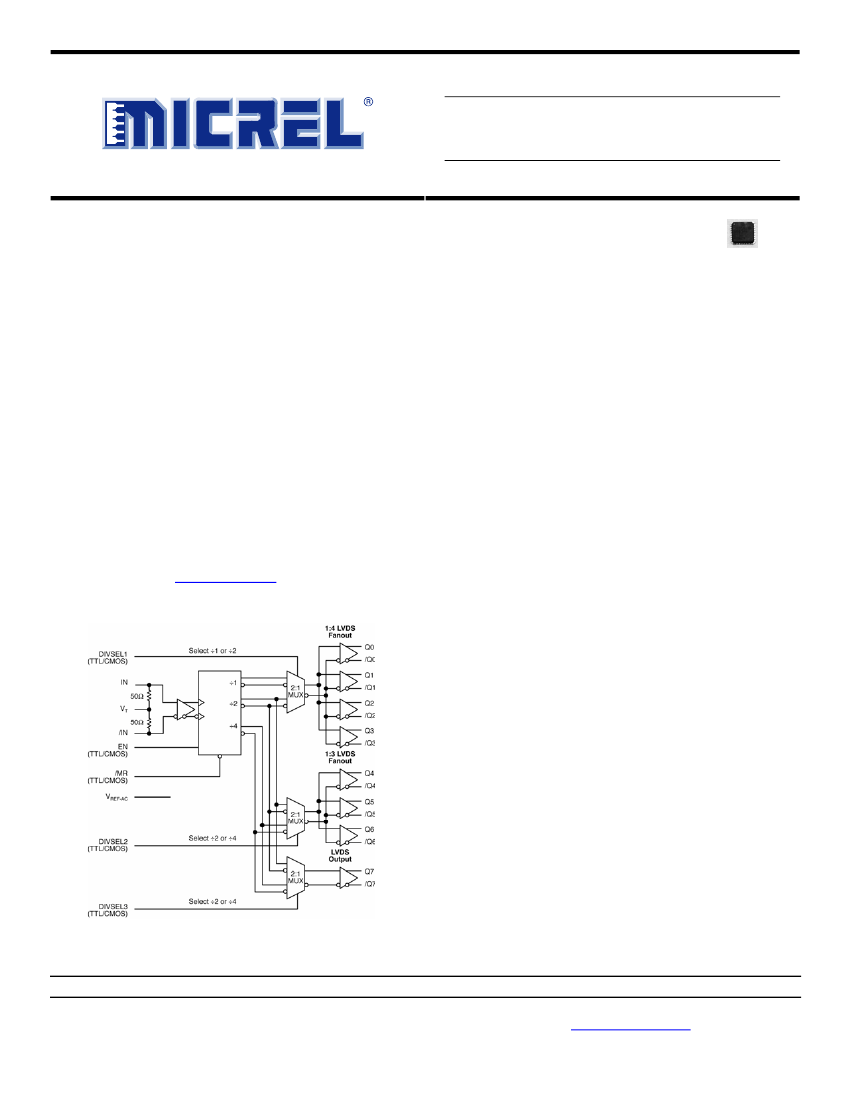

Functional Block Diagram
Applications
•
All SONET/SD applications
•
All Fibre Channel applications
•
All Gigabit Ethernet applications
Precision Edge is a registered trademark of Micrel, Inc
MLF and MicroLeadFrame are registered trademark of Amkor Technology.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (
408
) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
March 2007
M9999-030707-D
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89200U
Ordering Information
(1)
Part Number
SY89200UMI
SY89200UMITR
SY89200UMG
SY89200UMGTR
(2)
Note:
1.
2.
Contact factory for die availability. Dice are guaranteed at TA = 25°C, DC Electricals only.
Tape and Reel.
(2)
Package
Type
MLF-32
MLF-32
MLF-32
MLF-32
Temperature
Range
Industrial
Industrial
Industrial
Industrial
Package Marking
SY89200U
SY89200U
SY89200U with
Pb-Free bar-line indicator
SY89200U with
Pb-Free bar-line indicator
Lead Finish
Sn-Pb
Sn-Pb
Pb-Free
NiPdAu
Pb-Free
NiPdAu

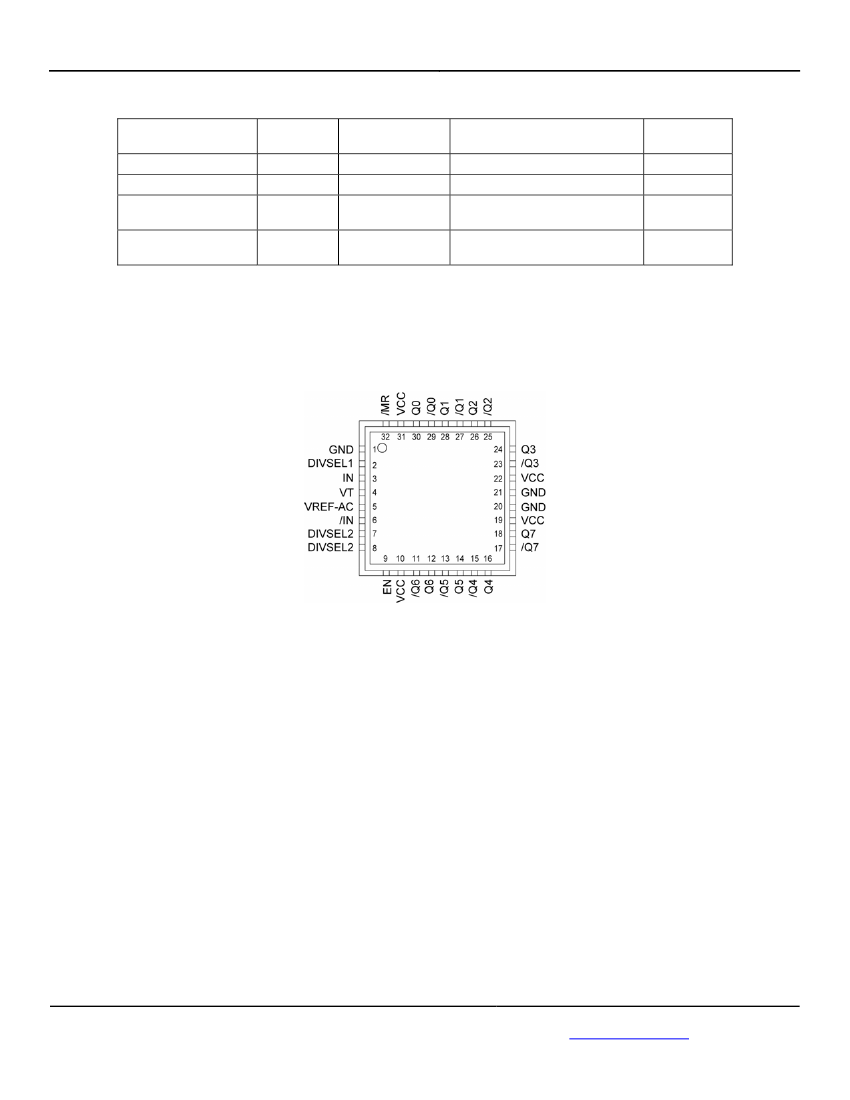

Pin Configuration
32-Pin MLF
®
(MLF-32)
March 2007
2
M9999-030707-D
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89200U
Pin Description
Pin Number
3, 6
Pin Name
IN, /IN
Pin Function
Differential Input: This input pair is the differential signal input to the device. This input
accepts AC- or DC-coupled signals as small as 100mV. The input pair internally
terminates to a VT pin through 50Ω. Note that these inputs will default to an indeterminate
state if left open. Please refer to the “Input Interface Applications” section for more details.
Single-Ended Inputs: These TTL/CMOS inputs select the device ratio for each of the
three banks of outputs. Note that each of these inputs is internally connected to a 25kΩ
pull-up resistor and will default to logic HIGH state if left open. The input-switching
threshold is V
CC
/2.
Input Termination Center-Tap: Each side of the differential input pair terminates to the VT
pin. The VT pin provides a center-tap to a termination network for maximum interface
flexibility. See “Input Interface Applications” section for more details.
Reference Voltage: This output biases to V
CC
-1.2V. It is used for AC-coupling inputs IN
and /IN. For AC-coupled applications, connect VREF-AC directly to the VT pin. Bypass
with 0.01µF low ESR capacitor to V
CC
. Maximum sink/source capability is 0.5mA.
Single-Ended Input: This TTL/CMOS input disable and enable the Q0 – Q7 outputs. This
input is internally connected to a 25kΩ pull-up resistor and will default to logic HIGH state
if left open. The input-switching threshold is V
CC
/2. For the input enable and disable
functional description, refer to Figures 2a through 2c.
Bank 1 LVDS differential output pairs controlled by DIVSEL1: LOW Q0 – Q3 = ÷1 HIGH,
Q0 – Q3 = ÷2. Unused output pairs should be terminated with 100Ω across the differential
pair.
Bank 2 LVDS differential output pairs controlled by DIVSEL2: LOW Q4 – Q6 = ÷2 HIGH,
Q4 – Q6 = ÷2. Unused output pairs should be terminated with 100Ω across the differential
pair.
Bank 3 LVDS differential output pairs controlled by DIVSEL3: LOW Q7 = ÷2 HIGH. Q7 =
÷2. Unused output pairs should be terminated with 100Ω across the differential pair.
Single-Ended Input: This TTL/CMOS-compatible master reset function asynchronously
sets Q0 – Q7 outputs LOW, /Q0 – /Q7 outputs HIGH, and holds them in that state as long
as /MR remains LOW. This input is internally connected to a 25kΩ pull-up resistor and will
default to a logic HIGH state if left open. The input-switching threshold is V
CC
/2.
Positive power supply. Bypass with 0.1µF||0.01µF low ESR capacitors.
Ground and exposed pad must be connected to the same GND plane on the board.
2
7
8
4
DIVSEL1
DIVSEL2
DIVSEL3
VT
5
VREF-AC
9
EN
30, 29, 28,
27, 26, 25,
24, 23
16, 15, 14,
13, 12, 11
18, 17
32
Q0, /Q0, /Q1,
/Q1, Q2, /Q2
Q3, /Q3
Q4, /Q4, Q5,
/Q5, Q6, /Q6
Q7, /Q7
/MR
10, 19, 22, 31
1, 20, 21
VCC
GND
Exposed
Truth Table
/MR
(1)
0
1
1
1
Notes:
1. /MR asynchronously forces Q0 – Q7 LOW (/Q0 – /Q7 HIGH).
2. EN forces Q0 – Q7 LOW between 2 and 6 input clock cycles after the falling edge of EN. Refer to “Timing Diagram” section.
3. EN synchronously enables the outputs between two and six input clock cycles after the rising edge of EN. Refer to “Timing Diagram” section.
EN
(2,3)
X
0
1
1
DIVSEL1
X
X
0
1
DIVSEL2
X
X
0
1
DIVSEL3
X
X
0
1
Q0 – Q3
0
0
÷1
÷2
Q4 – Q6
0
0
÷2
÷4
Q7
0
0
÷2
÷4
March 2007
3
M9999-030707-D
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89200U
Absolute Maximum Ratings
(1)
Supply Voltage (V
CC
).................................... –0.5V to +4.0V
Input Voltage (V
IN
) ............................................ –0.5V to V
CC
Termination Current
(3)
Source or sink current on V
T
.............................±100mA
Output Current
(3)
Source or sink current on IN, /IN ........................±50mA
V
REF-AC
Current
(3)
Source or sink current on V
REF-AC
.........................±2mA
Lead Temperature (soldering, 20 sec.).................... +260°C
Storage Temperature (T
s
) .........................–65°C to +150°C
Operating Ratings
(2)
Supply Voltage (V
CC
)............................ +2.375V to +2.625V
Ambient Temperature (T
A
) .......................... –40°C to +85°C
Package Thermal Resistance
(4)
MLF
®
(θ
JA
)
Still-Air.........................................................35°C/W
MLF
®
(Ψ
JB
)
Junction –to-Board ......................................20°C/W
DC Electrical Characteristics
T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
CC
I
CC
R
DIFF_IN
R
IN
V
IH
V
IL
V
IN
V
DIFF_IN
V
REF-AC
IN-to-V
T
Parameter
Power Supply
Power Supply Current
Differential Input Resistance
(IN-to-/IN)
Input Resistance
(IN-to-V
T
, /IN-to-V
T
)
Input High Voltage; (IN, /IN)
Input Low Voltage; (IN, /IN)
Input Voltage Swing; (IN, /IN)
Differential Input Voltage Swing
|IN - /IN|
Reference Voltage
Voltage from Input to V
T
See Figure 1a.
See Figure 1b.
No load, max. V
CC
, Note 6
80
40
1.2
0
100
200
V
CC
–1.3
V
CC
–1.2
100
50
Condition
Min
2.375
Typ
2.5
Max
2.625
350
120
60
V
CC
V
IH
-0.1
V
CC
2xV
CC
V
CC
–1.1
1.8
Units
V
mA
Ω
Ω
V
V
mV
mV
V
V
LVTTL/CMOS DC Electrical Characteristics
(5)
V
CC
= 2.5V ±5%; T
A
= –40°C to +85°C, unless otherwise stated.
Symbol
V
IH
V
IL
I
IH
I
IL
Notes:
1. Permanent device damage may occur if ratings in the “Absolute Maximum Ratings” section are exceeded. This is a stress rating only and functional
operation is not implied for conditions other than those detailed in the operational sections of this datasheet. Exposure to absolute maximum ratings
conditions for extended periods may affect device reliability.
2. The datasheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. Due to the limited drive capability use for input of the same package only.
4. Package thermal resistance assumes exposed pad is soldered (or equivalent) to the device’s most negative potential on the PCB.
Ψ
JB
uses 4-layer
θ
JA
in still-air, unless otherwise stated.
5. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
6. Includes current through internal 50Ω pull-up.
Parameter
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input Low Current
Condition
Min
2.0
Typ
Max
0.8
Units
V
V
µA
µA
–125
30
–300
March 2007
4
M9999-030707-D
hbwhelp@micrel.com
or (408) 955-1690
Micrel, Inc.
SY89200U
LVDS OUTPUT DC Electrical Characteristics
(7)
V
CC
= 2.5V ±5%; T
A
= –40°C to +85°C; R
L
= 100Ω across Q and /Q, unless otherwise stated.
Symbol
V
OH
V
OL
V
OUT
V
DIFF_OUT
V
OCM
∆V
OCM
Parameter
Output HIGH Voltage; (Q, /Q)
Output LOW Voltage; (Q, /Q)
Output Voltage Swing; (Q, /Q)
Differential Output Voltage Swing
|Q – /Q|
Output Common Mode Voltage
(Q, /Q)
Change in Common Mode Voltage
(Q, /Q)
0.925
250
500
1.125
–50
350
700
1.275
+50
Condition
Min
Typ
Max
1.475
Units
V
V
mV
mV
V
mV
AC Electrical Characteristics
(8)
V
CC
= 2.5V ±5%; T
A
= –40°C to +85°C; R
L
= 100Ω across all outputs (Q and /Q), unless otherwise stated.
Symbol
f
MAX
t
PD
t
RR
t
PD
Tempco
t
SKEW
Parameter
Maximum Operating Frequency
Differential Propagation Delay
Reset Recovery Time
Differential Propagation Delay
Temperature Coefficient
Within-Bank Skew
Bank-to-Bank Skew
Bank-to-Bank Skew
Part-to-Park Skew
t
JITTER
Random Jitter (RJ)
Total Jitter (TJ)
Cycle-to-Cycle Jitter
t
f
, t
f
Notes:
7. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
8. Measured with 100mV input swing. See “Timing Diagram” section for definition of parameters. High-frequency AC-parameters are guaranteed by
design and characterization.
9. Within-bank is the difference in propagation delays among the outputs within the same bank.
10. Bank-to-bank skew is the difference in propagation delays between outputs from difference banks. Bank-to-bank skew is also the phase offset
between each bank after MR is applied.
11. Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the
respective inputs.
12. RJ is measured with a K28.7 comma detect character pattern.
13. Total jitter definition: with an ideal clock input of frequency
≤f
MAX
, no more than one output edge in 10 output edges will deviate by more than the
specified peak-to-peak jitter value.
14. Cycle-to-cycle jitter definition: the variation of periods between adjacent cycles, T
n
– T
n-1
where T is the time between rising edges of the output
signal.
12
Condition
V
OUT
>200mV
IN-to-Q
/MR-to-Q
/MR(L-H)-to-(L-H)
Clock
Min
1.5
500
Typ
700
Max
900
900
900
Units
GHz
ps
ps
ps
fs/°C
115
Within same fanout bank, Note 9
Same divide setting, Note 10
Differential divide setting, Note 10
Note 11
Note 12
Note 13
Note 14
20% to 80% at full output swing
40
80
10
15
25
25
35
50
200
1
10
1
150
ps
ps
ps
ps
ps
RMS
ps
PP
ps
RMS
ps
Rise/Fall Time
March 2007
5
M9999-030707-D
hbwhelp@micrel.com
or (408) 955-1690
京公网安备 11010802033920号
EEWORLD
