CTB08-600CWPT

Description
600 V, 8 A, ALTERNISTOR TRIAC, TO-220AB
Categoryaccessories
File Size194KB,2 Pages
ManufacturerETC
Download Datasheet Parametric View All

CTB08-600CWPT Overview

600 V, 8 A, ALTERNISTOR TRIAC, TO-220AB

CTB08-600CWPT Parametric

Parameter NameAttribute value
Number of terminals3
Processing package descriptionTO-220AB, 3 PIN
Lead-freeYes
EU RoHS regulationsYes
stateTRANSFERRED
packaging shapeRECTANGULAR
Package SizeFLANGE MOUNT
Terminal formTHROUGH-HOLE
terminal coatingMATTE TIN
Terminal locationSINGLE
Packaging MaterialsPLASTIC/EPOXY
structureSINGLE
Shell connectionMAIN TERMINAL 2
Number of components1
Effective maximum current8 A
Off-state repetitive peak voltage600 V
Trigger typeALTERNISTOR TRIAC

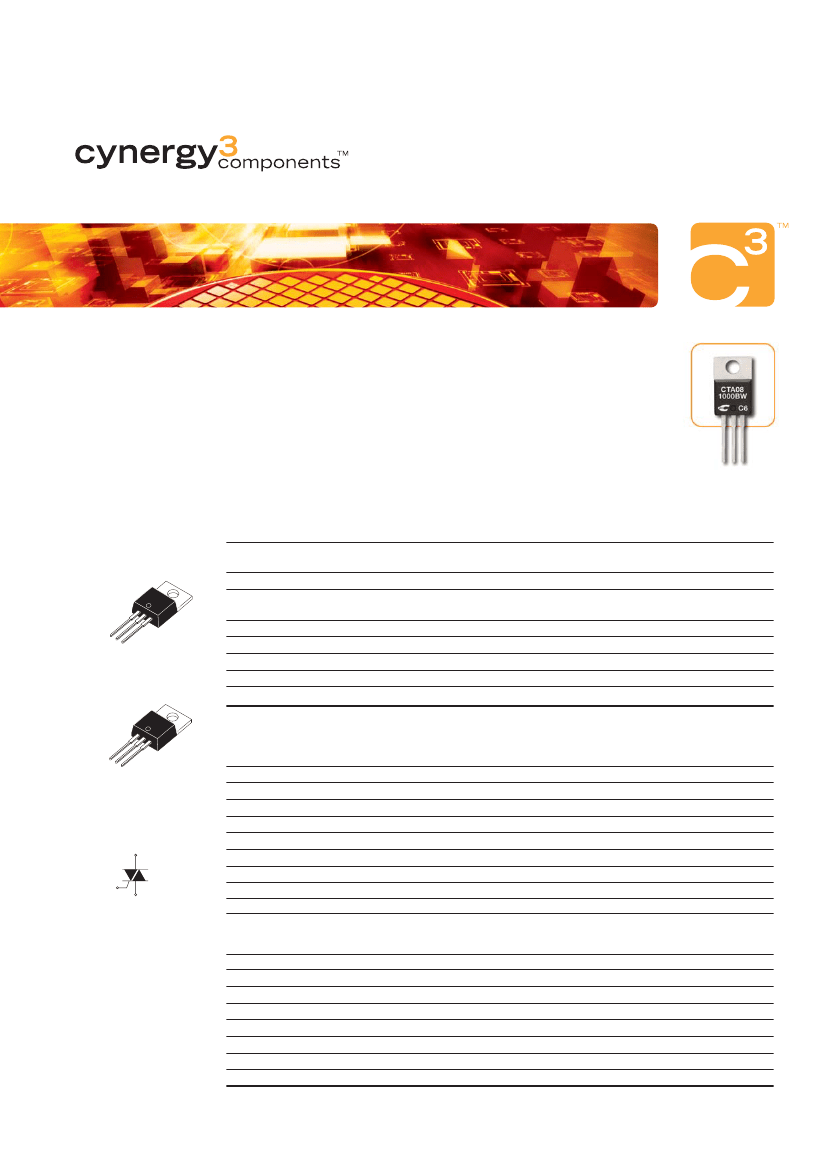

CTA/CTB 08
8Amp - 400/600/800/1000V - TRIAC
Applications
• Phase Control
• Static Switching
• Light Dimming
• Motor Speed Control
• Kitchen Equipment
• Power Tools
• Solenoid Valve Controls:
- Dishwashers
- Washing Machines
#
Suitable for General Purpose AC Switching
#
Altgernistor/No Snubber Versions for
Inductive Loads
#
Logic Level Available for Use with
Microcontrollers and Low Level Devices
#
IGT Range 5-50 mA (Q1)
#
VDRM/VRMM 400, 600, 800, 1000V
Absolute Maximum Ratings
RMS On-State Current (full sine wave)
Non Repetitive Surge Peak On-State Current
(Full Cycle, Tj Initial = 25˚C)
I
2
t Value for fusing
Critical rate of rise of on-state current
I
G
=2 x I
GT
, tr<100 ns, Tj = 125˚C
Peak Gate Current @ Tj = 125˚C
Tc = 110˚C
Tc = 100˚C
CONDITIONS
TO-220AB
TO-220AB Iso
F =50 Hz
F =60 Hz
tp = 10 ms
F =120 Hz
tp = 20 µs
SYMBOL
I
T(RMS)
I
TSM
I
2
t
di/dt
I
GM
P
G(AV)
Tstg
Tj
V
ISO
RATING
8A
80A
84A
78A
2
s
100A/µs
4A
1W
-40 to +150˚C
-40 to +125˚C
2500 V
RMS
A1
A2
G
Average Gate Power Dissipation @ Tj = 125˚C
Storage Temperature Range
Operating Junction Temperature Range
Isolation Voltage (CTA Series only)
A2
TO-220AB Isolated
(CTA08)
Electrical Characteristics
ALTERNISTOR/NO SNUBBER AND LOGIC LEVEL (3 Quadrants)
A1
A2
TW
5mA
1.3V
0.2V
10mA
SW
10mA
1.3V
0.2V
15mA
25mA
30mA
40V/µs
5.4A/ms
2.8A/ms
CW
35mA
1.3V
0.2V
35mA
50mA
60mA
400V/µs
BW
50mA
1.3V
0.2V
50mA
70mA
80mA
1000V/µs
I
GT
MAX @ V
D
=12 V, R
L
= 30Ω
G
NOTE 1
QI-II-III
QI-II-III
Tj = 125˚C
QI-II-III
V
GT
MAX @ V
D
=12 V, R
L
= 30Ω
V
GD
MIN @ V
D
=V
DRM
, R
L
= 3.3kΩ
I
H
MAX @ I
T
= 500 mA
NOTE 2
I
L
MAX @ I
G
= 1.2 I
GT
A2
TO-220AB Non-Isolated
(CTB08)
QI-III
Q-II
NOTE 2
10mA
15mA
20V/µs
3.5A/ms
1.5A/ms
I
L
MAX @ I
G
= 1.2 I
GT
dv/dt MIN @ VD = 67%V
DRM
(gate open)
(di/dt)c MIN @ (dv/dt)c = 0.1 V/ms
(di/dt)c MIN @ (dv/dt)c = 10 V/ms
NOTE 2
Tj = 125˚C
Tj = 125˚C
Tj = 125˚C
Tj = 125˚C
NOTE 2
G
A1
(di/dt)c MIN without Snubber
NOTE 2 & 4
STANDARD (4 Quadrants)
I
GT
MAX @ V
D
=12 V, R
L
= 30Ω
I
GT
MAX @ V
D
=12 V, R
L
= 30Ω
V
GT
MAX @ V
D
=12 V, R
L
= 30Ω
V
GD
MIN @ V
D
=V
DRM
, R
L
= 3.3kΩ
I
H
MAX @ I
T
= 500 mA
NOTE 2
I
L
MAX @ I
G
= 1.2 I
GT
I
L
MAX @ I
G
= 1.2 I
GT
dv/dt MIN @ VD = 67%V
DRM
(gate open)
(dv/dt)c MIN @ (di/dt)c = 3.5 A/ms
NOTE 2
NOTE 1
NOTE 1
4.5A/ms
C
QI-II-III
QIV
Q-All
25mA
50mA
1.3V
0.2V
25mA
QI-III-IV
Q-II
40mA
80mA
200V/µs
5V/µs
50mA
50mA
100mA
400V/µs
10V/µs
B
50mA
100mA
7A/ms
Tj = 125˚C
Q-All
Tj = 125˚C
Tj = 125˚C
NOTE 4
GENERAL NOTES
ISO
9001
C E R T I F I E D
1.
2.
3.
4.
Minimum IGT is guaranted at 5% of IGT max.
For both polarities of A2 referenced to A1
All parameters at 25 degrees C unless otherwise specified.
Commutating dv/dt=50V.µsec (exponential to 200Vpk)
Competitive part number cross-reference available at:
www.cynergy3.com
