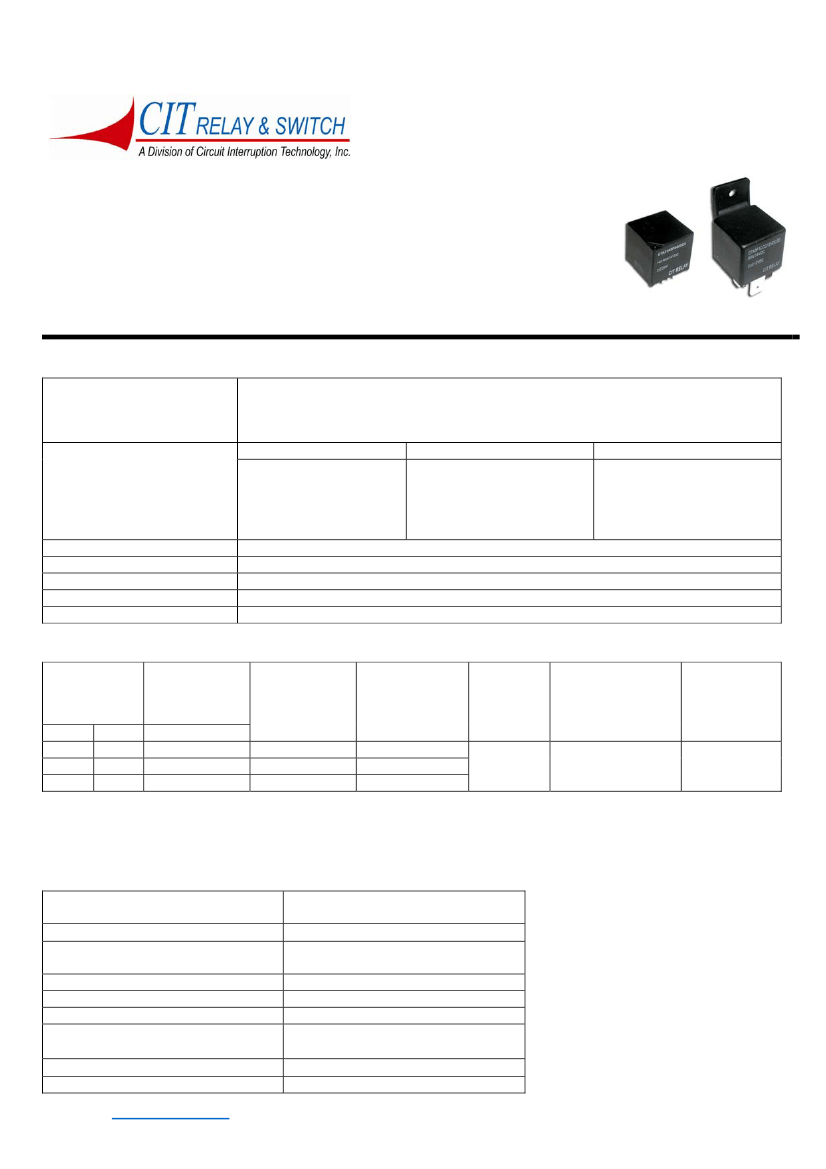

CTA3

FEATURES:

•

Large switching capacity up to 80A

•

Small size and light weight

•

PCB pin and quick connect mounting available

•

Suitable for automobile and lamp accessories

•

QS-9000, ISO-9002 Certified Manufacturing

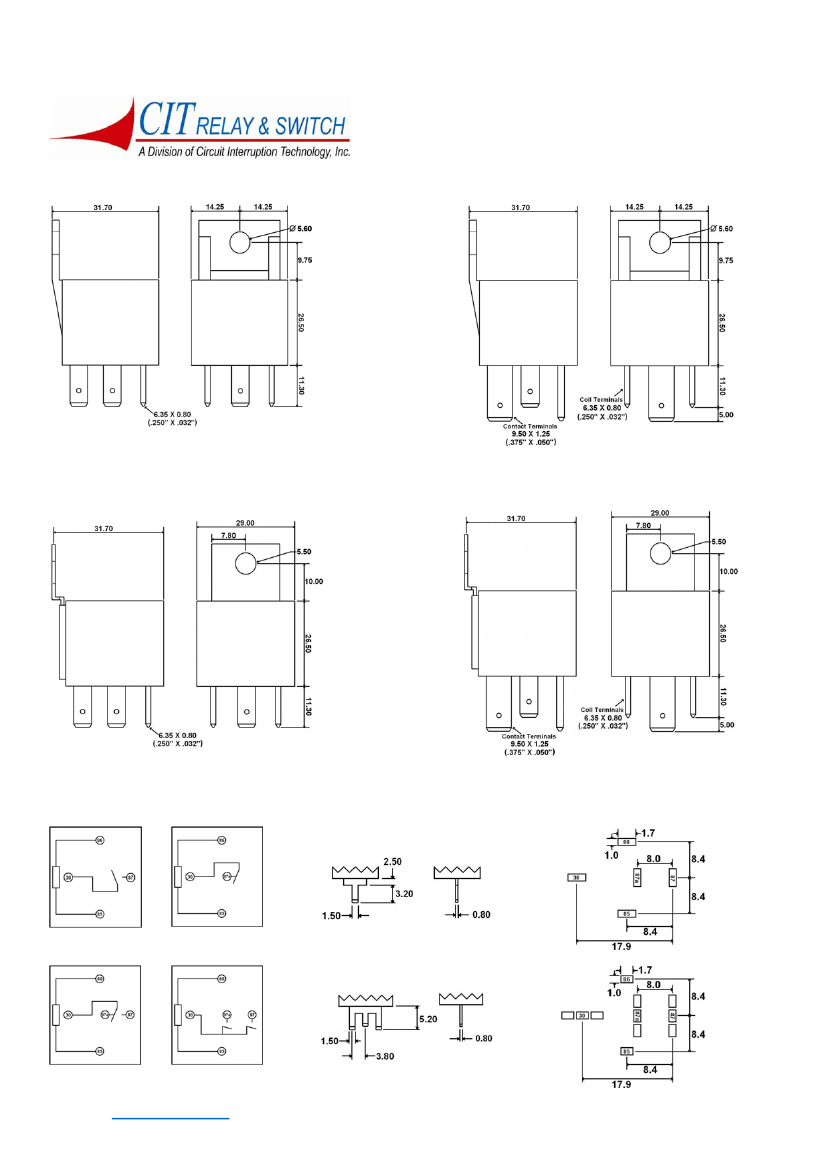

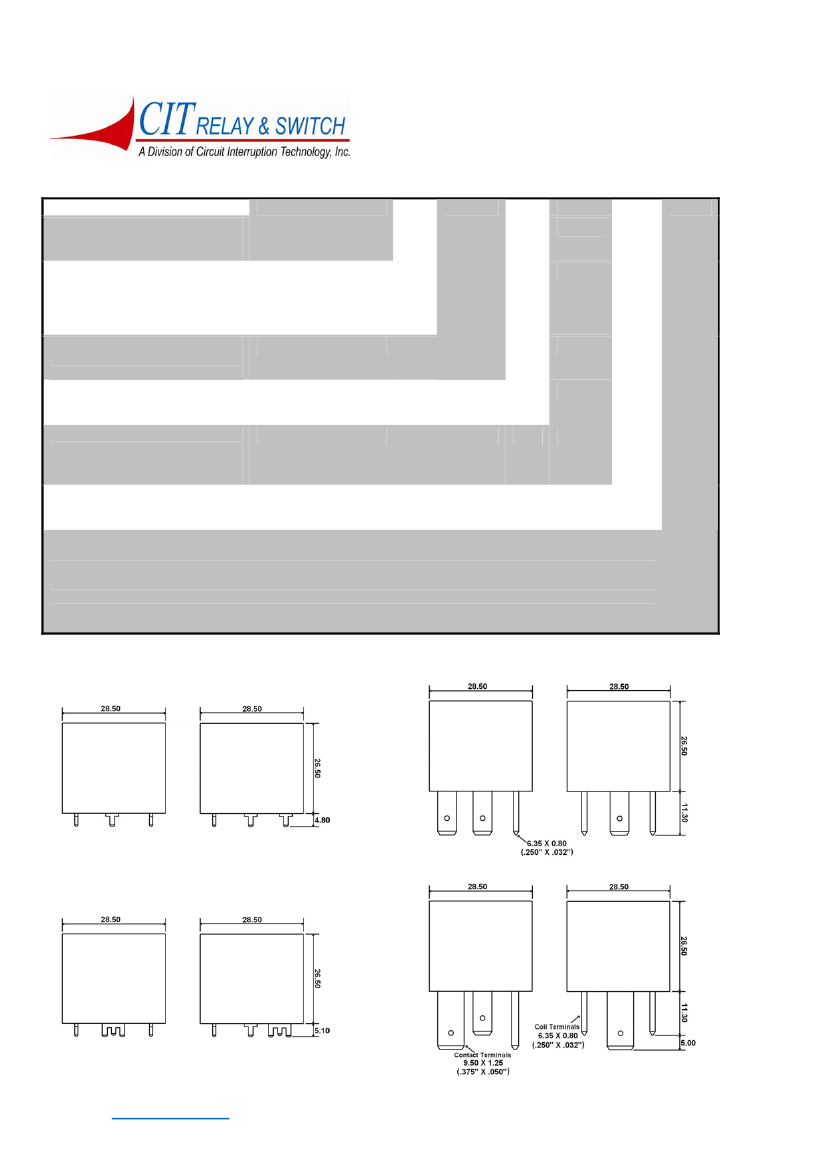

28.5 x 28.5 x 26.5 (40.0) mm

CONTACT DATA

Contact Arrangement

1A = SPST N.O.

1B = SPST N.C.

1C = SPDT

1U = SPST N.O. (2 terminals)

Contact Configuration

Standard

60A @ 14VDC

40A @ 14VDC

60A @ 14VDC N.O.

40A @ 14VDC N.C.

2x25A @ 14VDC

< 30 milliohms initial

AgSnO

980W

75VDC

80A

Contact Rating

Heavy Duty

80A @ 14VDC

70A @ 14VDC

80A @ 14VDC N.O.

70A @ 14VDC N.C.

2x25A @ 14VDC

Contact Resistance

Contact Material

Maximum Switching Power

Maximum Switching Voltage

Maximum Switching Current

COIL DATA

Coil Voltage

VDC

Coil Resistance

Ω ±

10%

Pick Up Voltage

VDC (max)

75%

of rated voltage

Release Voltage

VDC (min)

10%

of rated voltage

Coil Power

Operate Time

Release Time

Rated

Max.

7.8

15.6

31.2

1.8W

320

4.2

8.4

16.8

0.6

1.2

2.4

1.8

CAUTION:

1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.

2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.

GENERAL DATA

Electrical Life @ rated load

Mechanical Life

Insulation Resistance

Dielectric Strength, Coil to Contact

Contact to Contact

Shock Resistance

Vibration Resistance

Terminal (Copper Alloy) Strength

Operating Temperature

Storage Temperature

Solderability

Weight

100K cycles, typical

10M cycles, typical

100MΩ min @ 500VDC

500V rms min. @ sea level

147m/s

for 11ms

1.5mm double amplitude 10-40Hz

8N (Quick Connect), 4N (PCB Pins)

-40

°C

to + 85

°C

-40

°C

to + 155

°C

230

°C ±

°C

for 10

0.5s

46g
