590CA25M0000DGR datasheet, PDF

Datasheet> All Categories > Passive components> 590CA25M0000DGR

590CA25M0000DGR: DescriptionStandard Clock Oscillators Single Frequency XO, OE Pin 2 (OE Pin 1 CMOS); CategoryPassive components; File Size416KB，16 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric Compare View All

590CA25M0000DGR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	590CA25M0000DGR	-	-	View	Buy Now

590CA25M0000DGR Overview

Standard Clock Oscillators Single Frequency XO, OE Pin 2 (OE Pin 1 CMOS)

590CA25M0000DGR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Silicon Laboratories
Product Category	Standard Clock Oscillators
Frequency	25 MHz
Frequency Stability	100 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.3 V
Supply Voltage - Min	2.97 V
Supply Voltage - Max	3.63 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7 mm
Width	5 mm
Height	1.65 mm
Packaging	Box
Current Rating	80 mA
Type	Crystal Oscillator
Duty Cycle - Max	55 %

Preview

Download Datasheet

View All

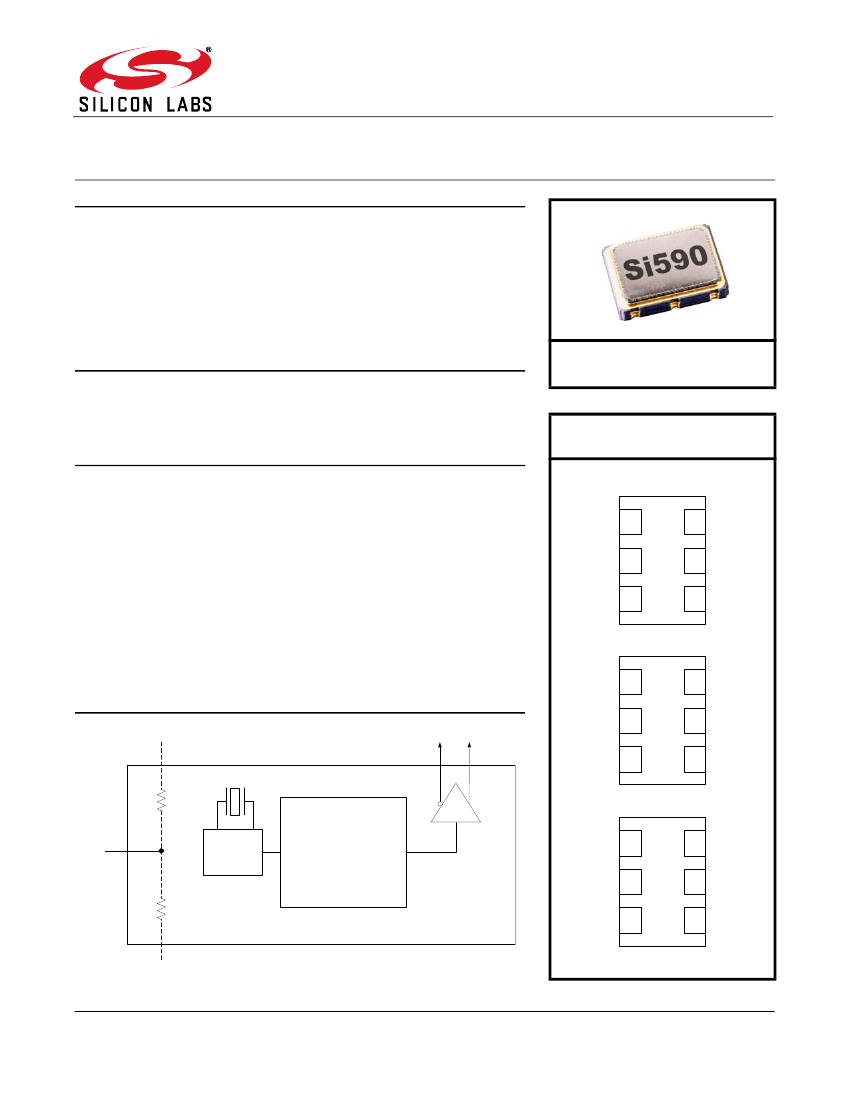

S i 5 9 0 / 5 91

1 ps M

I T T E R

RYSTAL

SC ILLA TOR

(XO)

(10 M H

Z TO

810 MH

)

Features

Available with any-frequency output



frequencies from 10 to 810 MHz



3rd generation DSPLL

with superior



jitter performance: 1 ps max jitter



Better frequency stability than SAW-



based oscillators



Internal fundamental mode crystal

ensures high reliability



Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry Standard 5x7 and

3.2x5 mm packages

Pb-free/RoHS-compliant

–40 to +85 ºC operating

temperature range

Si5602

Applications



Ordering Information:

See page 8.



SONET/SDH (OC-3/12/48)



Networking



SD/HD SDI/3G SDI video

Test and measurement



Storage



FPGA/ASIC clock generation

Description

The Si590/591 XO utilizes Silicon Laboratories’ advanced DSPLL

circuitry

to provide a low jitter clock at high frequencies. The Si590/591 supports any

frequency from 10 to 810 MHz. Unlike a traditional XO, where a unique

crystal is required for each output frequency, the Si590/591 uses one fixed

crystal to provide a wide range of output frequencies. This IC based

approach allows the crystal resonator to provide exceptional frequency

stability and reliability. In addition, DSPLL clock synthesis provides superior

supply noise rejection, simplifying the task of generating low jitter clocks in

noisy environments typically found in communication systems. The

Si590/591 IC based XO is factory configurable for a wide variety of user

specifications including frequency, supply voltage, output format, and

stability. Specific configurations are factory programmed at time of shipment,

thereby eliminating long lead times associated with custom oscillators.

Pin Assignments:

See page 7.

(Top View)

CLK–

GND

CLK+

Si590 (LVDS/LVPECL/CML)

Functional Block Diagram

CLK– CLK+

GND

CLK

17 k



Any-rate

10–810 MHz

DSPLL

Clock

Synthesis

Si590 (CMOS)

Fixed

Frequency

CLK–

17 k



GND

CLK+

GND

*Note: Output Enable High/Low Options Available – See Ordering Information

Si591 (LVDS/LVPECL/CML)

Rev. 1.2 6/18

Si590/591

590CA25M0000DGR Related Products

	590CA25M0000DGR	591AA106M250DG	591NC156M250DGR	590AC500M000DGR
Description	Standard Clock Oscillators Single Frequency XO, OE Pin 2 (OE Pin 1 CMOS)	Standard Clock Oscillators Single Frequency XO, OE Pin 1	Standard Clock Oscillators Single Frequency XO, OE Pin 1	Standard Clock Oscillators Single Frequency XO, OE Pin 2 (OE Pin 1 CMOS)
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories
Product Category	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators
Frequency	25 MHz	106.25 MHz	156.25 MHz	500 MHz
Frequency Stability	100 PPM	100 PPM	30 PPM	30 PPM
Load Capacitance	15 pF	15 pF	15 pF	15 pF
Operating Supply Voltage	3.3 V	3.3 V	3.3 V	3.3 V
Supply Voltage - Min	2.97 V	2.97 V	2.97 V	2.97 V
Supply Voltage - Max	3.63 V	3.63 V	3.63 V	3.63 V
Output Format	CMOS	LVPECL	LVDS	LVPECL
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm	7 mm x 5 mm
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Length	7 mm	7 mm	7 mm	7 mm
Width	5 mm	5 mm	5 mm	5 mm
Height	1.65 mm	1.65 mm	1.65 mm	1.65 mm
Packaging	Box	Tray	Box	Box
Current Rating	80 mA	110 mA	90 mA	110 mA
Type	Crystal Oscillator	Crystal Oscillator	Crystal Oscillator	Crystal Oscillator
Duty Cycle - Max	55 %	55 %	55 %	55 %
