500DCAA75M0000ACF

Description
Standard Clock Oscillators Silicon Osc; Diff; 0.9-200 MHz
CategoryPassive components
File Size1MB,8 Pages
ManufacturerSilicon Laboratories
Download Datasheet Parametric View All

500DCAA75M0000ACF Online Shopping

Suppliers Part Number Price MOQ In stock
500DCAA75M0000ACF - - View Buy Now

500DCAA75M0000ACF Overview

Standard Clock Oscillators Silicon Osc; Diff; 0.9-200 MHz

500DCAA75M0000ACF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerSilicon Laboratories
Product CategoryStandard Clock Oscillators
Frequency75 MHz
Frequency Stability150 PPM
Load Capacitance15 pF
Operating Supply Voltage3.3 V
Supply Voltage - Min2.97 V
Supply Voltage - Max3.63 V
Output FormatLVDS
Termination StyleSMD/SMT
Package / Case3.2 mm x 4 mm
Minimum Operating Temperature0 C
Maximum Operating Temperature+ 70 C
Length4 mm
Width3.2 mm
Height0.85 mm
PackagingTape
Current Rating14.9 mA

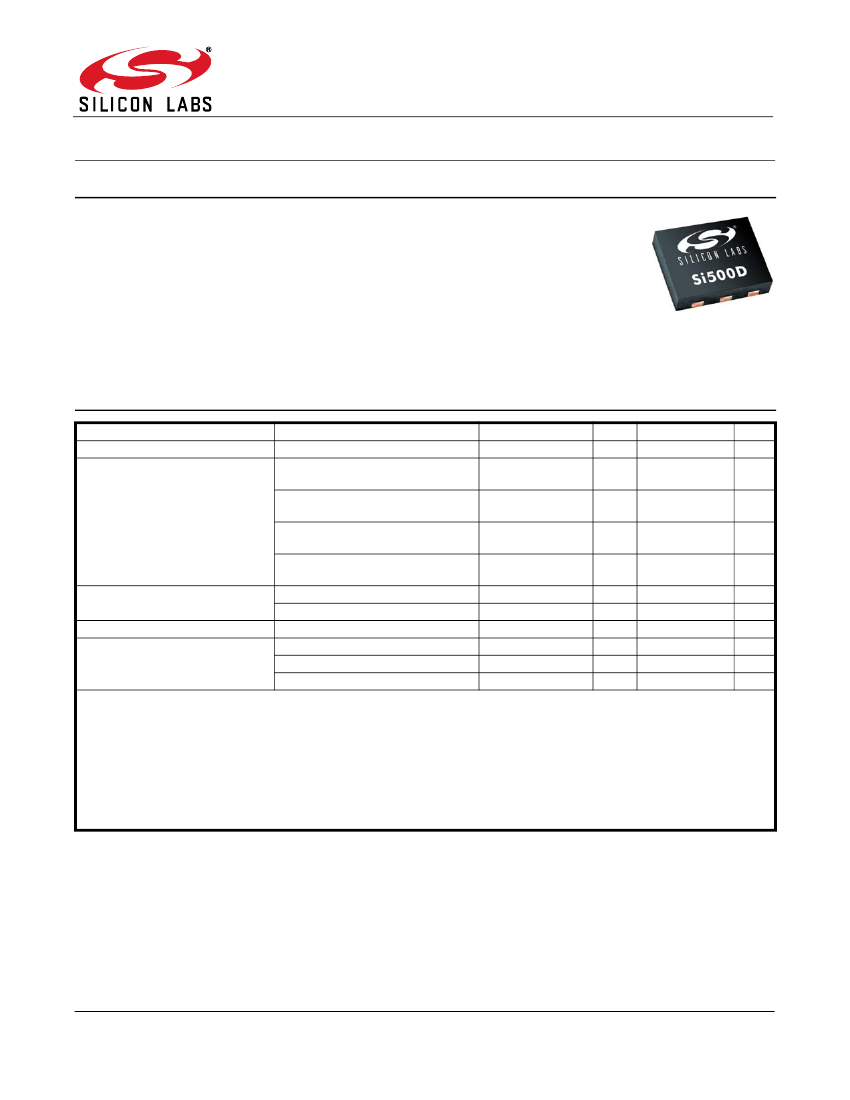

Si500D
D
IFFERENTIAL
O
UTPUT
S
I L I C O N
O
SCILLATOR
Features
Quartz-free, MEMS-free, and PLL-free all-silicon
oscillator
Any output frequencies from 0.9 to 200 MHz
Short lead times
Excellent temperature stability (±20 ppm)
Highly reliable startup and operation
High immunity to shock and vibration
Low jitter: <1.5 ps rms
0 to 85 °C operation includes 10-year aging in hot
environments
Footprint compatible with industry-
standard 3.2 x 5.0 mm XOs
CMOS, SSTL, LVPECL, LVDS, and HCSL
versions available
Driver stopped, tri-state, or powerdown
operation
RoHS compliant
1.8, 2.5, or 3.3 V options
Low power
More than 10x better fit rate than
competing crystal solutions
Specifications
Parameters
Frequency Range
Temperature stability,
0 to +70 °C
Temperature stability,
0 to +85 °C
Total stability,
0 to +70 °C operation
1
Total stability,
0 to +85 °C operation
2
Commercial
Extended commercial
1.8 V option
2.5 V option
3.3 V option
Condition
Min
0.9
0
0
–55
1.71
2.25
2.97
Typ
±10
±20
Max
200
±150
±250
70
85
+125
1.98
2.75
3.63
Units
MHz
ppm
ppm
ppm
ppm
°C
°C
°C
V
V
V
Frequency Stability
Operating Temperature
Storage Temperature
Supply Voltage
Notes:
1.
Inclusive of 25 °C initial frequency accuracy, operating temperature range, supply voltage change, output load change,
first-year aging at 25 °C, shock, vibration, and one solder reflow.
2.
Inclusive of 25 °C initial frequency accuracy, operating temperature range, supply voltage change, output load change,
ten-year aging at 85 °C, shock, vibration, and one solder reflow.
3.
See “AN409: Output Termination Options for the Si500S and Si500D Silicon Oscillators” for further details regarding
output clock termination recommendations.
4.
V
TT
= .5 x V
DD
.
5.
V
TT
= .45 x V
DD
.
Rev. 1.1 10/11
Copyright © 2011 by Silicon Laboratories
Si500D
