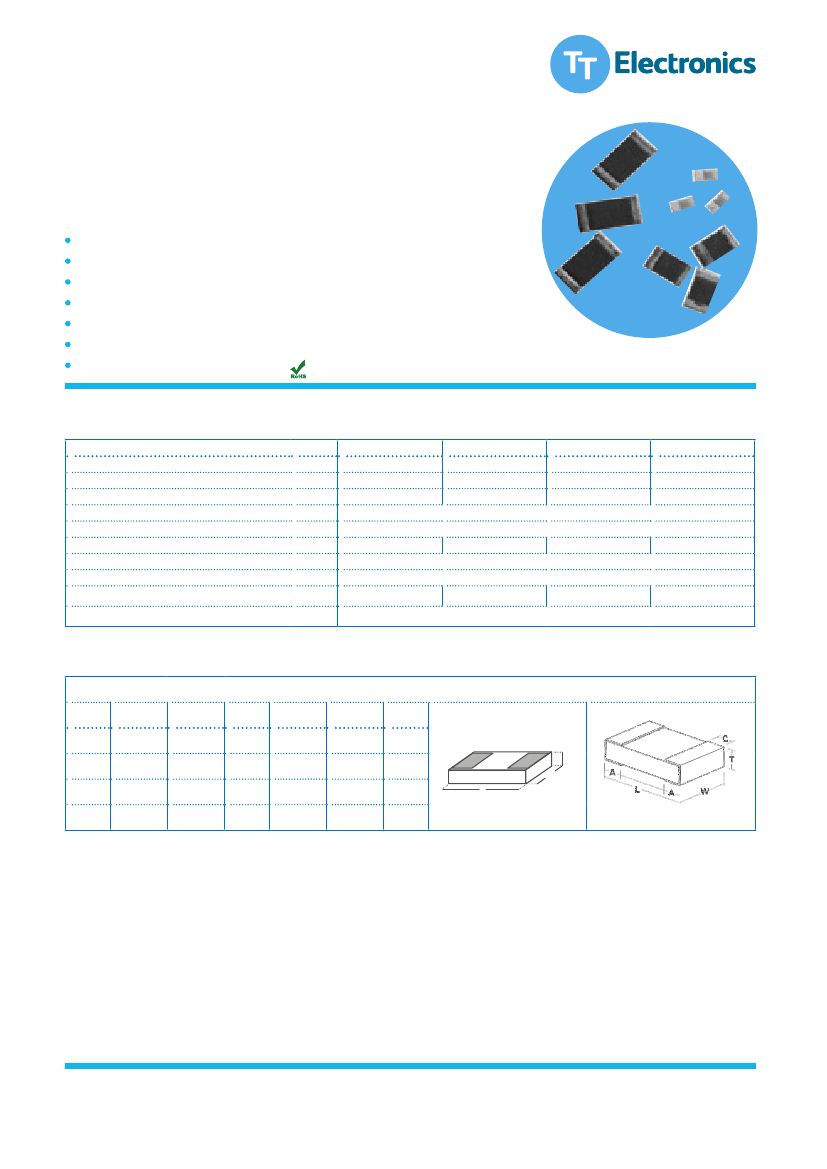

Resistors
High Temperature
Chip Resistor
HTCR Series
High temperature operation to 250°C
For gold wire bond (G type)
For conductive adhesive (G, P & E types)
For soldering (F type)
Non-magnetic (G, P & E types)
Range 0805 to 2512 at 1R0 to 10M
RoHS compliant
All parts are Pb-free and comply with EU Directive 2011/65/EU amended by (EU) 2015/863 (RoHS3)
Electrical Data
Size
Power @230°C (G&P only)
Power @155°C
Power @70°C
Resistance range
Tolerance
LEV
TCR
Operating temperature
Thermal Impedance
Values
W
W
W
ohms
%
V
ppm/°C
°C
°C/W
0805
0.063
0.1
0.125
1206
0.125
0.2
0.25
1R0 to 10M
1, 5
150
200
400
500
<10R:200 ≥10R:100
F type -55 to +200, E type -55 to +225, G&P type -55 to +250
160
75
40
E24 or E96 preferred - other values to special order
2010
0.25
0.5
0.625
2512
0.5
0.75
1
220
Physical Data
(All dimensions in mm and nominal weight in g)
Dimensions (mm) & weight (mg)
L
0805
1206
2010
2512
2.0±0.15
3.2±0.2
5.1±0.3
6.5±0.3
W
1.25±0.15
1.6±0.2
2.5±0.2
3.2±0.2
T max
0.6
0.7
0.8
0.8
A
0.3±0.15
0.4±0.2
0.6±0.3
0.6±0.3
C
0.3±0.1
0.4±0.15
0.6±0.25
0.6±0.25
Wt.
4.7
8.5
36
55
L
Wrap-around terminations
(3 faces)
G & P types
E & F types
T
W
Construction
Planar gold G type or PtAg P types: Electrodes, resistor material and overglaze are printed onto an alumina substrate. The resistors are
laser trimmed to the required value and protected. The gold terminations are suitable for wire bonding and both types are suitable for
attachment with conductive adhesive. Wraparound E type: Thick-film PtAg electrodes, resistor material and overglaze are printed onto an
alumina substrate. The resistors are laser trimmed to the required value and protected. The terminations are wraparound coated with a
polymer Ag material and are suitable for attachment with conductive adhesive. Wraparound F type: These are made as the E type then
plated with a nickel barrier and 100% tin plating and are suitable for soldering.
Marking
The components are not marked; all data is printed onto the packaging.
Solvent Resistance
General Note
The component is resistant to all normal industrial cleaning solvents suitable for printed circuits.
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
07.18
High Temperature
Chip Resistor
HTCR Series
Performance Data
Load at rated power (1000hrs at 155°C and 70°C)
Derating from rated power at 70°C
Short term overload
Dry heat (1000hrs at 250°C)
Damp heat steady state (56 days, 40°C, ≥90% RH)
Climatic
Temperature rapid change (5 cycles -55°C to +250°C)
ΔR
ΔR
ΔR
ΔR
ΔR
ΔR
Maximum
2% + 0.01Ω
See Derating Curves below
1% + 0.01Ω
2% + 0.01Ω
1% + 0.01Ω
1% + 0.01Ω
1% + 0.01Ω
Derating Curves
P/Pr
100%
75%
50%
G & P Types
P/Pr
100%
75%
E Type
P/Pr
100%
75%
F Type
0
70
155
230 250
0
70
155
225
0
70
155
200
Ambient temperature degC
Packaging
0805 and 1206 HTCR series resistors are supplied on 8mm carrier tape and 7 inch reels as per IEC 286-3, quantity
per reel; 3000.
2010 and 2512 HTCR series resistors are supplied on 12mm carrier tape and 7 inch reels as per IEC 286-3,
quantity per reel; 2010: 3000pcs; 2512: 1800pcs.
Ordering Procedure
Type
Terminations
G
P
E
F
Example: HTCR1206 in gold planar format at 10 kilohms and 1% tolerance packed in tape.
HTCR1206G–10KFT3
Gold planar
PtAg planar
Polymer Ag wraparound
Ni Barrier & Sn plated wraparound
Wire bond / adhesive
Adhesive
Adhesive
Solder
Value (use IEC62 code)
Tolerance (use IEC62 code)
F
J
1%
5%
Packing
T3
T18
Tape
0805, 1206, 2010
2512
up to 3000/reel
up to 1800/reel
Standard
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
07.18
