BB-SMI6-12-V-P5 datasheet, PDF

Datasheet> All Categories > Power/power management> BB-SMI6-12-V-P5

BB-SMI6-12-V-P5: DescriptionWall Mount AC Adapters PS,WW,12DC,6W,0.5A,2.1X9.5MM,INT KIT; CategoryPower/power management; File Size615KB，2 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric Compare View All

BB-SMI6-12-V-P5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BB-SMI6-12-V-P5	-	-	View	Buy Now

BB-SMI6-12-V-P5 Overview

Wall Mount AC Adapters PS,WW,12DC,6W,0.5A,2.1X9.5MM,INT KIT

BB-SMI6-12-V-P5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	B+B SmartWorx
Product Category	Wall Mount AC Adapters
RoHS	Details
Product	Interchangeable Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	6 W
Output Voltage-Channel 1	0.5 A
Output Current-Channel 1	12 V
Industry	Commercial
DC Output Cord Length	1530 mm
Efficiency	Level VI
Mounting Style	Wall Mount
Load Regulation	Regulated
Maximum Operating Temperature	+ 40 C
Minimum Operating Temperature	0 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

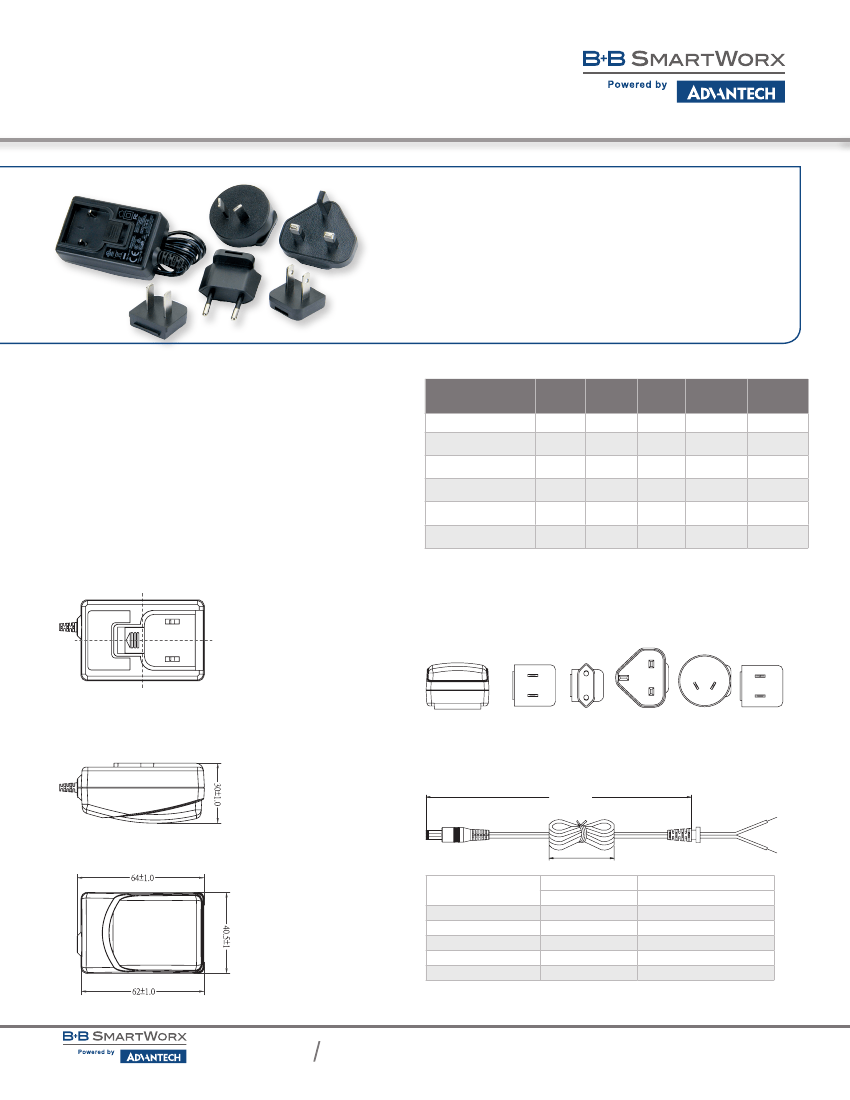

AC-DC Power Supplies - 6W

Models: BB-SMi6-12-V-P230-C1, BB-SMi6-12-V-P230R-C1,

BB-SMi6-12-V-P5, BB-SMi6-12-V-P6, BB-SMi6-12-V-ST, BB-SMi6-5V-P5

www.advantech-bb.com

DOE Level VI, CEC, ErP Stage 2 Energy Efficiency

Universal Input Voltage Range – 90 to 264V AC

Up to 6 Watt Continuous Output Power

Single Regulated Output Range –5 to 15V AC

Interchangeable, International AC Input Blades (kit included)

(North America, Europe, UK, Australia, China)

Over-voltage, Short circuit Protection

Custom Design Options Available

BB-SMi6-12-V-P5

OVERVIEW

The BB-SMi6-x series is a 6 W wall plug-in AC-DC power supply with

interchangeable AC blades. The series is designed to meet the latest

US DoE Level VI efficiency standards in addition to the proposed and

more stringent EU CoC Tier 2 requirements. Designed for global use,

BB-SMi6-x adapters include plug options for North America, Europe,

United Kingdom, Australia and China. This high efficiency power

supply utilizes the latest in green power technology.

ORDERING INFORMATION

MODEL NUMBER

BB-SMi6-12-V-P230-C1

BB-SMi6-12-V-P230R-C1

BB-SMi6-12-V-P5

BB-SMi6-12-V-P6

BB-SMi6-12-V-ST

BB-SMi6-5-V-P5

OUTPUT OUTPUT OUTPUT RIPPLE &

VOLTAGE CURRENT POWER

NOISE

(V DC)

(A, max) (W, max) (mVp-p, max)

0.5

200

0.5

1.2

200

150

OUTPUT

PLUG

Jack

Jack,

Right Angle

Standard DC

Straight Plug

Standard DC

Straight Plug

Stripped &

Tinned

Standard DC

Straight Plug

MECHANICAL DRAWING - POWER SUPPLY

Units = mm

1. At full load, 100-240V AC input, 20 MHz bandwidth.

2. ErP Tier 2 Compliant

MECHANICAL DRAWING - AC INPUT BLADE OPTIONS

Units = mm

EMS-US

EMS-EU

EMS-UK

EMS-AU

EMS-CC

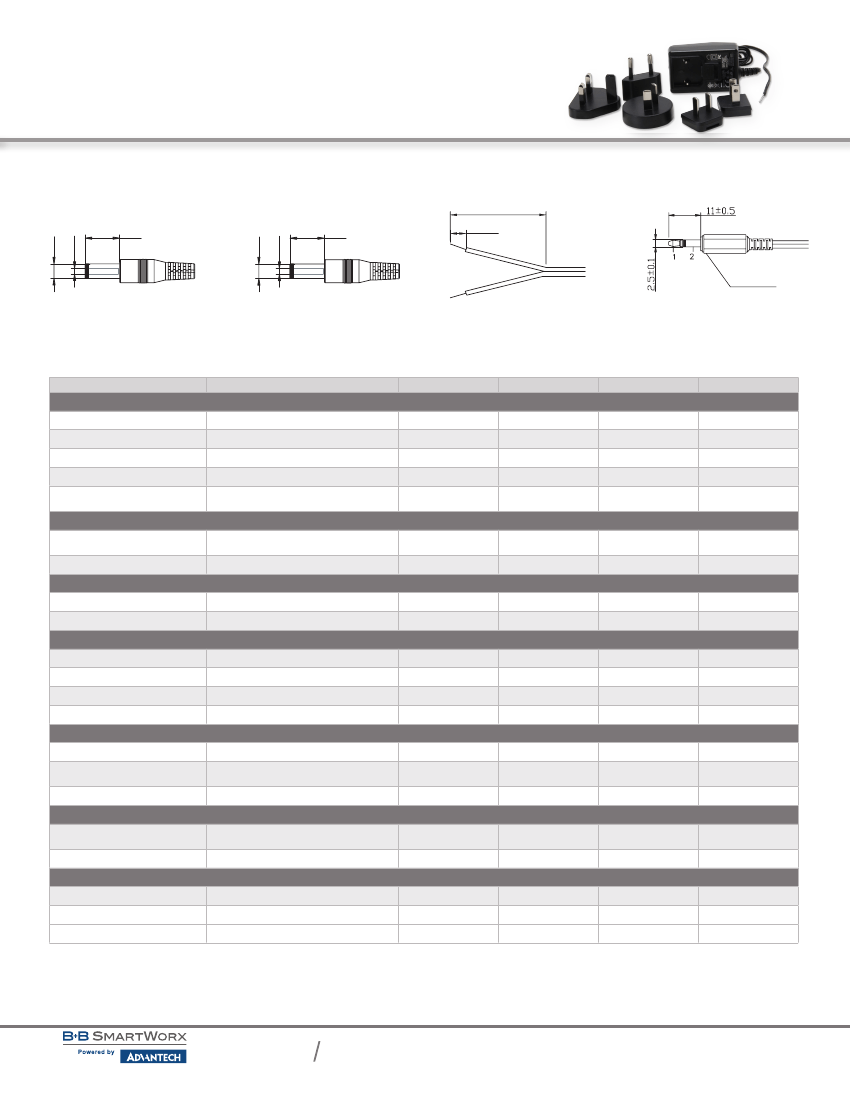

MECHANICAL DRAWING - DC CORD

Units = mm

units: mm

cord length

70±10

Model No.

BB-SMi6-12-V-P230-C1

BB-SMi6-12-V-P230R-C1

BB-SMi6-12-V-P5

BB-SMi6-12-V-P6

BB-SMi6-12-V-ST

BB-SMi6-5-V-P5

Cable

UL2468, 22 AWG

UL2468, 20 AWG

UL2468, 22 AWG

UL2468, 20 AWG

Cord Length

1,530 mm ± 100

All product specifications are subject to change without notice.

BB-SMi6-x_PowerSupplies_4117ds

orders@advantech-bb.com

support@advantech-bb.com

Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
