Halogen and Antimony Free. “Green” Device (Note 3)
Description and Applications
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Power Management Functions
Battery Operated Systems and Solid-State Relays
Load Switch
Mechanical Data

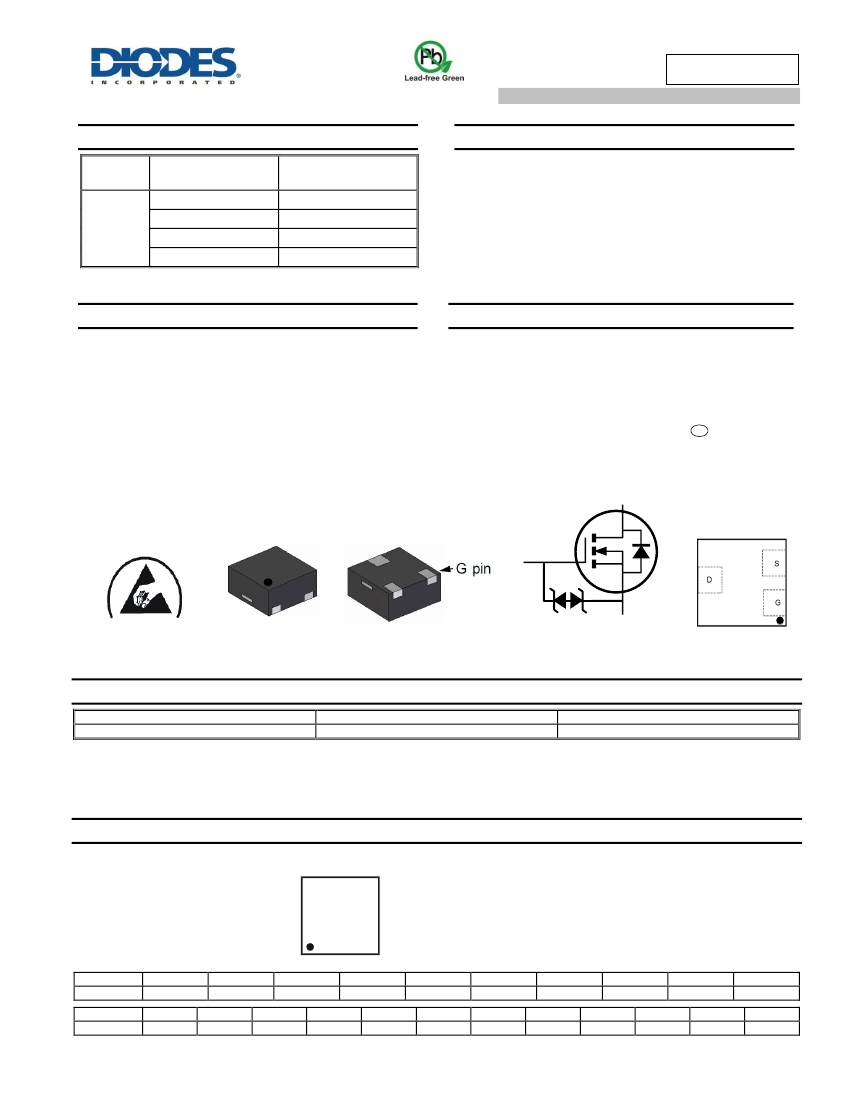

Case: X1-DFN1212-3
Case Material: Molded Plastic; UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper
Solderable per MIL-STD-202, Method 208
e4
Terminal Connections: See Diagram
Weight: 0.005 grams (Approximate)
Leadframe;
D
G
ESD PROTECTED
Top View
Bottom View
Gate Protection
Diode
S
Pin-out Top View
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMN2450UFD-7
Notes:
Case
X1-DFN1212-3
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

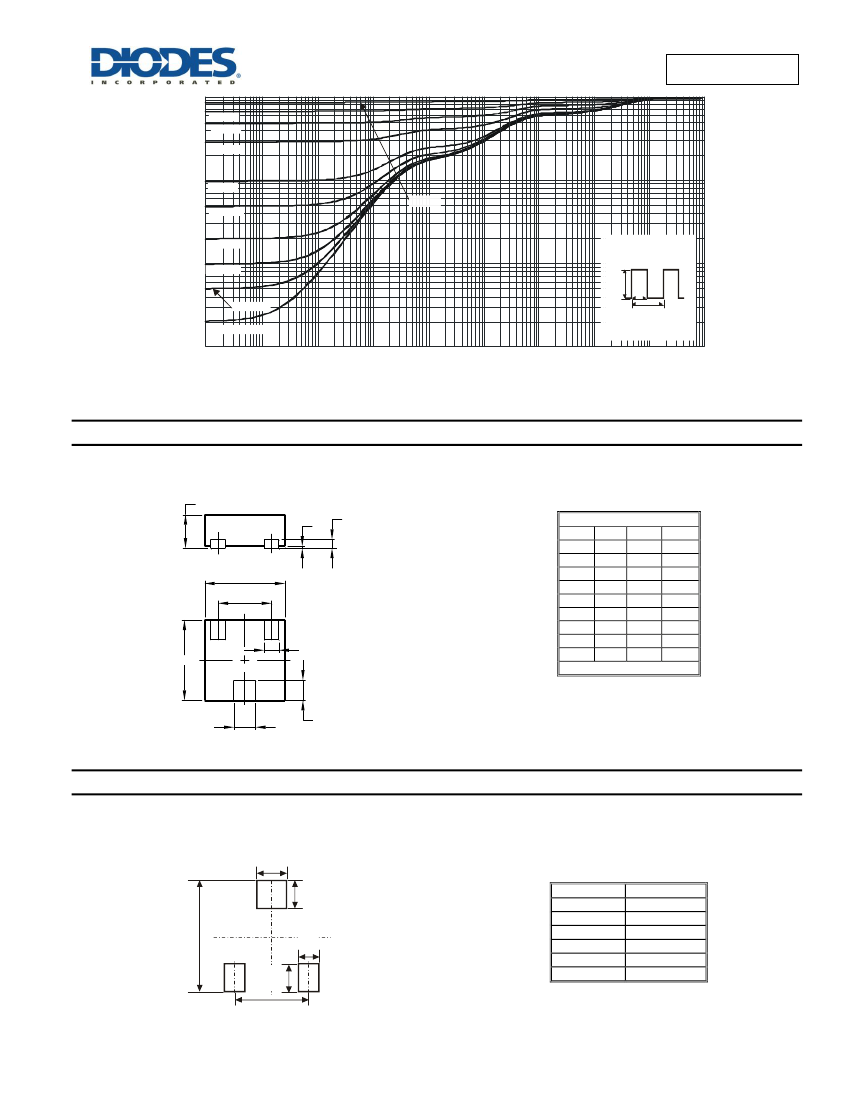

4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
