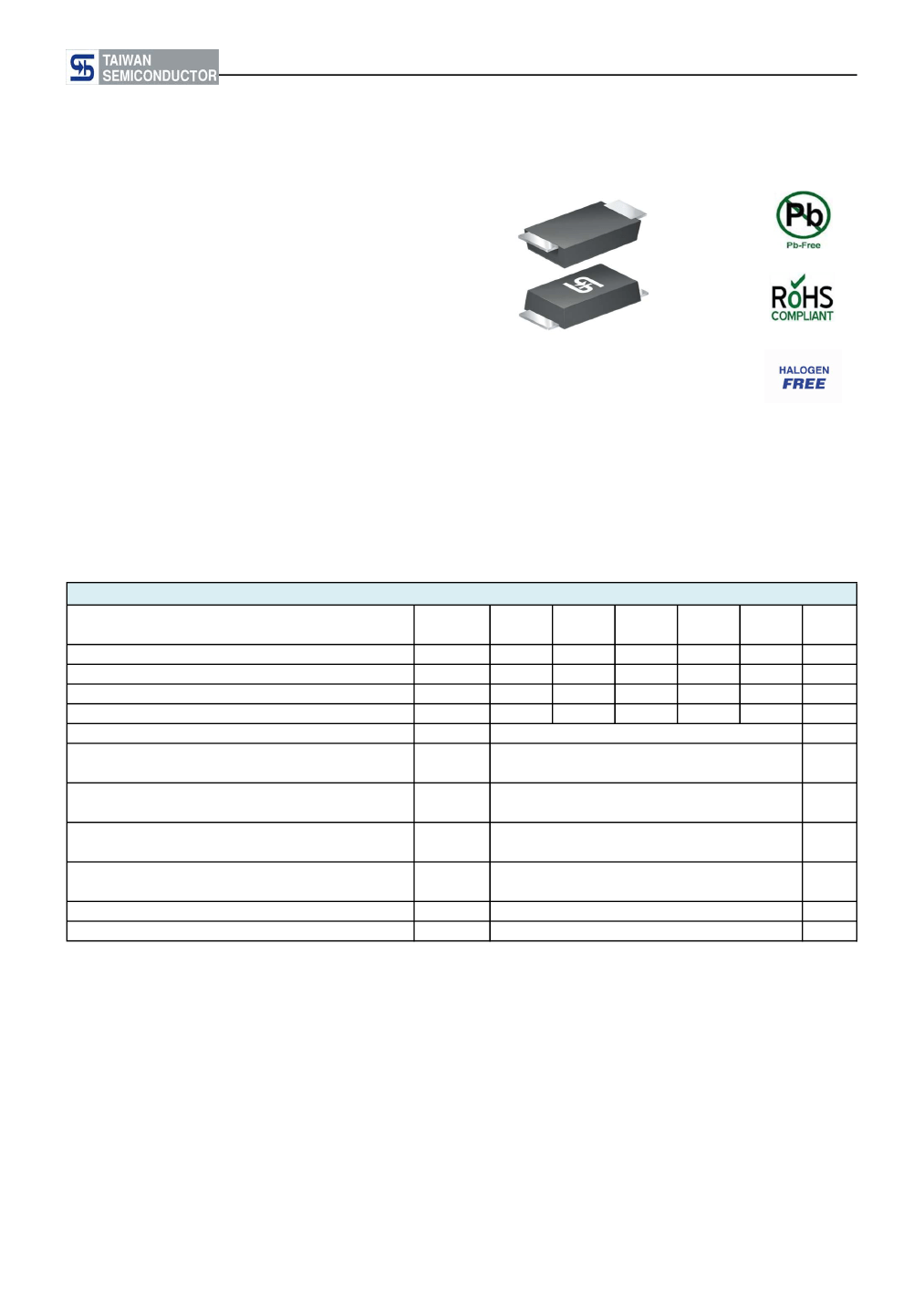

S1DLW - S1MLW
Taiwan Semiconductor
CREAT BY ART
1A, 200V - 1000V Surface Mount Rectifiers
FEATURES
- Ideal for automated placement
- Compact package size
- High surge current capability
- Low power loss, high efficiency
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
SOD-123W
MECHANICAL DATA
Case:
SOD-123W
Molding compound: UL flammability classification rating 94V-0
Moisture sensitivity level (MSL): level 1, per J-STD-020
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
19 mg (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
SYMBOL
S1DLW
1DLW
200
140
200
S1GLW
1GLW
400
280
400
S1JLW
1JLW
600
420
600
1
30
1.1
1
150
25
80
- 55 to +175
- 55 to +175
S1KLW
1KLW
800
560
800
S1MLW
1MLW
1000
700
1000
V
V
V
A
A
V
μA
°C/W
°C
°C
UNIT
Version: A1512
S1DLW - S1MLW
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
S1xLW
(Note 1, 2)
PART NO.
SUFFIX
H
PACKING CODE
RV
RQ
PACKING CODE
SUFFIX
G
SOD-123W
3,000 / 7" Plastic reel
10,000 / 13" Paper reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 200V (S1DLW) to 1000V (S1MLW)
Note 2: Whole series with green compound (halogen-free)
EXAMPLE
EXAMPLE P/N
S1JLWHRVG
PART NO.
S1JLW
PART NO.
SUFFIX
H
PACKING CODE
RV
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

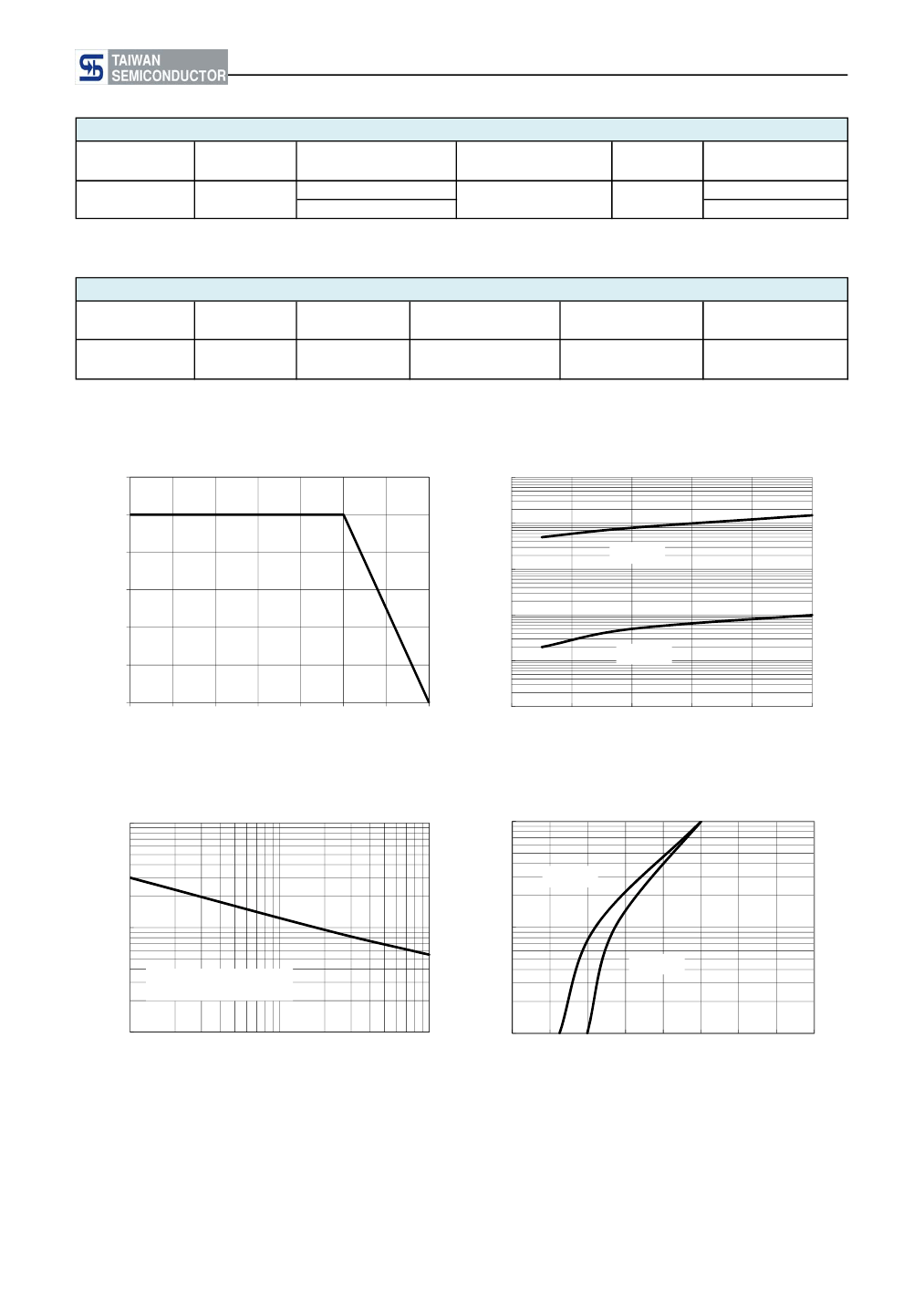

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
1.2
1
0.8
0.6
0.4
0.2
0
0
AVERAGE FORWARD CURRENT (A)
10
T
J
=125°C
1
0.1
0.01
T
J
=25°C
25
50
75
100
125
150
175
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
LEAD TEMPERATURE (°C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
100
10
FIG. 4 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT(A)
T
J
=125°C
10
1
T
J
=25°C
8.3ms single half sine wave
1
1
10
100
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
NUMBER OF CYCLES AT 60 Hz
FORWARD VOLTAGE (V)
Version: A1512
S1DLW - S1MLW
Taiwan Semiconductor

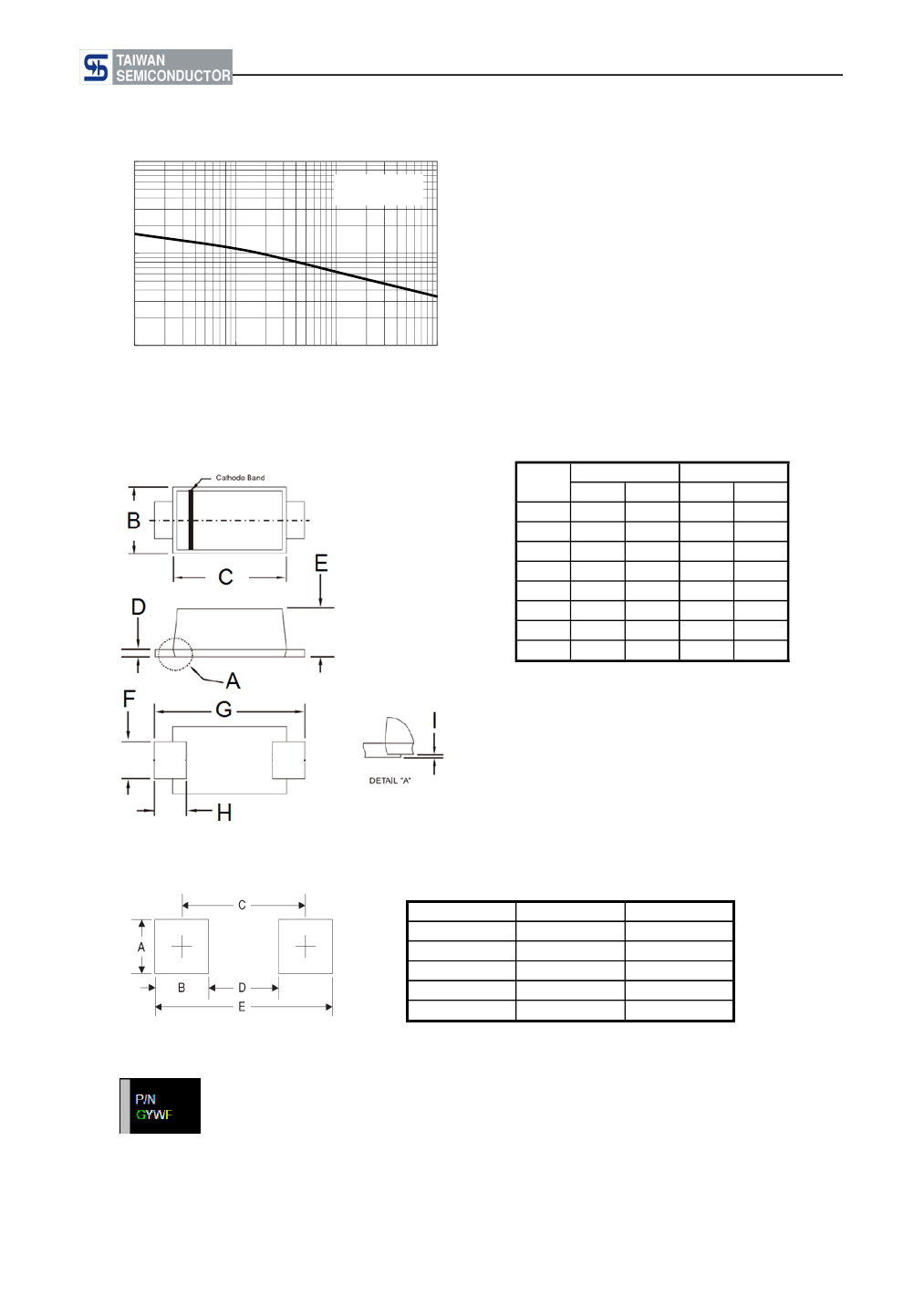

FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
f=1.0MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
SOD-123W
DIM.
B
C
D
E
F
G
H
I
Unit (mm)
Min
1.70
2.60
0.10
0.90
0.90
3.60
0.50
0.00
Max
1.90
2.90
0.22
1.02
1.05
3.80
0.85
0.10
Unit (inch)
Min
0.067
0.102
0.004
0.035
0.035
0.142
0.020
0.000
Max
0.075
0.114
0.009
0.040
0.041
0.150
0.033
0.004
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
G
YW
F
= Marking Code
= Green compound Code
= Date Code
= Factory Code
Version: A1512
S1DLW - S1MLW
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: A1512
