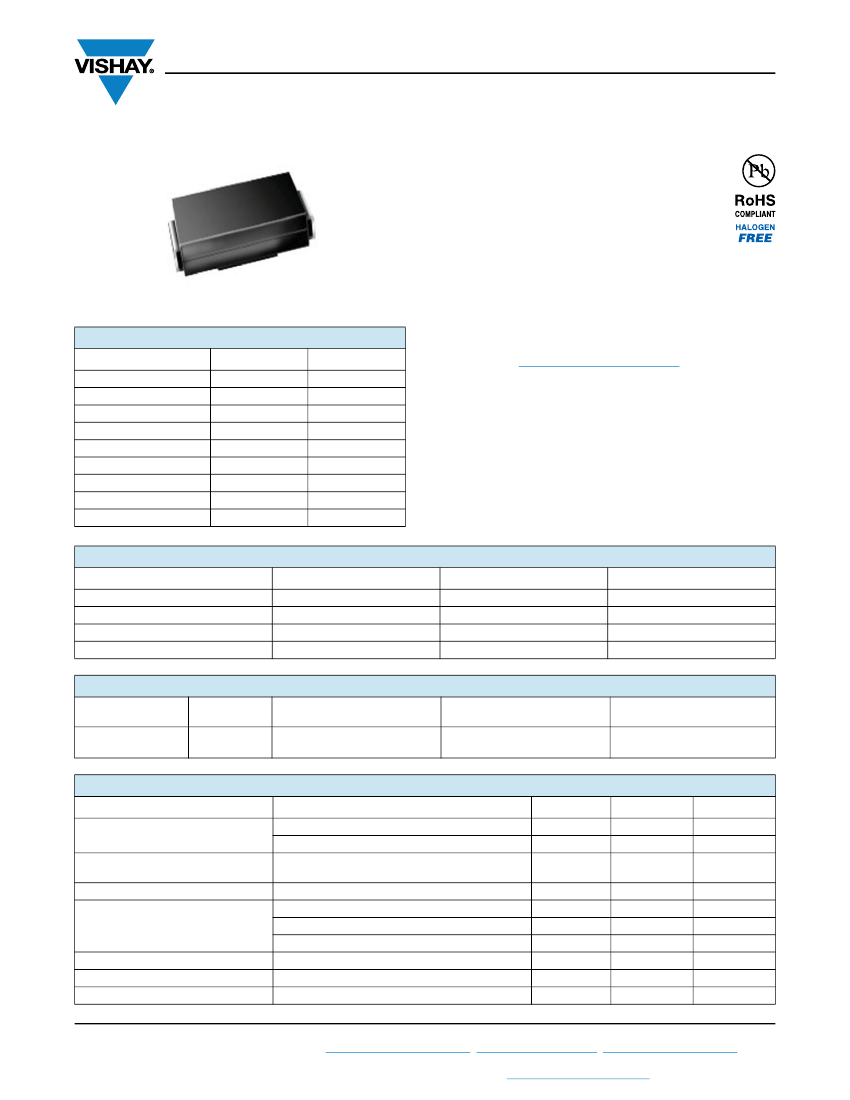

BZG03C-M-Series
www.vishay.com
Vishay Semiconductors
Zener Diodes
FEATURES
• High reliability
• Voltage range 10 V to 270 V
• Fits onto 5 mm SMD footpads
• Wave and reflow solderable
• AEC-Q101 qualified available
SMA
(DO-214AC)
• Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
• Base P/NHM3 - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
UNIT
V
mA
V
V
W
°C
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
BR
V
WM
P
PPM
T
J
max.
V
Z
specification
Circuit configuration
Polarity
VALUE
10 to 270
2 to 50
9.4 to 251
8.2 to 220
300
150
Pulse current
Single
Uni-directional
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Voltage stabilization
ORDERING INFORMATION
DEVICE NAME
BZG03C-M-series
BZG03C-M-series
BZG03C-M-series
BZG03C-M-series
ORDERING CODE
BZG03Cxxx-M3-08
BZG03Cxxx-M3-18
BZG03Cxxx-HM3-08
BZG03Cxxx-HM3-18
TAPED UNITS PER REEL
1500 (7" reel)
6000 (13" reel)
1500 (7" reel)
6000 (13" reel)
MINIMUM ORDER QUANTITY
6000/box
6000/box
6000/box
6000/box
PACKAGE
PACKAGE NAME
SMA (DO-214AC)
WEIGHT
73 mg
MOLDING COMPOUND
FLAMMABILITY RATING
UL 94 V-0
MOISTURE SENSITIVITY
LEVEL
MSL level 1
(according J-STD-020)
SOLDERING CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Power dissipation
Non repetitive peak surge power
dissipation
Junction to lead
Mounted on epoxy-glass hard tissue, fig. 1a
Junction to ambient air
Junction temperature
Storage temperature range
Forward voltage (max.)
I
F
= 0.5 A
Mounted on epoxy-glass hard tissue, fig. 1b
Mounted on Al-oxide-ceramic (Al
2
O
3
), fig. 1b
TEST CONDITION
R
thJA
< 25 K/W, T
amb
= 100 °C
R
thJA
< 100 K/W, T
amb
= 50 °C
t
p
= 100 μs sq.pulse, T
j
= 25 °C prior to surge
SYMBOL
P
tot
P
tot
P
ZSM
R
thJL
R
thJA
R
thJA
R
thJA
T
j
T
stg
V
F
VALUE
3000
1250
600
25
150
125
100
150
-65 to +150
1.2
UNIT
mW
mW
W
K/W
K/W
K/W
K/W
°C
°C
V
Rev. 1.0, 13-Oct-17
Document Number: 86138
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BZG03C-M-Series
www.vishay.com
Vishay Semiconductors
REVERSE
LEAKAGE
CURRENT
I
R
at V
R
μA
MAX.
50
50
50
50
50
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
2
2
2
10
4
3
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
V
TYP.
2
4
4
5
5
6
6
6
6
7
7
8
8
21
21
24
24
25
25
25
25
30
30
60
60
80
80
110
130
150
180
200
350
400
450
TEMPERATURE
COEFFICIENT OF ZENER
VOLTAGE
TK
VZ
at I
ZT1
%/K
MAX.
4
7
7
10
10
15
15
15
15
15
15
15
15
40
40
45
45
60
60
80
80
100
100
200
200
250
250
300
300
350
400
500
750
850
1000
MIN.
0.05
0.05
0.05
0.05
0.05
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.07
0.07
0.07
0.07
0.08
0.08
0.08
0.08
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
MAX.
0.09
0.1
0.1
0.1
0.1
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
ZENER VOLTAGE
RANGE
PART NUMBER
V
Z
at I
ZT1
V
MIN.
BZG03C10-M
BZG03C11-M
BZG03C12-M
BZG03C13-M
BZG03C15-M
BZG03C16-M
BZG03C18-M
BZG03C20-M
BZG03C22-M
BZG03C24-M
BZG03C27-M
BZG03C30-M
BZG03C33-M
BZG03C36-M
BZG03C39-M
BZG03C43-M
BZG03C47-M
BZG03C51-M
BZG03C56-M
BZG03C62-M
BZG03C68-M
BZG03C75-M
BZG03C82-M
BZG03C91-M
BZG03C100-M
BZG03C110-M
BZG03C120-M
BZG03C130-M
BZG03C150-M
BZG03C160-M
BZG03C180-M
BZG03C200-M
BZG03C220-M
BZG03C240-M
BZG03C270-M
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
58
64
70
77
85
94
104
114
124
138
158
168
188
208
228
251
NOM.
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
MAX.
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
66
72
79
87
96
106
116
127
141
156
171
191
212
233
256
289
TEST
CURRENT
I
ZT1
mA
DYNAMIC
RESISTANCE
Z
Z
at I
ZT1
Rev. 1.0, 13-Oct-17
Document Number: 86138
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BZG03C-M-Series
www.vishay.com

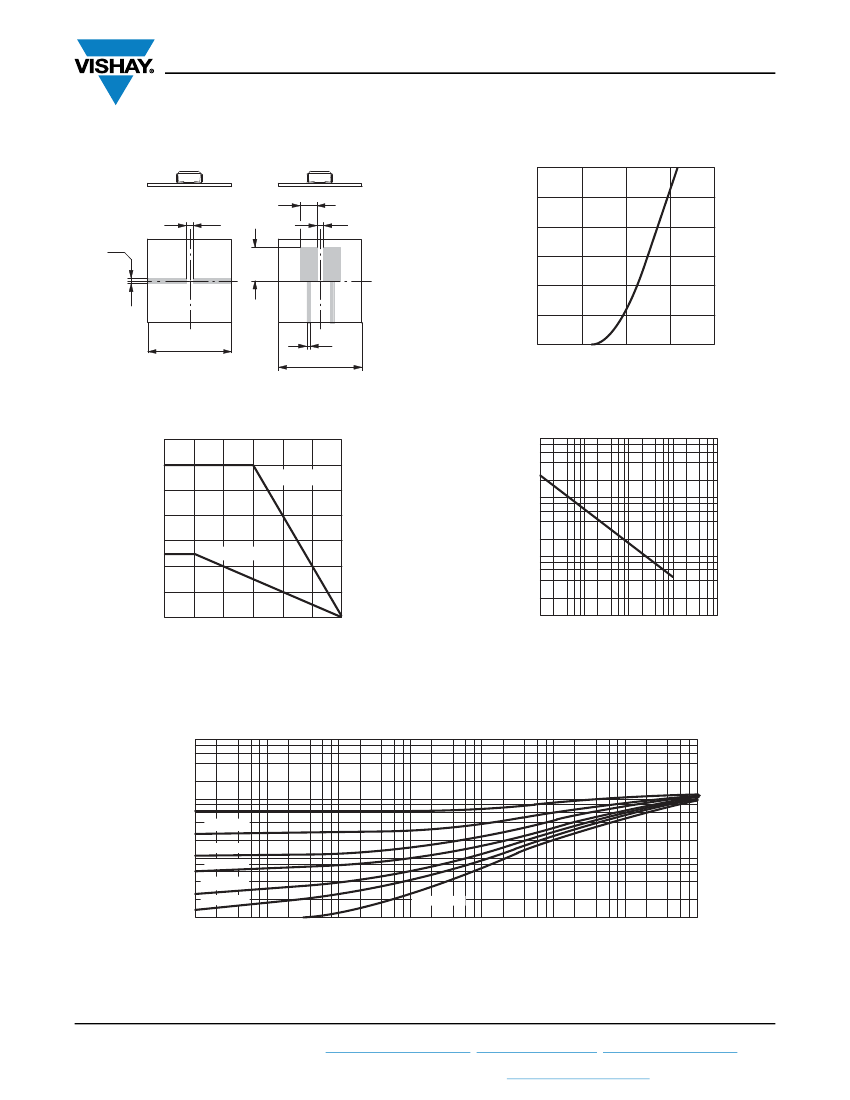

BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
3.0
a)
b)
5
2
1.5
10
2
Vishay Semiconductors
I
F
- Forward Current (A)
2.5
2.0
1.5
1.0
0.5
0
0
0.5
1.0
1.5
2.0
25
94 9313
1
25
94 9581
V
F
- Forward
Voltage
(V)
Fig. 1 -
Boards for R
thJA
Definition (Copper Overlay 35
µ)
Fig. 3 -
Forward Current vs. Forward Voltage
3
R
thJA
= 25 K/W
2.5
2
1.5
R
thJA
= 100 K/W
1
0.5
0
0
25
50
75
100
125
150
P
ZSM
-
Non-Repetitive
Surge Power
Dissipation (W)
3.5
10 000
P
tot
- Total Power Dissipation (W)
1000
100
10
0.01
0.1
1
10
100
94 9580
T
amb
- Ambient Temperature (°C)
94 9582
t
p
- Pulse Length (ms)
Fig. 2 -
Total Power Dissipation vs. Ambient Temperature
Fig. 4 -
Non Repetitive Surge Power Dissipation vs.
Pulse Length
Z
thp
- Thermal Resistance for Pulse Cond. (K/W)
1000
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
t
p
/T = 0.05
t
p
/T = 0.02
t
p
/T = 0.01
10
1
10
-5
94 9583
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
t
p
- Pulse Length (s)
Fig. 5 -
Thermal Response
Rev. 1.0, 13-Oct-17
Document Number: 86138
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BZG03C-M-Series
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
SMA (DO-214AC)
Vishay Semiconductors
5.5 (0.217)
4.9 (0.193)
4.5 (0.176)
4.2 (0.164)
2.3 (0.090)
2.0 (0.078)
0.2 (0.008)
3.3 (0.130)
2.5 (0.098)
1.7 (0.066)
1.4 (0.055)
2.8 (0.109)
2.3 (0.090)
Foot print recommendation:
2.3 (0.091) max.
0.1 (0.004)
Document no.:S8-V-3848.01-003 (4)
Created - Date: 18.February.1997
Rev. 8 - Date: 10.November 2006
19628
2.2 (0.087) max.
6.7 (0.264) ref.
Rev. 1.0, 13-Oct-17
Document Number: 86138
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2.21 (0.087)
