HSP-1920
LCD Controller for LCD Panels up to
1920x1200 Resolution

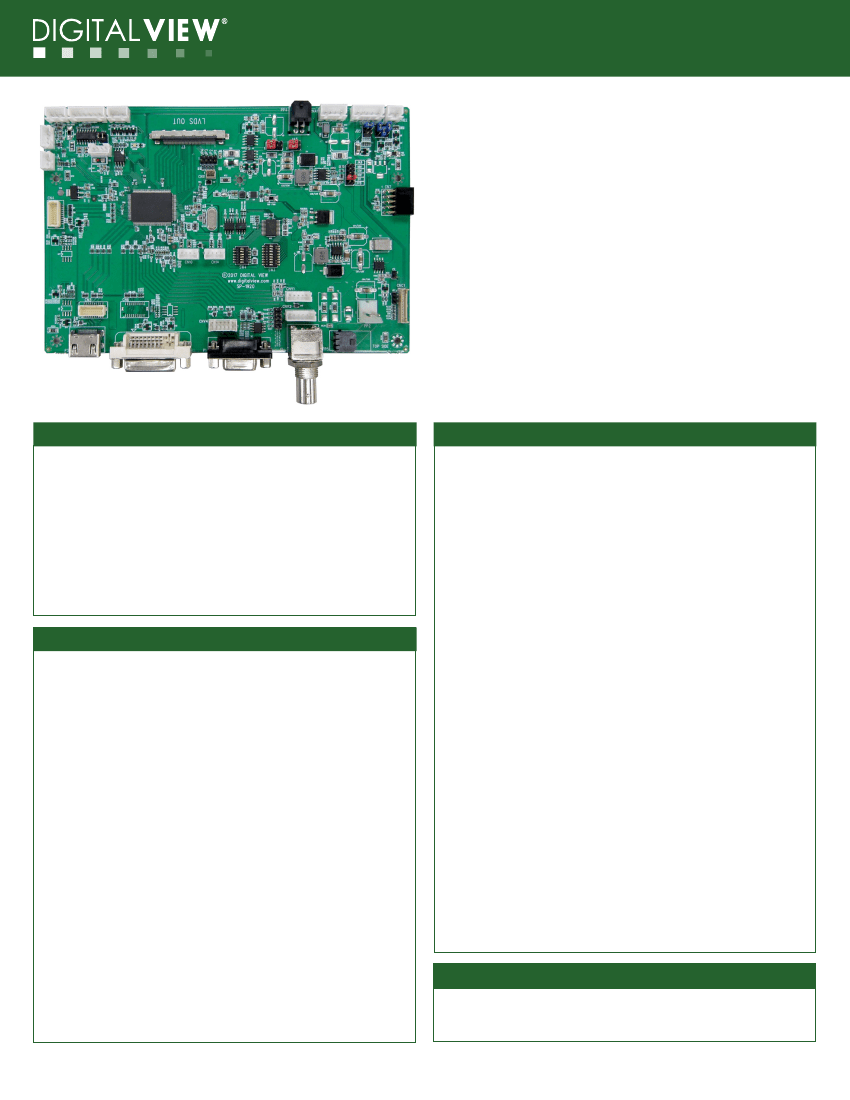

The Harsh Environment version of the SP-1920 LCD controller. The
HSP-1920 includes H.264 media failover support.
In addition the Composite input support is ideal for legacy and analog
video applications.
Key Features:
» LCD support: 1920x1200, 10-Bit
» Panel connectivity: LVDS
» Inputs: HDMI x2, DVI, VGA, Component, Composite x2
» Integrated H.264 media player / failover
» Separate power in for high power panels
» RS-232 control, IR remote control
» Part number: 4176001xx-3.
LCD Panel Support
Connectivity:
Panel power:
Panel compatibility:
Resolutions & timing:
LVDS (Single/Dual channel),
up to 1920 x 1080, 1920 x 1200 @60Hz
Supports 3.3V, 5V, 10V, 12V & 18V panels
All major brands
Supports common panel resolutions and
timings from 640 x 480 up to 1920 x 1200
selected by dip switch.
Customization available for other LCD panel
resolutions.
Features
Colors:
Up to 10 bit per color, ie 1billion colors
Function Display:
On Screen Display (OSD) menu
Image Scaling:
Image Control:
Function Controls:
External buttons, IR remote, Serial Port commands
Up/Down scaling to fit input to panel resolution
Backlight brightness, Contrast, Color Temperature,
Image positioning, Saturation, Hue, Sharpness, Black
Other Features:
level.
Input source select, Auto source seek, Auto picture
setup, Auto color goain, Manual clock & phase, OSD
timeout, OSD menu transparency, Image orientation,
Input / Sources
HDMI 1.4:
1xconnector, 1xheader
DVI-D (single-link 1.0):
1xconnector
Analog RGB (‘VGA’):
1xconnector
60Hz up to 1920x1200
75Hz up to 1600x1200
60Hz up to 1920x1200
75Hz up to 1600x1200
CVT modes
60Hz up to 1920x1200
75Hz up to 1600x1200
Auto detect of Digital Separate Sync,
Sync-On-Green & Composite Sync.
Auto detects VGA~WUXGA, interlaced & non-
interlaced
PAL, NTSC
Power:
Inverter Support:
Plug & Play:
Status Indicator:
Dimensions:
Operating Temp:
System Information, Aspect ratio. Load factory
defaults.
Input source failover functions.
+12VDC / +24VDC ±5%, 2.5W (controller only)
PWM, D/A DPMS Enable pin (3.3V or 5V)
DDC 1,2/b compatible
Dual color LED support
179mm x 120.4mm (7” x 4.8”)
-20
o
C to +80
o
C
Custom Splash-screen:
The HSP-1920 supports a custom splash-screen
when powering on. This custom firmware option.
Firmware Update:
The firmware version of the HSP-1920 can be updated
using a USB flash key.
Composite:
1xBNC, 1xheader
Component:
1xheader
EDID (coming soon):
PAL, NTSC
480p, 576p, 720p, 1080i, 1080p
The EDID preferred timing data is
automatically set by reference to the LCD
panel resolution settings (VESA data). Custom
EDID data programming is available as an
OEM option.
Reliability
Calculated MTBF:
Warranty:
In excess of 100,000 hours
3 years
HSP-1920 October 2017 v1.0
Specifications subject to change without notice
© 2017 Digital View
HSP-1920
LCD Controller for Commercial Monitors

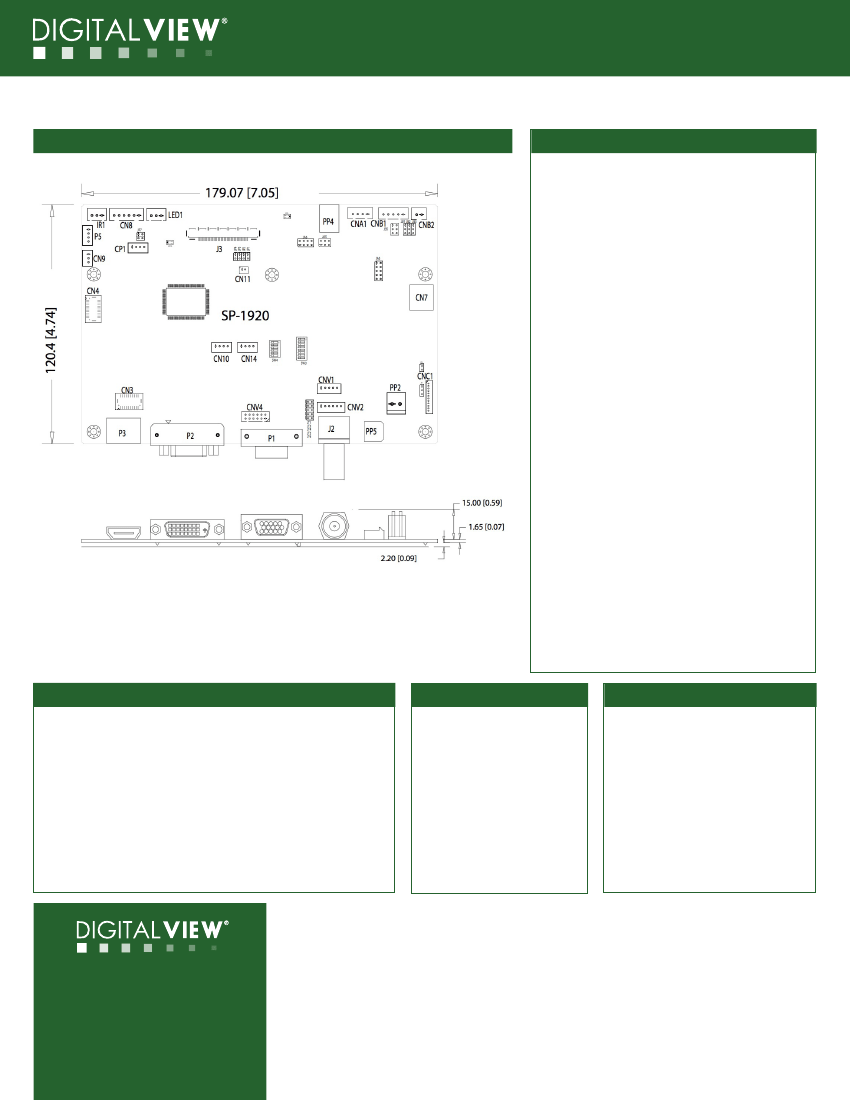

Mechanical Drawing
Connector Definitions
CN3
CN4
CN7
CN8
CN9
CN10
CN11
CN14
CNA1
CNB1
CNB2
CNC1
CNV1
CNV2
CNV4
CP1
IR1
J2
J3
LED1
P1
P2
P3
P5
PP2
PP4
PP5
Alternate HDMI 1 input connector
HDMI 2 input connector
Audio board connector
RS-232 serial control
Ambient Light sensor connector
Analog (Stereo) audio in
SPDIF audio output connector
Analog (Stereo) audio out
Auxiliary power input
Backlight inverter
Backlight status input connector
OSD controls
Alternate Composite 1 and 2 input connector
HD/SD Component video input connector
Alternate VGA input connector
Reserved for factory use for programming
Infra-Red Sensor connector
Composite video 1 in
Panel signal for LVDS panel
Dual Color LED connector
VGA analog input
DVI-D input
HDMI 1 connector
USB input connector
Power input (alternate)
External panel power input
Power input
Ordering Options
HSP-1920
OSD digital button board
OSD membrane kit - Vertical
OSD membrane kit - Horizontal
Inverter interface
IR remote control
Audio Add-on board
P/N: 4176001xx-3
Kit 67110-3
Kit 67135-3
Kit 67134-3
P/N 416040010-3
P/N 559000106-3
P/N 416940020-3
Drawings (pending)
»
»
2D (dwg)
3D (SLDPRT and IGS)
Resources (pending)
»
»
»
»
»
Instruction manual
Revision control documentation
Firmware upgrade manual**
Mechanical drawings
Custom engineering: Splash screen,
OSD menu, coatings, & more...
Download at:
http://www.digitalview.com/products/
hsp-1920-lcd-controller
**
Available on request
Controller Solution Generator
http://www.digitalview.com/csg
