3.14.002.073/0000

Description
Industrial Panel Mount Indicators / Switch Indicators RF 19 Signal indictr 1 x 2-part yellow
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size196KB,2 Pages
ManufacturerRAFI
Environmental Compliance
Download Datasheet Parametric View All

3.14.002.073/0000 Overview

Industrial Panel Mount Indicators / Switch Indicators RF 19 Signal indictr 1 x 2-part yellow

3.14.002.073/0000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerRAFI
Product CategoryIndustrial Panel Mount Indicators / Switch Indicators
RoHSDetails
TypeSolid State Indicator
Mounting StylePanel
Width19 mm
IlluminationLED
Illumination ColorYellow
Height9.15 mm
Length38 mm
Operating Temperature Range- 25 C to + 70 C
ProductIndicators
Body ShapeRectangle
Cap ColorYellow
Factory Pack Quantity12
Unit Weight0.035309 oz
22.07.2018

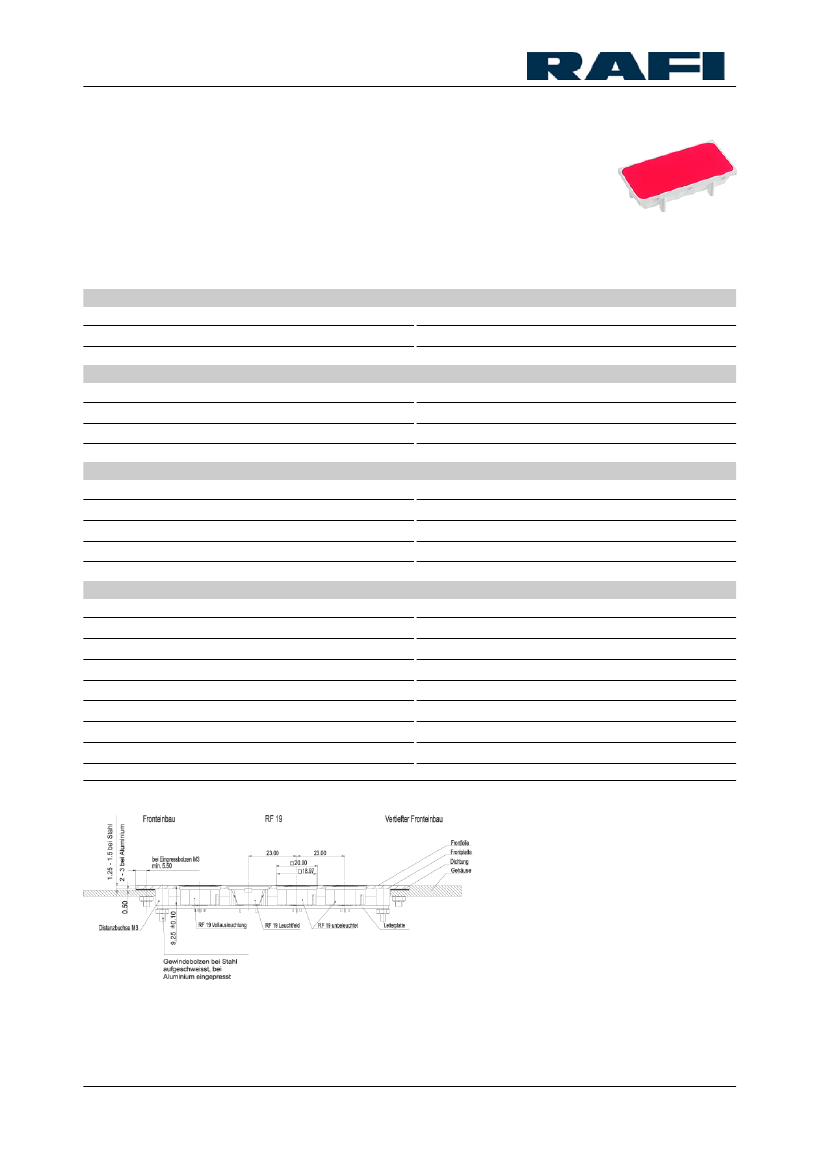

RF 19 - Signal indicator, 1 x 2-module
3.14.002.073/0000
For more information, see LEDs.
For additional accessories, refer to the chapter "RAFIX 16 special accessories".
General information
Color of lens
Recommended key grid

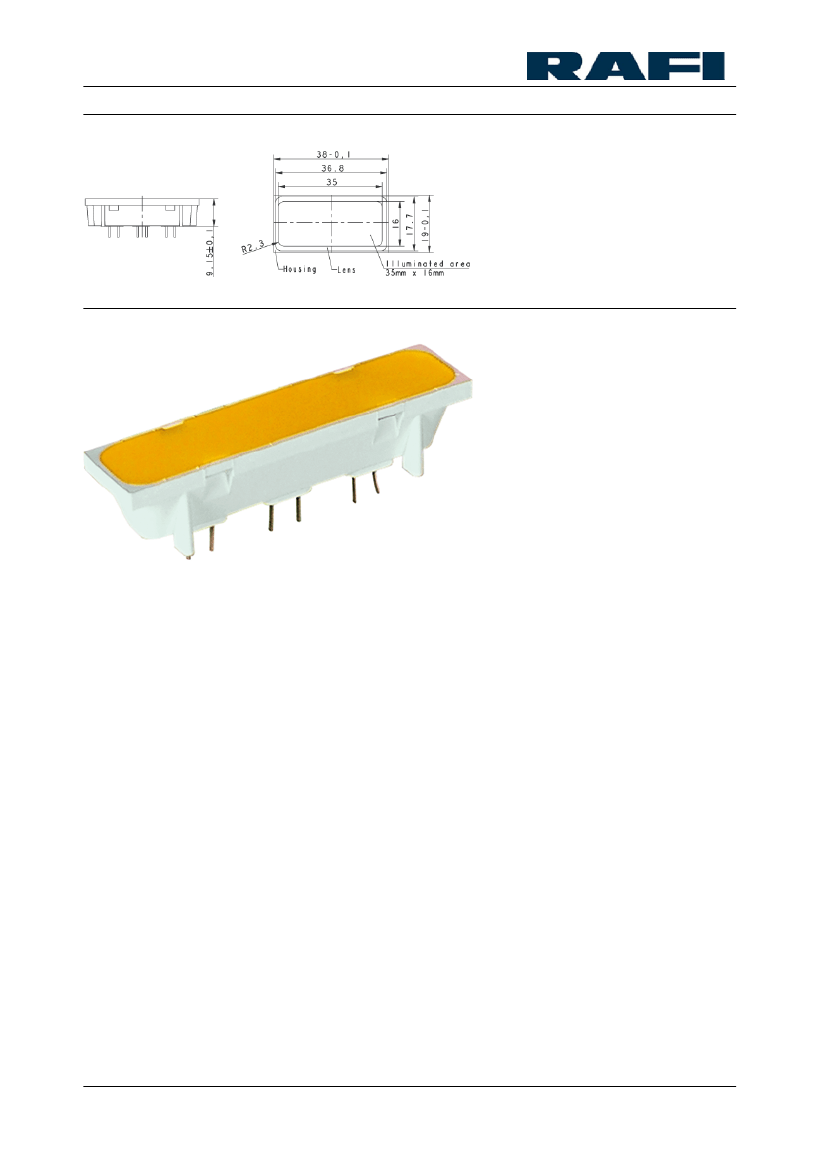

Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Illumination
LED color
LED type
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Solderability / solder heat resistance
Wave soldering
Manual soldering
ROHS compliant
REACH compliant
yellow
23/x mm
38 mm
19 mm
9.15 mm
THT soldering in PCB
fully illuminated 5 LED
yellow
2 mm
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
