3.14.002.026/0000

Description
Illuminated Tactile Switches RF19 Tactile switch Ag LED GRN lens WHT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size912KB,2 Pages
ManufacturerRAFI
Environmental Compliance
Download Datasheet Parametric View All

3.14.002.026/0000 Overview

Illuminated Tactile Switches RF19 Tactile switch Ag LED GRN lens WHT

3.14.002.026/0000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerRAFI
Product CategoryIlluminated Tactile Switches
RoHSDetails
Operating Force2.9 N
ActuatorSquare
Current Rating250 mA
Voltage Rating DC35 V
Power Rating12.5 W
Contact FormSPST
Termination StyleSolder Pin
Mounting StylePanel
ColorWhite
IlluminationLED
Illumination ColorGreen
Contact PlatingSilver
Operating Temperature Range- 25 C to + 70 C
Travel0.5 mm
Maximum Operating Temperature+ 70 C
Minimum Operating Temperature- 25 C
Factory Pack Quantity25
28.07.2018

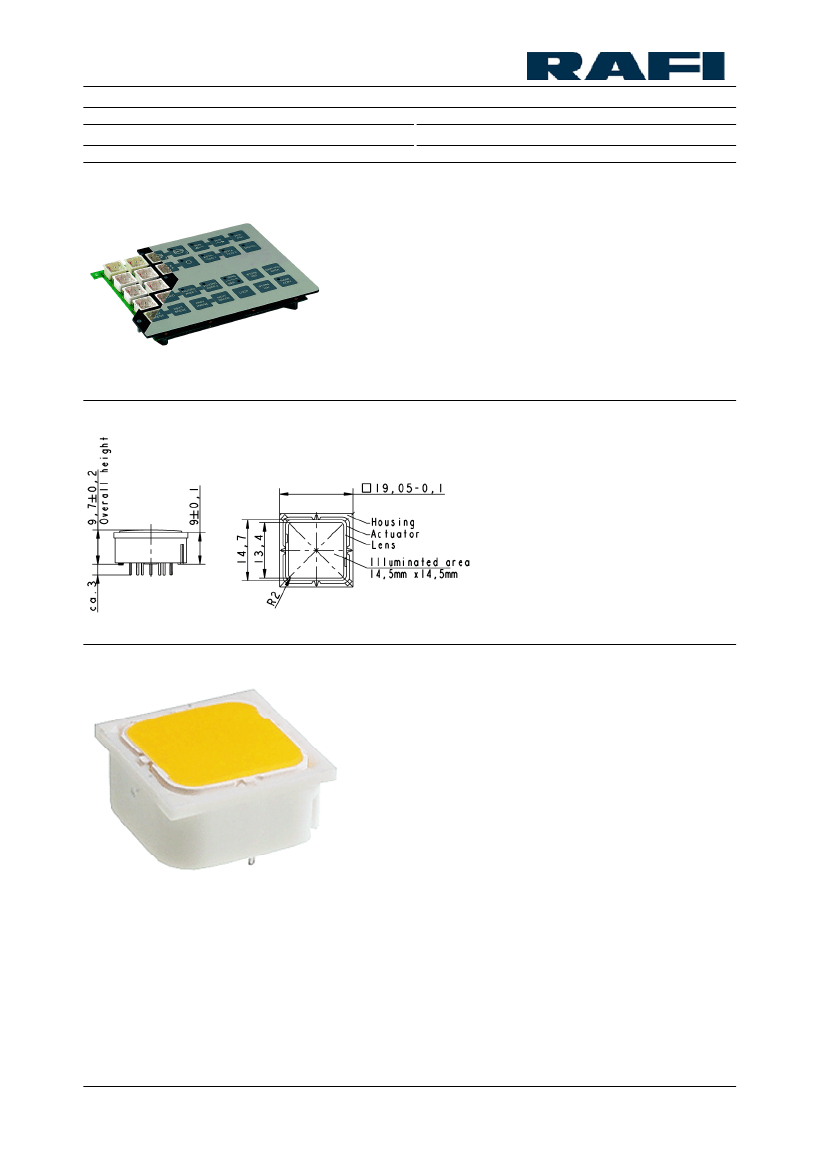

RF 19 - Tactile switch, fully illuminated with 2 LED, silver
contacts
3.14.002.026/0000
General information
Color of lens
Recommended key grid
Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Terminals
Contact system
Contact arrangement
Contact materials
Illumination
LED color
LED type
Mechanical characteristics
Operating force max.
Switching travel
Robustness max.
Electrical characteristics
Rated voltage min.
Rated voltage max.
Rated current min.
Rated current max.
Rated power max. (ohmic load)
Contact resistance when new max.
Insulation resistance
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Operating life min. (operations)
Solderability / solder heat resistance
Wave soldering
Manual soldering
white
23 mm
19.05 mm
19.05 mm
9.7 mm
soldering in PCB
THT
snap-action contact
1 NO
Ag
fully illuminated 2 LED
green
2 mm
2.9
±0.6
N
0.5
+0.2
mm
with through-plated PCB 100 N
Au: 0.02 V, Ag: 3 V
35 V
Au: 0.01 mA, Ag: 0.1 mA
Au: 100 mA, Ag: 250 mA
Au: 2 W, Ag: 12.5 W
100 mΩ
10
9
Ω
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
1,000,000 cycle
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
