CS8371ET7G

Description
8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP
CategoryPower/power management    The power supply circuit
File Size130KB,11 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

CS8371ET7G Online Shopping

Suppliers Part Number Price MOQ In stock
CS8371ET7G - - View Buy Now

CS8371ET7G Overview

8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP

CS8371ET7G Parametric

Parameter NameAttribute value
Brand NameON Semiconduc
Is it lead-free?Lead free
MakerON Semiconductor
Parts packaging codeSFM
package instructionSTRAIGHT, TO-220, 7 PIN
Contacts7
Manufacturer packaging code821E-04
Reach Compliance Code_compli
ECCN codeEAR99
AdjustabilityFIXED
Nominal dropback voltage 12.5 V
Maximum input voltage26 V
Minimum input voltage10.5 V
JESD-30 codeR-PSFM-T7
JESD-609 codee3
Maximum grid adjustment rate0.05%
Maximum load regulation0.15%
Number of functions1
Output times2
Number of terminals7
Working temperatureTJ-Max150 °C
Operating temperatureTJ-Mi-40 °C
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current 11 A
Maximum output current 20.25 A
Maximum output voltage 18.4 V
Minimum output voltage 17.6 V
Nominal output voltage 18 V
Maximum output voltage 25.25 V
Minimum output voltage 24.75 V
Nominal output voltage 25 V
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSIP7,.1,50TB
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Regulator typeFIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR
surface mountNO
technologyBIPOLAR
Terminal surfaceTin (Sn)
Terminal formTHROUGH-HOLE
Terminal pitch1.27 mm
Terminal locationSINGLE
Maximum time at peak reflow temperature40
Maximum voltage tolerance5%
CS8371
8.0 V/1.0 A, 5.0 V/250 mA
Dual Regulator
with Independent Output
Enables and NOCAPt

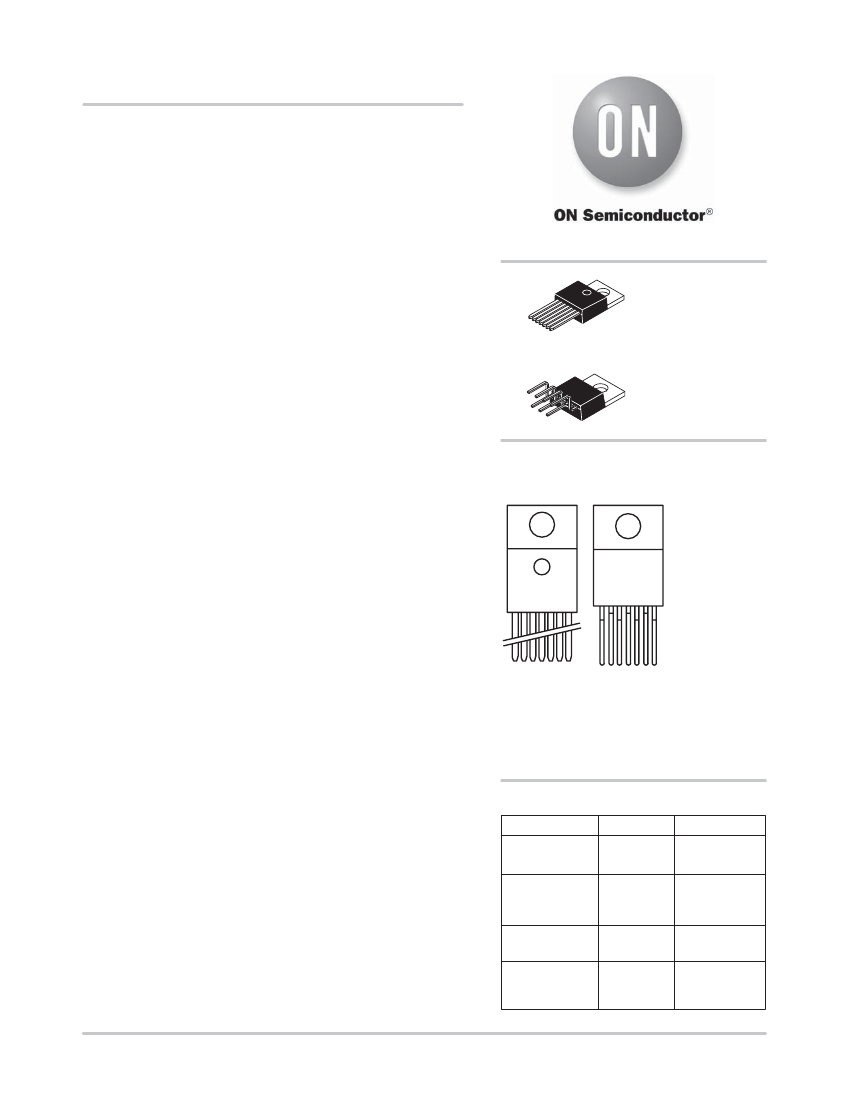

The CS8371 is an 8.0 V/5.0 V dual output linear regulator. The
8.0 V
±5.0%
output sources 1.0 A, while the 5.0 V
±5.0%
output
sources 250 mA. Each output is controlled by its own ENABLE lead.
Setting the ENABLE input high turns on the associated regulator
output. Holding both ENABLE inputs low puts the IC into sleep mode
where current consumption is less than 10
mA.
The regulator is protected against overvoltage, short−circuit and
thermal runaway conditions. The device can withstand 45 V load dump
transients making suitable for use in automotive environments. ON’s
proprietary NOCAP solution is the first technology which allows the
output to be stable without the use of an external capacitor.
The CS8371 is available in a 7 lead TO−220 package with copper
tab. The tab can be connected to a heatsink if necessary.
Features
http://onsemi.com
TO−220
SEVEN LEAD
T SUFFIX
CASE 821E
1
7
1
TO−220
SEVEN LEAD
TVA SUFFIX
CASE 821J
PIN CONNECTIONS AND
MARKING DIAGRAM
Tab = GND
Pin 1. ENABLE
1
2. ENABLE
2
3. V
OUT2
4. GND
5. Sense
6. V
CC
7. V
OUT1
Two Regulated Outputs
8.0 V
±5.0%;
1.0 A
5.0 V
±5.0%;
250 mA
Independent ENABLE for Each Output
Seperate Sense Feedback Lead for 8.0 V Output
< 10
mA
Sleep Mode Current
Fault Protection
Overvoltage Shutdown
+45 V Peak Transient Voltage
Short Circuit
Thermal Shutdown
CMOS Compatible, Low Current ENABLE Inputs
Pb−Free Packages are Available*
CS
8371
AWLYWWG
CS
8371
AWLYWWG
A
WL
Y
WW
G
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
ORDERING INFORMATION
Device
CS8371ET7
CS8371ET7G
Package
TO−220
STRAIGHT
TO−220
STRAIGHT
(Pb−Free)
TO−220
VERTICAL
TO−220
VERTICAL
(Pb−Free)
Shipping
50 Units/Rail
50 Units/Rail
CS8371ETVA7
CS8371ETVA7G
50 Units/Rail
50 Units/Rail
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2006
1
June, 2006 − Rev. 12
Publication Order Number:
CS8371/D

CS8371ET7G Related Products

CS8371ET7G CS8371ETVA7 CS8371ET7 CS8371 CS8371ETVA7G
Description 8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP 8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP 8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP 8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP 8.0 V/1.0 A, 5.0 V/250 mA Dual Regulator with Independent Output Enables and NOCAP
Brand Name ON Semiconduc ON Semiconduc ON Semiconduc - ON Semiconduc
Is it lead-free? Lead free Contains lead Contains lead - Lead free
Maker ON Semiconductor ON Semiconductor ON Semiconductor - ON Semiconductor
Parts packaging code SFM SFM SFM - SFM
package instruction STRAIGHT, TO-220, 7 PIN VERTICAL, TO-220, 7 PIN STRAIGHT, TO-220, 7 PIN - VERTICAL, TO-220, 7 PIN
Contacts 7 7 7 - 7
Manufacturer packaging code 821E-04 821J-02 821E-04 - 821J-02
Reach Compliance Code _compli _compli _compli - _compli
ECCN code EAR99 EAR99 EAR99 - EAR99
Maximum input voltage 26 V 26 V 26 V - 26 V
Minimum input voltage 10.5 V 10.5 V 10.5 V - 10.5 V
JESD-30 code R-PSFM-T7 R-PZFM-T7 R-PSFM-T7 - R-PZFM-T7
Number of functions 1 1 1 - 1
Output times 2 2 2 - 2
Number of terminals 7 7 7 - 7
Working temperatureTJ-Max 150 °C 150 °C 150 °C - 150 °C
Operating temperatureTJ-Mi -40 °C -40 °C -40 °C - -40 °C
Maximum output current 1 1 A 1 A 1 A - 1 A
Maximum output current 2 0.25 A 0.25 A 0.25 A - 0.25 A
Maximum output voltage 1 8.4 V 8.4 V 8.4 V - 8.4 V
Minimum output voltage 1 7.6 V 7.6 V 7.6 V - 7.6 V
Nominal output voltage 1 8 V 8 V 8 V - 8 V
Nominal output voltage 2 5 V 5 V 5 V - 5 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT - FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified - Not Qualified
Regulator type FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR - FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR
surface mount NO NO NO - NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE - THROUGH-HOLE
Terminal location SINGLE ZIG-ZAG SINGLE - ZIG-ZAG
