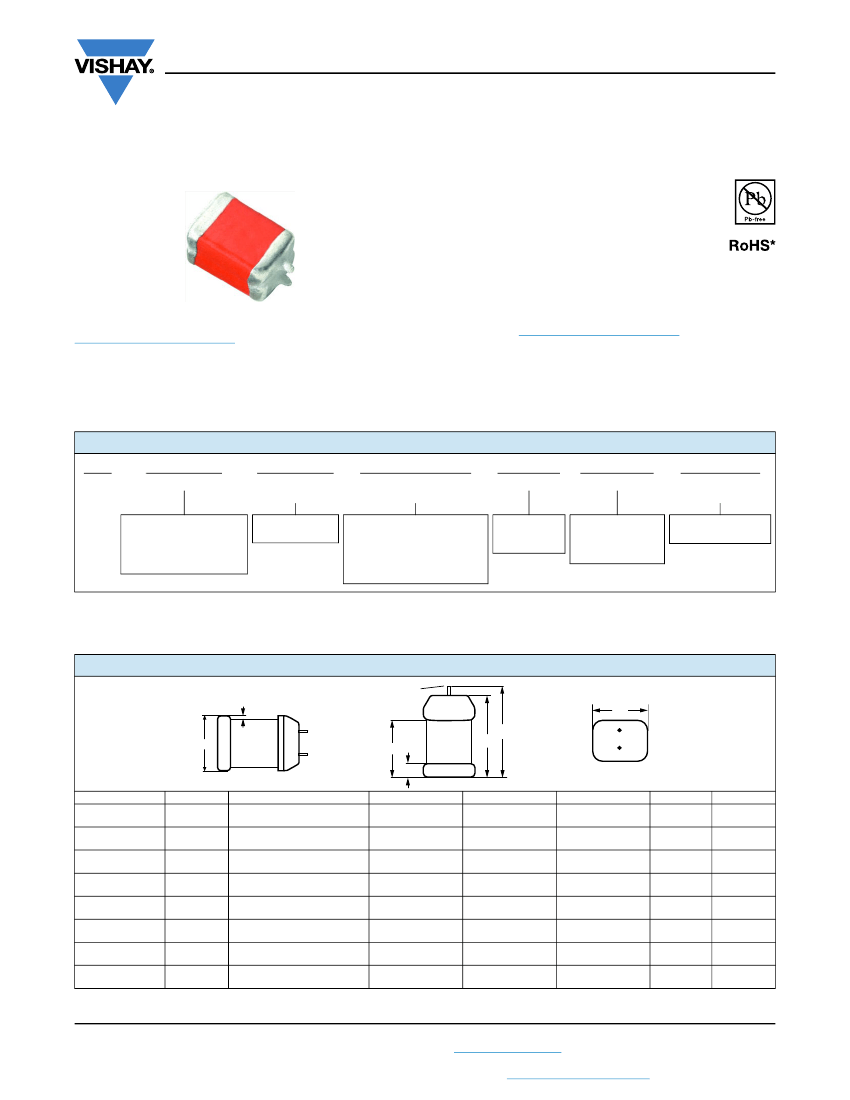

597D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors, T
ANTAMOUNT
™,
Ultra-Low ESR, Conformal Coated, Maximum CV
FEATURES
• New case size offerings
• Terminations: 100 % tin (2) standard; tin / lead
available
• Extremely low ESR
• Mounting: surface mount
• Ripple current up to 4.1 A
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
Available
Available
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
10 μF to 1500 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 75 V
DC
ORDERING INFORMATION
597D
TYPE
687
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT +85 °C
This is expressed in V.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
E
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = tape and reel
7" [178 mm] reel
This is expressed in pF.
The first two digits are
the significant figures.
The third is the number
of zeros to follow.
See Ratings
and Case
Codes table
2 = 100 % tin
8 = solder plated
(60/40)
special order
Note
• Preferred tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting
DIMENSIONS
in inches [millimeters]
J
Tantalum wire
nib identifies
anode (+)
terminal
L
H
B
A
D
W
CASE CODE
V
D
E
R
F
Z
M
H
L (MAX.)
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.315
[8.0]
0.315
[8.0]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
H
0.079
[2.0 max.]
0.138
[3.5 max.]
0.157 ± 0.016
[4.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.185 ± 0.016
[4.7 ± 0.4]
0.236 ± 0.016
[6.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.205 ± 0.016
[5.2 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
0.055 ± 0.016
[1.4 ± 0.4]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
B
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
D (REF.)
0.252
[6.4]
0.252
[6.4]
0.252
[6.4]
0.244
[6.2]
0.244
[6.2]
0.244
[6.2]
0.260
[6.6]
0.260
[6.6]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
Revision: 22-Jan-18
Document Number: 40047
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
597D
www.vishay.com
Vishay Sprague
16 V
20 V
25 V
35 V
40 V
50 V
E/R
R
F
R
R
F
F
E
R
H
H
M
F
F/H
H
Z
63 V
D
R
F
75 V
R
RATINGS AND CASE CODES
μF
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
V
E
E/R
R
V
E
E
R
E
E
R
F
F
H
H
4V
6.3 V
10 V
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
8
6
8
8
8
8
6
6
8
6
6
6
20
8
10
14
20
8
10
14
MAX. ESR
AT +25 °C
100 kHz
(m)
60
25
20
18
24
56
30
25
31
35
28
28
120
60
100
100
80
80
100
100
MAX. RIPPLE
100 kHz
I
RMS
(A)
2.2
2.9
3.3
3.7
2.9
2.0
2.7
2.9
2.8
2.5
2.8
3.0
1.4
2.3
1.6
1.4
1.8
1.8
1.6
1.6
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
470
680
1000
1000
1500
330
470
680
1000
330
470
680
1000
220
330
470
680
220
330
470
V
E
E
R
R
V
E
E
R
E
E
R
F
E
F
H
H
R
H
H
597D477(1)004V(2)(3)
597D687(1)004E(2)(3)
597D108(1)004E(2)(3)
597D108(1)004R(2)(3)
597D158(1)004R(2)(3)
597D337(1)6R3V(2)(3)
597D477(1)6R3E(2)(3)
597D687(1)6R3E(2)(3)
597D108(1)6R3R(2)(3)
597D337(1)010E(2)(3)
597D477(1)010E(2)(3)
597D687(1)010R(2)(3)
597D108(1)010F(2)(3)
597D227(1)016E(2)(3)
597D337(1)016F(2)(3)
597D477(1)016H(2)(3)
597D687(1)016H(2)(3)
597D227(1)020R(2)(3)
597D337(1)020H(2)(3)
597D477(1)020H(2)(3)
19
27
40
40
60
21
30
43
63
33
47
68
100
35
53
75
100
44
66
94
6.3 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
16 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”, for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”
Revision: 22-Jan-18
Document Number: 40047
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
597D
www.vishay.com
Vishay Sprague
MAX. DF
AT +25 °C
120 Hz
(%)
6
8
8
8
6
6
8
8
10
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(m)
100
100
80
100
100
100
100
100
150
300
250
220
150
240
400
400
250
500
MAX. RIPPLE
100 kHz
I
RMS
(A)
1.6
1.6
1.8
1.6
1.6
1.6
1.6
1.4
1.3
0.9
1.0
1.1
1.3
1.1
0.6
0.8
1.0
0.7
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
25 V
DC
AT +85 °C; 17 V
DC
AT +125 °C
68
100
150
220
47
68
100
100
100
15
15
22
33
47
10
15
22
10
R
F
F
M
R
F
F
H
H
E
R
R
F
Z
D
R
F
R
597D686(1)025R(2)(3)
597D107(1)025F(2)(3)
597D157(1)025F(2)(3)
597D227(1)025M(2)(3)
597D476(1)035R(2)(3)
597D686(1)035F(2)(3)
597D107X0035F(2)(3)
597D107(1)035H(2)(3)
597D107X0040H(2)(3)
597D156(1)050E(2)(3)
597D156(1)050R(2)(3)
597D226(1)050R(2)(3)
597D336(1)050F(2)(3)
597D476(1)050Z(2)(3)
597D106(1)063D(2)(3)
597D156(1)063R(2)(3)
597D226(1)063F(2)(3)
597D106(1)075R(2)(3)
17
25
38
55
17
24
35
35
40
8
8
11
17
24
10
10
14
8
35 V
DC
AT +85 °C; 23 V
DC
AT +125 °C
40 V
DC
AT +85 °C; 26 V
DC
AT +125 °C
50 V
DC
AT +85 °C; 33 V
DC
AT +125 °C
63 V
DC
AT +85 °C; 42 V
DC
AT +125 °C
75 V
DC
AT +85 °C; 50 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”, for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”

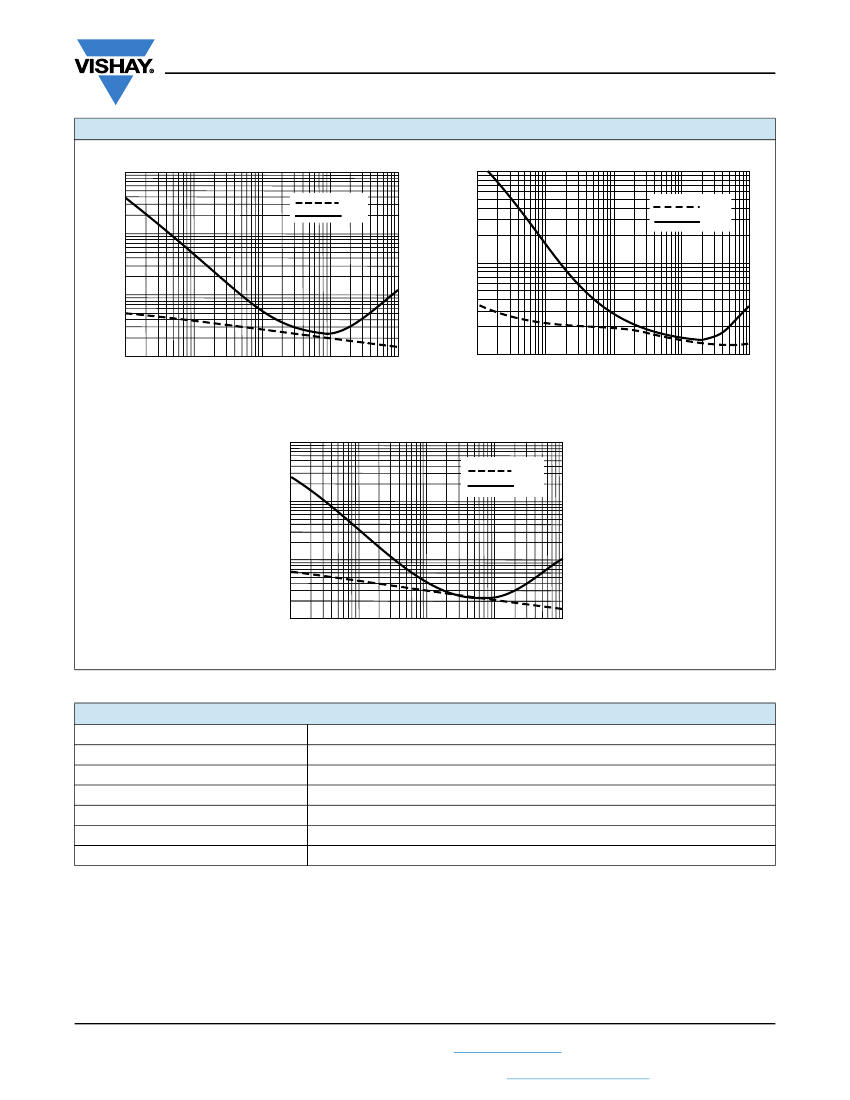

TYPICAL CURVES
1500 μF - 4 V “R” CASE SIZE ESR and Z vs. FREQUENCY
1
1
ESR
Z
ESR and Z ()
ESR and Z (Ω)
ESR
Z
330 μF - 10 V “E” CASE
SIZE
ESR and Z vs. FREQUENCY
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
Revision: 22-Jan-18
Document Number: 40047
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
597D
www.vishay.com
Vishay Sprague
TYPICAL CURVES
330 μF - 6.3 V
“V”
CASE SIZE and Z vs. FREQUENCY
10
ESR
Z
ESR and Z ()
1000 μF - 6.3 V “R” CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
Z
ESR and Z ()
1
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
470 μF - 4 V “V” CASE
SIZE
ESR and Z vs. FREQUENCY
10
ESR
Z
ESR and Z (Ω)
1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
POWER DISSIPATION
CASE CODE
V
D
E
R, F, M
Z
H
MAXIMUM PERMISSIBLE POWER DISSIPATION AT +25 °C (W) IN FREE AIR
0.141
0.215
0.240
0.250
0.265
0.265
Revision: 22-Jan-18
Document Number: 40047
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
597D
www.vishay.com
Vishay Sprague
STANDARD PACKAGING QUANTITY
CASE CODE
V
D
E
R
F
Z
M
H
UNITS PER 7" REEL
1000
400
500
300
250
250
200
200
PRODUCT INFORMATION
Conformal Coated Guide
Pad Dimensions
Packaging Dimensions
Moisture Sensitivity
SELECTOR GUIDES
Solid Tantalum Selector Guide
FAQ
Frequently Asked Questions
www.vishay.com/doc?40110
www.vishay.com/doc?49053
www.vishay.com/doc?40135
www.vishay.com/doc?40150
Revision: 22-Jan-18
Document Number: 40047
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
