1543-600-200: DescriptionPushbutton Switch, SPST, Momentary, 0.01A, 24VDC, Solder Terminal, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size187KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1543-600-200 Overview

Pushbutton Switch, SPST, Momentary, 0.01A, 24VDC, Solder Terminal, Through Hole-straight, ROHS COMPLIANT

1543-600-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	LEVER
body width	9.8 mm
body height	7.3 mm
Body length or diameter	9.8 mm
Contact (AC) maximum rated R load	.01A@24VAC
Maximum contact current (AC)	0.01 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	.01A@24VDC
Maximum contact voltage (AC)	24 V
Maximum contact voltage (DC)	24 V
Electrical life	50000 Cycle(s)
Manufacturer's serial number	1543
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	2.4 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

PL

Features

■

IA

NT

Contact type: contact spring

Variety of lever lengths

Additional models and versions available

*R

oH

S

CO

M

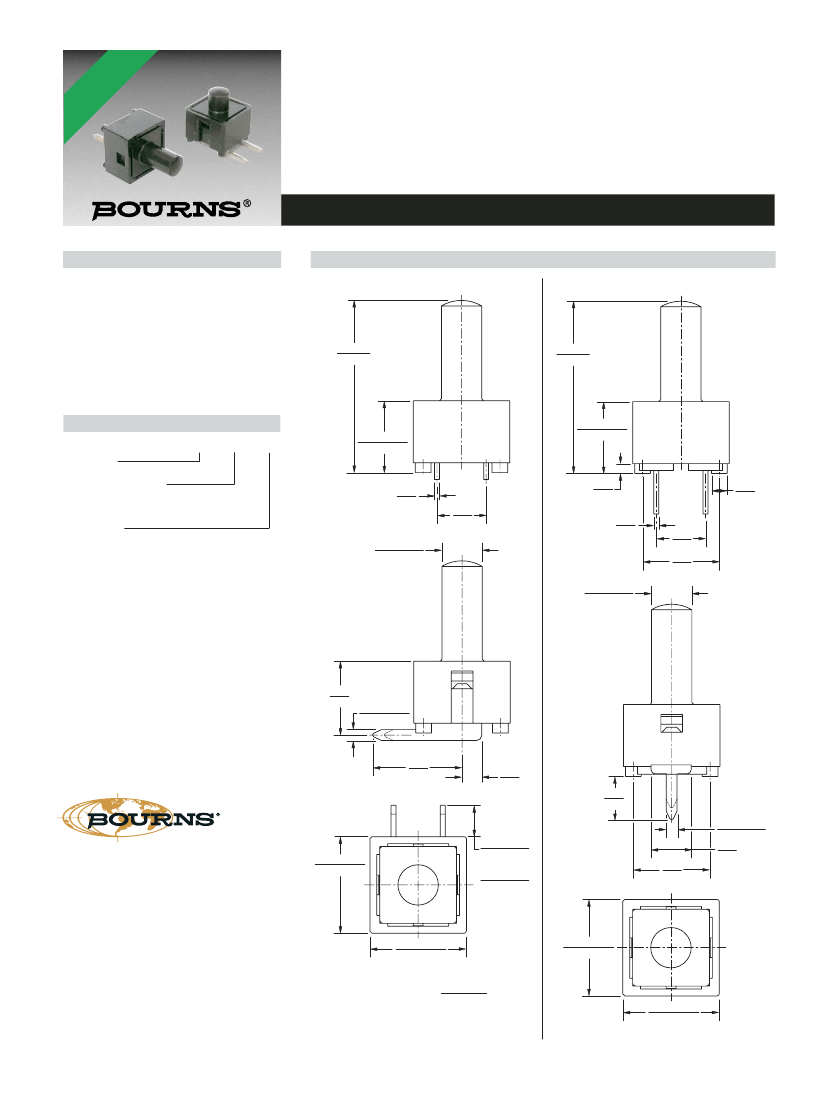

1543 - Push Switch

Characteristics

Switch Travel.....................0.6 to 0.8 mm

Actuating Force ....................0.8 to 2.4 N

Bounce Time ....................45 µsec. max.

Switch Function ........1 pole push switch

Switch Rating .......................24 V/0.01 A

without inductive load

Temperature Range ......-25 °C to +70 °C

Switch Life .........................50,000 clicks

Product Dimensions

1543-300

1543-650

L ± 0.2

(L ± .008)

L ± 0.2

(L ± .008)

How to Order

1543 - 300 - 113

Model Type

• 1543

Terminal & Lever Style

• 300

• 650

Other versions available upon request.

Lever Length

113 = 11.3 mm

130 = 13.0 mm

135 = 13.5 mm

149 = 14.9 mm

185 = 18.5 mm

200 = 20.0 mm

Other lengths available upon request.

Other versions available upon request.

7.3 +0/-0.1

(.287 +0/-.004)

7.3 +0/-0.1

(.287 +0/-.004)

0.5

(.020)

5.0

(.197)

4.1 +0/-0.04

(.161 +0/-.002)

1.0

(.039)

0.5

(.020)

1.6

(.063)

DIA.

5.0

(.197)

7.8

(.307)

4.1 +0/-0.04

(.161 +0/-.002)

7.5

(.295)

1.1 +0/-0.1

(.043 +0/-.004)

9.1

(.358)

2.0

(.079)

4.3

(.169)

1.1 +0/-0.1

(.043 +0/-.004)

4.0

(.157)

7.8

(.307)

Asia-Pacific:

Tel: +886-2 2562-4117

Fax: +886-2 2562-4116

Europe:

Tel: +41-41 768 5555

Fax: +41-41 768 5510

The Americas:

Tel: +1-951 781-5500

Fax: +1-951 781-5700

www.bourns.com

9.8 +0/-0.1

(.386 +0/-.004)

1543-305:

3.0 +0/-0.2

(.118 +0/-.008)

1543-300/301/302:

4.2 +0/-0.2

(.165 +0/-.008)

9.8 +0/-0.1

(.386 +0/-.004)

9.8 +0/-0.1

(.386 +0/-.004)

DIMENSIONS ARE:

REV. 06/08

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

MM

(INCHES)

9.8 +0/-0.1

(.386 +0/-.004)
