Ferrites and accessories
P 18 x 11
Core and accessories
Series/Type:
Date:
B65651, B65652, B65655, B65659
July 2017
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
P 18
11
Core and accessories

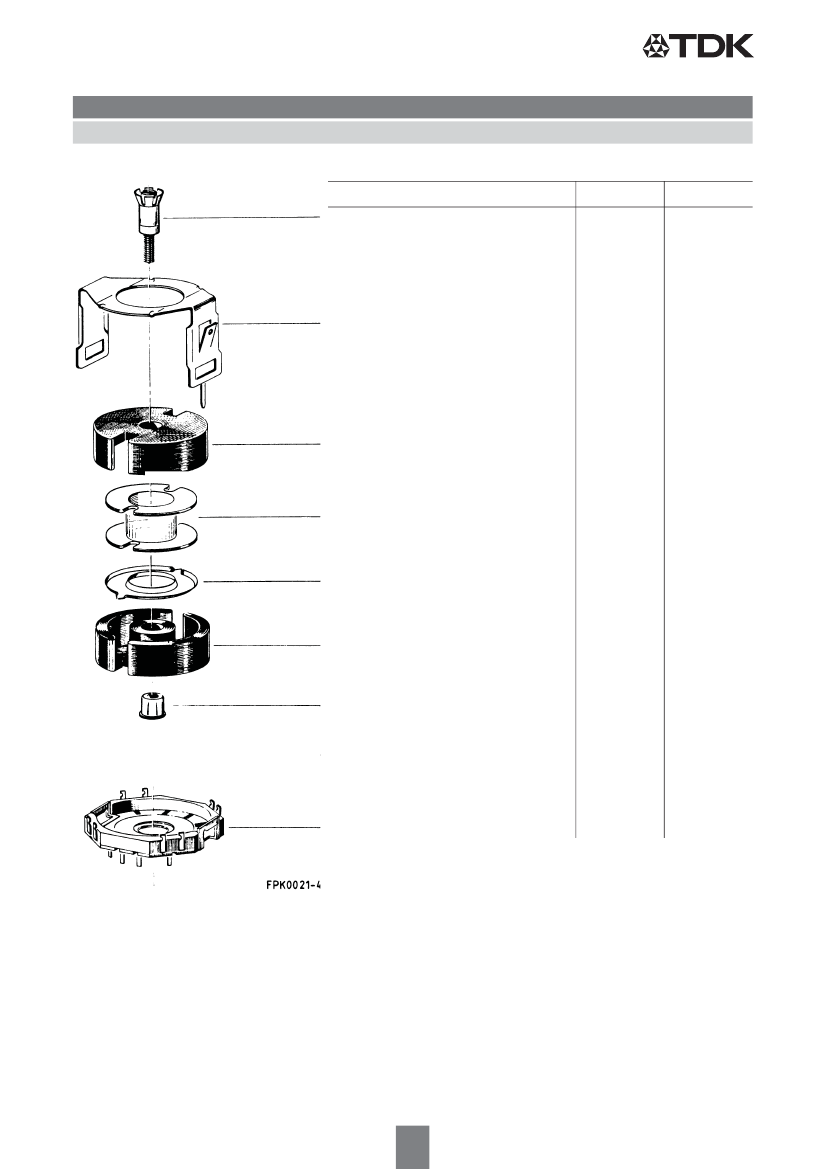

Individual parts
Adjusting screw
Part no.
B65659
Page
6
Yoke
B65655
5
Core
B65651
3
Coil former
B65652
4
Insulating washer
Core
B65651
3
Threaded sleeve (glued-in)
Terminal carrier
B65655
5
Example of an assembly set
for printed circuit boards
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
7/17
P 18

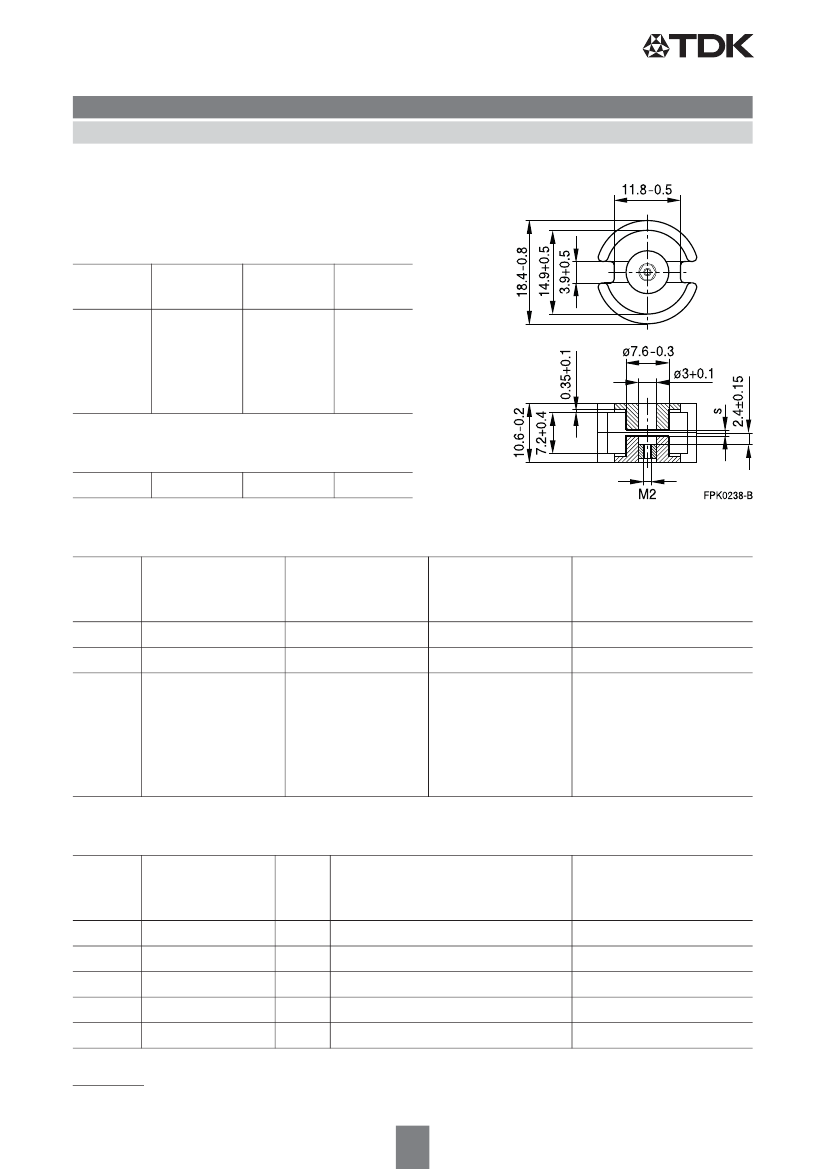

Core
11
B65651
■
To IEC 62317-2
■
Delivery mode: sets
Magnetic characteristics
(per set)
with
without
center hole center hole
l/A
l
e
A
e
A
min
V
e
0.6
25.9
43
—
1114
0.57
26.6
46.7
33.9
1242
mm
–1
mm
mm
2
mm
2
mm
3
Approx. weight
(per set)
m
6.0
6.6
g
Gapped
(A
L
values/air gaps examples)
Material
A
L
value
nH
K1
M33
N48
40 3%
100 3%
160
250
315
400
500
630
3%
3%
3%
3%
3%
5%
s
approx.
mm
1.60
0.60
0.32
0.20
0.15
0.10
0.07
0.05
e
Ordering code
1)
-D with center hole
-T with threaded sleeve
B65651+0040A001
B65651+0100A033
B65651+0160A048
B65651+0250A048
B65651+0315A048
B65651+0400A048
B65651+0500A048
B65651D0630J048
19
48
77
120
151
192
240
302
Ungapped
Material
A
L
value
nH
K1
N48
N30
T38
N87
180 +30/–20%
2800 +30/–20%
5900 +30/–20%
12600 +40/–30%
3600 +30/–20%
90
1340
2680
5710
1630
e
P
V
W/set
Ordering code
-D with center hole
-W without center hole
B65651D0000R001
B65651D0000R048
B65651W0000R030
B65651W0000Y038
< 0.46 (200 mT, 100 kHz, 100 °C) B65651W0000R087
Other A
L
values/air gaps and materials available on request – see Processing remarks on page 7.
1) Replace the + by the code letter ”D“ or ”T“ for the required version.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
7/17
P 18
11
B65652
Accessories
Coil former
Standard:
Material:
to IEC 62317-2
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
Valox 420-SE0
®
E207780 (M) , SABIC JAPAN LLC
see Processing notes, 2.1
Winding:
Coil former
Sections
1
Coil former
Bestellnummer
A
N
mm
2
16
l
N
mm
35.6
A
R
value
87
B65652B0000T001
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
7/17
P 18
11
B65655
Accessories

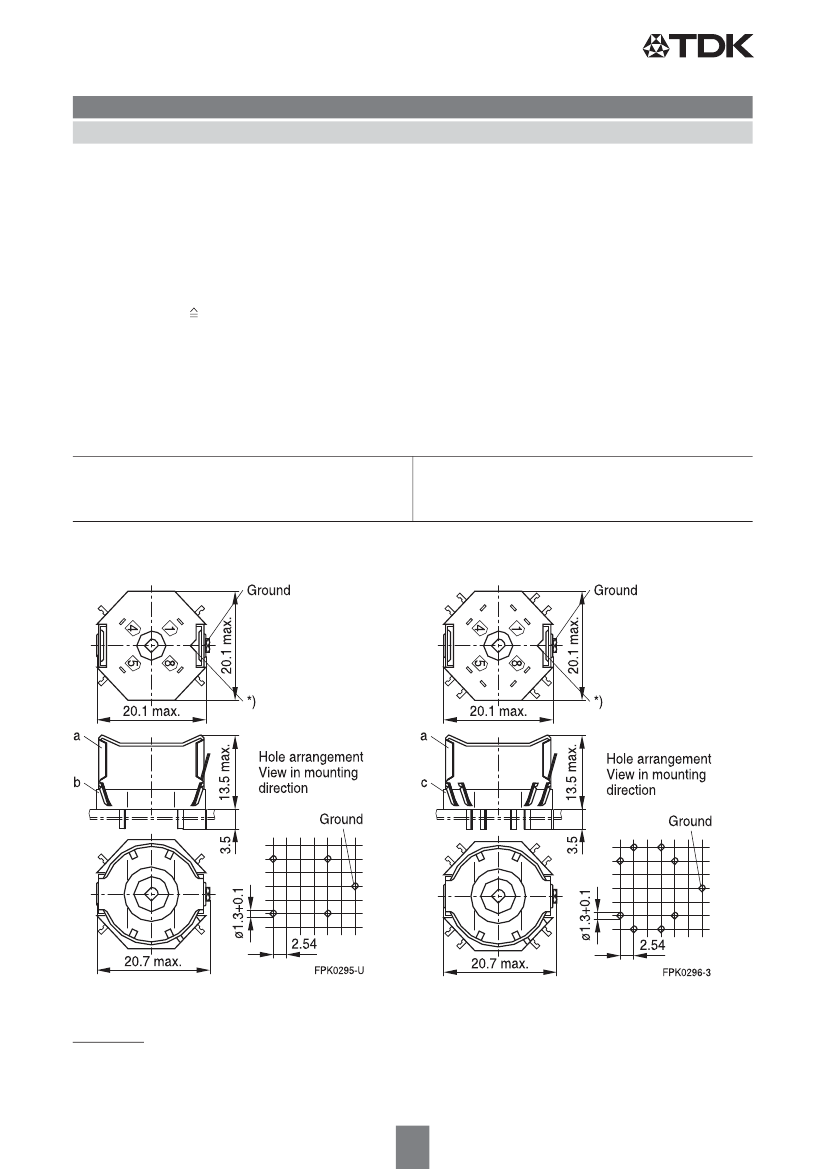

Mounting assembly for printed circuit boards
■
The set comprises a terminal carrier and a yoke
■
For snap-in connection
Terminal carrier
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code gray
Pocan B4235
®
E245249 (M) , LANXESS AG
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s
Yoke
Spring yoke, made of tinned nickel silver (0.3 mm), with ground terminal
Complete mounting assembly
(4 solder terminals)
Ordering code: B65655B0009X000
4 solder terminals
Complete mounting assembly
(8 solder terminals)
Ordering code: B65655B0010X000
8 solder terminals
Material:
*)
a)
b)
c)
This recess must be on the side of the grounding pin to ensure that the yoke locks in position.
Yoke
Terminal carrier with 4 solder terminals
Terminal carrier with 8 solder terminals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
7/17
