M1613: DescriptionTimer with Dialer Interface; File Size105KB，2 Pages; ManufacturerETC

Download Datasheet View All

M1613 Overview

Timer with Dialer Interface

Preview

Download Datasheet

View All

一華半導體股½有限公司

MOSDESIGN SEMICONDUCTOR CORP.

TAIPEI : TEL :

FAX :

H.K.

: TEL :

FAX :

886-2- 22783733

886-2- 22783633

852- 27569109

852- 27566961

LCD

M1613

Timer with Dialer Interface

FEATURES

功½敘述

•

Dialing number and conversation time display.

•

Conversation timer (Max. to 59 mins and 59 secs).

•

8 or 10 digits LCD display driver,3V,1/2Bias,1/3 duty.

•

Built-in dialer interface.

•

12/24 hour format.

•

S1,S2 : real time clock setting.

•

Blinking cursor waits for dialing number.

APPLICATION

產品應用

•

Timers , clocks and watch, LCD display driver….

ELECTRICAL CHARACTERISTICS

電氣規格

Characteristics

工½電壓

Operating Voltage

工½電流

Operating Current

靜態電流

Quiescent Current

推動電流

Driving Current

振盪頻率

Oscillator Frequency

工½溫度

Operating Temperature

Sym.

Fosc

Temp

Min.

1.2

―

500

―

-20

Typ.

1.5

0.1

1000

32768

―

Max.

―

Unit

μA

℃

( @V

=1.5V unless otherwise specified )

REMARKS

No load

= Floating or V

±30%

TOL.

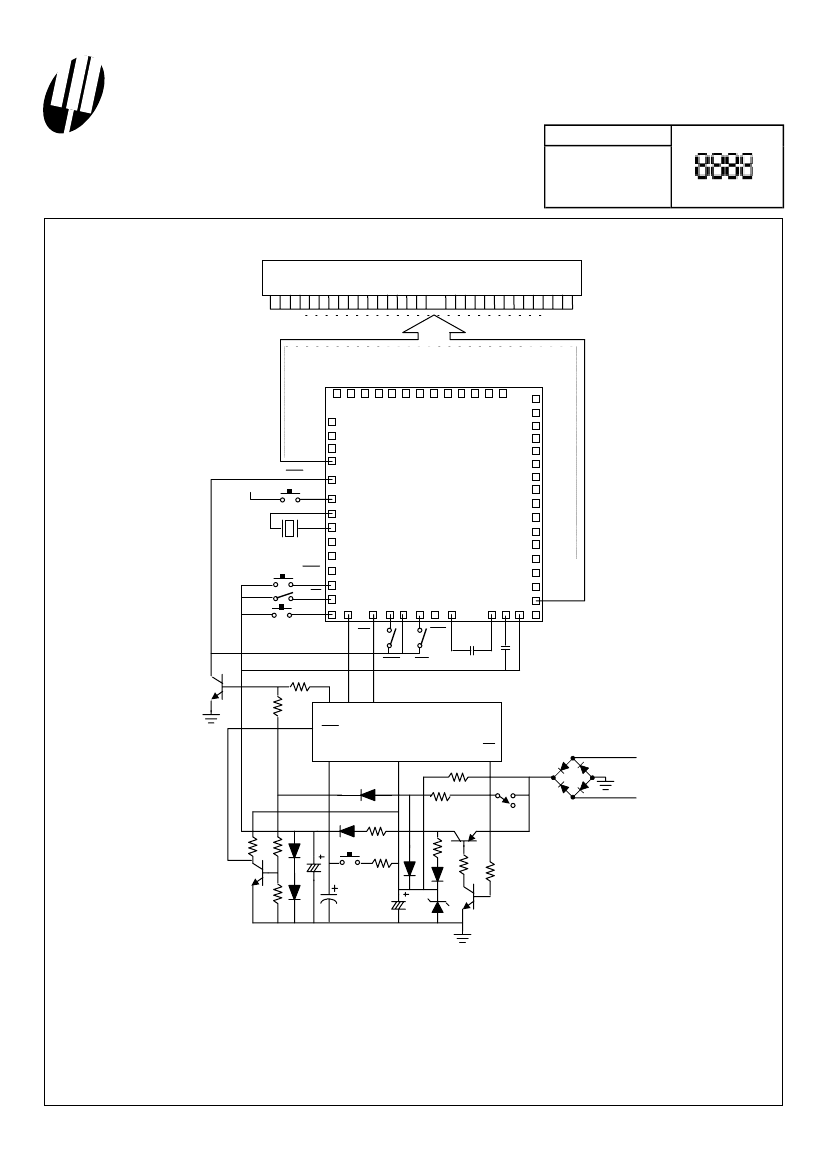

APPLICATION DIAGRAM

參考電路圖

8/10-Digit

COM3

COM1

SEG27

SEG28

SEG29

SEG30

COM2

VDD

SEG26

SEG25

SEG23

SEG24

SEG22

COM2

S30

M1613

2.9 x2.7mm

底

=VDD

SEG20

SEG21

SEG19

SEG17

SEG18

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SEG9

SEG8

SEG7

SEG6

SEG5

SEG4

SEG3

SEG2

SEG1

COM3

COM1

32768Hz

VDD

INT

TIMER

12/24

VDD=1.5V

ACT

EPN RES

104

104 VDD RT

*All specs and applications shown above subject to change without prior notice.

(

以㆖電路及規格僅供參考,本公司得逕行修正

)

1/2
