023627 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 023627

023627: DescriptionCircular Connector, 27 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size160KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

023627 Overview

Circular Connector, 27 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket

023627 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, PBT
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	COPPER TIN
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED PEI
Termination type	SOLDER
Total number of contacts	27
Base Number Matches	1

Preview

Download Datasheet

View All

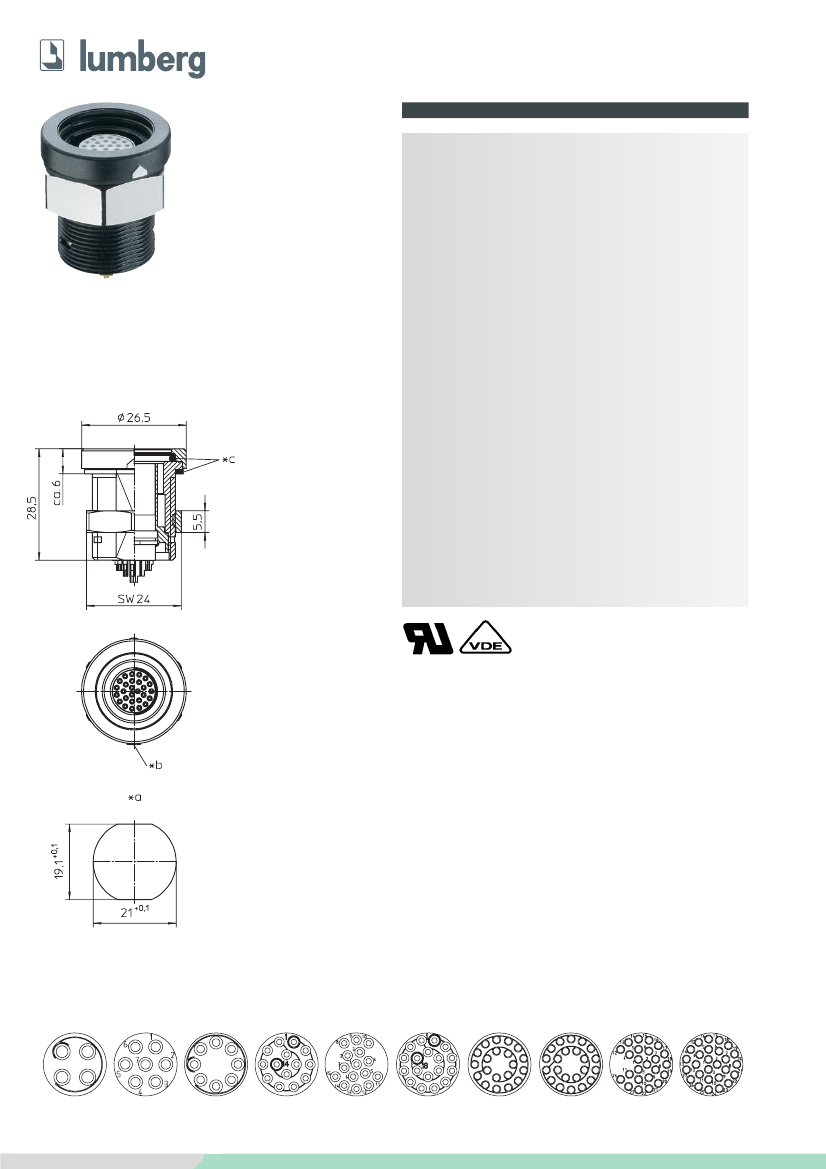

0236

Einbaukupplung mit Push-pull-Verriegelung, für Front-

montage, IP 68, Größe 3, mit Lötanschlüssen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktbuchse 4- bis 18-polig

Kontaktbuchse 20- bis 27-polig

Gehäuse

Pressring

Mutter

Dichtung

3. Mechanische Daten

Kontaktierung mit

Schutzart

Weiteres siehe Tabelle

4. Elektrische Daten

Isolierstoffgruppe

Isolationswiderstand

Weiteres siehe Tabelle

-40 °C/+120 °C

PBT, V0 nach UL 94

CuZn, unternickelt und vergoldet

CuSn, unternickelt und vergoldet

PEI GF, V0 nach UL 94

CuZn, vernickelt

TPE

Steckverbinder 0226

IP 68

IIIa (CTI

≥

250) (nur Kontaktträger)

≥

Ω

nach DIN EN 60529,

nur in verriegeltem Zustand mit einem dazugehörenden Gegenstück

nach VDE 0110/IEC 60664

Bemessungsstrom bezogen auf einen Einzelkontakt

ab 5-polig zusätzlich Bemessungsstrom bei Belastung aller Kontakte

unter Berücksichtigung der Reduzierfaktoren nach DIN 57298 Teil 2/

VDE 02098 Teil 2

Bemessungsspannung bei Verschmutzungsgrad 2 nach VDE 0110/IEC 60664

Verschmutzungsgrad 1

*a Einbauöffnung

port

ouverture d’emplacement

*b Steckmarkierung

mating direction marking

marque de sens d’insertion

*c Dichtung

gasket

joint d’étanchéité

Polbilder, von der Lötseite gesehen

Pin configuration, solder side view

Schéma de branchement, vue du côté à souder

0236 04

0236 07

0236 08

0236 14

0236 15

0236 18

0236 20

0236 22

0236 24

0236 27

01/2006

www.lumberg.com

023627 Related Products

	023627	023607	023604	023608	023614	023615	023618	023620	023622	023624
Description	Circular Connector, 27 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 7 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 4 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 8 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 14 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 15 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 18 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 20 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 22 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket	Circular Connector, 24 Contact(s), Glass Filled PEI, Female, Solder Terminal, Socket
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT	STANDARD: UL 94V-0, PBT
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER TIN	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER TIN	COPPER TIN	COPPER TIN
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI	GLASS FILLED PEI
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	27	7	4	8	14	15	18	20	22	24
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	-
Maker	-	-	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
