RSRKW 301-838/25M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size328KB，1 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric Compare View All

RSRKW 301-838/25M Overview

Sensor Cables / Actuator Cables

RSRKW 301-838/25M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	7/8 in Circular
Connector End A Pin Count	3 Position
Connector End B	7/8 in Right Angle
Connector End B Pin Count	3 Position
Gender	Male / Female
Length	25 m
Current Rating	8 A
Voltage Rating	600 V
Color	Yellow
Description/Function	Double Ended Cordset
Jacket Material	Thermoplastic Elastomer (TPE)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

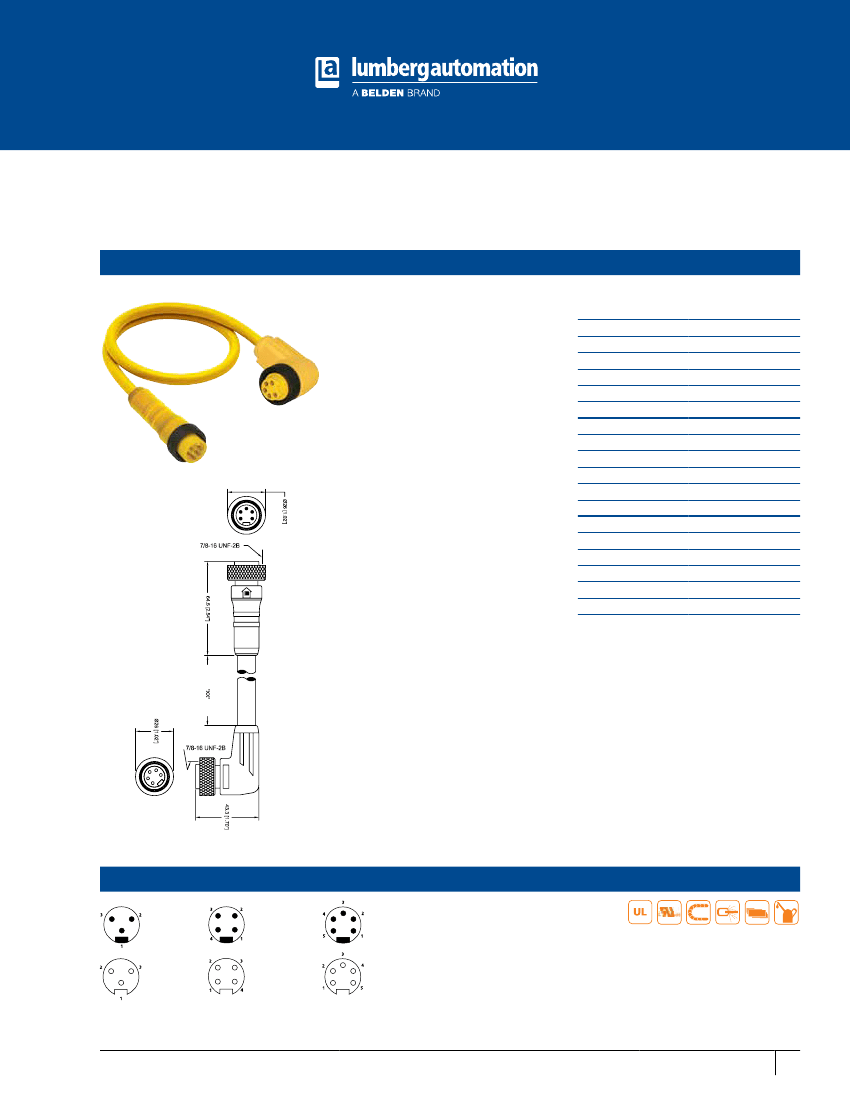

Mini Double-Ended Cordsets

RSRKW 301-838 | RSRKW 401-839 | RSRKW 501-877

Description

MINI, Double-Ended Cordset, Straight Male

(internal threads) to Right Angle Female

(internal threads), 3-, 4- and 5-Pole, 16 AWG,

Yellow TPE (TC-ER) Cable, U.S. Color Code, IP

68 and NEMA 6P Rated.

Technical Data

Material

Molded body

Coupling nut

Contacts

Insert

Electrical

Current rating

Voltage rating

Mechanical

Temperature

Protection

Cable

Jacket

Gauge

UL Approval

Outside diameter

PUR, yellow

Aluminum, e-coated or

anodized black

Brass, gold over nickel plated

PUR, yellow

Part Number

RSRKW 301-838/1M

RSRKW 301-838/2M

RSRKW 301-838/3M

RSRKW 301-838/5M

RSRKW 301-838/10M

RSRKW 301-838/20M

RSRKW 401-839/1M

RSRKW 401-839/2M

RSRKW 401-839/3M

RSRKW 401-839/5M

RSRKW 401-839/10M

RSRKW 401-839/20M

RSRKW 501-877/1M

8A

600 V

RSRKW 501-877/2M

RSRKW 501-877/3M

RSRKW 501-877/5M

-30°C to + 90°C

IP 68, NEMA 6P

RSRKW 501-877/10M

RSRKW 501-877/20M

Yellow, TPE

16 AWG stranded copper

TC-ER

838: .315”

839: .342”

877: .371”

Pin Assignments

Face View 7/8”

1 = green

2 = black

3 = white

1 = black

2 = white

3 = red

4 = green

1 = white

2 = red

3 = green

4 = orange

5 = black

www.lumberg-automationusa.com

Phone: 1-800-BELDEN1

FCA NAFTA Project Book

Revison 12, July 1, 2015

25

RSRKW 301-838/25M Related Products

	RSRKW 301-838/25M	RSRKW 301-838/10M	RSRKW 301-838/20M	RSRKW 301-838/3M	RSRKW 301-838/1M	RSRKW 301-838/5M	RSRKW 301-838/2M	RSRKW 301-838/30M	RSRKW 301-838/15M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Connector End A	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular
Connector End A Pin Count	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position
Connector End B	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle
Connector End B Pin Count	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position
Gender	Male / Female	Male / Female	Male / Female	Male / Female	Male / Female	Male / Female	Male / Female	Male / Female	Male / Female
Length	25 m	10 m	20 m	3 m	1 m	5 m	2 m	30 m	15 m
Current Rating	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Voltage Rating	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
Color	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow
Description/Function	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset	Double Ended Cordset
Jacket Material	Thermoplastic Elastomer (TPE)	Polyurethane (PUR)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
