93689-102-09 datasheet, PDF - EEWORLD Datasheet

93689-102-09: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

93689-102-09 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (39) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	93689
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	9
UL Flammability Code	94V-0

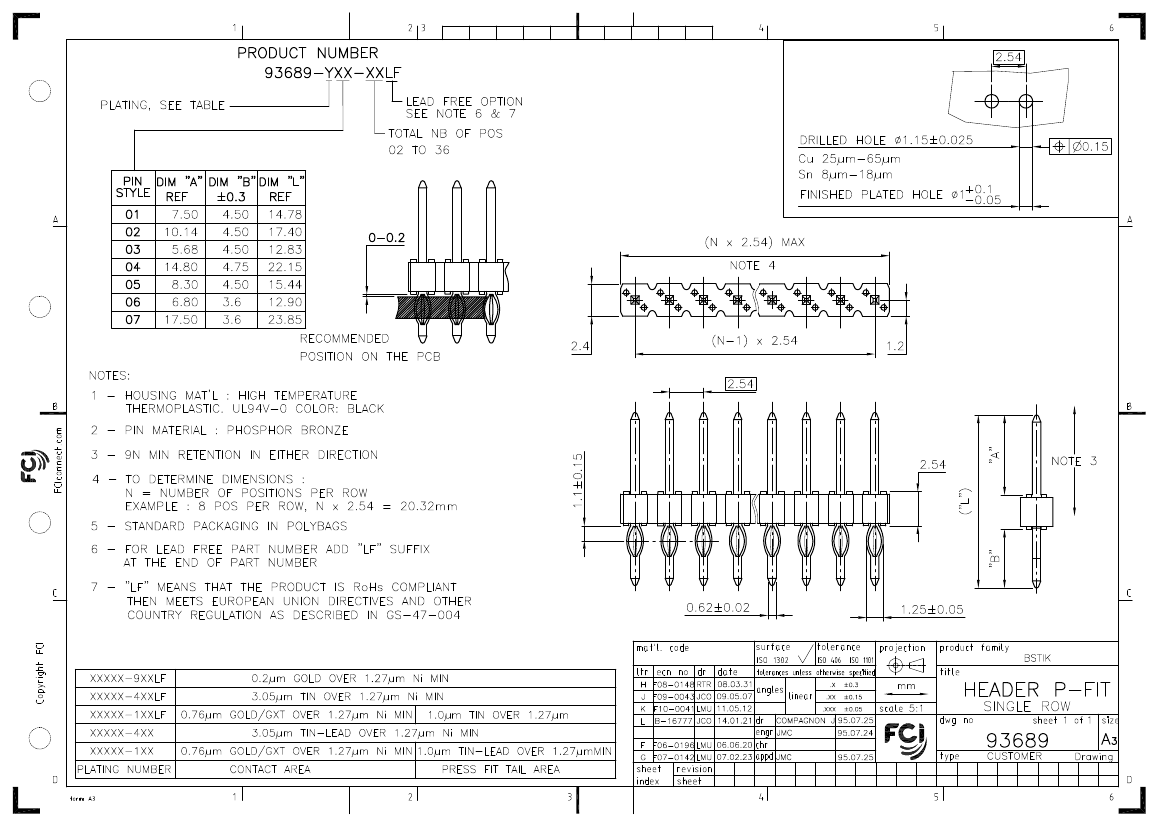

PDS: Rev :L

STATUS:Released

Printed: Jan 21, 2014
