82_MMCX-50-0-18/111_OM Overview

RF Connectors / Coaxial Connectors

82_MMCX-50-0-18/111_OM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codenot_compliant
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MMCX CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSURFACE MOUNT
Base Number Matches1

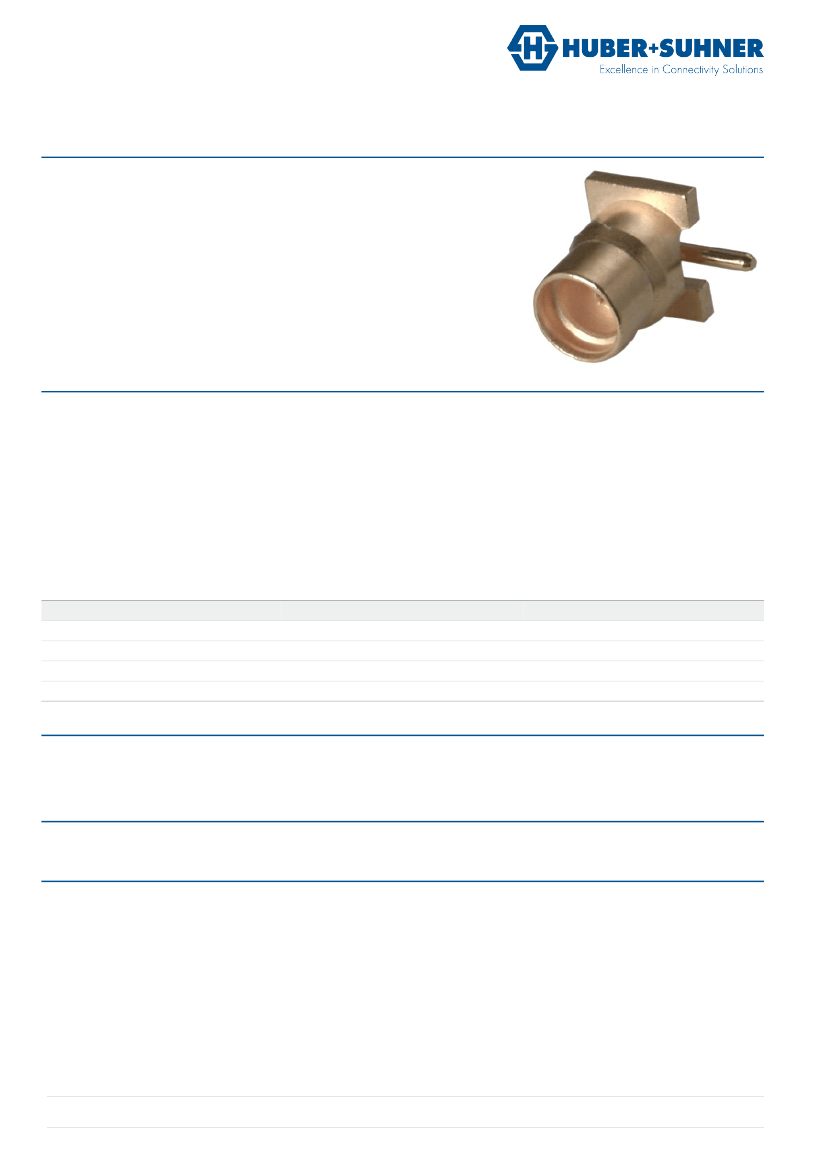

Data Sheet
Coaxial PCB Connector
82_MMCX-50-0-18/111_O
Description
Straight PCB jack
Interface Standards
SUHNER-MMCX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
surface mount
0.0006 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00012647
DCA-00085712
DOU-00012649
Ordering Information
Tape and Reel package
82_MMCX-50-0-18/111_OM
Remarks
PCB connector without stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000192743 N / PDO F / date of publication: 12/5/2014 12:33:45 PM / uncontrolled copy
Page 1/1
