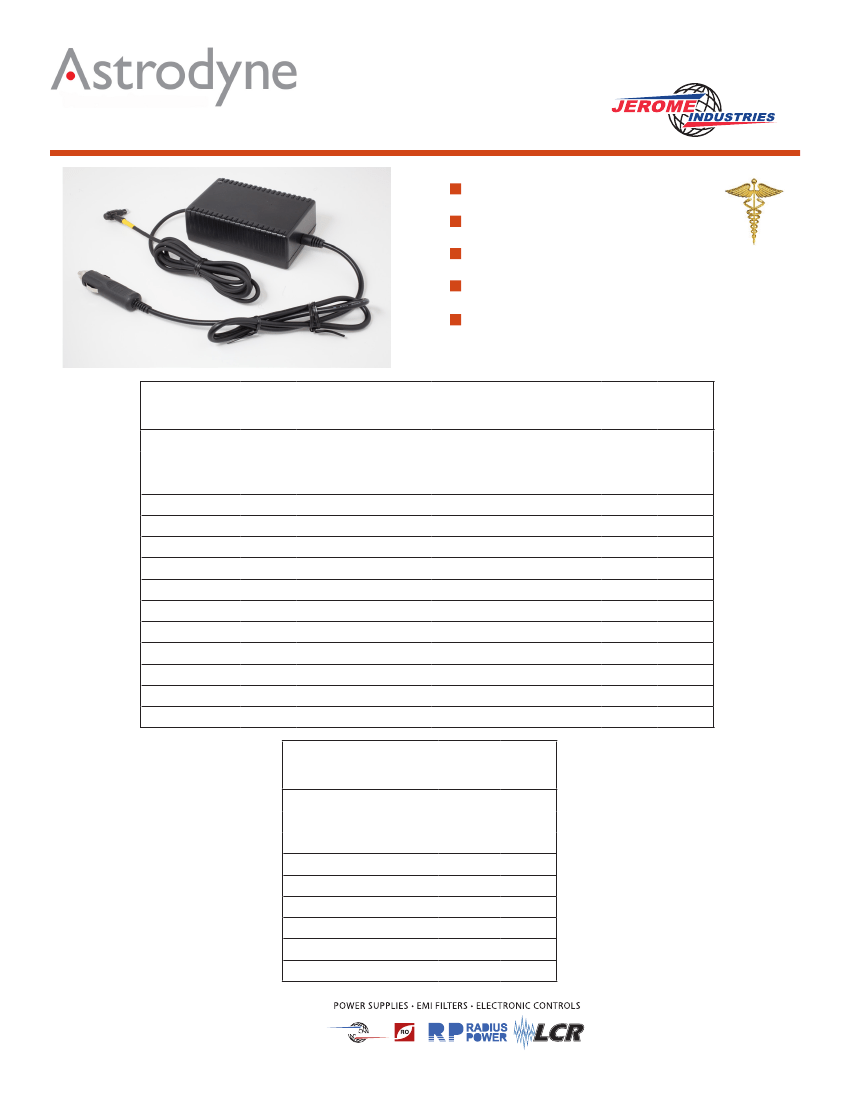

75 Wa tt Med ica l Grad e A uto m obi le P ow e r Ad a p te r
Wide Input Voltage Range
75 Watts Maximum Output Power
CF Level Isolation for Maximum Patient Safety
Car/Truck Input Connector
Suitable for Use with All Mobile Medical Devices
(i.e. Respirator, defibrillator, suction pump, etc...)
Model
Number
DCL100
DCL15.0MC
DCL16.0MC
DCL17.0MC
DCL18.0MC
DCL112.0MC
DCL113.5MC
DCL115MC
DCL116MC
DCL117MC
DCL118MC
DCL119MC
DCL120MC
5.0
6.0
7.0
8.0
12
13.5
15
16
17
18
19
20
5.0
5.0
4.3
3.75
3.3
3.3
3.0
2.8
2.65
2.5
2.37
2.25
25W
30W
30W
40W
45W
45W
45W
45W
45W
45W
45W
45W
Output Output
Voltage Current
Output
Power
Model
Number
DCL200
DCL25.0MC
DCL26.0MC
DCL27.0MC
DCL28.0MC
DCL212.0MC
DCL213.5MC
DCL215MC
DCL216MC
DCL217MC
DCL218MC
DCL219MC
DCL220MC
Output Output Output
Voltage Current Power
5.0
6.0
7.0
8.0
12
13.5
15
16
17
18
19
20
7.0
7.0
6.8
6.0
4.0
4.0
4.0
3.75
3.5
3.33
3.16
3.0
35W
42W
48W
48W
48W
54W
60W
60W
60W
60W
60W
60W
Model
Number
DCL300
DCL313.5MC
DCL315MC
DCL316MC
DCL317MC
DCL318MC
DCL319MC
DCL320MC
Output Output
Voltage Current
Output
Power
13.5
15
16
17
18
19
20
4.7
4.7
4.7
4.4
4.17
3.95
3.75
63.5W
70.5W
75W
75W
75W
75W
75W
WWW.ASTRODYNE.COM
JEROME
INDUSTRIES
PHONE: 1-908-353-5700
FAX: 1-908-353-1021
75 Wa tt Med ica l Grad e A uto m obi le P ow e r Ad a p te r
INPUT SPECIFICATIONS
Input Voltage Range
10.8-17.6VDC Continuous
10-26VDC DCL100 & DCL200
10-20VDC DCL300
EU Automotive Directive 2004/104/EC:
Transient Immunity
Extended Input Voltage Range for 60 Seconds
Radiated Emissions
Auto Plug Characteristics
Sections 6.8 & 6.9, transient
immunity: ISO 7637-2 test
pulses 1, 2a, 2b, 3a, 3b,
4 & 5 recovery class D
Sections 6.5 & 6.6
UL 20589, pertinent sections
OUTPUT SPECIFICATIONS
Voltage and Current
Output Voltage Variance
See Model Charts Page 1
±5%, includes input & output
condition variation and
component variation
1% of Vout to 100mV p-p, max.
110% to 160% of Full Load
Non Latching, Auto Recovery
110% to 135% of Vout
Non Latching, Auto Recovery
Protection
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
-20°C to 40°C
Derating 20% 40°C to 50°C
70°C for 5 minutes
Designed to -25 to +75°C
Designed to 0-4,000M
Designed to 0-10,000M
10% to 95% RH,
Non-Condensing
Ripple & Noise (PARD, Note 1)
Current Limit
Over Voltage Protection
Storage Temperature
Operating Altitude
Storage Altitude
Humidity
GENERAL SPECIFICATIONS
Isolation
Efficiency (Note 3)
4500VDC
70-90% Output Dependent
Per IEC60529, IPX2
SAFETY & EMC
(DESIGNED TO MEET)
Safety
IEC 60601-1, ANSI/AAMI
ES60601 -1 3rd Ed and
IEC 60601-1-11
CF Level Isolation at DC Output
connector terminations
IEC 60601-1-2 as applied to
Automotive Environment
CISPR11, Radiated Emissions,
Class B
IEC61000-4-2, ±6kV Direct
Discharge, ±8kV Air Discharge
IEC 61000-4-3, Immunity to radi-
ated RF Electromagnetic field
IEC61000-4-6 Immunity to con-
ducted disturbances induced by
radio frequency fields
Water Ingress
Safety Isolation
EMC General
Emissions
ESD
Radiated Immunity
Conducted Immunity
MECHANICAL SPECIFICATIONS
Housing Dimensions
Input Configuration
Output Configuration
4.75” x 3.00” x 1.90”
Excludes Rubber Feet
Standard Auto Plug
1M Length, 18AWG
Various; Custom 3’ to 15’
length cords, various output
connectors available
NOTES
1. Measured with a 0.1μF ceramic and a 10μF electrolytic capacitors
across the output terminals. The oscilloscope bandwidth is set at 20MHz
a co-axial cable will be used to measure it. The test condition is maximum
load.
PHONE: 1-908-353-5700
FAX: 1-908-353-1021
WWW.ASTRODYNE.COM
JEROME
INDUSTRIES
75 Wa tt Med ica l Grad e A uto m obi le P ow e r Ad a p te r

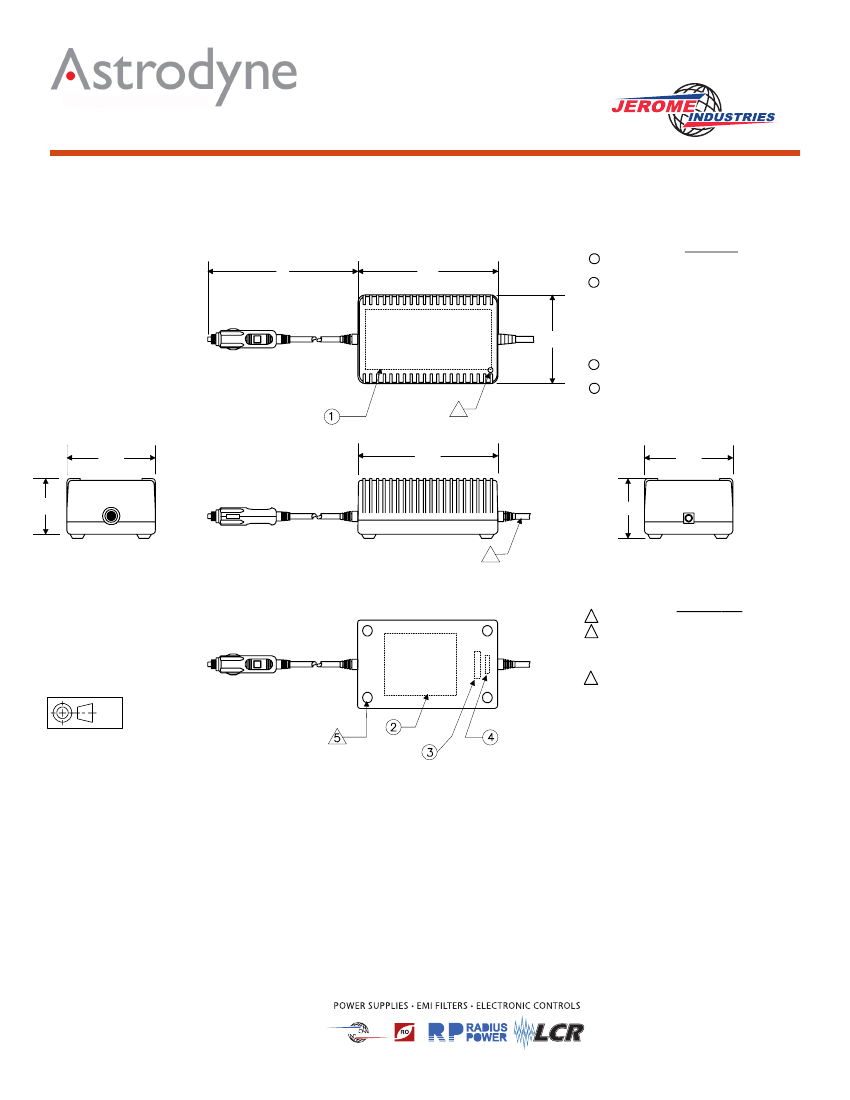

MECHANICAL DIMENSIONS
41
4.75
AUTOPOWER
PLUG ON
DC INPUT
3.00
MARKINGS
1 CUSTOMIZABLE TOP SURFACE
MARKING AREA = 4.41" X 2.09"
2 STANDARD JEROME/ASTRODYNE INFO
A) JEROME/ASTRODYNE NAME,
AND WEB URL
B) MODEL NUMBER AND PRODUCT
DESCRIPTION
C) ELECTRICAL RATINGS
D) COMPLIANCE AGENCY MARKS
3 OPTIONAL- SERIAL NUMBER
AND/OR BAR CODE
4 DATE CODE
7
3.00
4.75
3.00
1.89
1.97
6
MECHANICAL
5 BUMP-ON (4 CORNERS) -CLEAR
6 OUTPUT:
-VARIOUS OUTPUT CORD AND CONNECTOR
OPTIONS AVAILABLE
7 OPTIONAL- LED POWER INDICATOR
AVAILABLE IN BLUE OR GREEN
US
ALL DIMENSIONS IN INCHES UNLESS
OTHERWISE NOTED
2314
WWW.ASTRODYNE.COM
JEROME
INDUSTRIES
PHONE: 1-908-353-5700
FAX: 1-908-353-1021
