EMC filters
4-line filters
for installations and systems
Series/Type:
Date:
B84131
May 2014
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
4-line filters
for installations and systems
B84131
Power line filters for 3-phase systems with
neutral conductor
Rated voltage V
R
: 440/250 V AC
Rated current I
R
: 6 to 125 A
Construction
4-line filters
Metal case
Features
High insertion loss
Compact, cost-optimized design
Easy to install
ENEC, UL and CSA approval
Typical applications
Power supplies for
data systems, telecom systems
medical equipment, industrial installations
copiers
Terminals
Tab connectors
Threaded studs
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 13
4-line filters
for installations and systems
B84131
Typical circuit diagram
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
440/250 V AC (50/60 Hz)
Referred to 40
°C
rated temperature
1770 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
At V
R
and 50 Hz
25/085/21 ( 25
°C/+85 °C/21
days damp heat test)
IEC 60939, UL 1283, CSA C22.2 No.8
Characteristics and ordering codes
I
R
A
I
LK
mA
Approx. weight
kg
0.8
1.5
2.3
2.3
4.5
4.5
12.5
12.5
Ordering code
Approvals
V
R
= 440/250 V AC
6
0.138
16
0.094
25
0.094
35
0.094
50
0.094
63
0.094
80
0.094
125
0.094
×
= Approval granted
B84131A0006A001
B84131M0003A116
B84131M0001G125
B84131M0001G135
B84131M0002G150
B84131M0002G163
B84131M0004G180
B84131M0004G225
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 13
4-line filters
for installations and systems
B84131

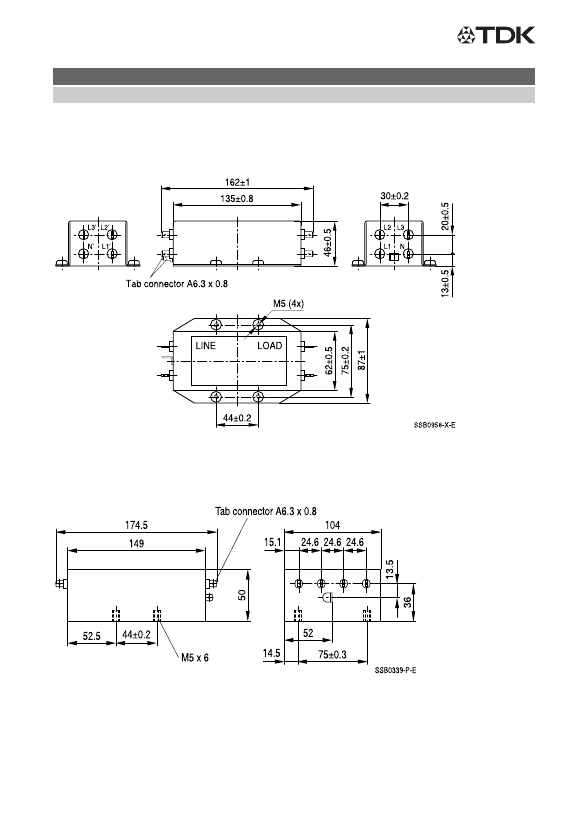

Dimensional drawings
B84131A0006A001 (6 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84131M0003A116 (16 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 13
4-line filters
for installations and systems
B84131

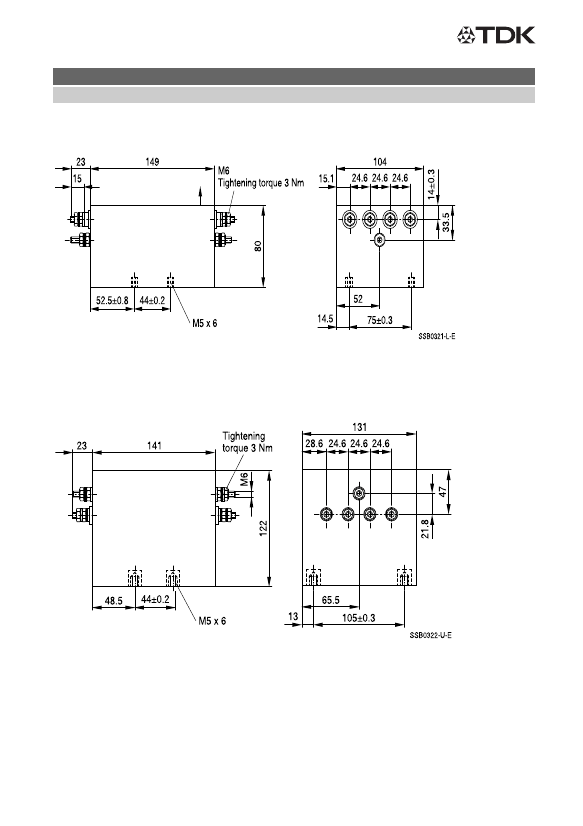

B84131M0001G125, B84131M0001G135 (25 A, 35 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84131M0002G150, B84131M0002G163 (50 A, 63 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 13
