LT1947EMSE#TR

Description
Switching Voltage Regulators LT1947 - Adjustable Output TFT-LCD Triple Switching Regulator
CategoryPower/power management    The power supply circuit
File Size175KB,12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

LT1947EMSE#TR Overview

Switching Voltage Regulators LT1947 - Adjustable Output TFT-LCD Triple Switching Regulator

LT1947EMSE#TR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
package instructionHTSSOP,
Reach Compliance Codenot_compliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeCURRENT-MODE
Maximum input voltage8 V
Minimum input voltage2.7 V
Nominal input voltage3.3 V
JESD-30 codeS-PDSO-G10
JESD-609 codee0
length3 mm
Humidity sensitivity level1
Number of functions1
Number of terminals10
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output current2 A
Package body materialPLASTIC/EPOXY
encapsulated codeHTSSOP
Package shapeSQUARE
Package formSMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)235
Certification statusNot Qualified
Maximum seat height1.1 mm
surface mountYES
Switch configurationBOOST
Maximum switching frequency3500 kHz
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature20
width3 mm
Base Number Matches1

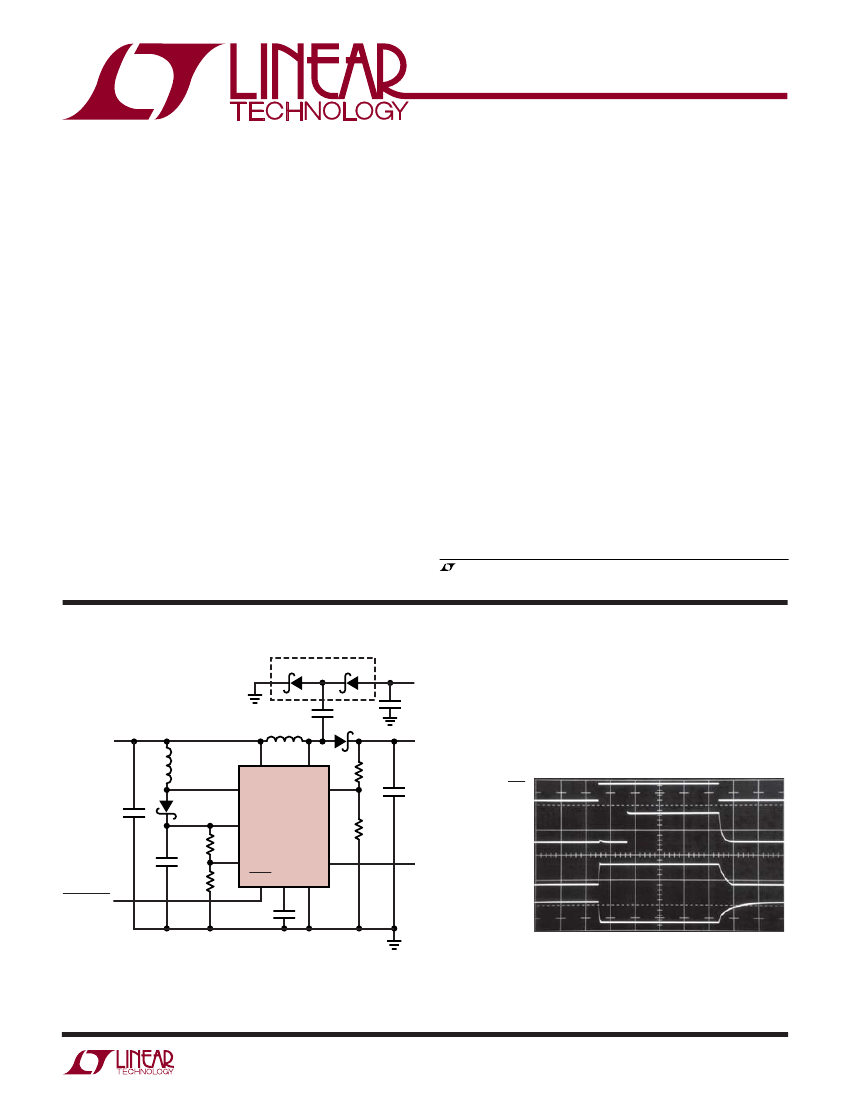

LT1947
Adjustable Output TFT-LCD
Triple Switching Regulator
FEATURES
DESCRIPTIO
Complete Solution Under 1.2mm
Develops Three Outputs from a 3.3V or 5V Supply
Externally Programmable V
ON
Delay
Fixed Frequency Low Noise Outputs
All Ceramic Capacitors
3MHz Switching Frequency
Fast Transient Response
Few External Components Required
2.7V to 8V Input Range
Adjustable AV
DD
and V
ON
Voltages
Tiny 10-Lead MSOP and Thermally Enhanced
10-Lead MSOP Packages
APPLICATIO S
TFT-LCD Notebook Display Panels
TFT-LCD Desktop Monitor Display Panels
Digital Cameras
Handheld Computers
The LT
®
1947 is a highly integrated multiple output DC/DC
converter designed for use in TFT-LCD panels. The device
contains two independent switching regulators. The main
regulator has an adjustable output voltage with an internal
1.1A switch that can generate a boosted voltage as high as
30V. The second regulator’s output is also adjustable up
to 30V and can deliver 10mA for positive bias. A simple
level-shift charge pump off the main switch node gener-
ates the negative bias voltage. An external capacitor sets
the delay time from AV
DD
’s final value to the rising edge at
the V
ON
pin. The 3MHz switching frequency allows the use
of tiny low profile chip inductors and capacitors through-
out, providing a low noise, low cost total solution with all
components under 1.2mm in height. The device operates
from an input range of 2.7V to 8V and is available in
10-lead MSOP and thermally enhanced 10-lead MSOP
packages.
, LTC and LT are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
TYPICAL APPLICATIO
D3
D4
L1
3.3µH
V
IN
L2
4.7µH
C1
2.2µF
CERAMIC
C6
0.68µF
D1
V
IN
SW2
SW1
FB1
C4
0.68µF
CERAMIC
AV
DD
8V
200mA
R1
53.6k
C2
3.3µF
CERAMIC
×2
V
SHDN
5V/DIV
V
ON
20V/DIV
V
OFF
–8V
10mA
D2
V
O2
C3
220nF
R3
182k
FB2
R4
10k
SHDN C
T
C5
10nF
D1: MBRM120LT3
D2: CMDSH-3
D3, D4: BAT54S DUAL DIODE
L1: SUMIDA CLQ4D103R3
L2: TAIYO YUDEN LB2012B4R7M
V
ON
GND
LT1947
R2
10k
V
ON
24V
10mA
AV
DD
10V/DIV
SHUTDOWN
V
OFF
10V/DIV
1947 F01
C1: TAIYO YUDEN LMK316BJ225MD
C2: TAIYO YUDEN LMK325BJ335MD
×2
C3: AVX 0.22µF 25V X7R
C4, C6: TAIYO YUDEN LMK107BJ684MA
Figure 1. 3.3V Powered TFT-LCD Bias Generator
1947fa
U
Start-Up Waveforms
2ms/DIV
1947 TA01.tif
U
U
1
