RF Inductors
TESTING
LEVEL 1
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
C0603 Series
Features and Benefits
Chip Inductors, Open Construction
Commercial Applications

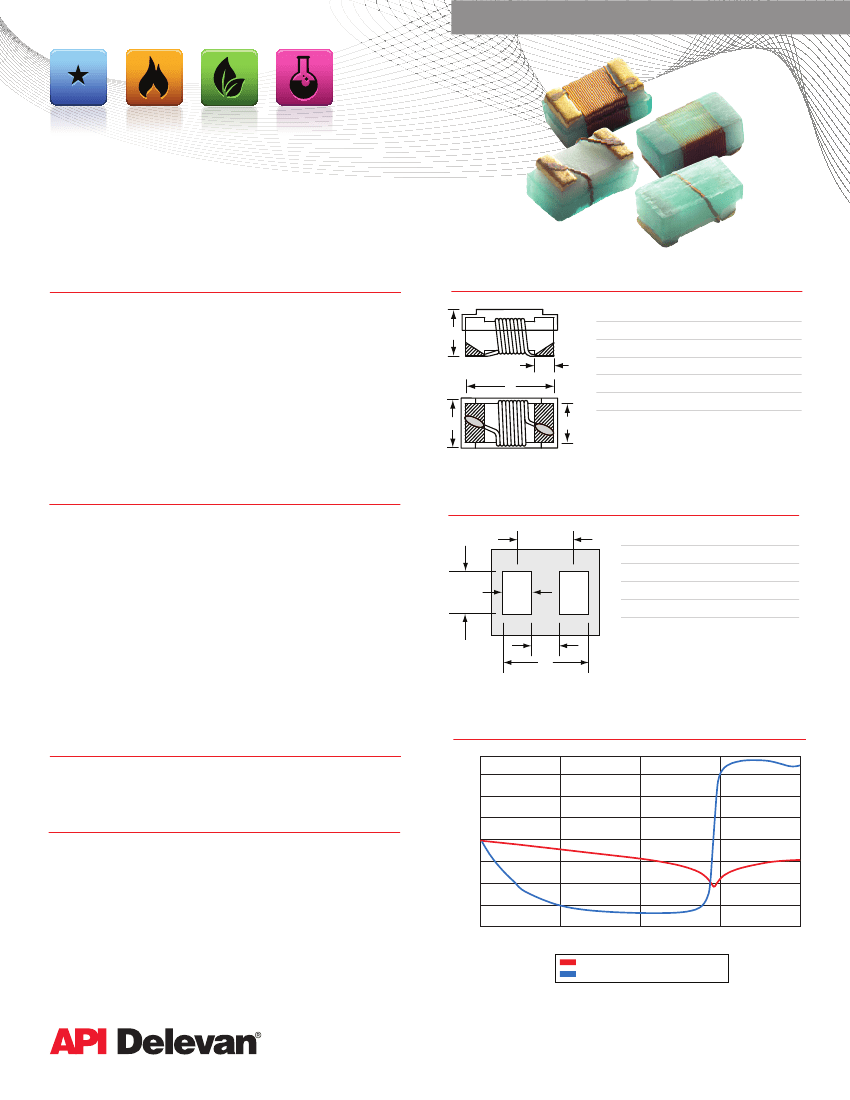

Dimensions
C
E
A
B
D
A
B
C
D
E
Inches
0.071 Max.
1.80 Max.
1.19 Max.
1.02 Max.
0.76 (Ref. Only)
0.44 (Ref. Only)
Millimeters
•
Manufactured & Tested in the USA by an AS9100C certified
company for a high level of reliability.
•
High-temperature Ceramic Cores & Magnet Wire provide
excellent temperature stability and mechanical ruggedness.
•
High Q & Ultra High SRF values enable stable inductor
functionality into multi GHz range.
•
Low AC & DC resistance, minimizing voltage drops
and dissipated power to increase efficiency.
•
Small package size to minimize board space.
0.047 Max.
0.040 Max.
0.030 (Ref. Only)
0.018 (Ref. Only)
Dimensions A and C are over terminals
Parameters
Current Rating at 90°C Ambient
35°C Rise
Operating Temperature Range
-40°C to +125°C
Suggested Land Pattern
Y
Z
I
G
H
Y
0.075
Inches
0.025
0.040
0.025
0.050
Millimeters
1.905
0.635
1.016
0.635
1.270
Part Storage Temperature Range
-40° C to +125°C
Maximum Power Dissipation at 90° C
0.100 W
Electrical Characteristics
Measured at +25°C
DWV
200 Vrms at Sea Level
G
H
Inductance
Measured at 1VAC with no DC Current Testing
80 Vrms at 70,000 feet altitude
I
Z
IR at 100 Vdc
1000 Mohms Min.
Weight/Mass
0.008 Grams (0.00028 ounces) Maximum
Core Material / Termination Finish
AI
2
O
3
/ MoMn / Ni / Au
S-Parameters (Typical)
75
50
25
0
-25
-50
-75
0
1
2
Frequency (GHz)
3
4
Testing Level 1★
Electrical Characteristics L, Q, DCR
Inductance and Q are tested using Keysight E4982A,
or equivalent, with test fixture HP16197A or equivalent.
Country of Orgin: USA
Magnitude [dB] / Phase [deg]
dB Magnitude [S(2,1)] C0603C-68NK1T
Degrees Phase [S(2,1)] C0603C-68NK1T
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
RF Inductors
TESTING
LEVEL 1
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
C0603 Series
Part Number
Prefix
C0603C-1N60
C0603C-1N80
C0603C-2N20
C0603C-3N30
C0603C-3N60
C0603C-3N90
C0603C-4N30
C0603C-4N70
C0603C-5N10
C0603C-5N60
C0603C-6N80
C0603C-7N50
C0603C-8N20
C0603C-8N70
C0603C-9N50
C0603C-10N0
C0603C-11N0
C0603C-12N0
C0603C-15N0
C0603C-16N0
C0603C-18N0
C0603C-22N0
C0603C-23N0
C0603C-24N0
C0603C-27N0
C0603C-30N0
C0603C-33N0
C0603C-36N0
C0603C-39N0
C0603C-43N0
C0603C-47N0
C0603C-51N0
C0603C-56N0
C0603C-68N0
C0603C-72N0
C0603C-82N0
C0603C-100N
C0603C-110N
C0603C-120N
C0603C-150N
C0603C-180N
C0603C-200N
C0603C-210N
C0603C-220N
C0603C-250N
C0603C-270N
C0603C-330N
C0603C-390N
Inductance
Percentage
(nH)
Tolerance (+/-)
1.6
1.8
2.2
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.8
7.5
8.2
8.7
9.5
10
11
12
15
16
18
22
23
24
27
30
33
36
39
43
47
51
56
68
72
82
100
110
120
150
180
200
210
220
250
270
330
390
5
5
5
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
5, 2
Chip Inductors, Open Construction
Commercial Applications
Test Freq
(MHz)
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
200 MHz
200 MHz
200 MHz
200 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
100 MHz
100 MHz
100 MHz
100 MHz
Q (Min.)
20
22
13
22
22
22
22
22
20
22
30
28
30
30
28
31
30
35
35
35
35
35
35
35
37
37
37
37
38
38
38
35
38
37
34
34
34
32
32
28
25
25
24
23
19
21
19
19
900 MHz
1.7 GHz
L (Est.)* Q (Est.)* L (Est.)* Q (Est.)*
1.7
1.6
2.2
3.3
3.7
4.0
4.3
4.7
4.9
5.8
6.8
7.7
8.3
8.9
9.7
10.0
11.0
12.3
15.4
16.2
18.7
22.8
24.1
24.5
29.2
31.4
36.0
39.4
42.7
47.0
52.2
55.5
62.5
80.5
82.0
96.2
124.0
138.0
166.0
250.0
305.0
—
—
—
—
—
—
—
49
35
31
75
53
49
50
47
47
63
60
60
82
62
59
66
53
72
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
—
—
—
—
—
—
—
1.7
1.7
2.2
3.4
3.7
4.0
4.3
4.8
5.0
6.1
7.1
7.8
8.4
9.3
9.9
10.6
11.5
13.5
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97.0
168.0
135.0
177.0
—
—
—
—
—
—
—
—
—
—
—
—
63
50
44
88
65
67
70
57
56
80
81
65
87
58
61
83
56
83
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
—
—
—
—
—
—
—
—
—
—
—
—
SRF Min
(GHz)
8.50
8.50
6.00
6.00
6.00
6.00
6.00
6.00
5.70
5.80
5.80
4.80
4.20
5.20
4.80
4.80
4.00
4.00
4.00
3.10
3.10
3.00
2.85
2.65
2.80
2.25
2.30
2.08
2.20
2.00
2.00
1.90
1.90
1.70
1.70
1.70
1.40
1.30
1.30
1.00
1.00
0.90
0.90
0.70
0.60
0.60
0.40
0.30
DCR Max
(Ohms)
0.06
0.07
0.25
0.07
0.07
0.07
0.09
0.09
0.14
0.10
0.10
0.14
0.14
0.14
0.15
0.16
0.13
0.13
0.17
0.17
0.17
0.19
0.19
0.19
0.22
0.22
0.22
0.25
0.24
0.28
0.28
0.30
0.31
0.36
0.49
0.54
0.75
0.61
0.79
1.14
0.77
1.98
2.06
1.70
3.55
2.10
3.89
4.35
Irms
(mA)
1000
1000
400
1000
1000
1000
885
885
700
840
840
700
700
700
700
665
700
700
645
645
645
610
610
610
565
565
565
540
540
500
500
475
475
440
400
360
300
300
300
245
235
200
200
200
120
195
100
100
*Testing data at 900 MHz and 1.7 GHz
are product estimates
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
RF Inductors
TESTING
LEVEL 1
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
C0603 Series

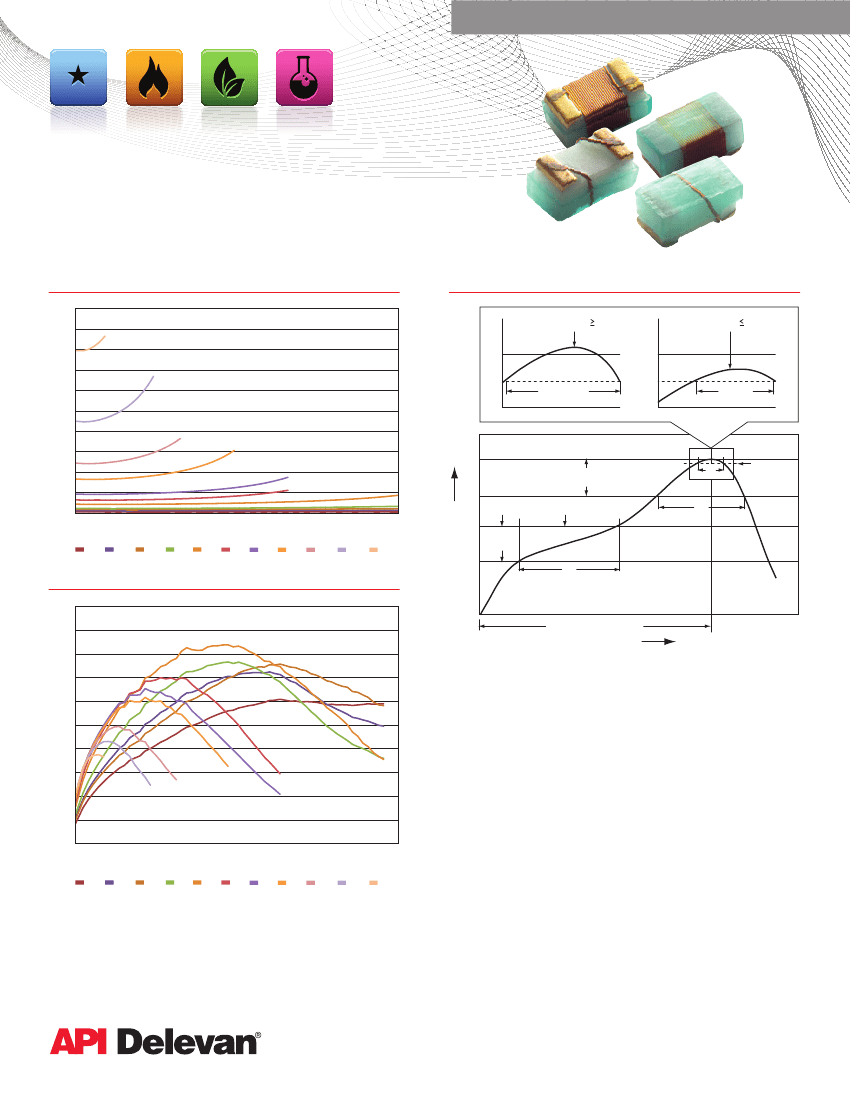

L Versus Frequency
500
450
400
350
Chip Inductors, Open Construction
Commercial Applications
Solder Profile
Supplier Tp Tc
Tc
User Tp Tc
Inductance (nH)
300
250
200
150
100
50
0
Supplier tp
Tc -5°C
User tp
Tp
TL
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
Tsmax
Tsmin
ts
Preheat Area
tp
tL
Tc -5°C
3.9 nH
6.8 nH
9.5 nH
12 nH
22 nH
Frequency (MHz)
33 nH
47 nH
82 nH
120 nH
220 nH
390 nH
Q Versus Frequency
100
90
80
70
60
Temperature
100
200
300
400
500
600
700
800
1000
900
1200
1100
1300
1400
1500
1700
1600
1800
2000
1900
2200
2100
2300
2400
2500
2600
2700
2800
2900
3000
25
Time 25° to Peak
Time
Q Factor
50
40
30
20
10
0
100
200
300
400
500
600
700
800
1000
900
1200
1100
1300
1400
1500
1700
1600
1800
2000
1900
2200
2100
2300
2400
2500
2600
2700
2800
3.9 nH
6.8 nH
9.5 nH
12 nH
22 nH
Frequency (MHz)
33 nH
47 nH
82 nH
120 nH
220 nH
390 nH
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
2900
3000
RF Inductors
TESTING
LEVEL 1
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
C0603 Series

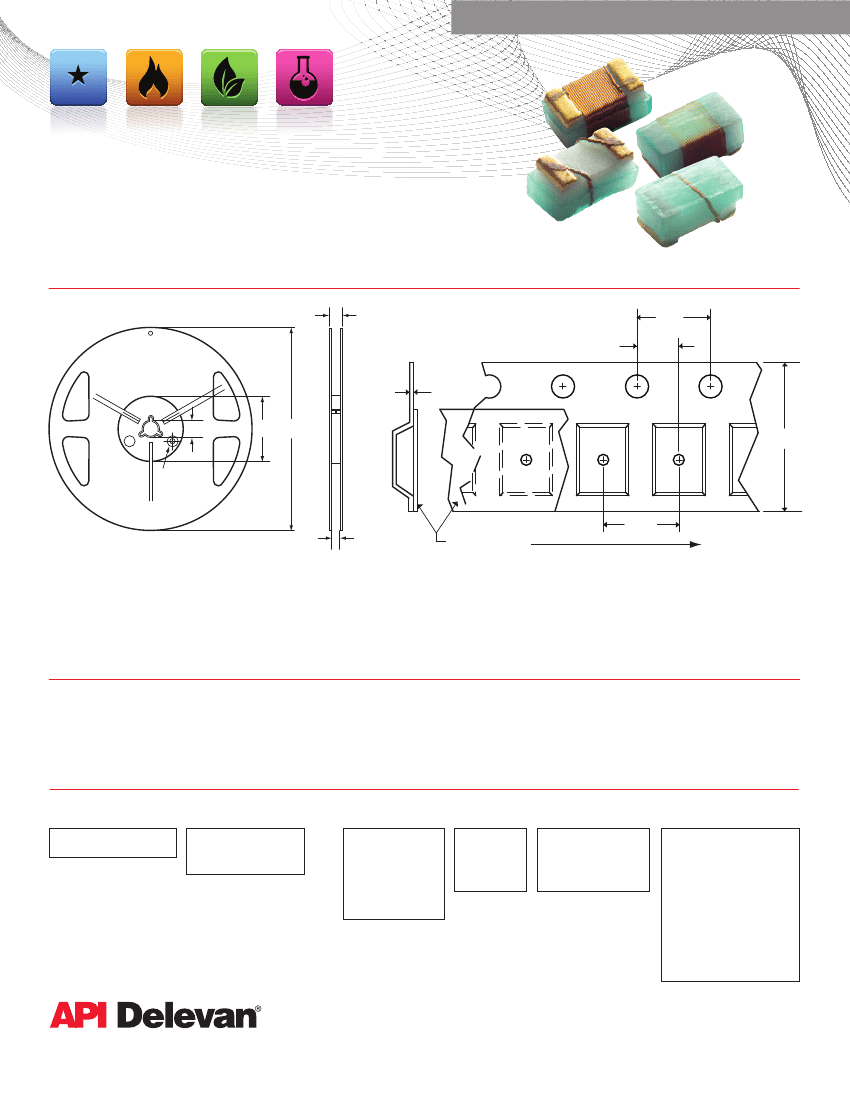

Tape and Reel Specifications
Chip Inductors, Open Construction
Commercial Applications
D
P
0
P
2
Embossed Carrier Tape
T
C
Date Code Area
B
A
W
E
Parts
7” (178mm)
2000
Reel Dimensions (mm)
B
C
D
60 ± 1 13 ± 0.2
11.4 ± 1
Top
Cover
Tape
W
8.0
P
1
User Feed of Direction
Tape Dimensions (mm)
P
1
P
0
P
2
H
4.0
4.0
2.0
NA
T
0.25
A
180 ± 1
E
9 + 1/-0
Individual Reel Marking
Each individual reel will be marked with the Part Number,
Delevan Cage Code, and Date/Lot Code.
Reel Marking Example:
C0603C-220NJ1T2
99800
1508A
How To Order
C0603
Inductor Series
C
Substrate
C = Ceramic
—
10N0
Tolerance is
4 significant digits
with N indicating
a decimal point
Inductance
J
Tolerance
G = 2%
J = 5%
1
Termination Finish
1 = Gold over Nickel
(solderable/weldable)
T
Packaging
Option
T1 = Tape & Reel,
100 Min, 100 Mult
T2 = Tape & Reel,
500 Min, 500 Mult
T3 = Tape & Reel,
1000 Min, 1000 Mult
T4 = Tape & Reel,
100 Min, 1 Mult
All product specifications and data contained herein are subject to change without notice to improve reliability, function, performance, design or otherwise.
11/ 22/2016
This product may not be used in medical or high risk applications without prior API Delevan consent.
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
