053825 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 053825

053825: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

053825 Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Receptacle,

053825 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.606 inch
subject depth	0.53 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED KEY
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

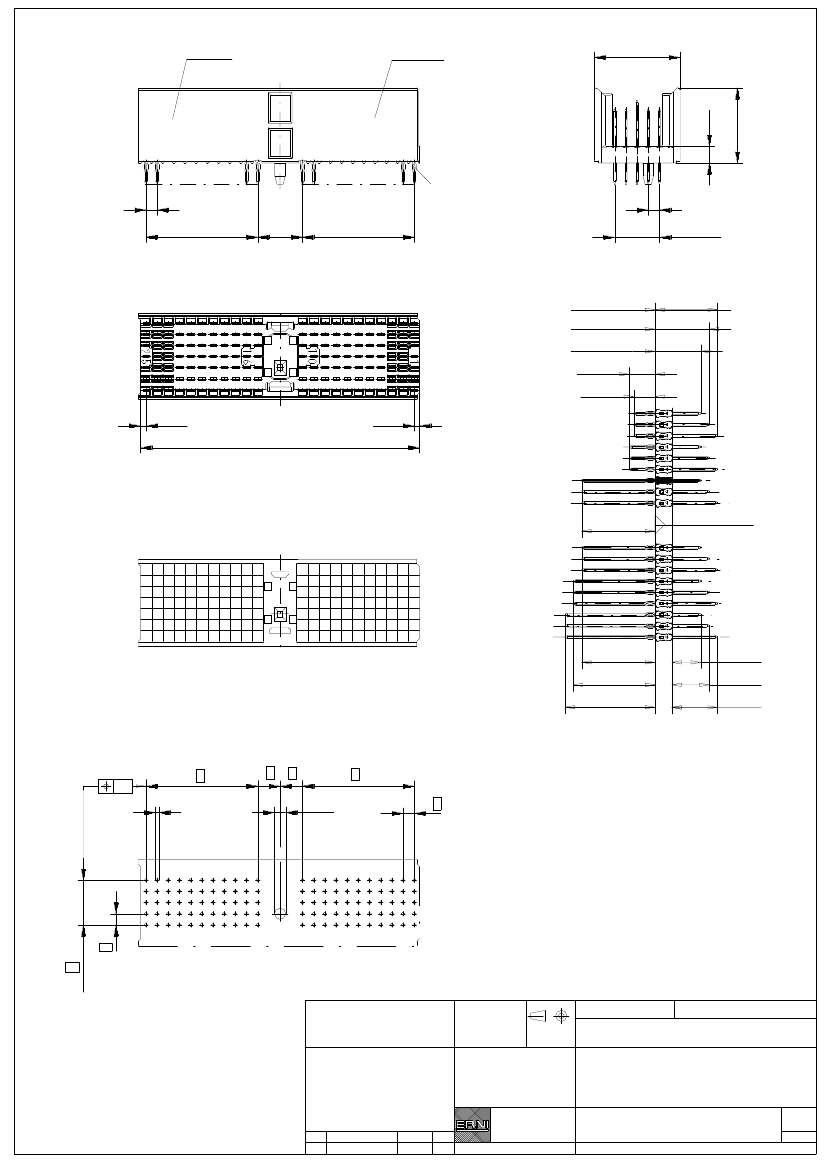

Ident-Nr.

Date Code

15,4

10 x 2 =

EE-Zone für durchkontaktierte

Löcher ø0.6±0.05

compliant zone for thru hole

ø0.6±0.05

4x2=

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

1 max.

50 max.

1 max.

±0.3

Bezugsebene Tiefe

Datum plane depth

Bestückungsplan -

contact layout

11 10 9

25 24 23 22 21 20 19 18 17 16 15

±0.2

14.5

±0.2

5.3

±0.1

6.8

8.3

±0.1

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side)

10 x 2 = ( 20 )

0.1

alle Löcher

all holes

10 x 2 = ( 20 )

+0,05

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

±0,05

Diameter of finished plated-through hole

ø 0,7

±0,02

nicht

Bohrungsdurchmesser des Loches

durchkontaktiert

not plated thru

ø 0,7

±0,02

Diameter of drilled hole

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

Isolierwerkstoff: GV PBT, UL94 V-0, grau

Housing material: GLASS FILLED PBT, UL94 V-0, grey

4 x 2 = (8)

Information: P2 Level 1, 2, 3

siehe Bestückungsplan/

see contact layout

Anforderungsstufe 2 /

Consider protection memo from DIN 34

Tolerances

All Dimensions

in mm

Scale

2:1

class 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet Messerleiste A

ERmet Male Wide Type A

www.ERNI.com

Index

20.10.2005

Date

C:00053461.SZA

053825

ERMA

13,45

-0,1

XXXXXXX

ERNI

053825
