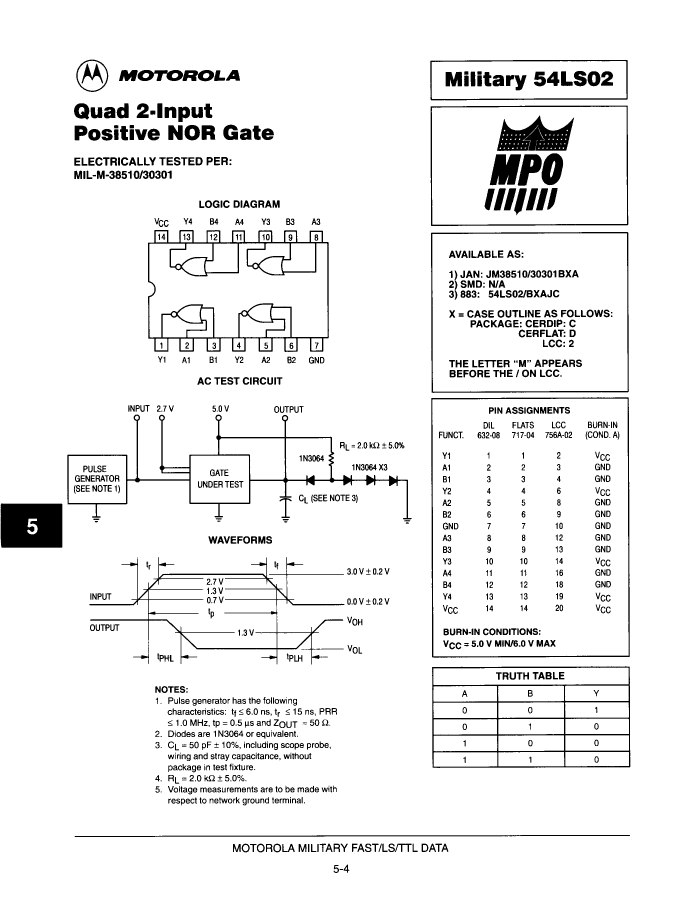

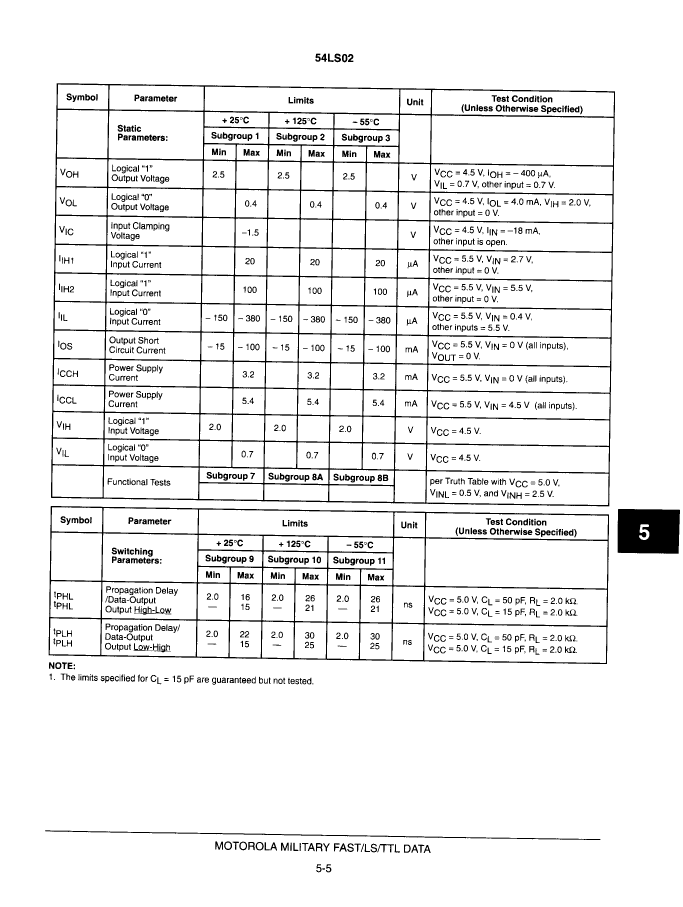

IC,LOGIC GATE,QUAD 2-INPUT NOR,LS-TTL,SOP,14PIN,PLASTIC
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| package instruction | SOP, SOP14,.25 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | NOR GATE |
| MaximumI(ol) | 0.008 A |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 5.4 mA |
| Prop。Delay @ Nom-Sup | 15 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| SN74LS02D | 54LS02M/B2AJC | SN74LS02NS | |
|---|---|---|---|
| Description | IC,LOGIC GATE,QUAD 2-INPUT NOR,LS-TTL,SOP,14PIN,PLASTIC | IC,LOGIC GATE,QUAD 2-INPUT NOR,LS-TTL,LLCC,20PIN,CERAMIC | IC,LOGIC GATE,QUAD 2-INPUT NOR,LS-TTL,DIP,14PIN,PLASTIC |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | NXP | NXP | NXP |
| package instruction | SOP, SOP14,.25 | QCCN, LCC20,.35SQ | DIP, DIP14,.3 |
| Reach Compliance Code | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G14 | S-XQCC-N20 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | NOR GATE | NOR GATE | NOR GATE |
| Number of terminals | 14 | 20 | 14 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | SOP | QCCN | DIP |
| Encapsulate equivalent code | SOP14,.25 | LCC20,.35SQ | DIP14,.3 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | SMALL OUTLINE | CHIP CARRIER | IN-LINE |
| power supply | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL |
| Base Number Matches | 1 | 1 | 1 |
| MaximumI(ol) | 0.008 A | 0.004 A | - |
| Maximum supply current (ICC) | 5.4 mA | 5.4 mA | - |
| Prop。Delay @ Nom-Sup | 15 ns | 15 ns | - |
