M
PL
IA
N
Features
■
Low torque
■
Carbon element
■
Plain or knurled shaft option
■
Metal bushing
■
Metal shaft
■
Rear solder lugs
■
Audio or linear taper options
■
Variety of resistance values
■
RoHS compliant*
*R
oH
S
CO
T

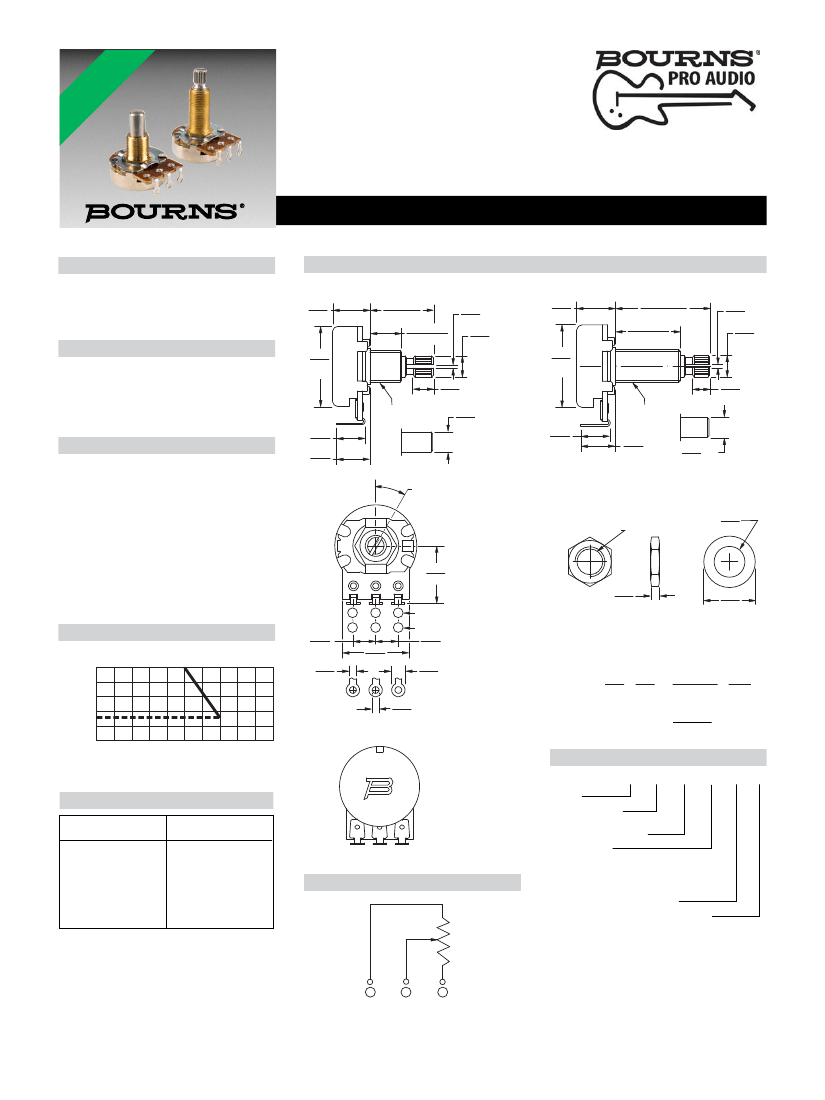

PDB241-GTR Series - 24 mm Guitar Potentiometer
Electrical Characteristics
Taper........................................Audio, linear
Standard Resistance
.....................................10K to 1M ohms
Standard Resistance Tolerance.........±20 %
Product Dimensions
PDB241-GTR01
11.5
(.453)
19.0 ± 0.5
(.748 ± .020)
9.5 ± 0.3
(.374 ± .012)
24.0
(.945)
DIA.
6.0
(.236)
M3/8”-32UNF
8.6
(.339)
10.0
(.394)
30 °
FULL CCW
1.0
(.039)
6.0
(.236)
DIA.
18 TEETH
KNURLED
SHAFT
PDB241-GTR03
11.5
(.453)
27.5± 0.5
(1.083 ± .020)
19.0 ± 0.3
(.748 ± .012)
24.0
(.945)
DIA.
1.0
(.039)
6.00
DIA.
(.236)
18 TEETH
KNURLED
SHAFT
(LONG)
5.0
(.197)
M3/8”-32UNF
8.6
(.339)
PLAIN
SHAFT
(LONG)
6.35
DIA.
(.250)
Environmental Characteristics
Operating Temperature
.................................... -10 °C to +70 °C
Power Rating ................................ 0.25 watt
Maximum Operating Voltage ............. 250 V
Rotational Noise .....................150 mV max.
6.35
DIA.
(.250)
PLAIN
SHAFT
Mechanical Characteristics
Mechanical Angle ........................ 300 ° ±5 °
Rotational Torque ..................10 to 45 g-cm
Stop Strength.......................... 8 kg-cm min.
Rotational Life................ 15,000 cycles min.
Soldering Condition
Manual Soldering
........................ 300 °C within 3 seconds
Wave Soldering
........................ 260 °C within 3 seconds
Hardware ................... Two flat washers and
two mounting nuts supplied
per potentiometer
10.0
(.394)
DIA.
3/8”-32UNF
9.7
(.382)
16.0
(.630)
2.0
(.079)
1
3
6.7
(.264)
2.0
(.079)
DIA.
2
2
20.0
(.787)
3
1
PINOUT FOR “A” AND “B” TAPERS
PINOUT FOR “C” TAPER
6.7
(.264)
4.0
(.157)
DIA.
2.0
DIA.
(.079)
NUT
14.0
(.551)
DIA.
WASHER
Derating Curve
Rating Power Ratio (%)
100
80
60
40
33
20
0
TOLERANCES:
10.0 ~ 100
±0.5
±0.3
10.0
=
=
UNDER
(.394 ~ 3.937) (±.020)
(.394) (±.012)
DIMENSIONS:
MM
(INCHES)
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
How To Order
PDB24 1 - GTR 01 - 504 A2
Model
Number of Units
1 = Single
Guitar Pot Designator
Configuration
1 = Knurled Shaft / Solder Lugs
2 = Plain Shaft / Solder Lugs
3 = Knurled Shaft (Long) / Solder Lugs
4 = Plain Shaft (Long) / Solder Lugs
Resistance Code (See Table)
Resistance Taper (See Taper Charts)
Standard Resistance Table
Resistance
(Ohms)
10,000
25,000
50,000
100,000
250,000
300,000
500,000
1,000,000
Resistance
Code
103
253
503
104
254
304
504
105
Circuit
1
2
3
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PDB241-GTR Series - 24 mm Guitar Potentiometer
Taper Charts
A2 Taper
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
100
90
80
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
90
100
B0 Taper
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
C2 Taper
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
Rotational Travel (%)
Rotational Travel (%)
Rotational Travel (%)
Other tapers available.
REV. 11/13
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
