Polymer Tantalum Chip
Capacitor
Features
Low ESR / High permissible ripple current
●
Industry leading lineup using cutting-edge
powder technology
●
No reduction in capacitance due to DC bias
●
High level of safety
●
●
Applications
Notebook PC
●
Tablet PC
●
Smart Phone
●
TV
●
Security Camera
HDD / SSD
●
Digital Camera
●
Server
●
Base Station
●
Product Lineup
Voltage
Capacitance
2.5V
4V
6.3V
A
A
A
A, B2
10V
A
B2
B2
B2
B2
16V
20V
25V
35V
3.3µF
4.7µF
6.8µF
10µF
15µF
22µF
33µF
47µF
68µF
100µF
150µF
220µF
330µF
470µF
680µF
B2
V
D
A, B3
B2
A
A, B3
A
B2
A, B3★, B2 B2
V, D
D
D
A
P2, A
A, B2
A, B3, B2
A, B3, B2
B3, B2
B3★, B15, B2
B2
V, D
V, D
B3, B2
B15
B3★, B2
B2
B2★
V, D
B2
V15
B3★
P2, A, B2
A, B2
P2, A3, A, B3, B2
A3, A, B3, B2
V, D
B2
V, D
V, D
B3★, B2
V, D
V, D
V
D
P2, A3, A, B3, B2 A3, A, B3, B2
A3, A, B3, B2 A3, A, B3, B2
1000µF
D
★：New
シリー ズ 名
G/PS
F/PS
PS/L
PS/L, F/PS
PS/L
PS/L
PS/K
PS/K
PS/K
ケース
コー
ド
P2
A3
A
B3
B15
B2
V15
V
D
寸 法 [mm]
2.0± 0.1
×1.25±0.1×0.9±0.1
3.2±0.2×1.6 ±0.2×0.9±0.1
3.2±0.2×1.6 ±0.2×1.6±0.2
3.5±0.2×2.8 ±0.2×1.1±0.1
3.5±0.2×2.8 ±0.2×1.4±0.1
3.5±0.2×2.8 ±0.2×1.9±0.1
7.3±0.3×4.3 ±0.3×1.4±0.1
7.3±0.3×4.3 ±0.3×1.9±0.1
7.3±0.3×4.3 ±0.3×2.8±0.3
3
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
9095NEPVOL08E1712E0
NEW

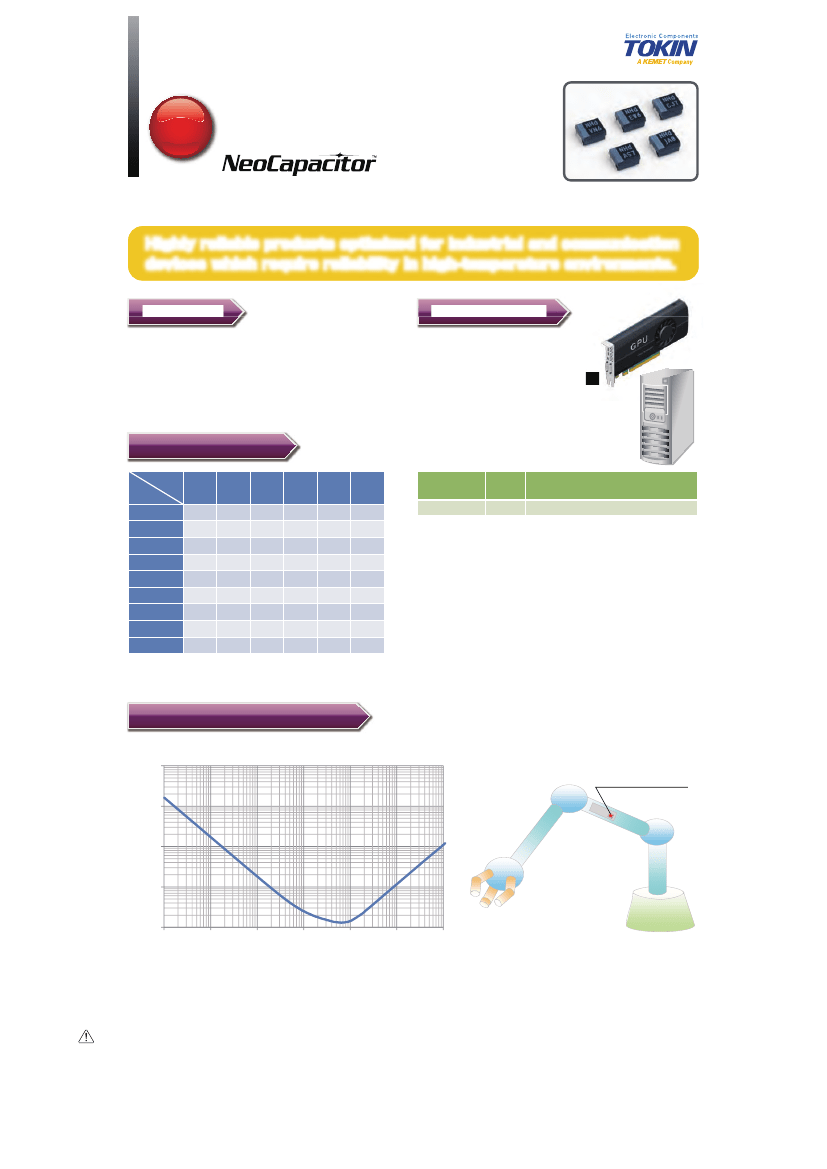

125℃ Rated Polymer
Tantalum Chip Capacitor
PS/H Series
Highly reliable products optimized for industrial and communication
devices which require reliability in high-temperature environments.
Features
Operation temperature range：－55℃½+125℃
●
Achieve low ESR/high ripple current
tolerance using conductive polymers
●
●
Applications
Server
●
Base Station
●
Communication Equipment
●
LED Lighting
●
Industrial Robot
Product Lineup
Voltage 2.5V 6.3V 10V
Capacitance
3.3µF
4.7µF
22µF
33µF
47µF
100µF
150µF
220µF
330µF
(B2)
B2
(B2)
(B2) (B2)
( ): Under development
B2
(B2)
(B2)
16V 25V
35V
(B2)
(B2)
Series
Case
code
Dimension [mm]
PS/H
B2
3.5±0.2×2.8± 0.2×
1.9±0.1
Frequency Characteristics
100
PSHB20J107M070 (B2/6.3V/100µF)
NeoCapacitor
10
Impedance[Ω]
1
0.1
0.01
100Hz
1kHz
10kHz
100kHz
1MHz
10MHz
100MHz
Frequency
4
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
9095NEPVOL08E1712E0
NEW

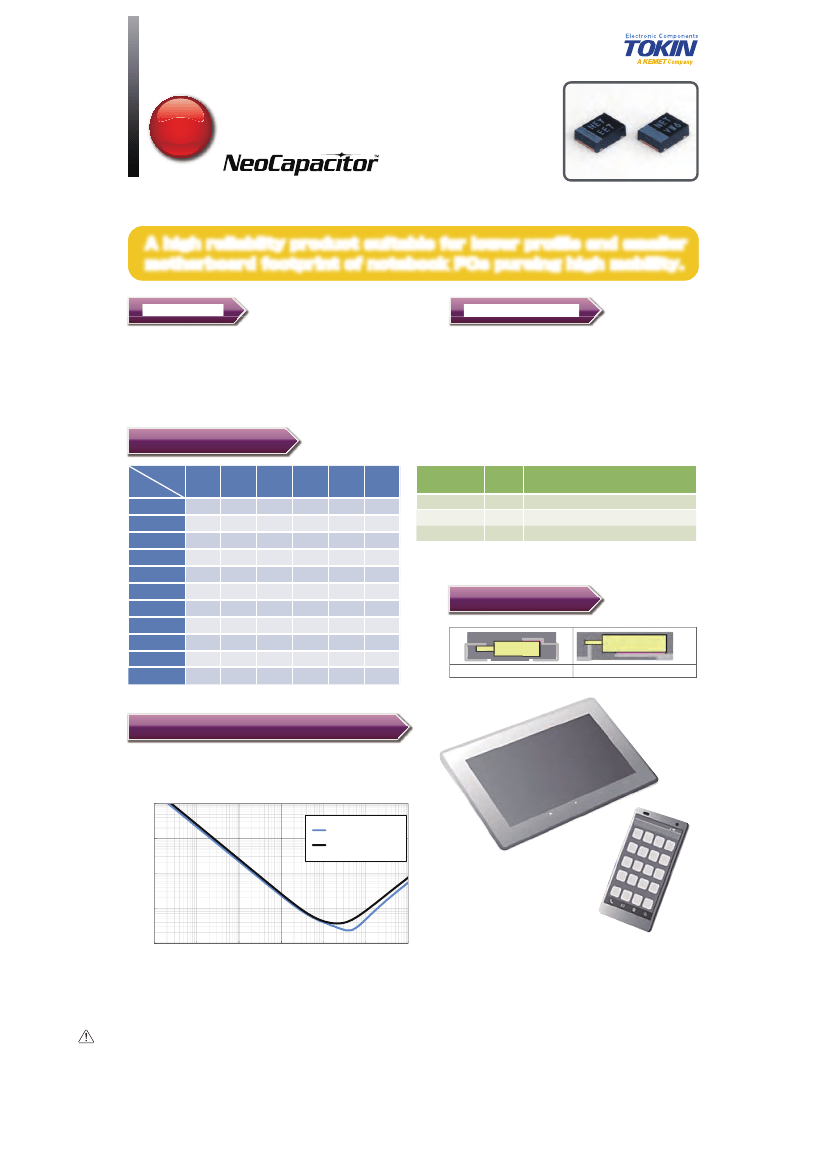

Face Down Package
