89008-121LF

Description
High Speed / Modular Connectors 5ROW STRT SIGNAL HDR PRESS-FIT
CategoryThe connector
File Size2MB，15 Pages
ManufacturerFCI / Amphenol
Environmental Compliance
Download Datasheet Parametric Compare View All

89008-121LF Online Shopping

Suppliers Part Number Price MOQ In stock
89008-121LF - - View Buy Now

89008-121LF Overview

High Speed / Modular Connectors 5ROW STRT SIGNAL HDR PRESS-FIT

89008-121LF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerFCI / Amphenol
Product CategoryHigh Speed / Modular Connectors
RoHSDetails
ProductHeaders
Number of Positions120 Position
Number of Rows5 Row
Pitch2 mm
Termination StyleThrough Hole
PackagingTube
Current Rating1 A
Housing MaterialLiquid Crystal Polymer (LCP)
Mounting AngleStraight
Contact MaterialPhosphor Bronze
Insulation Resistance5 GOhms
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity12

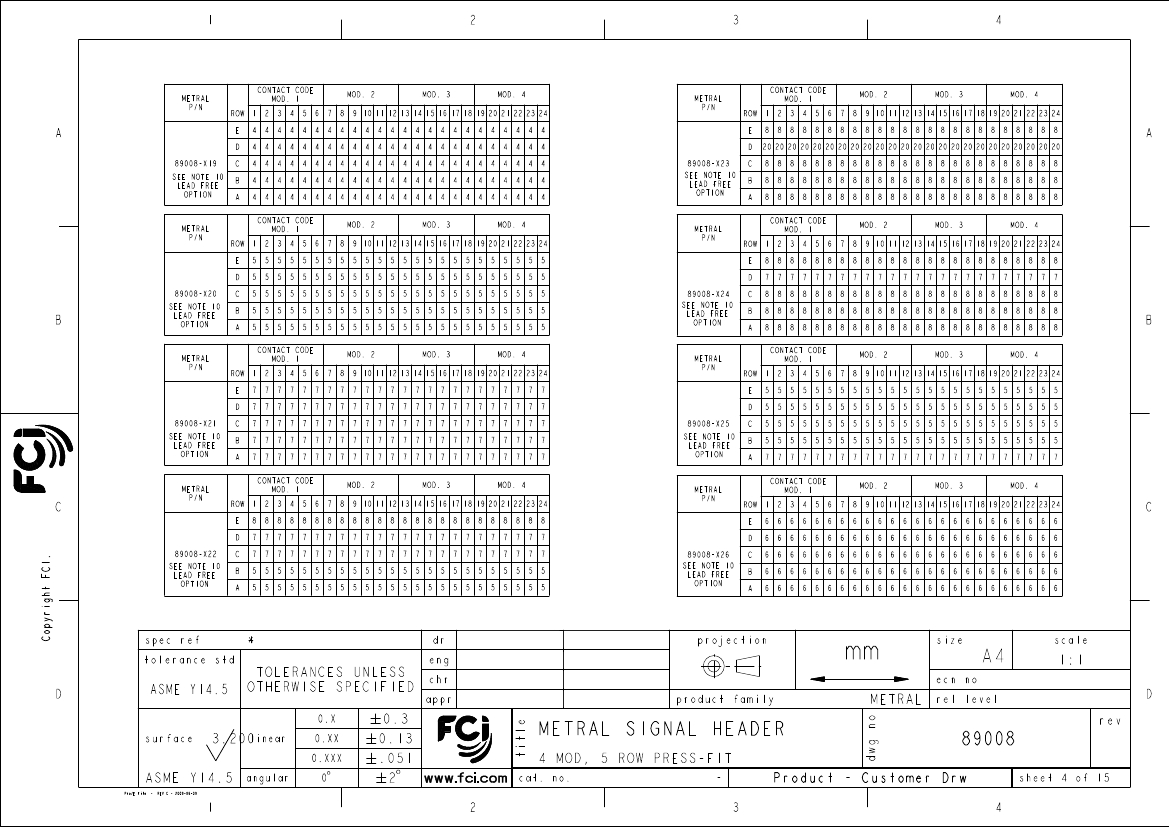

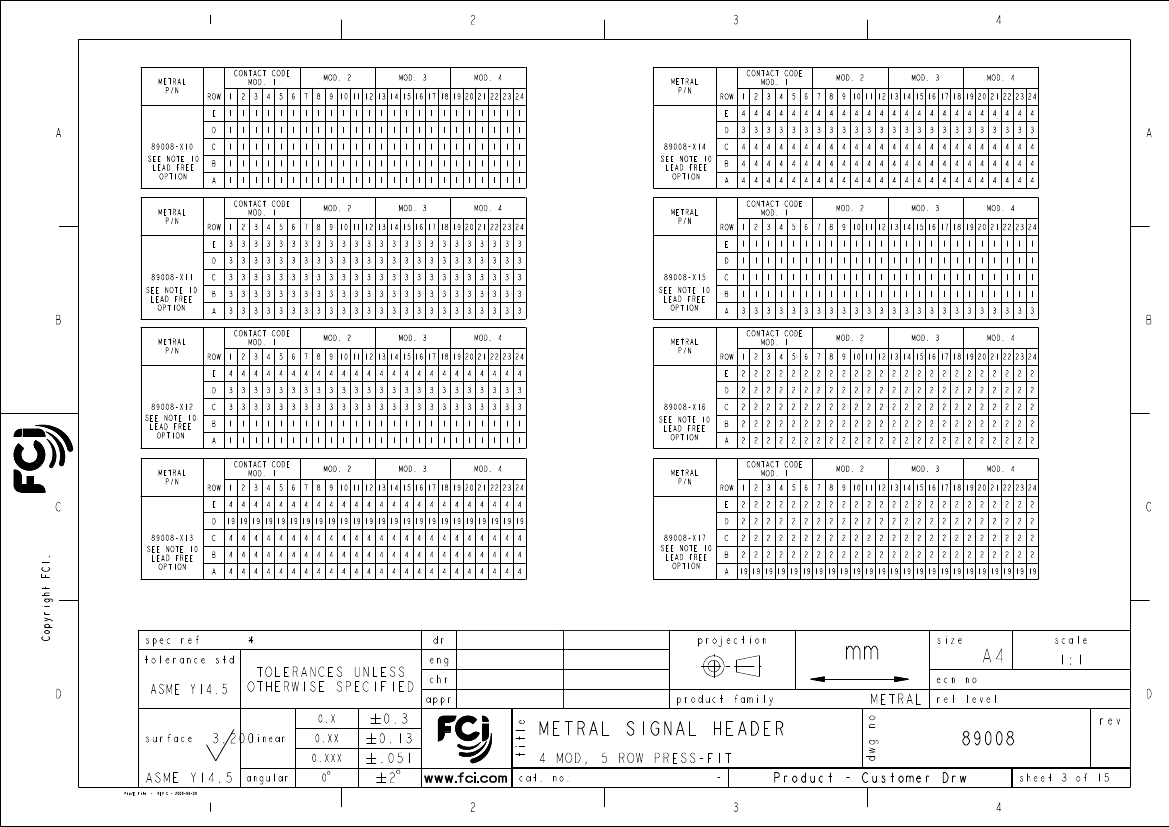

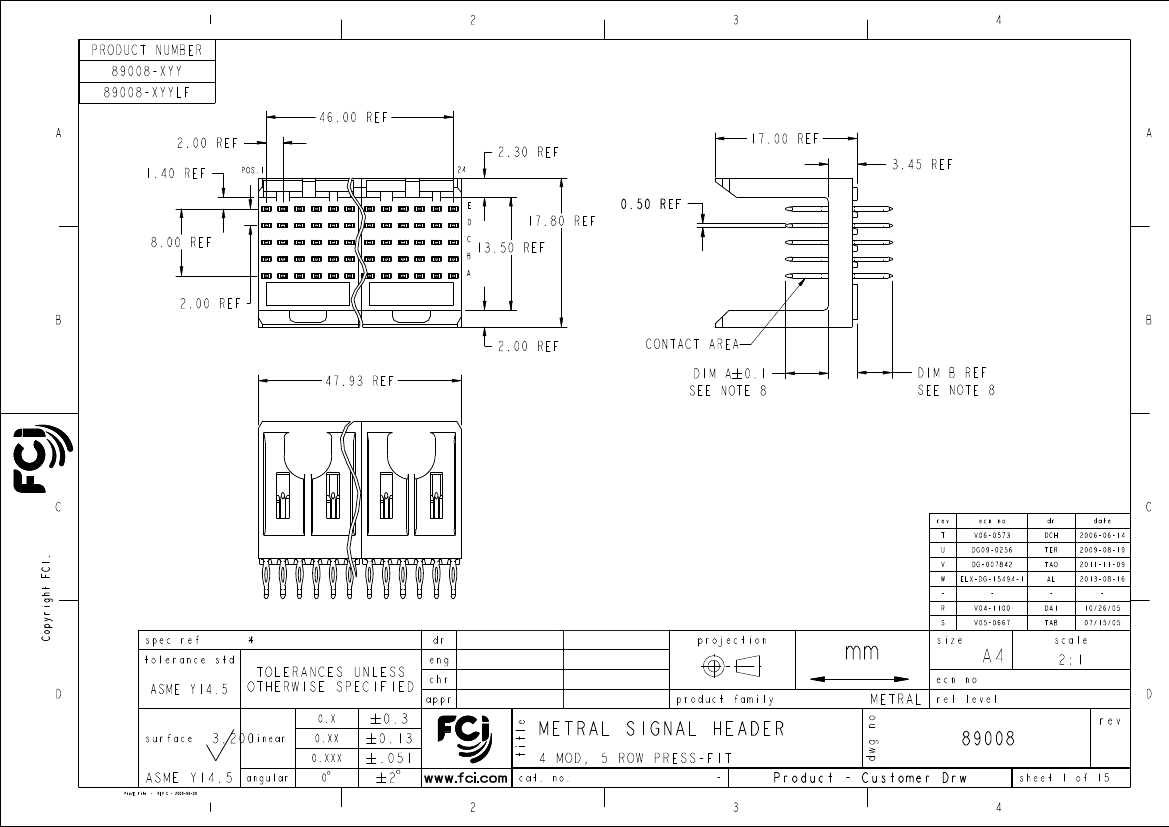

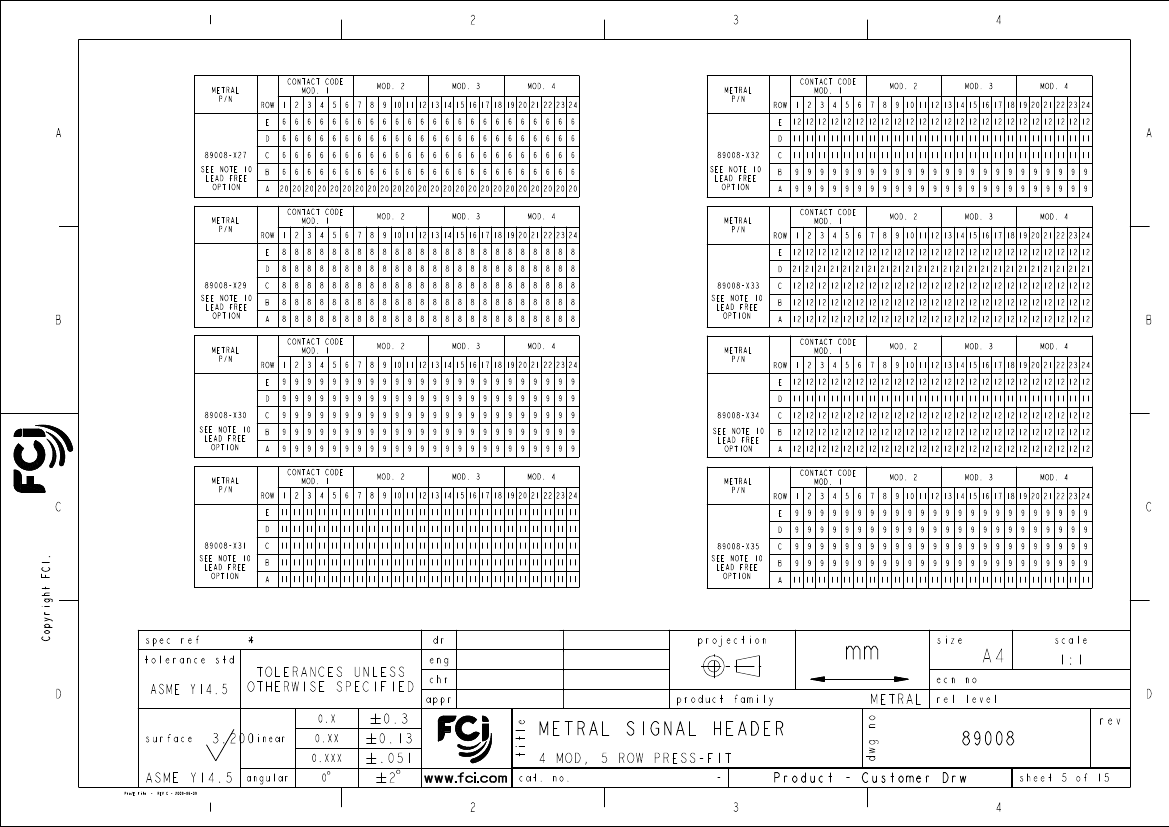

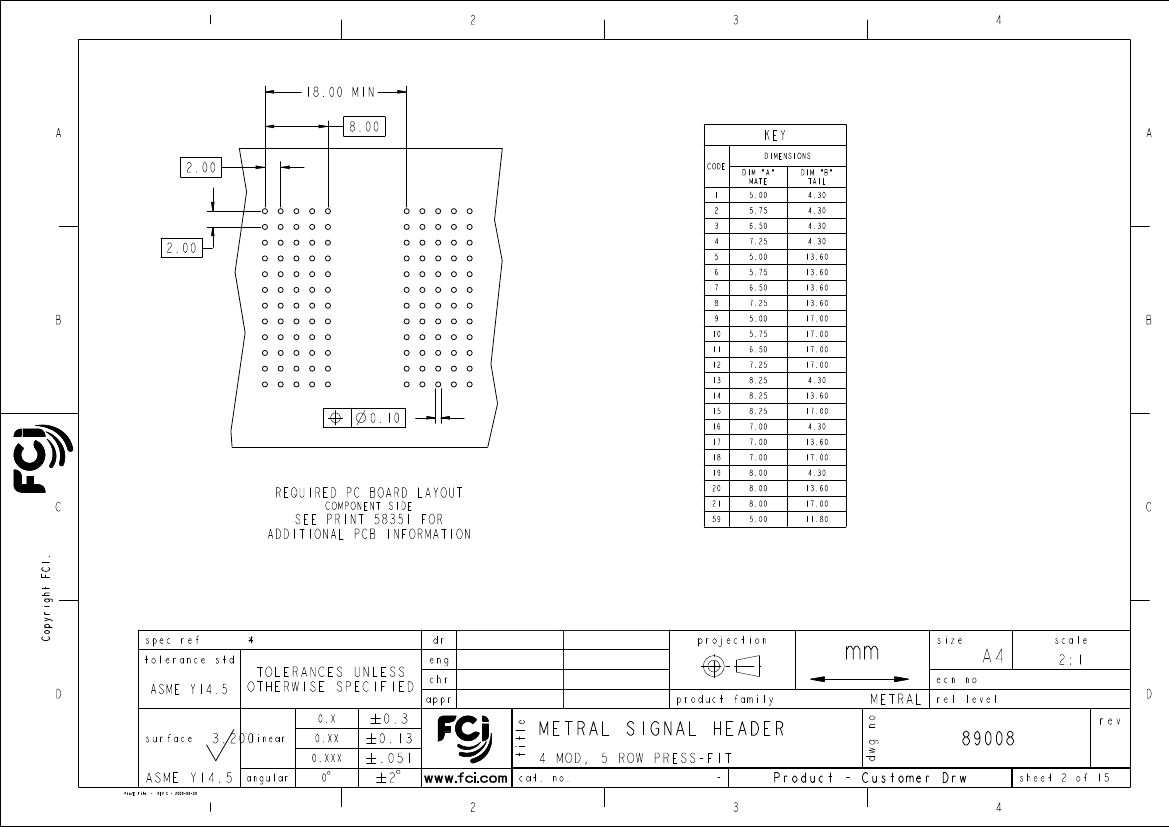

Preview

Download Datasheet
Terran Huang
Andy Lu
Sun Richard
Pei-Ming Zheng
2010/07/08
2013/08/29
2013/09/02
2013/09/02
ELX-DG-15494-1
Released
W
PDS: Rev :W
STATUS:Released
Printed: Sep 03, 2013
