86093488613745E1LF

Description
DIN 41612 Connectors 86093488613745E1LF-DIN TYPER/2 RAREC LF CNR
CategoryThe connector
File Size121KB，1 Pages
ManufacturerFCI / Amphenol
Environmental Compliance
Download Datasheet Parametric Compare View All

86093488613745E1LF Online Shopping

Suppliers Part Number Price MOQ In stock
86093488613745E1LF - - View Buy Now

86093488613745E1LF Overview

DIN 41612 Connectors 86093488613745E1LF-DIN TYPER/2 RAREC LF CNR

86093488613745E1LF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerFCI / Amphenol
Product CategoryDIN 41612 Connectors
RoHSDetails
ProductReceptacles
Number of Positions48 Position
Termination StyleSolder
Mounting AngleRight
Current Rating1.5 A
Contact PlatingGold
Contact MaterialCopper Alloy
PackagingTray
Housing MaterialThermoplastic
Voltage Rating1 kV
Rows LoadedFully Loaded
Insulation Resistance1000000 MOhms
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity16
Tail Length3 mm

Preview

Download Datasheet
1
2 3
4
5
6
A
A
8609 XXX XX XX XXX XXXXX YY XX
NO OPTION
WITH HARPOONS
B
FCIconnect.com
B
C
C
Copyright FCI
linear
NOTES:-
1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008
2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION
WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

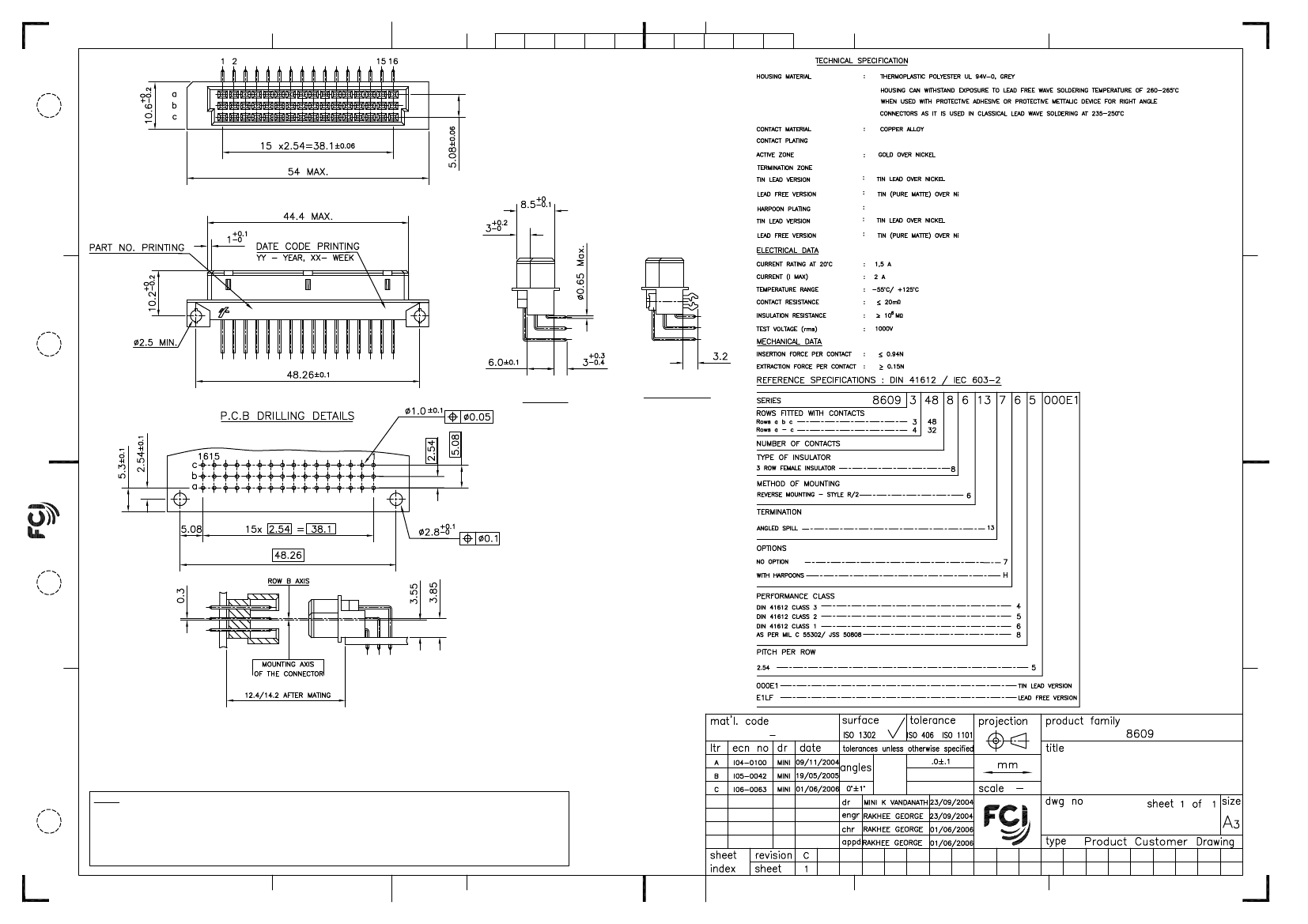

DIN REVERSE RECEPTACLE
ANGLED SPILL DIN 41612 STYLE-R/2
C-8609-2027
D
3
4
5
6
STATUS:
Released
Printed: May 14, 2011
.
D
3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.
form: A3
1
2
PDM: Rev:C

86093488613745E1LF Related Products

86093488613745E1LF 86094328613765E1LF 86093488613765E1LF 86093488613755E1LF 86094328613H55E1LF
Description DIN 41612 Connectors 86093488613745E1LF-DIN TYPER/2 RAREC LF CNR DIN 41612 Connectors Right Angle Receptacle Solder-to-Board Style R/2 32 ways, Class I DIN 41612 Connectors 86093488613765E1LF-DIN TYPER/2 RAREC LF CNR DIN 41612 Connectors TYPE R/2 RA RECEPT DIN 41612 Connectors Right Angle Receptacle Solder-to-Board Style R/2 32 ways, Class II
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol
Product Category DIN 41612 Connectors DIN 41612 Connectors DIN 41612 Connectors DIN 41612 Connectors DIN 41612 Connectors
RoHS Details Details Details Details Details
Contact Material Copper Alloy Brass Copper Alloy Copper Alloy Brass
Packaging Tray Tray Tray Tray Tray
Factory Pack Quantity 16 16 16 16 16
Product Receptacles - Receptacles Receptacles -
Number of Positions 48 Position - 48 Position 48 Position -
Termination Style Solder - Solder Solder -
Mounting Angle Right - Right Right -
Current Rating 1.5 A - 1.5 A 1.5 A -
Contact Plating Gold - Gold Gold -
Housing Material Thermoplastic - Thermoplastic Thermoplastic -
Voltage Rating 1 kV - 1 kV 1 kV -
Rows Loaded Fully Loaded - Fully Loaded Fully Loaded -
Insulation Resistance 1000000 MOhms - 1000000 MOhms 1000000 MOhms -
Maximum Operating Temperature + 125 C - + 125 C + 125 C -
Minimum Operating Temperature - 55 C - - 55 C - 55 C -
Tail Length 3 mm - 3 mm 3 mm -
