12TW70-514L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 12TW70-514L

12TW70-514L: DescriptionToggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size191KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

12TW70-514L Overview

Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded

12TW70-514L Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LOCKING LEVER
body width	13.59 mm
body height	8.64 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	12TW70-514
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

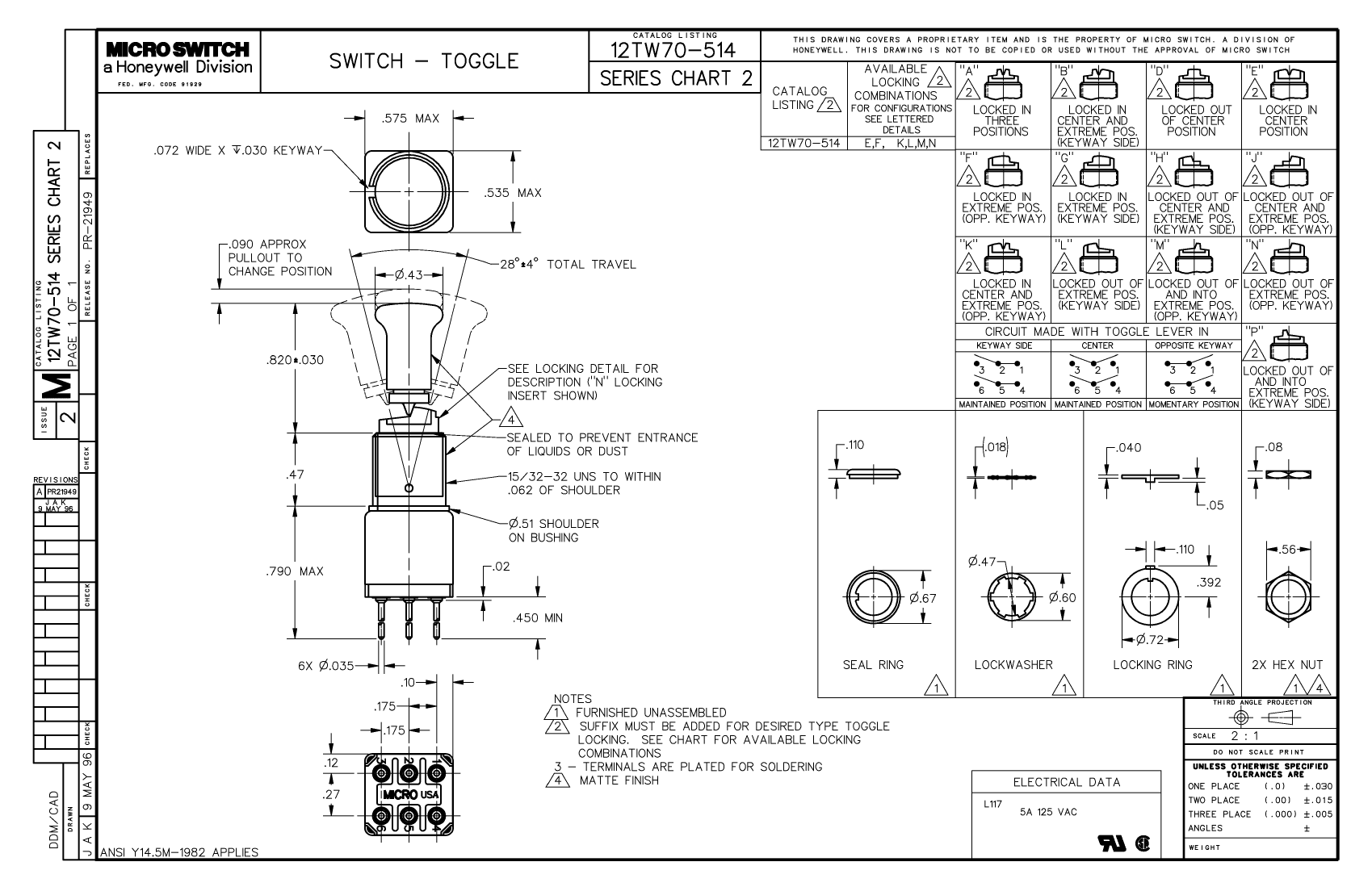

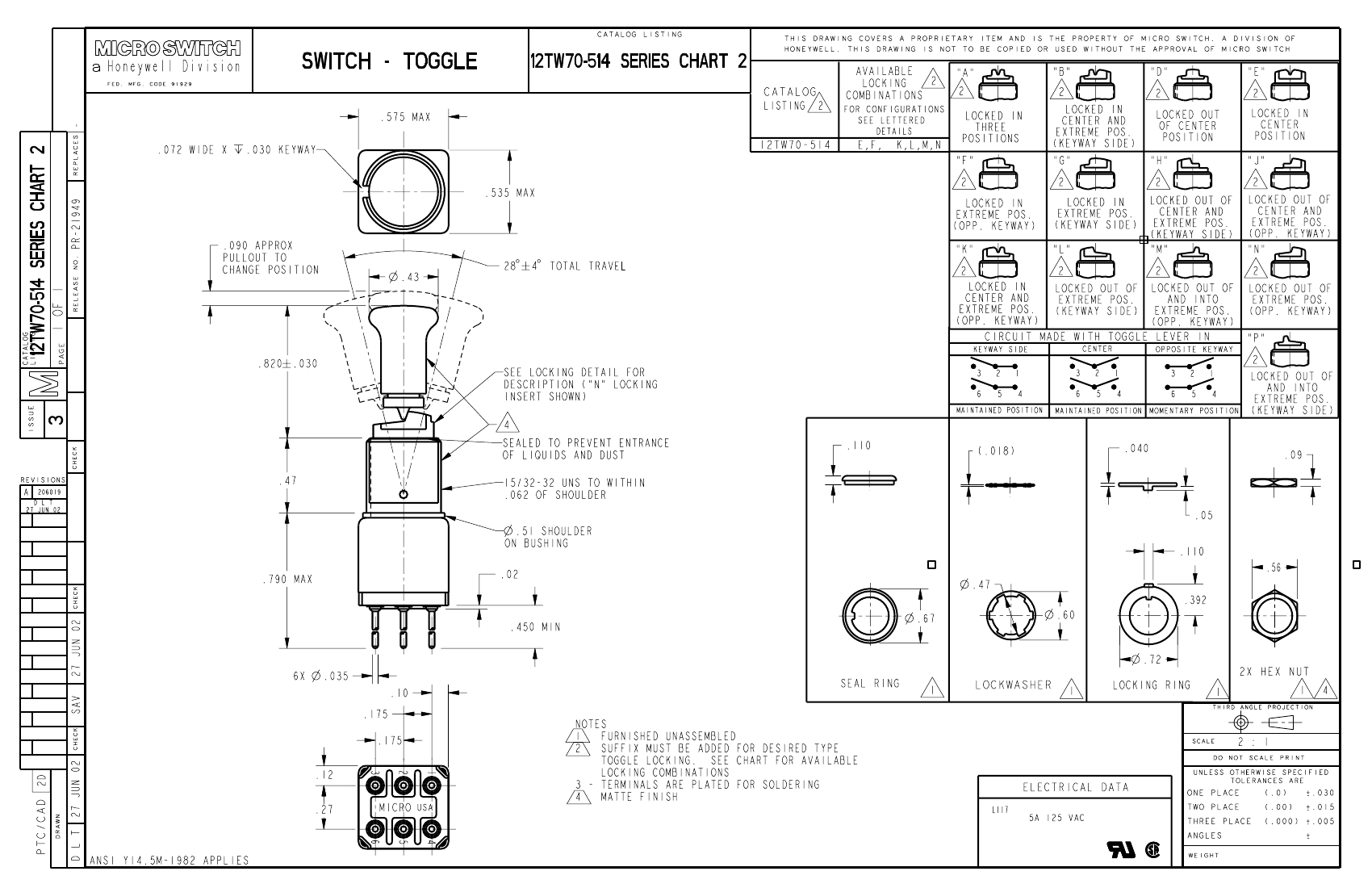

Preview

Download Datasheet

View All

12TW70-514L Related Products

	12TW70-514L	12TW70-514E	12TW70-514F	12TW70-514K	12TW70-514M
Description	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Locking Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LOCKING LEVER	LOCKING LEVER	LOCKING LEVER	LOCKING LEVER	LOCKING LEVER
body width	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	8.64 mm	8.64 mm	8.64 mm	8.64 mm	8.64 mm
Body length or diameter	14.61 mm	14.61 mm	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V
Manufacturer's serial number	12TW70-514	12TW70-514	12TW70-514	12TW70-514	12TW70-514
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO
Switch action	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY	LATCHED AND MOMENTARY
switch function	DPDT	DPDT	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1
