10052286- o
A
STYLE : MECHAMICAL KEYING
1 : 1.8 VOLT. W/TYPE "C"
2 : 2.5 VOLT. W/TYPE "L"
3 : X.X VOLT. W/TYPE "R"
o
o
o
o
A
PLATING
CODE
CONTACT
15 u"(0.38um)
MIN. GOLD
30u"(0.76um)
MIN. GOLD
3u"(0.076um)
MIN. GOLD
15u"(0.38um)
MIN. GOLD
30u"(0.76um)
MIN. GOLD
3u"(0.076um)
MIN. GOLD
SOLDERTAIL
UNDERPLATE
2
3
100u"(2.54um)
MIN. TIN/LEAD
50u"(1.27um)
MIN. NICKEL
OVERALL
METAL CLIP
B
1 : WITH METAL CLIP + DIM."D"=3.05
2 : WITH METAL CLIP + DIM."D"=3.56
3 : WITH METAL CLIP + DIM."D"=3.43
4
7LF
B
100u"(2.54um)
MIN. 100% TIN
50u"(1.27um)
MIN. NICKEL
OVERALL
8LF
C
C 2016 AFCI
TAIL LENGTH

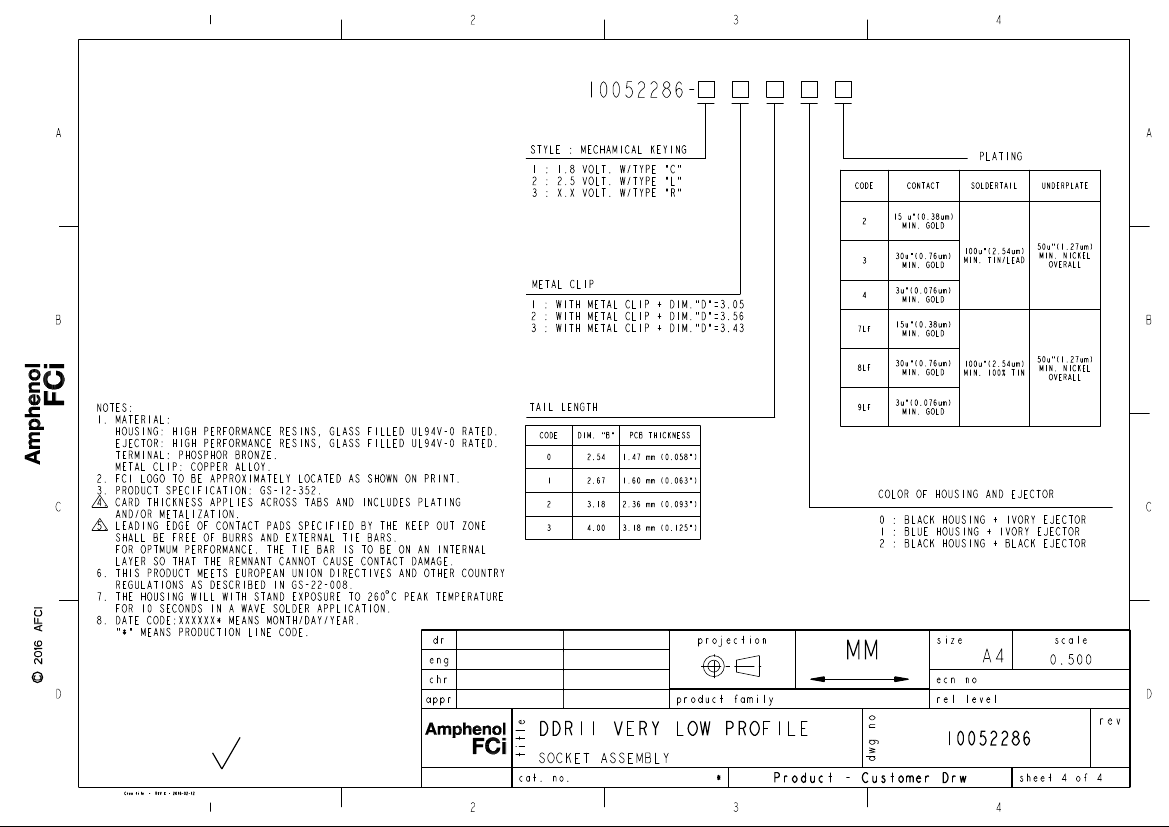

NOTES:
1. MATERIAL:
HOUSING: HIGH PERFORMANCE RESINS, GLASS FILLED UL94V-0 RATED.
CODE
DIM. "B"
PCB THICKNESS
EJECTOR: HIGH PERFORMANCE RESINS, GLASS FILLED UL94V-0 RATED.
TERMINAL: PHOSPHOR BRONZE.
0
2.54
1.47 mm (0.058")
METAL CLIP: COPPER ALLOY.
2. FCI LOGO TO BE APPROXIMATELY LOCATED AS SHOWN ON PRINT.
1
2.67
1.60 mm (0.063")
3. PRODUCT SPECIFICATION: GS-12-352.
4. CARD THICKNESS APPLIES ACROSS TABS AND INCLUDES PLATING
2
3.18
2.36 mm (0.093")
AND/OR METALIZATION.
5. LEADING EDGE OF CONTACT PADS SPECIFIED BY THE KEEP OUT ZONE
3
4.00
3.18 mm (0.125")
SHALL BE FREE OF BURRS AND EXTERNAL TIE BARS.
FOR OPTMUM PERFORMANCE. THE TIE BAR IS TO BE ON AN INTERNAL
LAYER SO THAT THE REMNANT CANNOT CAUSE CONTACT DAMAGE.
6. THIS PRODUCT MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY
REGULATIONS AS DESCRIBED IN GS-22-008.
7. THE HOUSING WILL WITH STAND EXPOSURE TO 260 $ C PEAK TEMPERATURE
FOR 10 SECONDS IN A WAVE SOLDER APPLICATION.
8. DATE CODE:XXXXXX* MEANS MONTH/DAY/YEAR.
"*" MEANS PRODUCTION LINE CODE.
2010/07/08
RICHARD CHIU
01/11/05
dr
Rick Bian
projection
eng
Jeny Ren
JENY
-
Nickor Zuo
9LF
COLOR OF HOUSING AND EJECTOR
0 : BLACK HOUSING + IVORY EJECTOR
1 : BLUE HOUSING + IVORY EJECTOR
2 : BLACK HOUSING + BLACK EJECTOR
C
REN
2018/01/26
01/16/18
-
2018/01/29
D
chr
appr
MM
dwg no
size
ecn no
A4
scale
0.500
ELX-DG-28708-1
*
product family
rel level
Released
Released
D
title

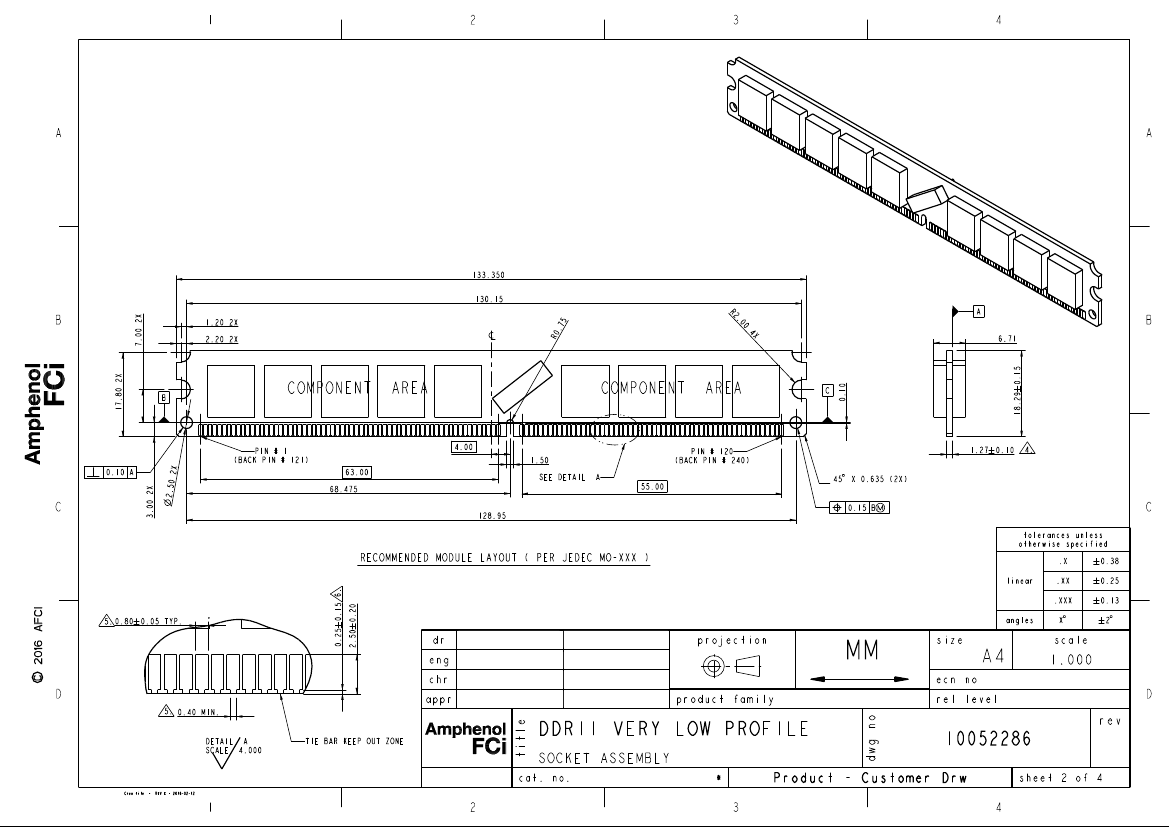

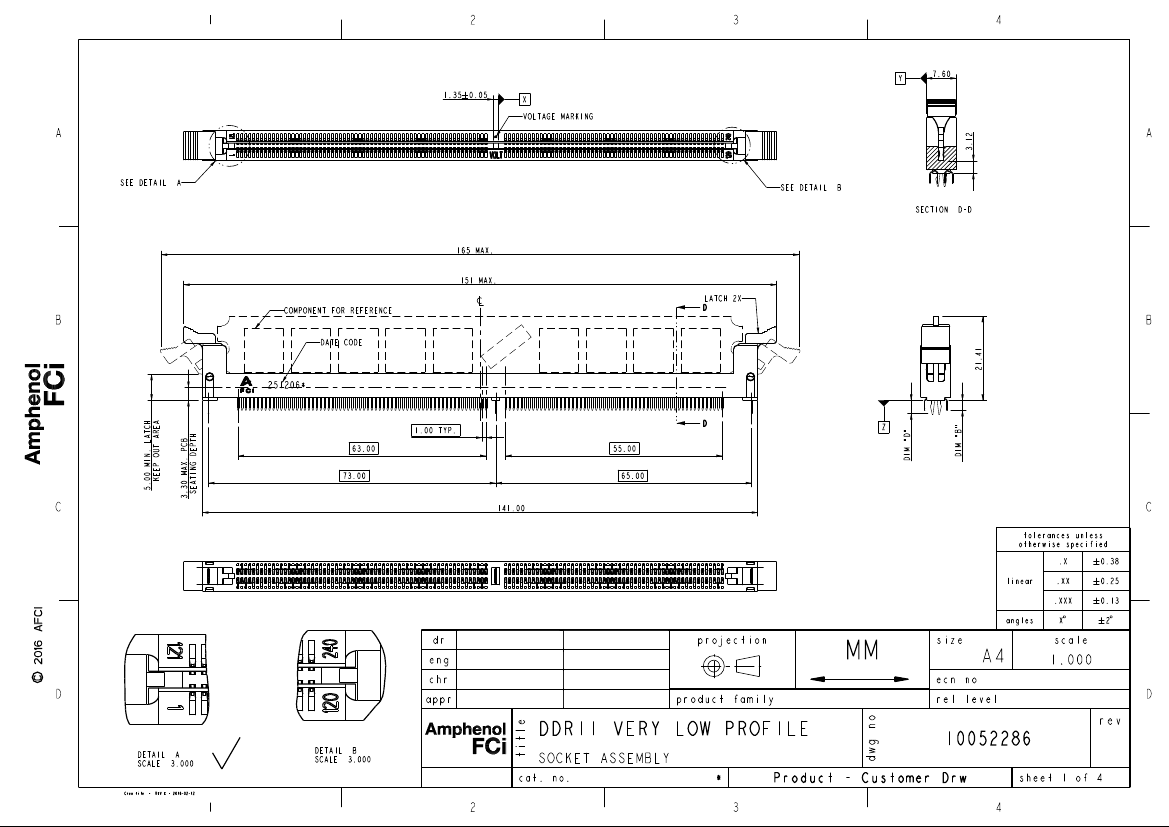

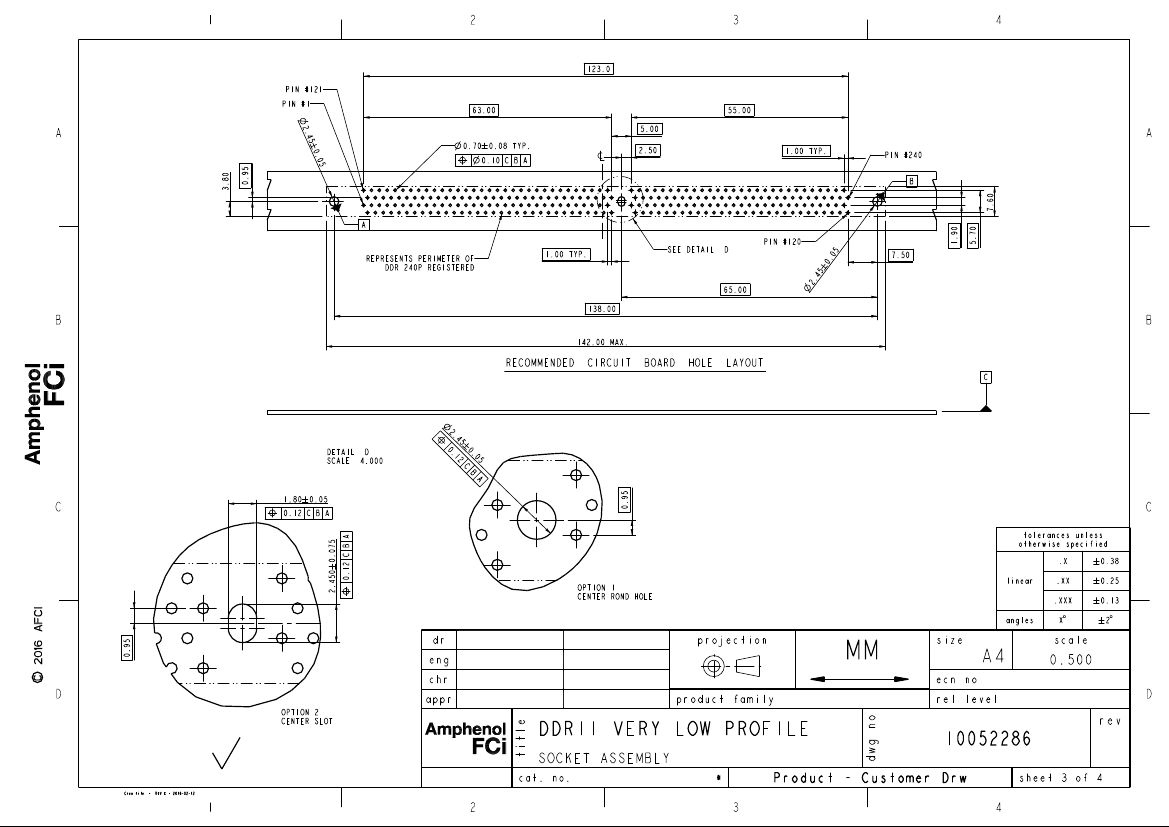

DDRII VERY LOW PROFILE
SOCKET ASSEMBLY
*
10052286
4
STATUS:Released
rev
cat. no.
Creo File
-
REV E - 2016-02-12
Product - Customer Drw
3
PDS: Rev :F
sheet 4 of 4
