LT1351CS8#TR

Description
Operational Amplifiers - Op Amps LT1351 - 250- A, 3MHz, 200V/- sOperational Amplifier
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size293KB,16 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

LT1351CS8#TR Overview

Operational Amplifiers - Op Amps LT1351 - 250- A, 3MHz, 200V/- sOperational Amplifier

LT1351CS8#TR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
package instructionSOP,
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.075 µA
Nominal Common Mode Rejection Ratio86 dB
Maximum input offset voltage800 µV
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
Humidity sensitivity level1
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-5 V
Number of functions1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
Certification statusNot Qualified
Maximum seat height1.75 mm
Nominal slew rate50 V/us
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature20
Nominal Uniform Gain Bandwidth2700 kHz
width3.9 mm

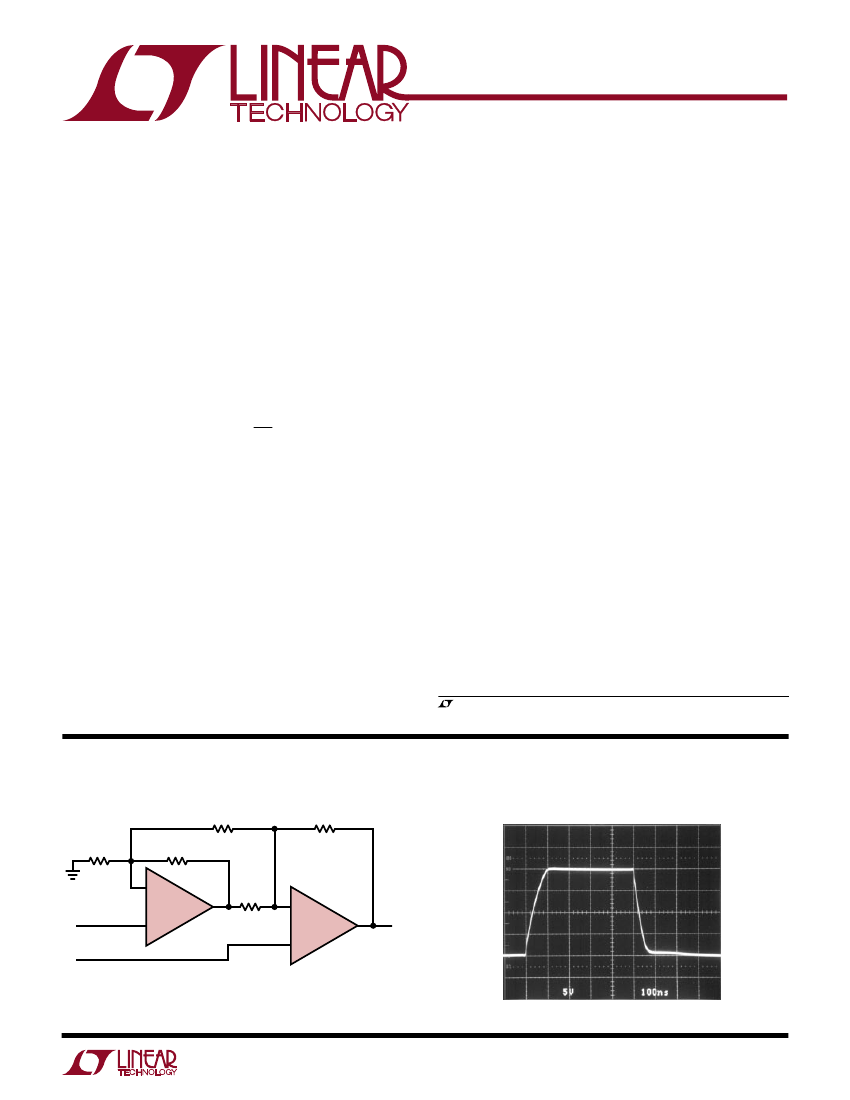

LT1351
250µA, 3MHz, 200V/µs
Operational Amplifier
FEATURES
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
DESCRIPTION
The LT
®
1351 is a low power, high speed, high slew rate
operational amplifier with outstanding AC and DC perfor-
mance. The LT1351 features lower supply current, lower
input offset voltage, lower input bias current and higher
DC gain than devices with comparable bandwidth. The
circuit combines the slewing performance of a current
feedback amplifier in a true operational amplifier with
matched high impedance inputs. The high slew rate en-
sures that the large-signal bandwidth is not degraded. The
amplifier is a single gain stage with outstanding settling
characteristics which make the circuit an ideal choice for
data acquisition systems. The output drives a 1kΩ load to
±13V
with
±15V
supplies and a 500Ω load to
±3.4V
on
±5V
supplies. The amplifier is also stable with any capacitive
load which makes it useful in buffer or cable driver
applications.
The LT1351 is a member of a family of fast, high perfor-
mance amplifiers using this unique topology and employ-
ing Linear Technology Corporation’s advanced
complementary bipolar processing. For dual and quad
amplifier versions of the LT1351 see the LT1352/LT1353
data sheet. For higher bandwidth devices with higher
supply current see the LT1354 through LT1365 data sheets.
Singles, duals and quads of each amplifier are available.
, LTC and LT are registered trademarks of Linear Technology Corporation.
C-Load is a trademark of Linear Technology Corporation.
3MHz Gain Bandwidth
200V/µs Slew Rate
250µA Supply Current
Available in Tiny MSOP Package
C-Load
TM
Op Amp Drives All Capacitive Loads
Unity-Gain Stable
Power Saving Shutdown Feature
Maximum Input Offset Voltage: 600µV
Maximum Input Bias Current: 50nA
Maximum Input Offset Current: 15nA
Minimum DC Gain, R
L
= 2k: 30V/mV
Input Noise Voltage: 14nV/√Hz
Settling Time to 0.1%, 10V Step: 700ns
Settling Time to 0.01%, 10V Step: 1.25µs
Minimum Output Swing into 1k:
±13V
Minimum Output Swing into 500Ω:
±3.4V
Specified at
±2.5V, ±5V
and
±15V
APPLICATIONS
s
s
s
s
s
s
Battery-Powered Systems
Wideband Amplifiers
Buffers
Active Filters
Data Acquisition Systems
Photodiode Amplifiers
TYPICAL APPLICATION
Instrumentation Amplifier
R1
50k
R2
5k
R5
1.1k
R3
5k
R4
50k
Large-Signal Response
LT1351
LT1351
V
OUT
V
IN
+
+
+
GAIN = [R4/R3][1 + (1/2)(R2/R1 + R3/R4) + (R2 + R3)/R5] = 102
TRIM R5 FOR GAIN
TRIM R1 FOR COMMON MODE REJECTION
BW = 30kHz
1351 TA01
A
V
= –1
U
U
U
1351 TA02
1
