N74LS161AD datasheet, PDF - EEWORLD Datasheet

N74LS161AD: DescriptionBinary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDSO16,; Categorylogic; File Size313KB，11 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

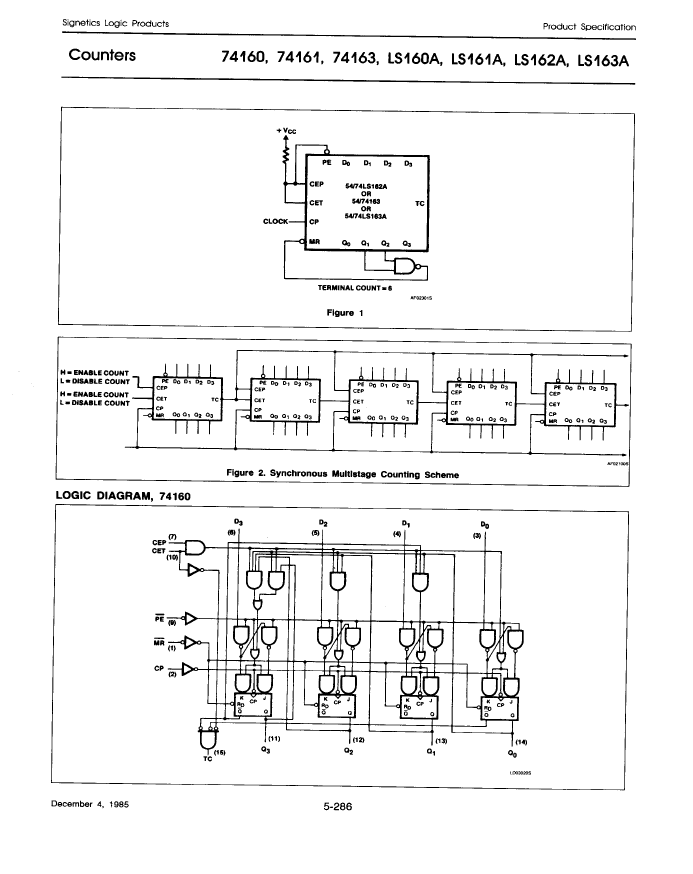

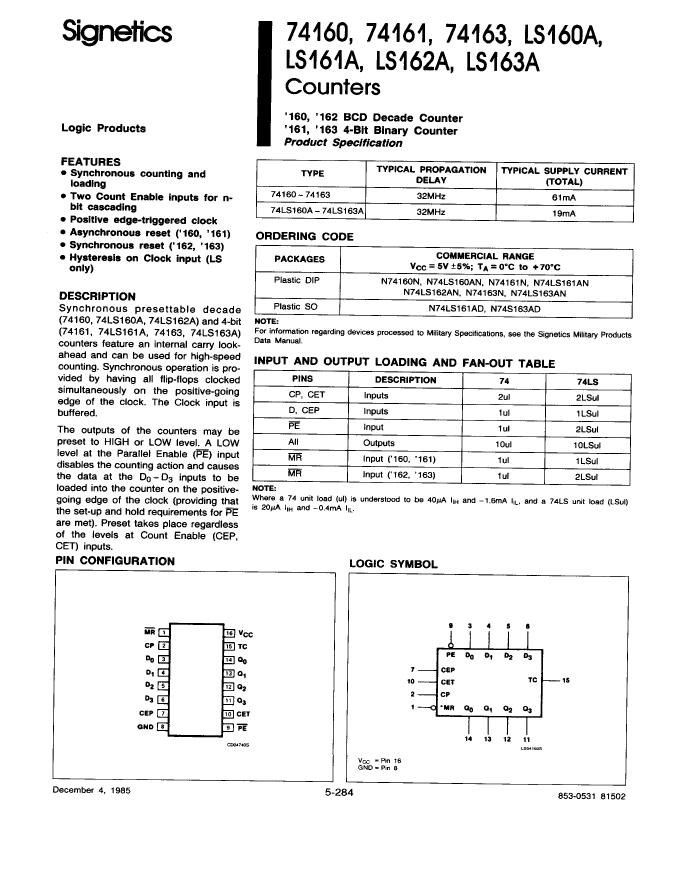

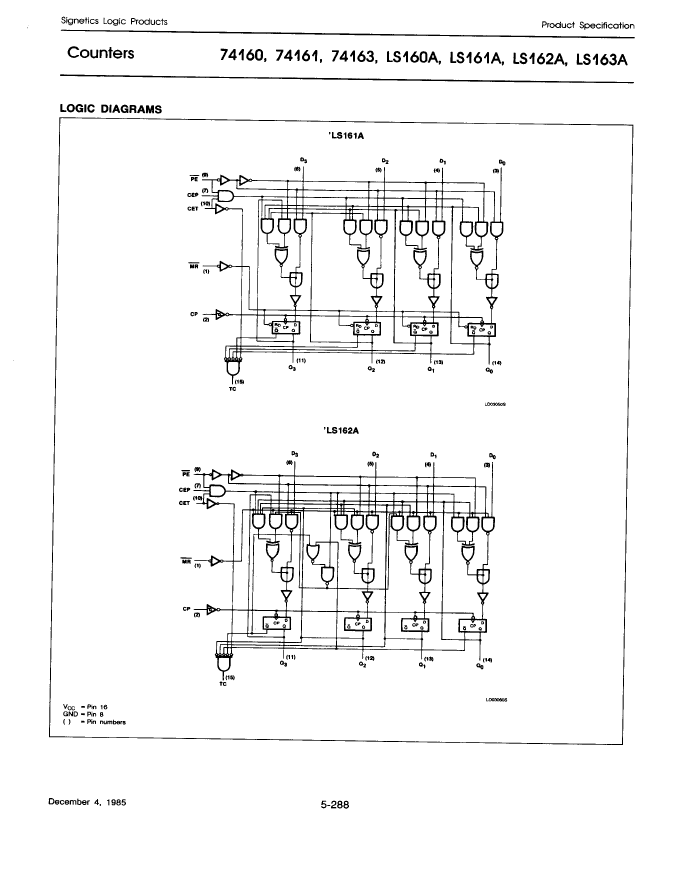

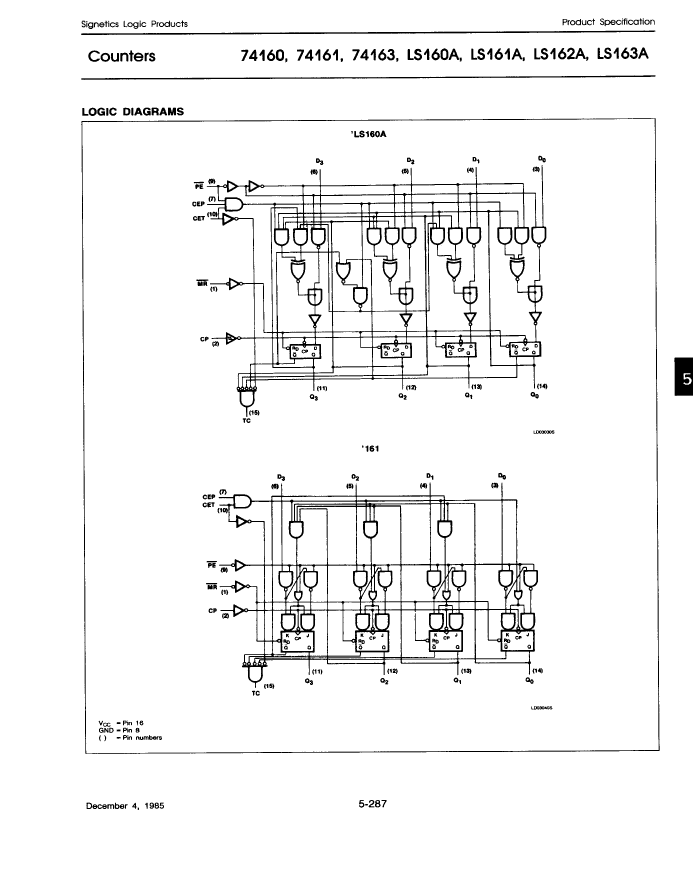

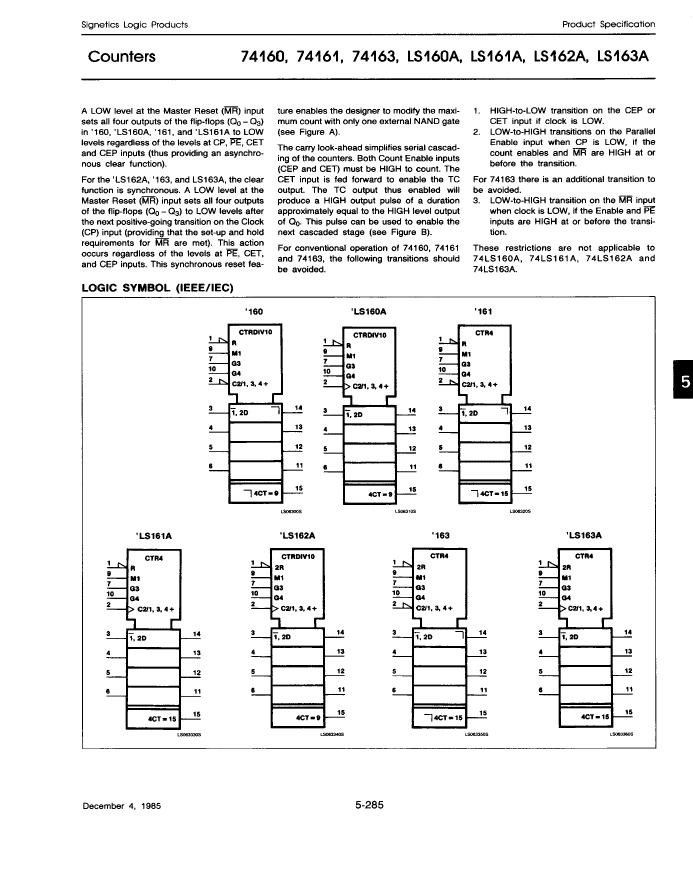

N74LS161AD Overview

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDSO16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Counting direction	UP
series	LS
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.008 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	32 mA
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
minfmax	25 MHz
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
