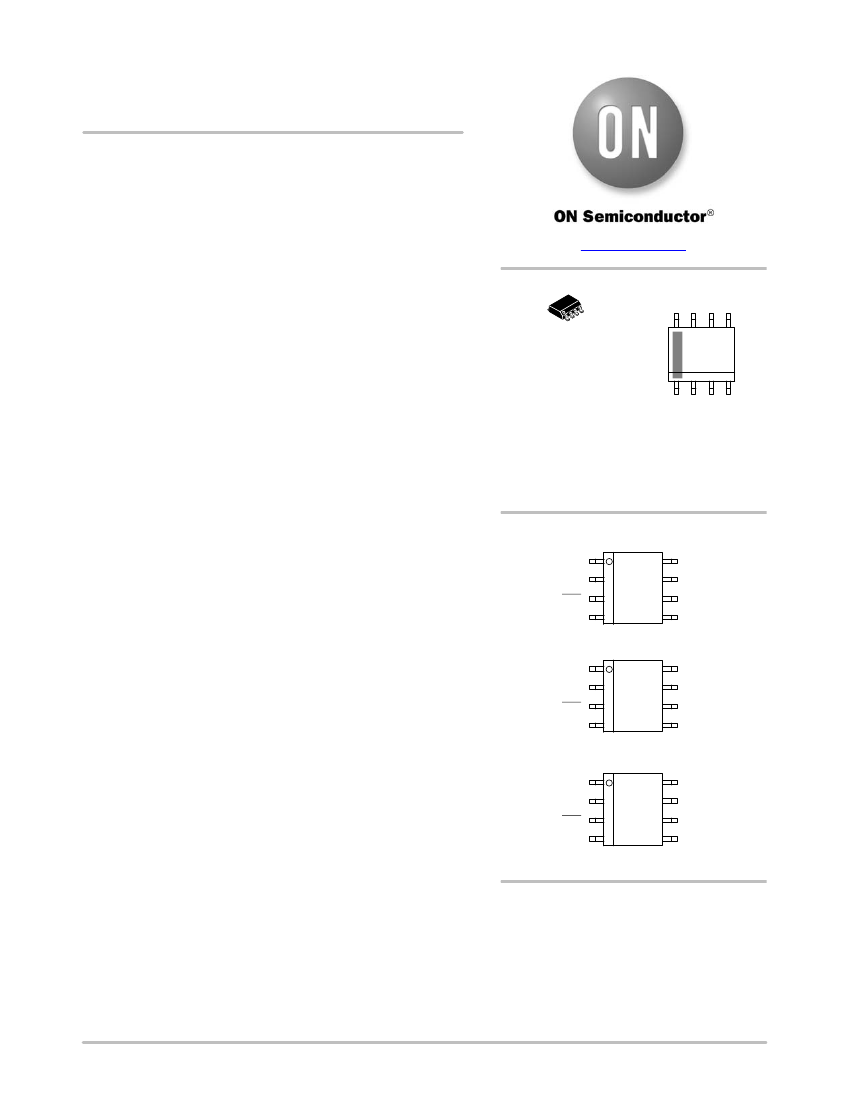

NCV5701A, NCV5701B,
NCV5701C
High Current IGBT Gate
Drivers
The NCV5701A, NCV5701B and NCV5701C are high−current,
high−performance stand−alone IGBT drivers for high power
applications that include solar inverters, motor control and
uninterruptible power supplies. The devices offer a cost−effective
solution by eliminating external output buffer. Devices protection
features include accurate Under−voltage−lockout (UVLO),
desaturation protection (DESAT) and Active Low FAULT output. The
drivers also feature an accurate 5.0 V output. The drivers are designed
to accommodate a wide voltage range of bias supplies including
unipolar and NCV5701B even bipolar voltages.
Depending on the pin configuration the devices also include Active
Miller Clamp (NCV5701A) and separate high and low (V
OH
and V
OL
)
driver outputs for system design convenience (NCV5701C).
All three available pin configuration variants have 8−pin SOIC
package.
Features
www.onsemi.com
8
1
SOIC−8
D SUFFIX
CASE 751
8
MARKING
DIAGRAM
NCV5701X
ALYW
G
1
NCV5701 = Specific Device Code
X
= A, B or C
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= Pb−Free Package
•
•
•
•
•
•
•
•
•
High Current Output (+4/−6 A) at IGBT Miller Plateau voltages
Low Output Impedance for Enhanced IGBT Driving
Short Propagation Delay with Accurate Matching
Direct Interface to Digital Isolator/Opto−coupler/Pulse Transformer
for Isolated Drive, Logic Compatibility for Non−isolated Drive
DESAT Protection with Programmable Delay
Tight UVLO Thresholds for Bias Flexibility
Wide Bias Voltage Range
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable, Grade 1
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
PIN CONNECTIONS
1
8
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
CLAMP
GND
VO
VCC
NCV5701A
1
8
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
VEE
GND
VO
VCC
NCV5701B
NCV5701A Features
•
Active Miller Clamp to Prevent Spurious Gate Turn−on
NCV5701B Features
1
8
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
GND
VOL
VOH
VCC
•
Negative Output Voltage for Enhanced IGBT Driving
NCV5701C Features
•
Separate Outputs for V
OL
and V
OH
Typical Applications
NCV5701C
•
•
•
•
•
Motor Control
Uninterruptible Power Supplies (UPS)
Automotive Power Supplies
HEV/EV Powertrain
HEV/EV PTC Heaters
ORDERING INFORMATION
See detailed ordering and shipping information on page 9 of
this data sheet.
©
Semiconductor Components Industries, LLC, 2017
1
October, 2017 − Rev. 0
Publication Order Number:
NCV5701/D
