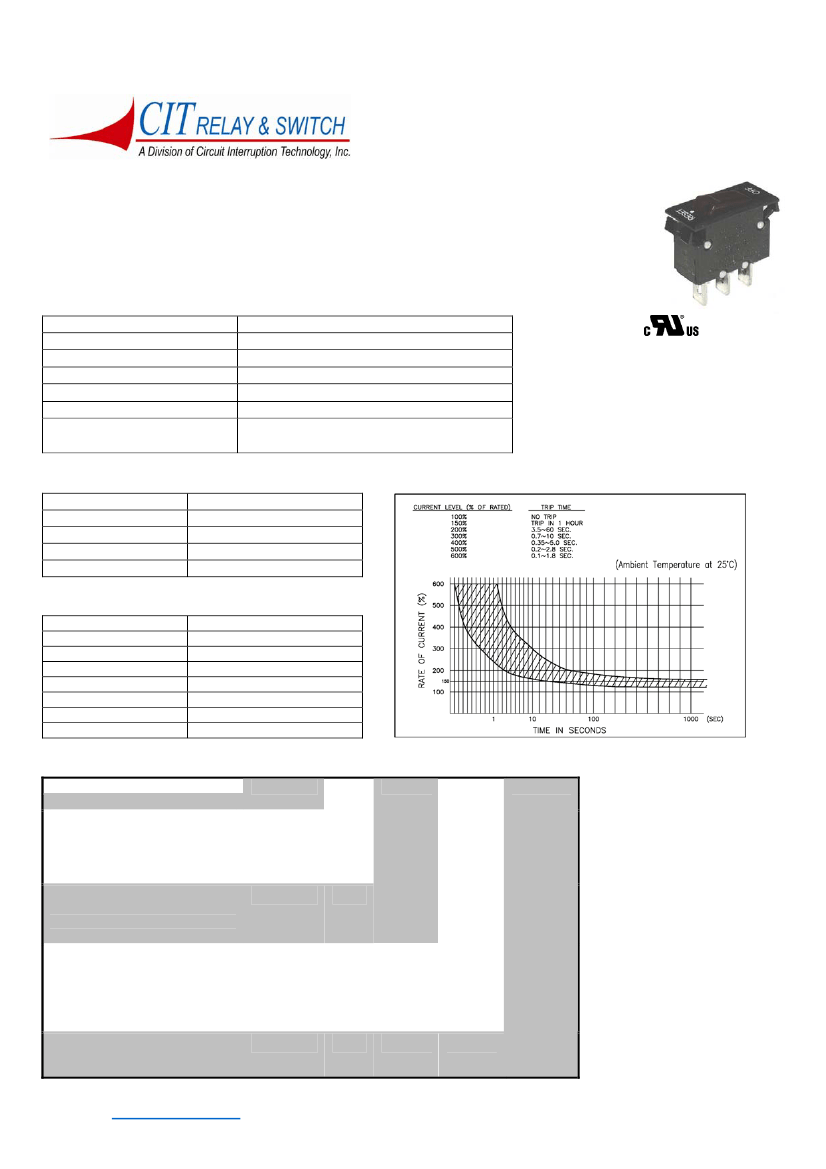

CITR2
CIRCUIT BREAKER WITH ON/OFF CAPABILITY
This unique circuit breaker consists of a thermal circuit
breaker and a rocker switch style housing. When an
overload condition occurs, the contacts will break apart.
By returning the actuator to the OFF position, then back
to ON, the circuit breaker mechanism with reset.
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Dielectric Strength
Insulation Resistance
Interrupt Capacity
Operating Temperature
Storage Temperature
8A, 10A, 12A, 15A @ 125VAC
10,000 cycles typical
< 30 mΩ max initial @ 2-4VDC, 100mA
3000Vrms min (Terminal – Terminal)
> 1,000MΩ min
1000A @ 125VAC
-40°C to 85°C
-40°C to 85°C
- E198027
MATERIALS
←
RoHS COMPLIANT
Actuator
Housing
Rivits
Contacts
Terminals
PC (Poly Carbonate)
Nylon
Aluminum
AgSnO
2
Brass
TRIP TIMES / CURRENT LEVELS
% of Rated Current
100
150
200
300
400
500
600
Trip Time
No Trip
< 1 Hour
3.5 – 60 Sec.
0.7 – 10 Sec.
0.35 – 5 Sec.
0.2 – 2.8 Sec.
0.1 – 1.8 Sec.
ORDERING INFORMATION
1. Series:
CITR2
15
CITR2
2.Contact Ratings:
08 = 8A
10 = 10A
12 = 12A
15 = 15A
3. Termination Options:
Q1 = Short Quick Connects
Q2 = Long Quick Connects
RP = Right Angle PC Pins
4. Lamp Options:
N = No Lamp, Opaque Red Actuator
L = 125VAC Neon, Translucent Red Actuator
K = No Lamp, Translucent Red Actuator
G = 125VAC Neon, Translucent Green Actuator
H = No Lamp, Translucent Green Actuator
5. Printing Options:
None = No Printing
S = Reset / OFF
Q2
L
S
Website: www.citswitch.com
Tel: 763-535-2339
Fax: 763-535-2194
CITR2

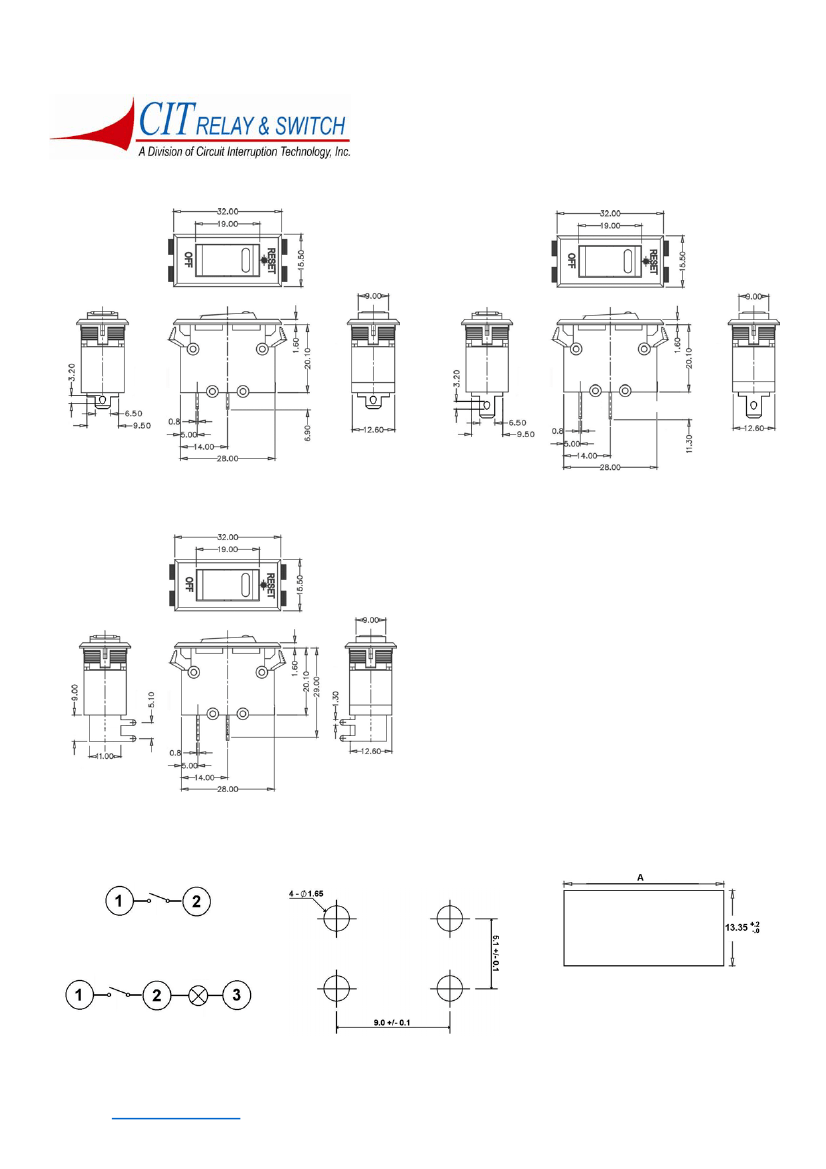

DIMENSIONS
Q1
Q2
RP
SCHMATICS, PC LAYOUT, & PANEL MOUNTING
WITHOUT LAMP
THICKNESS
WITH LAMP
125VAC NEON, 25K HOURS, 68KΩ Res.
DIM “A”
28.4
28.8
29.0
+.1 / -.0
+.1 / -.0
+.1 / -.0
0.8 ~ 1.0
1.1 ~ 1.4
1.5
Website: www.citswitch.com
Tel: 763-535-2339
Fax: 763-535-2194
