LT1168ACS8#PBF Overview

Instrumentation Amplifiers Programmable Prec Inst Amp

LT1168ACS8#PBF Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	ADI
package instruction	SOP,
Contacts	8
Manufacturer packaging code	05-08-1610 (S8)
Reach Compliance Code	compliant
Amplifier type	INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)	0.00035 µA
Nominal bandwidth (3dB)	0.4 MHz
Minimum Common Mode Rejection Ratio	88 dB
Maximum input offset current (IIO)	0.0004 µA
Maximum input offset voltage	60 µV
JESD-30 code	R-PDSO-G8
length	4.9025 mm
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
maximum nonlinearity	0.006%
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.752 mm
Nominal slew rate	0.48 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage gain	10000
Minimum voltage gain	1
Nominal voltage gain	10
width	3.899 mm
Base Number Matches	1

Preview

Download Datasheet

View All

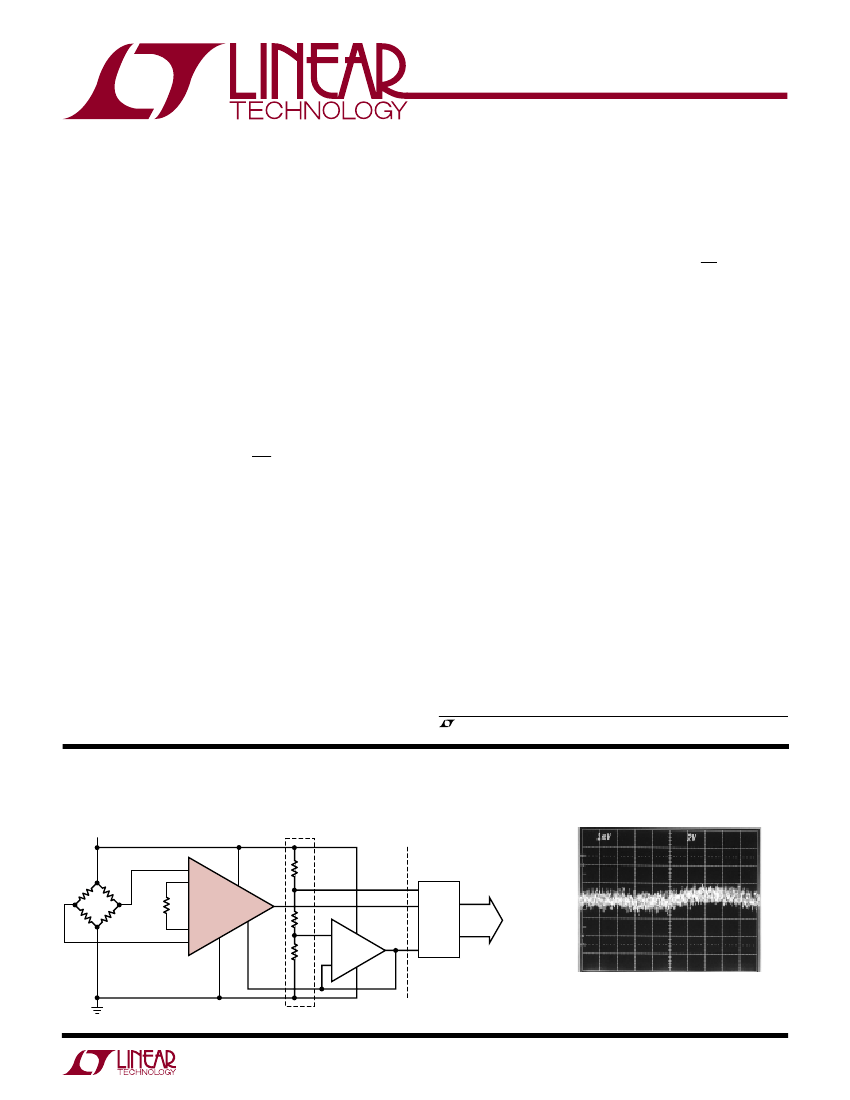

FEATURES

■

LT1168

Low Power, Single

Resistor Gain Programmable,

Precision Instrumentation Amplifier

DESCRIPTIO

The LT

1168 is a micropower, precision instrumentation am-

plifier that requires only one external resistor to set gains of

1 to 10,000. The low voltage noise of 10nV/√Hz (at 1kHz) is

not compromised by low power dissipation (350µA typical for

±15V

supplies). The wide supply range of

±2.3V

±18V

allows

the LT1168 to fit into a wide variety of industrial as well as

battery-powered applications.

The high accuracy of the LT1168 is due to a 20ppm maximum

nonlinearity and 0.4% max gain error (G = 10). Previous mono-

lithic instrumentation amps cannot handle a 2k load resistor

whereas the nonlinearity of the LT1168 is specified for loads

as low as 2k. The LT1168 is laser trimmed for very low input

offset voltage (40µV max), drift (0.3µV/°C), high CMRR (90dB,

G = 1) and PSRR (103dB, G = 1). Low input bias currents of

250pA max are achieved with the use of superbeta process-

ing. The output can handle capacitive loads up to 1000pF in

any gain configuration while the inputs are ESD protected up

to 13kV (human body). The LT1168 with two external 5k

resistors passes the IEC 1000-4-2 level 4 specification.

The LT1168 is a pin-for-pin improved second source for the

AD620 and INA118. The LT1168, offered in 8-pin PDIP and

SO packages, requires significantly less PC board area than

discrete op amp resistor designs. These advantages make

the LT1168 the most cost effective solution for precision

instrumentation amplifier applications.

, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.

All other trademarks are the property of their respective owners.

Supply Current: 530µA Max

Meets IEC 1000-4-2 Level 4 (±15kV) ESD Tests

with Two External 5k Resistors

Single Gain Set Resistor: G = 1 to 10,000

Gain Error: G = 10, 0.4% Max

Input Offset Voltage Drift: 0.3µV/°C Max

Gain Nonlinearity: G = 10, 20ppm Max

Input Offset Voltage: 40µV Max

Input Bias Current: 250pA Max

PSRR at A

=1: 103dB Min

CMRR at A

= 1: 90dB Min

Wide Supply Range:

±2.3V

±18V

1kHz Voltage Noise: 10nV/√Hz

0.1Hz to 10Hz Noise: 0.28µV

P-P

Available in 8-Pin PDIP and SO Packages

APPLICATIO S

■

Bridge Amplifiers

Strain Gauge Amplifiers

Thermocouple Amplifiers

Differential to Single-Ended Converters

Differential Voltage to Current Converters

Data Acquisition

Battery-Powered and Portable Equipment

Medical Instrumentation

Scales

TYPICAL APPLICATIO

Single Supply* Pressure Monitor

BI TECHNOLOGIES

67-8-3 R40KQ, (0.02% RATIO MATCH)

3.5k

G = 200

249Ω

40k

REF

LT1168

20k

40k

ADC

LTC

1286

AGND

DIGITAL

DATA

OUTPUT

3.5k

–

1/2

LT1112

–

1168 TA01

NONLINEARITY (100ppm/DIV)

*See Theory of Operation section

Gain Nonlinearity

G = 1000

= 2k

OUT

±10V

OUTPUT VOLTAGE (2V/DIV)

1168 TA01a

1168fa

LT1168ACS8#PBF Related Products

	LT1168ACS8#PBF	LT1168AIN8#PBF	LT1168ACN8	LT1168AIS8	LT1168ACS8#TR	LT1168AIS8#PBF	LT1168ACS8	LT1168AIS8#TRPBF	LT1168CN8#PBF
Description	Instrumentation Amplifiers Programmable Prec Inst Amp	Instrumentation Amplifiers Programmable Prec Inst Amp	Instrumentation Amplifiers LT1168 - Low Power, Single Resistor Gain Programmable, Precision Instrumentation Amplifier	Instrumentation Amplifiers LT1168 - Low Power, Single Resistor Gain Programmable, Precision Instrumentation Amplifier	Instrumentation Amplifiers LT1168 - Low Power, Single Resistor Gain Programmable, Precision Instrumentation Amplifier	Instrumentation Amplifiers Programmable Prec Inst Amp	Instrumentation Amplifiers LT1168 - Low Power, Single Resistor Gain Programmable, Precision Instrumentation Amplifier	Instrumentation amplifierProgrammable Prec Inst Amp	Instrumentation amplifierProgrammable Prec Inst Amp
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	incompatible	conform to	incompatible	conform to	conform to
package instruction	SOP,	DIP,	0.300 INCH, PLASTIC, DIP-8	0.150 INCH, PLASTIC, SOP-8	0.150 INCH, PLASTIC, SOP-8	SOP,	SOP,	0.150 INCH, LEAD FREE, PLASTIC, SOP-8	DIP,
Reach Compliance Code	compliant	compliant	not_compliant	not_compliant	not_compliant	compliant	not_compliant	compliant	compliant
Amplifier type	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)	0.00035 µA	0.0005 µA	0.00035 µA	0.0005 µA	0.00035 µA	0.0005 µA	0.00035 µA	0.0005 µA	0.0006 µA
Nominal bandwidth (3dB)	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz	0.4 MHz
Minimum Common Mode Rejection Ratio	88 dB	86 dB	88 dB	86 dB	88 dB	86 dB	88 dB	86 dB	83 dB
Maximum input offset current (IIO)	0.0004 µA	0.00055 µA	0.0004 µA	0.00055 µA	0.0004 µA	0.00055 µA	0.0004 µA	0.00055 µA	0.00055 µA
Maximum input offset voltage	60 µV	75 µV	60 µV	75 µV	60 µV	75 µV	60 µV	75 µV	80 µV
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
maximum nonlinearity	0.006%	0.007%	0.006%	0.007%	0.006%	0.007%	0.006%	0.007%	0.008%
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	70 °C	85 °C	70 °C	85 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	235	235	260	235	260	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.752 mm	3.937 mm	3.937 mm	1.752 mm	1.752 mm	1.752 mm	1.752 mm	1.752 mm	3.937 mm
Nominal slew rate	0.48 V/us	0.41 V/us	0.48 V/us	0.41 V/us	0.48 V/us	0.41 V/us	0.48 V/us	0.41 V/us	0.48 V/us
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES	YES	YES	YES	YES	NO
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	20	20	30	20	30	NOT SPECIFIED
Maximum voltage gain	10000	10000	10000	10000	10000	10000	10000	10000	10000
Minimum voltage gain	1	1	1	1	1	1	1	1	1
Nominal voltage gain	10	10	10	10	10	10	10	10	10
width	3.899 mm	7.62 mm	7.62 mm	3.899 mm	3.899 mm	3.899 mm	3.899 mm	3.899 mm	7.62 mm
Brand Name	Analog Devices Inc	Analog Devices Inc	-	-	-	Analog Devices Inc	-	Analog Devices Inc	Analog Devices Inc
Is it lead-free?	Contains lead	Contains lead	-	-	-	Contains lead	-	Contains lead	Contains lead
Maker	ADI	ADI	-	-	-	ADI	ADI	ADI	ADI
Contacts	8	8	-	-	-	8	-	8	8
Manufacturer packaging code	05-08-1610 (S8)	05-08-1510 (N8)	-	-	-	05-08-1610 (S8)	-	05-08-1610 (S8)	05-08-1510 (N8)
length	4.9025 mm	-	-	4.9025 mm	4.9025 mm	4.9025 mm	4.9025 mm	4.9025 mm	-
Base Number Matches	1	1	1	1	1	1	-	1	1
JESD-609 code	-	e3	e0	e0	e0	e3	e0	e3	e3
Humidity sensitivity level	-	1	1	1	1	1	1	1	1
Terminal surface	-	MATTE TIN	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	MATTE TIN	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	MATTE TIN
