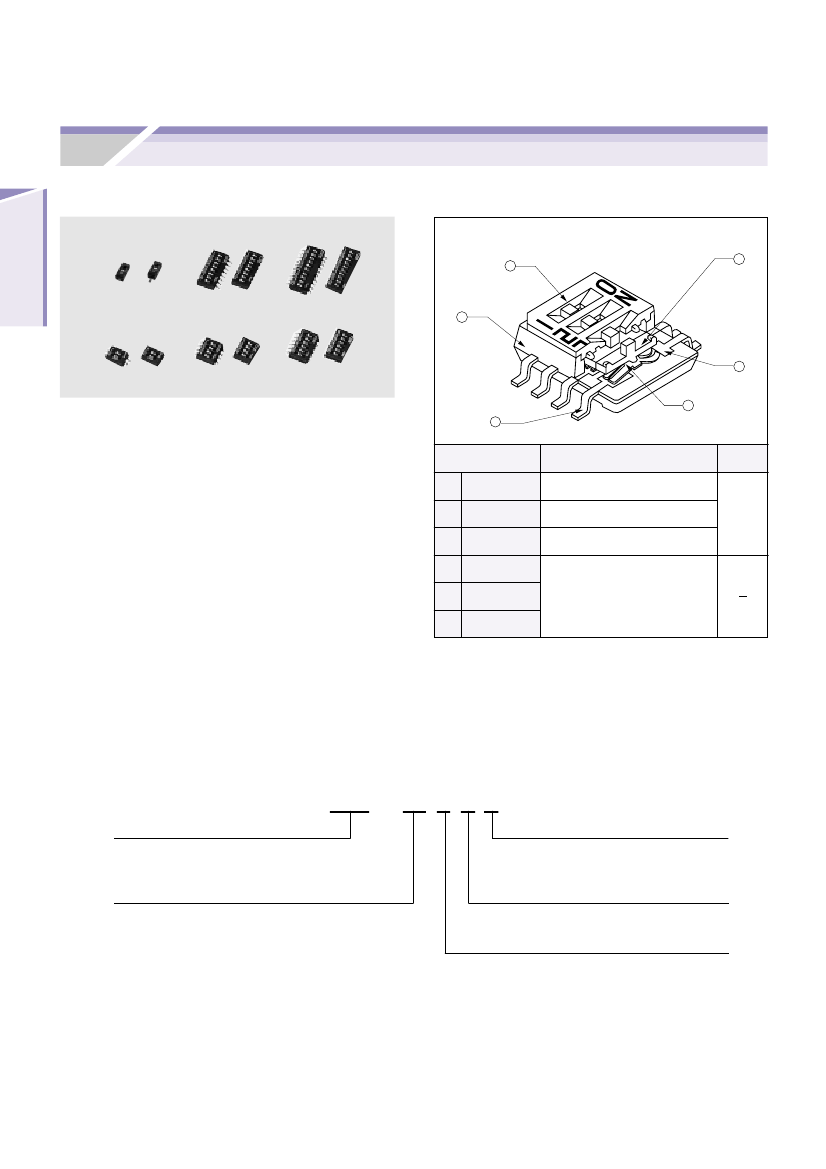

Meets EIAJ SOP standard outline dimensions (B type)
q
Low profile design of 2.5
mm
q
12 types of 1, 2, 4, 6, 8 or 10 bit with either gull wing or J-
hook available
q
Excellent contact stability by twin Au-plated contact
4
6
Part name
Material
PPS (Polyphenylenesulphide)
Nylon
PPS (Polyphenylenesulphide)
Flammability
1
2
3
4
5
6
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
UL-94V-0
Copper alloy, Gold-plated
CFCs, Halon, Carbon tetrachloride and designated bromic flame
retardant PBBOs and PBBs are not used in our products.
s
PART NUMBER DESIGNATION
CHS - 06 T A 1
Series name
Srtucture
1 : Non-washing type (Seal tape is nothing)
2 : Non-washing type (Seal tape is provided)
Blank : Washable type (Seal tape is provided)
No. of bits
01 : 1 bit
02 : 2 bits
04 : 4 bits
06 : 6 bits
08 : 8 bits
10 : 10 bits
Shape of terminal
A : J-hook
B : Gull wing
Form of packaging
T : Taping (Reel)
M : Magazine
Blank : Bulk in vinyl bags
❈
Please refer to the LIST OF PART NUMBERS when placing orders.
s
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CHS
s
LIST OF PART NUMBERS
No. of bits
Shape of Non-washing type (Seal tape is nothing) Non-washing type (Seal tape is provided)
terminals
Form of
packaging
Taping
Magazine
Bulk packaging
aping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Shape of
terminals
Form of
packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Taping
Magazine
Bulk packaging
Pieces in package
1000 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
70 pcs./stick
50 pcs./pack
500 pcs./reel
50 pcs./stick
50 pcs./pack
500 pcs./reel
40 pcs./stick
50 pcs./pack
500 pcs./reel
30 pcs./stick
50 pcs./pack
A
(
J-hook)
B
(Gull wing)
CHS-01TB1
CHS-01B1
CHS-02TB1
CHS-02B1
CHS-04TB1
CHS-04MB1
CHS-04B1
CHS-06TB1
CHS-06MB1
CHS-06B1
CHS-08TB1
CHS-08MB1
CHS-08B1
CHS-10TB1
CHS-10MB1
CHS-10B1
A
(
J-hook)
CHS-01TA2
B
(Gull wing)
CHS-01TB2
CHS-01TA1
CHS-01A1
CHS-02TA1
CHS-02A1
CHS-04TA1
CHS-04MA1
CHS-04A1
CHS-06TA1
CHS-06MA1
CHS-06A1
CHS-08TA1
CHS-08MA1
CHS-08A1
CHS-10TA1
CHS-10MA1
CHS-10A1
1
2
4
6
8
10
CHS-02TA2
CHS-02TB2
CHS-04TA2
CHS-04TB2
CHS-06TA2
CHS-06TB2
CHS-08TA2
CHS-08TB2
CHS-10TA2
CHS-10TB2
Washable type (Seal tape is provided)
Pieces in package
No. of bits
A
(J-hook)
B
(Gull wing)
CHS-01TB
CHS-01B
CHS-02TB
CHS-02B
CHS-04TB
CHS-04MB
CHS-04B
CHS-06TB
CHS-06MB
CHS-06B
CHS-08TB
CHS-08MB
CHS-08B
CHS-10TB
CHS-10MB
CHS-10B
1000 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
70 pcs./stick
50 pcs./pack
500 pcs./reel
50 pcs./stick
50 pcs./pack
500 pcs./reel
40 pcs./stick
50 pcs./pack
500 pcs./reel
30 pcs./stick
50 pcs./pack
CHS-01TA
CHS-01A
CHS-02TA
CHS-02A
CHS-04TA
CHS-04MA
CHS-04A
CHS-06TA
CHS-06MA
CHS-06A
CHS-08TA
CHS-08MA
CHS-08A
CHS-10TA
CHS-10MA
CHS-10A
1
2
4
6
8
10
: Not manufactured
❈
Verify the above part numbers when placing orders.
Taping and magazine version must be purchaced in reel or stick units.
s
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
SURFACE MOUNT
TYPE SWITCHES
COPAL ELECTRONICS
CHS
SLIDE SWITCHES (SMD)
SURFACE MOUNT
TYPE SWITCHES
s
STANDARD SPECIFICATIONS
Operating temp. range
Sealing
Net weight
−
40 ~
+
85
°C
Washable by seal tape
Approx. 0.05 g (CHS-01) Approx. 0.08 g (CHS-02)
Approx. 0.12 g (CHS-04) Approx. 0.17 g (CHS-06))
Approx. 0.22 g (CHS-08) Approx. 0.25 g (CHS-10)
s
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V, 100 mA
DC6 V, 100 mA DC24 V, 25 mA
DC20 mV, 1
µA
50 mΩ maximum (1.5 mA, 1 kHz, 20 mV)
1000 MΩ (DC100 V) minimum
AC500 V, 50 Hz, 60 s
s
MECHANICAL CHARACTERISTICS
Operating force
Stop strength
Solderability
Soldering heat
Shear (Adhesion)
Substrate bending
Pull-off strength
0.5 ~ 5 N {0.05 ~ 0.51 kgf}
10 N {1.02 kgf}, 60 s
235
±
5 °C, 2
±
0.5 s
240 °C (VPS method), 30 s
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm,
5 s, 1 time
5 N {0.51 kgf} 10 s
s
ENVIRONMENTAL CHARACTERISTICS
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
Amplitude of 1.5 mm (p-p) or Acceleration of 98 m/s
2
,
10-500 Hz, 3 directions for 10 cycles each
490 m/s
2
, 11 ms
6 directions for 3 times each
Continuous load 2000 cycles,
DC6
±
0.5 V, 100
±
10 mA
−10
~
+65
°C, 0 ~ 96 %RH,
24 h for 10 cycles
85 °C, 96 h
−40
°C, 96 h
−40
(0.5 h) ~
+85
°C (0.5 h),
5 cycles
{ } : Reference only
s
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CHS
s

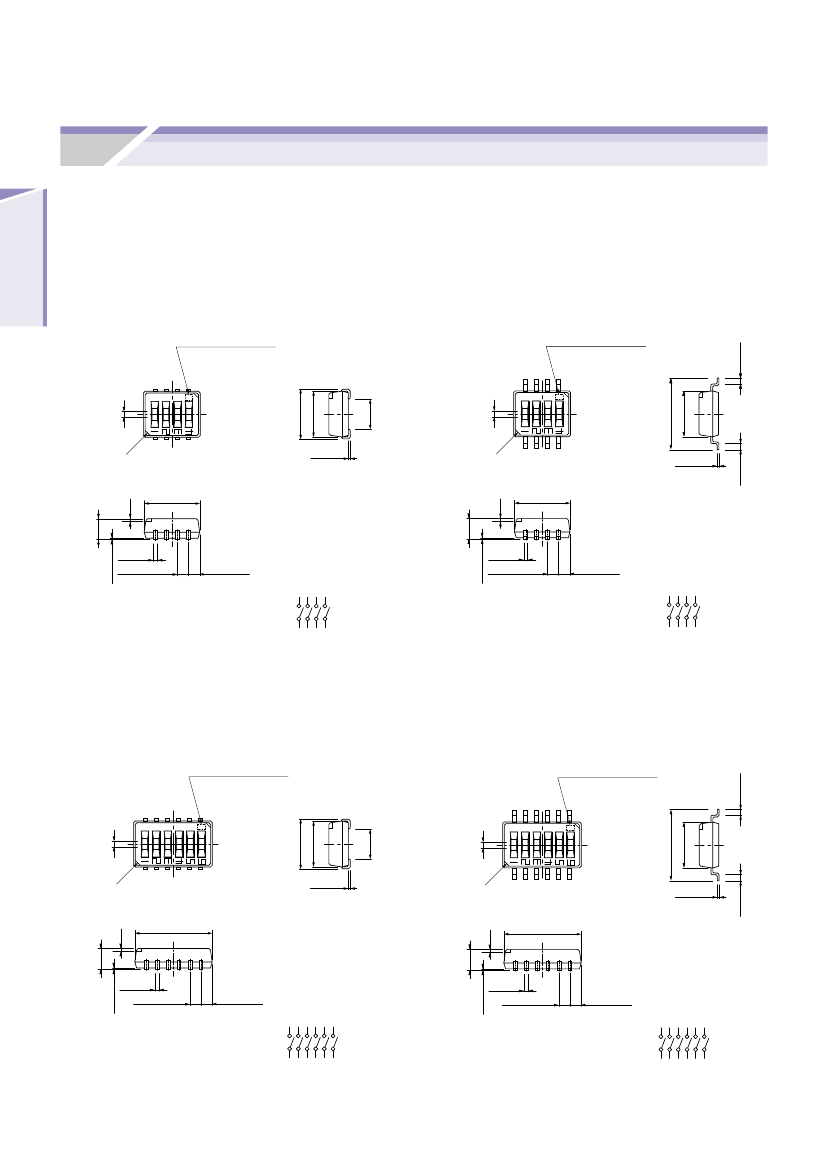

OUTLINE DIMENSIONS
Unless otherwise specified, tolerance :
±
0.3 (Unit : mm)
q
CHS-01A1
Non-washing type
(Without seal tape)
Production date code
q
CHS-01B1
Non-washing type
(Without seal tape)
Production date code
0.4 min.
Stroke 0.6
Stroke 0.6
0.
5
O
N
5.6
+0.3
0
5.4
3.8
O
N
0.
5
0.3
2.5 max.
0
–0.1
0.1
Schematic
0.1
0
–0.1
0.6
+ 0.1
–0.05
2.5 max.
0.3
2.5
2.5
–0.05
0.6
+ 0.1
Schematic
q
CHS-02A1
Non-washing type
(Without seal tape)
Production date code
q
CHS-02B1
Non-washing type
(Without seal tape)
(In accordance with EIAJ ED-7402-1)
Stroke 0.6
Stroke 0.6
O
N
5.6
+0.3
0
5.4
3.8
O
N
0.5
0.1
0.15
+–0.05
0.3
2.5 max.
0.1±0.1
2.5 max.
0.1±0.1
0.1
0.4
+–0.05
1.27±0.15
1.4±0.15
Schematic
0.1
0.4
+–0.05
1.27±0.15
0.3
4.1
4.1
1.4±0.15
Schematic
s
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
0.4 min.
0.1
0.15
+–0.05
C
C
0.5
8
5.4
0.4 min.
Production date code
0.4 min.
0.15
+ 0.1
–0.05
C
C
–
2
2
–
8
5.4
0.15
+ 0.1
–0.05
SURFACE MOUNT
TYPE SWITCHES
COPAL ELECTRONICS
CHS
SLIDE SWITCHES (SMD)
SURFACE MOUNT
TYPE SWITCHES
s
OUTLINE DIMENSIONS
Unless otherwise specified, tolerance :
±
0.3 (Unit : mm)
q
CHS-04A1
Non-washing type
(Without seal tape)
Production date code
q
CHS-04B1
Non-washing type
(Without seal tape)
(In accordance with EIAJ ED-7402-1)
C
Stroke 0.6
0.5
C
Stroke 0.6
0.5
O
N
5.6
+0.3
0
5.4
O
N
0.1
0.15
+–0.05
0.3
2.5 max.
2.5 max.
0.1±0.1
0.1±0.1
0.1
0.4
+–0.05
1.27±0.15
1.4±0.15
Schematic
0.1
0.4
+–0.05
1.27±0.15
0.3
6.6
6.6
1.4±0.15
Schematic
q
CHS-06A1
Non-washing type
(Without seal tape)
Production date code
q
CHS-06B1
Non-washing type
(Without seal tape)
(In accordance with EIAJ ED-7402-1)
Stroke 0.6
C
Stroke 0.6
0.5
O
N
5.6
+0.3
0
5.4
3.8
O
N
0.5
0.1
0.15
+–0.05
0.3
2.5 max.
0.1±0.1
1.4±0.15
Schematic
0.1±0.1
0.1
0.4
+–0.05
1.27±0.15
2.5 max.
0.3
9.2
9.2
0.1
0.4
+–0.05
1.27±0.15
1.4±0.15
Schematic
s
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
