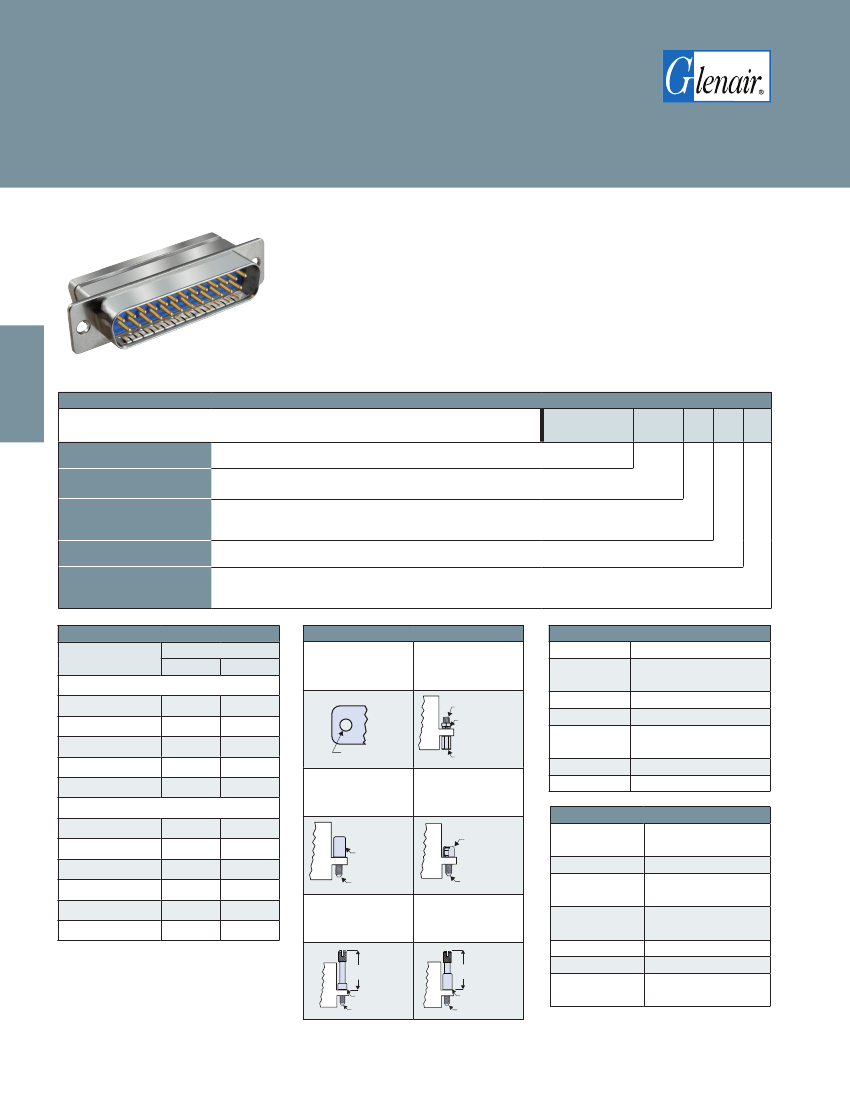

SERIES 28
HiPer-D
®
Standard and High-Density Connectors
280-018P pin connectors with standard M24308 type mounting
flange, crimp termination
HiPer-D® pin connectors feature crimp, rear-releaseable size #20 or #22 contacts.
Intermateable with standard M24308-type D-Subminiature connectors, the
HiPer-D® features a rugged machined aluminum shell, waterproof sealing and
optional ground springs for improved resistance to electromagnetic interference.
Gold-plated size #20 contacts conform to M39029/64-369 and accept #20 to
#24 AWG wire. Gold-plated size #22 contacts conform to M39029/58-360 and
accept #22 to #28 AWG wire. Contacts are packaged with connector. Terminate
contacts with crimp tools purchased separately. Glass-reinforced thermoset epoxy
insulators, copper alloy retention clips. Fluorosilicone face seal and rear grommet
meet IP67 immersion requirement. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
Ordering Information
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
Shell Finish
Ground Spring
Mating Hardware
280-018P
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel (RoHS)
JF
= Cadmium with Yellow Chromate
Z1
= Passivated Stainless Steel (RoHS)
G
= Supplied with EMI Ground Spring
N
= No Hardware (Through-Hole)
L
= Jackscrew, Hex Head, Low Profile
S
= Screwlock, Male, Hex Head, Low Profile
MT
= Nickel-PTFE (RoHS)
Z2
= Gold (RoHS)
N
= No Ground Spring
P
= #4-40 Female Jackpost
K
= Jackscrew, Slot Head, Extended Length
T
= Screwlock, Male, Slot Head, Extended Length
Materials and Finishes
Aluminum alloy
Copper alloy, 50 microin.
gold plated
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
Copper alloy, nickel plated
300 series stainless steel
B
280-018P
3S25
ME
G
P
Shell Size - Contact Arrangements
Shell Size-
Contact Arr.
1S9
2S15
3S25
4S37
5S50
1H15
2H26
3H44
4H62
5H78
6H104
Contact Size and Qty
#20
#22
9
15
25
37
50
High Density
15
26
44
62
78
104
Mating Hardware
N
Thru-Hole
No Hardware
P
Female Jackpost
#4-40 UNC-2A
NUT AND
LOCKWASHER
Shell
Contacts
Insulators
Standard Density
Retention Clips
Grommet and
Seal
EMI Spring
Hardware
.115/.125
(2.92/3.18)
#4-40 UNC-2B
S
Captive Screwlock,
Hex Head
L
Captive Jackscrew,
Hex Head
RETAINER
Specifications
Current Rating
Test Voltage
#22 5 AMPS, #20 7.5
AMPS
1000 VAC RMS
5000 megohms
minimum
-65° C. to +200° C.
RETAINER
#4-40 UNC-2A
#4-40 UNC-2A
K
Slot-Head Extended
Jackscrew
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
T
Slot-Head Extended
Captive Screwlock
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
Insulation
Resistance
Operating
Temperature
Ingress Protection IP 67
Shock
300 g.
Vibration,
Random
43.92 g.
B-6
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Standard and High-Density Connectors
280-018P pin connectors with standard M24308 type mounting
flange, crimp termination

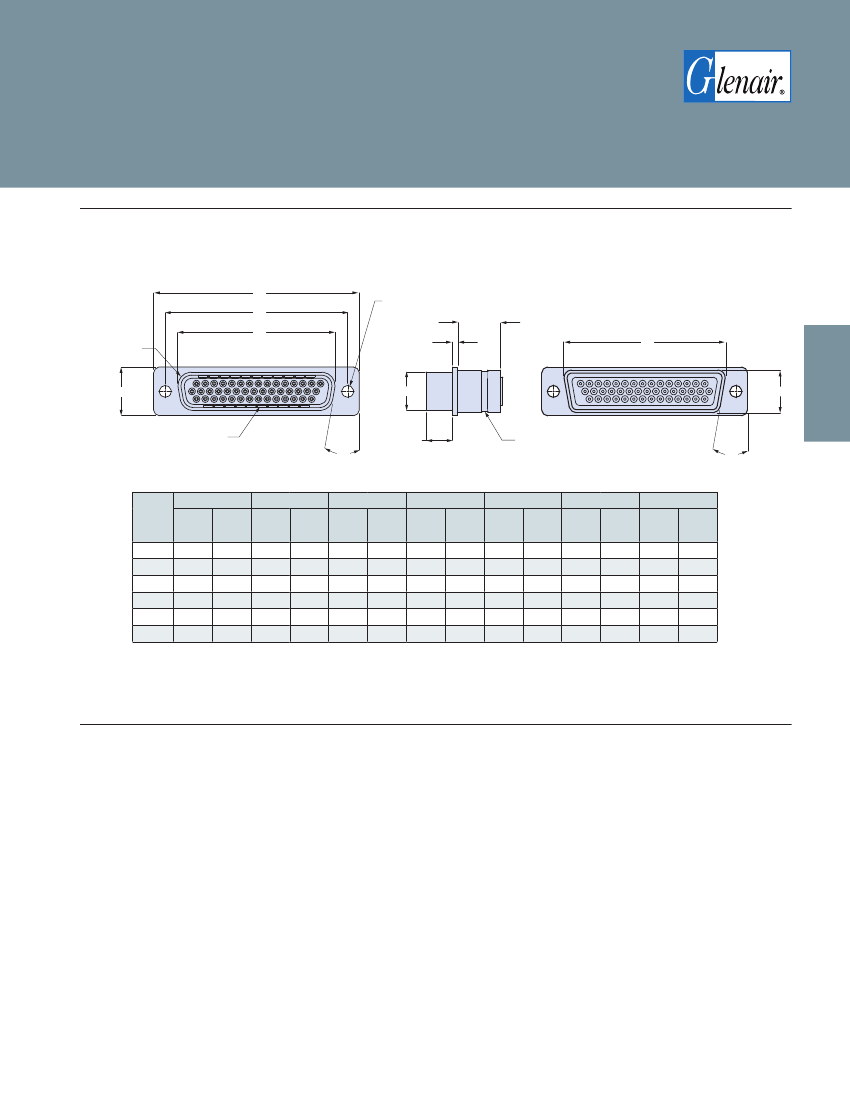

280-018P DIMENSIONS
A
C
D
REF .134R
(3.40)
B
Ø .120 (3.05)
TYP
.049
(1.24)
E
.435
(11.05)
F
G
B
OPTIONAL GROUND
SPRING 2 PLCS
.262 ± .005
10° (6.65 ± 0.13)
TYP
BACKSHELL
MOUNTING
GROOVE
10°
TYP
A
Shell
Size
1
2
3
4
5
6
in
mm
in
B
mm
C Basic
in.
.984
1.312
1.852
2.500
D
in
mm
in
E
mm
F Max.
in.
.769
1.093
1.635
2.282
G Max.
in.
.432
.432
.432
.432
± .015
± 0.38
± .015
± 0.38
1.213
1.541
2.088
2.729
30.81
39.14
53.04
69.32
.494
.494
.494
.494
12.55
12.55
12.55
12.55
mm
24.99
33.32
47.04
63.50
± .005
± 0.13
± .005
± 0.13
.726
1.054
1.594
2.242
18.44
26.77
40.49
56.95
.389
.389
.389
.389
9.88
9.88
9.88
9.88
mm
19.53
27.76
41.53
57.96
mm
10.97
10.97
10.97
10.97
2.635 66.93
2.729 69.32
.605 15.37
.668 16.97
2.406 61.11
2.500 63.50
2.139 54.33
2.272 57.71
.501 12.73
.563 14.30
2.188 55.58
2.312 58.72
.544 13.82
.606 15.39
NOTES
1.
HiPer-D® connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D® Shell Plating
Options
for additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup
charge, no minimum order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D® Contacts and Crimp
Tools
for contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
HiPer-D® connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type
D-Subminiature connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D® Product Specification.
2.
3.
4.
5.
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
B-7
