803-47-072-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-47-072-10-001000

803-47-072-10-001000: DescriptionIC & Component Sockets STANDARD SOCKET HEADER; CategoryThe connector The connector; File Size464KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

803-47-072-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-47-072-10-001000	-	-	View	Buy Now

803-47-072-10-001000 Overview

IC & Component Sockets STANDARD SOCKET HEADER

803-47-072-10-001000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
JESD-609 code	e4
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

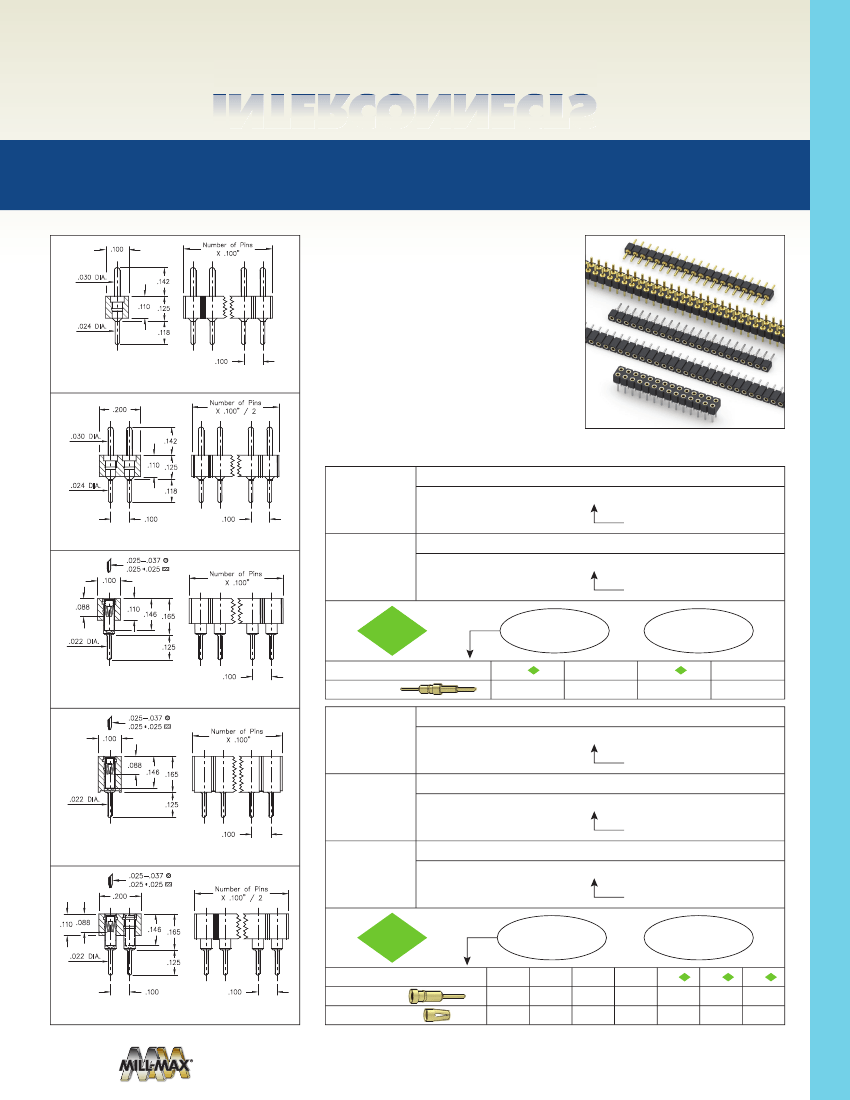

SERIES 800, 801, 802, 803 • .100” GRID (.030” DIA. PINS),

LOW PROFILE HEADERS & VERSATILE SOCKETS • SINGLE & DOUBLE ROW STRIPS

Number of Pins

X .100"

.100

•

Series 800 and 802 single and double row pin

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

.030 DIA.

.142

headers use MM #5016 pins. See page 215 for

details

sockets use MM #1303 receptacles. See page

180 for details

6- nger BeCu #47 contact rated at 4.5 amps.

Receptacles accept .030” diameter and .025”

square pins. See page 256 for details

suitable for all soldering operations

.110

.024 DIA.

.125

.118

.100

FIG. 1

.200

Number of Pins

X .100" / 2

.030 DIA.

•

Insulators are high temperature thermoplastic,

.142

.110 .125

.024 DIA.

ORDERING INFORMATION

Series 800...002

.118

FIG. 1

.100

Single Row Low Pro le Pin Header

800 XX 0_ _ 10 002000

01-64

.100

FIG. 2

.025-.037

.025 .025

.100

Number of Pins

X .100"

Specify number of pins

Series 802...002

FIG. 2

RoHS - 2

Double Row Low Pro le Pin Header

802 XX 0_ _ 10 002000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

µ”

.088

.110

.146 .165

.022 DIA.

2011/65/EU

.125

.100

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

FIG. 3

.025-.037

.025 .025

.100

Number of Pins

X .100"

Series 801...002

FIG. 3

Series 801...012

Low Pro le Socket

short insulator)

801 XX 0_ _ 10 002000

01-64

.088

.146 .165

Specify number of pins

.022 DIA.

.125

FIG. 4

.100

Low Pro le Socket

long insulator)

801 XX 0_ _ 10 012000

01-36

Specify number of pins

.025-.037

.025 .025

.200

Number of Pins

X .100" / 2

FIG. 5

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

µ”

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.110 .088

.146 .165

2011/65/EU

.022 DIA.

.125

.100

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 53 | INTERCONNECTS

FIG. 4

Series 803...002

Double Row Low Pro le Socket

803 XX 0_ _ 10 002000

803-47-072-10-001000 Related Products

	803-47-072-10-001000	800-90-010-10-002000	803-47-100-20-001000	803-47-014-10-002000	803-47-010-20-001000
Description	IC & Component Sockets STANDARD SOCKET HEADER	Headers & Wire Housings STANDARD PIN HEADER	IC & Component Sockets STANDARD SOCKET HEADER	IC & Component Sockets STANDARD SOCKET HEADER	IC & Component Sockets STANDARD SOCKET HEADER
Is it Rohs certified?	conform to	incompatible	conform to	-	conform to
Reach Compliance Code	compliant	compliant	compliant	-	compliant
ECCN code	EAR99	-	EAR99	-	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	BRASS	NOT SPECIFIED	-	NOT SPECIFIED
Base Number Matches	1	1	-	-	1
