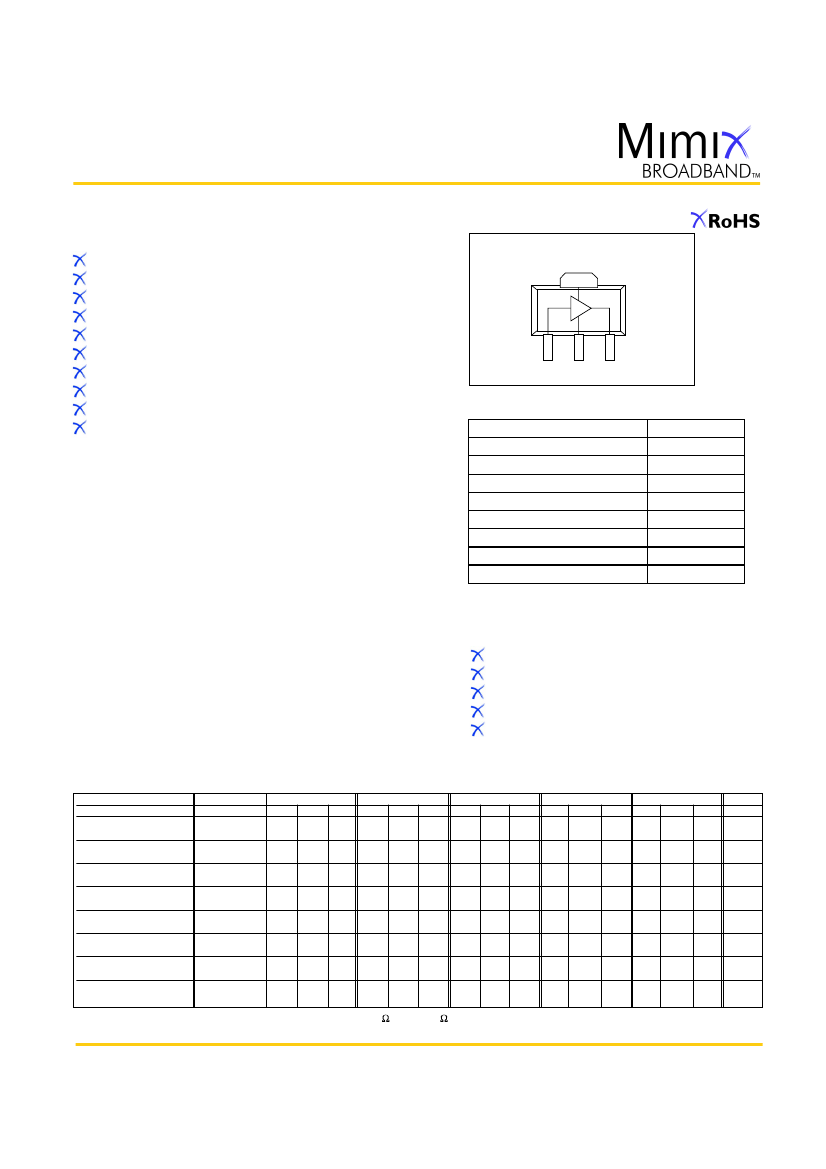

DC-8.0 GHz InGaP HBT, MMIC or Packaged
Matched Gain Block Amplifier
September 2006 - Rev 26-Sep-06
CGB7015-SC (-BD)
Features
Low Operating Voltage: 5V
37.0 dBm Output IP3 @ 850 MHz
4.0 dB Noise Figure @ 850 MHz
23.0 dB Gain @ 850 MHz
21.1 dBm P1dB @ 850 MHz
Low Performance Variation Over Temperature
Low Cost: Die Form or SOT-89 Package
100% DC On-Wafer Testing
ESD Protection on All Die: >1000V HBM
Low Thermal Resistance: <80ºC/Watt
Functional Block Diagram (SOT
-89)
Ground
4
1
Input
2
3
Ground Output
Bias
Absolute Maximum Ratings
Max Device Voltage
Max Device Current
Max Device Dissipated Power
RF Input Power
Storage Temperature
Junction Temperature
Operating Temperature
Thermal Resistance
EDS (HBM)
+6.0 V
130 mA
0.65 W
+17 dBm
-55ºC to 150ºC
150ºC
-40ºC to +85ºC
80º C/W
1000 V
Description
The CGB7015-SC (-BD) is a Darlington Configured, high dynamic
range, utility gain block amplifier. Designed for applications
operating within the DC to 8.0 GHz frequency range, Mimix’s
broadband, cascadable, gain block amplifiers are ideal solutions
for transmit, receive and IF applications.
These MMIC amplifiers are available in bare die form or an
industry standard SOT-89 package. Mimix's InGaP HBT
technology and an industry low thermal resistance offers a
thermally robust and reliable gain block solution.
The InGaP HBT die have extra pads to enable thorough DC
testing. This unique test capability and the inclusion of ESD
protection on all die, significantly enhances the quality, reliability
and ruggedness of these products.
With a single bypass capacitor, optional RF choke and two DC
blocking capacitors, this gain block amplifier offers significant
ease of use in a broad range of applications.
Operation of this device above any of these parameters may cause
permanent damage.
Applications
PA Driver Amp, IF Amp, LO Buffer Amp
Cellular, PCS, GSM, UMTS
Wireless Data and SATCOM
Transmit and Receive Functions
CATV
Unless otherwise specified, the following specifications are guaranteed at room temperature in a Mimix test fixture.
Parameter
Temperature (ºC)
Min.
500 MHz
Typ.
Max.
Min.
850 MHz
Typ.
Max.
1950 MHz
Min.
Typ.
Max.
Min.
2400 MHz
Typ.
Max.
Min.
3500 MHz
Typ.
Max.
Units
Electrical Characteristics
Small Signal Gain
Output P1dB
Output IP3
Noise Figure
Operating Current
Input Return Loss
Output Return Loss
Pout @ -45 dBc, ACP
IS-95, 9 Forward Channels
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
87
84
24.0
24.0
21.2
21.2
37.0
37.0
4.0
4.0
92
92
14
14
14
14
22.0
21.7
20.1
19.8
35.5
35.0
97
100
87
84
11
10
11
10
23.0
23.0
21.1
21.1
37.0
37.0
4.0
4.0
92
92
16
16
15
15
15
15
24.0
24.3
18.2
17.9
19.0
18.7
33.0
32.0
4.8
5.2
97
100
87
84
17
16
14
13
19.2
19.2
20.0
20.0
34.5
34.5
4.0
4.0
92
92
25
25
20
20
15
15
20.2
20.5
17.0
16.7
17.8
17.5
31.5
30.5
4.8
5.2
97
100
87
84
17
16
14
13
18.0
18.0
18.8
18.8
33.0
33.0
4.1
4.1
92
92
25
25
20
20
19.0
19.3
5.1
5.5
97
100
87
84
15.5
15.5
16.2
16.2
30.1
30.1
4.2
4.2
92
92
25
25
14
14
97
100
dB
dB
dBm
dBm
dBm
dBm
dB
dB
mA
mA
dB
dB
dB
dB
dBm
dBm
Notes: 1. Test Conditions in Mimix eval board, Vs = 8 V, Id = 92 mA Typ., Rbias = 30
2. Values reflect performance in recommended application circuit.
, Zs = Zl = 50
, OIP3 tone spacing = 1 MHz, Pout per tone = 6 dBm.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 8
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-8.0 GHz InGaP HBT, MMIC or Packaged
Matched Gain Block Amplifier
September 2006 - Rev 26-Sep-06
CGB7015-SC (-BD)

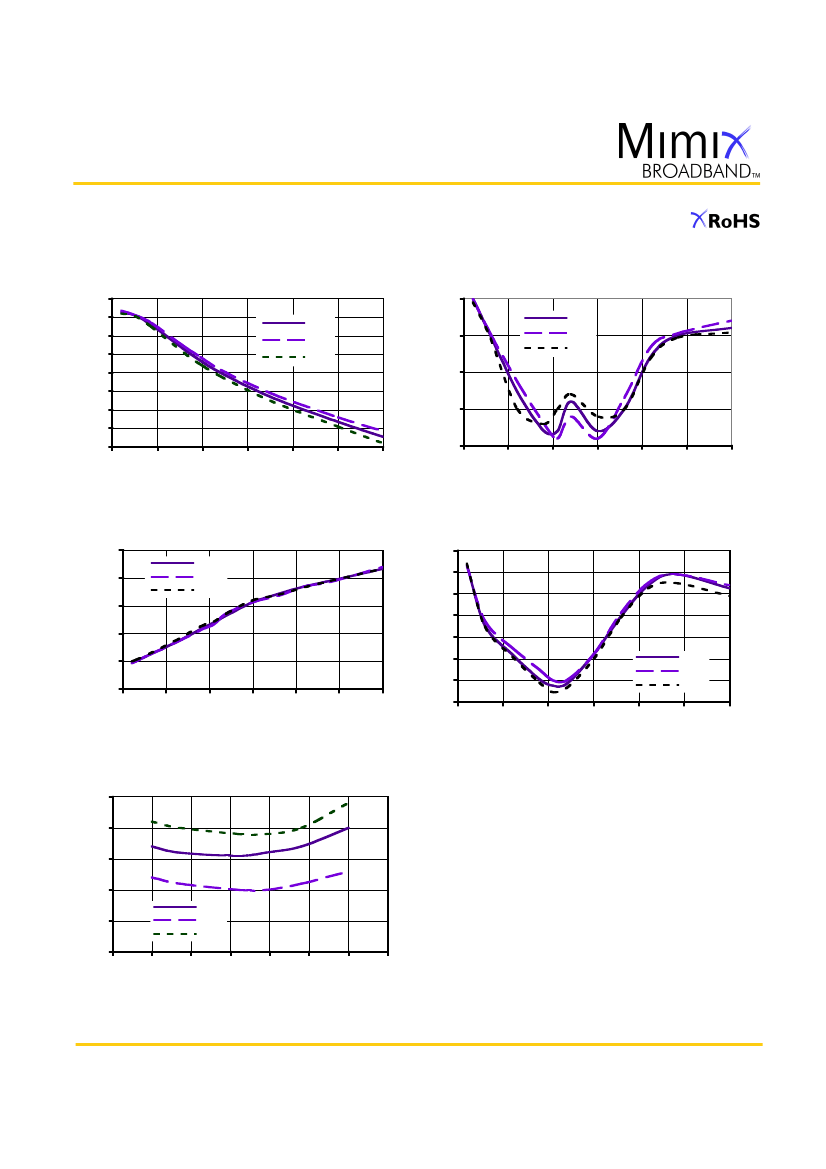

Typical S-Parameter and Noise Performance
|S21| Vs Frequency
26
24
22
|S21| (dB)
25 C
-40 C
85 C
|S11| (dB)
|S11| Vs Frequency
-10
25 C
-15
-40 C
85 C
-20
20
18
16
14
12
10
0
1
2
3
4
-25
-30
5
6
0
1
2
3
Frequency (GHz)
4
5
6
Frequency (GHz)
|S12| Vs Frequency
|S22| Vs Frequency
-15
-18
|S12| (dB)
25 C
-40 C
85 C
-8
-10
-12
|S22| (dB)
-21
-24
-27
-30
0
1
2
3
4
Frequency (GHz)
5
6
-14
-16
-18
-20
-22
0
1
2
3
4
5
6
Frequency (GHz)
25 C
-40 C
85 C
Noise Figure Vs Frequency
5
4.5
Noise Figure (dB)
4
3.5
3
2.5
0
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
25 C
-40 C
85 C
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 8
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-8.0 GHz InGaP HBT, MMIC or Packaged
Matched Gain Block Amplifier
September 2006 - Rev 26-Sep-06
CGB7015-SC (-BD)

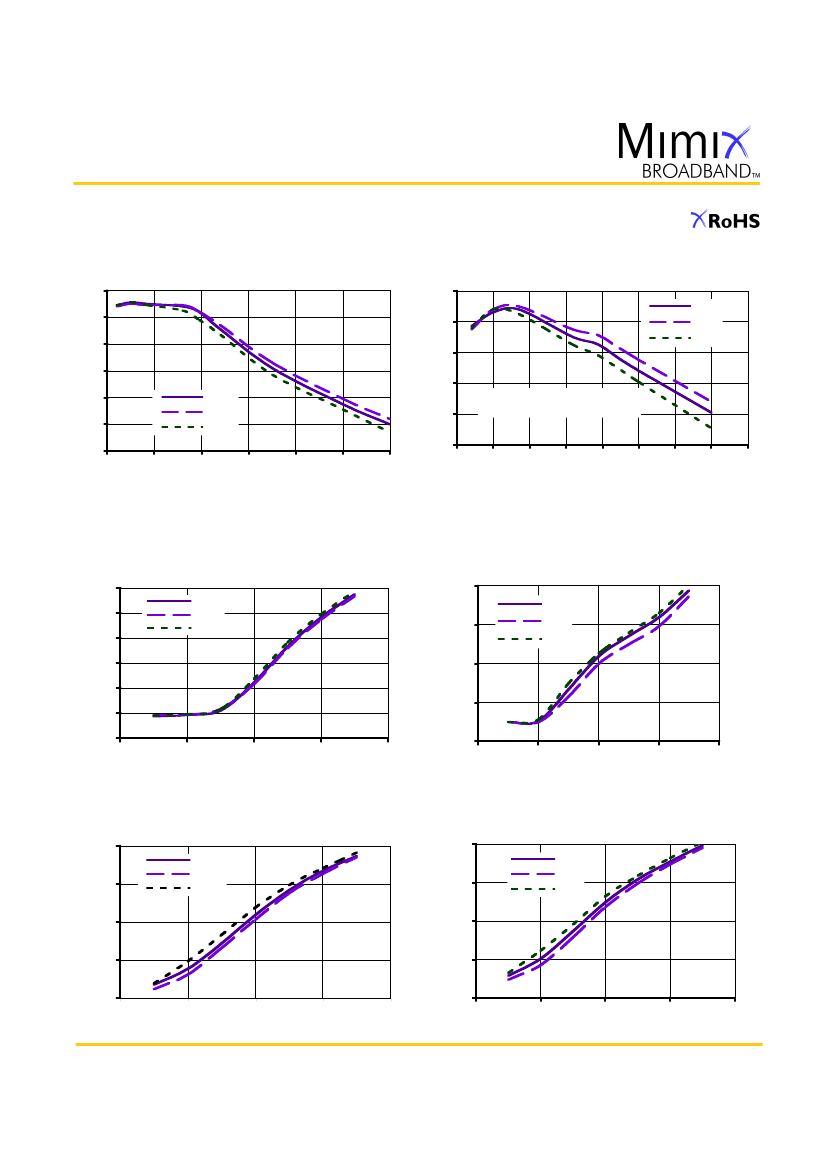

Typical Power and Linearity Performance
P1dB Vs Frequency
22
20
18
P1dB (dBm)
16
14
12
10
0
1
2
3
Frequency (GHz)
4
5
6
38
OIP3 Vs Frequency
25 C
36
OIP3 (dBm)
-40 C
85 C
34
32
1 MHz separation, 6 dBm/tone
30
25 C
-40 C
85 C
28
0
0.5
1
1.5
2
2.5
3
3.5
4
Frequency (GHz)
Linearity Performance - Base Station ACP – IS-95
ACP @ 850 MHz Vs Pout
9 Channels Forward, 750 kHz Offset
30 kHz BW
Alt1 Ch. Pwr @ 850 MHz Vs Pout
9 Channels Forward, 1.98 MHz Offset
30 kHz BW
-30
-35
ACP (dBc)
-50
-40
-45
-50
-55
-60
6
10
25 C
-40 C
85 C
ACP (dBc)
25 C
-60
-40 C
85 C
-70
-80
-90
14
Pout (dBm)
18
22
6
10
14
Pout (dBm)
18
22
-30
-40
ACP (dBc)
-50
-60
-70
6
ACP @ 1950 MHz Vs. Pout
9 Forward Channels, 885 kHz Offset
30 kHz BW
-40
Alt1 Ch. Pwr @ 1950 MHz Vs Pout
9 Channels Forward, 1.25 MHz Offset
12.5 kHz BW
25 C
-40 C
85 C
25 C
-40 C
85 C
ACP (dBc)
-50
-60
-70
-80
10
14
Pout (dBm)
18
22
6
10
14
Pout (dBm)
18
22
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 3 of 8
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-8.0 GHz InGaP HBT, MMIC or Packaged
Matched Gain Block Amplifier
September 2006 - Rev 26-Sep-06
CGB7015-SC (-BD)
Typical Scattering Parameters
(Vd = +4.8V, Icc = 95 mA, T = 23°C, device in a 50 ohm system)
Frequency
(MHz)
S 11
(Mag)
(Ang)
(Mag)
S 21
(Ang)
(Mag)
S 12
(Ang)
(Mag)
S 22
(Ang)
100
200
300
400
500
600
700
800
900
1000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
0.20
0.19
0.19
0.18
0.17
0.16
0.15
0.14
0.13
0.12
0.11
0.10
0.09
0.08
0.07
0.06
0.06
0.05
0.04
0.04
0.04
0.04
0.04
0.04
0.04
0.04
0.05
0.05
0.05
0.06
0.06
0.06
0.07
0.07
0.07
0.07
0.08
0.08
0.08
0.08
0.08
0.09
0.09
0.09
0.09
0.09
0.10
0.10
0.10
0.11
174
168
162
157
151
146
142
138
134
131
128
126
124
123
122
123
124
128
133
139
146
152
158
164
168
170
172
173
172
172
171
169
166
163
159
155
151
146
141
136
130
125
118
111
104
98
91
84
76
69
18.6
18.3
18.0
17.6
17.1
16.6
16.0
15.5
14.9
14.3
13.8
13.3
12.7
12.2
11.8
11.3
10.9
10.5
10.1
9.8
9.4
9.1
8.8
8.5
8.3
8.0
7.8
7.5
7.3
7.1
6.9
6.7
6.6
6.4
6.3
6.1
6.0
5.8
5.7
5.6
5.4
5.3
5.2
5.1
5.0
4.9
4.8
4.7
4.6
4.5
172
164
156
148
141
134
127
120
114
107
101
95
90
84
79
74
69
64
59
54
50
45
40
36
32
27
23
19
15
11
7
3
-1
-6
-9
-13
-17
-21
-25
-29
-33
-37
-41
-45
-49
-53
-57
-61
-65
-69
0.04
0.04
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.06
0.06
0.06
0.06
0.06
0.06
0.07
0.07
0.07
0.07
0.07
0.08
0.08
0.08
0.08
0.09
0.09
0.09
0.09
0.09
0.10
0.10
0.10
0.10
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
0.12
0.13
0.13
0.13
0.13
0.13
1
2
3
4
4
4
5
5
5
5
5
4
4
3
2
1
0
-1
-2
-4
-5
-7
-8
-10
-12
-13
-15
-17
-19
-21
-23
-25
-27
-29
-32
-34
-36
-38
-41
-43
-46
-48
-51
-53
-56
-58
-61
-64
-66
-69
0.15
0.15
0.15
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.17
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.17
0.17
0.17
0.17
0.18
0.18
0.18
0.19
0.19
0.20
0.21
0.21
0.22
0.23
0.24
0.24
0.25
179
178
176
175
173
172
170
168
166
163
161
158
156
153
151
148
145
142
140
137
134
131
128
126
123
120
117
114
112
109
106
103
100
97
94
91
88
85
82
78
75
72
69
65
62
58
55
51
48
44
Continues Next Page.
S-Parameter Data Files are available online at: www.mimixbroadband.com
Page 4 of 8
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-8.0 GHz InGaP HBT, MMIC or Packaged
Matched Gain Block Amplifier
September 2006 - Rev 26-Sep-06
CGB7015-SC (-BD)
Typical Scattering Parameters
(Vd = +4.8V, Icc = 95 mA, T = 23°C, device in a 50 ohm system)
Frequency
(MHz)
S 11
(Mag)
(Ang)
(Mag)
S 21
(Ang)
(Mag)
S 12
(Ang)
(Mag)
S 22
(Ang)
5100
5200
5300
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300
6400
6500
6600
6700
6800
6900
7000
7100
7200
7300
7400
7500
7600
7700
7800
7900
8000
8100
8200
8300
8400
8500
8600
8700
8800
8900
9000
9100
9200
9300
9400
9500
9600
9700
9800
9900
10000
0.11
0.12
0.13
0.13
0.14
0.15
0.16
0.17
0.18
0.19
0.21
0.22
0.23
0.24
0.25
0.27
0.28
0.29
0.30
0.32
0.33
0.34
0.35
0.36
0.37
0.38
0.39
0.40
0.41
0.42
0.42
0.43
0.44
0.44
0.44
0.45
0.45
0.45
0.45
0.45
0.46
0.45
0.45
0.45
0.45
0.44
0.44
0.44
0.43
0.42
61
54
48
41
34
28
22
16
10
5
0
-5
-10
-15
-20
-25
-29
-34
-38
-42
-46
-51
-54
-58
-62
-66
-70
-74
-77
-81
-85
-88
-91
-95
-98
-102
-105
-108
-111
-114
-118
-121
-124
-127
-130
-133
-136
-140
-143
-146
4.4
4.3
4.3
4.2
4.1
4.0
3.9
3.9
3.8
3.7
3.6
3.5
3.5
3.4
3.3
3.2
3.2
3.1
3.0
2.9
2.9
2.8
2.7
2.6
2.6
2.5
2.4
2.4
2.3
2.2
2.2
2.1
2.1
2.0
1.9
1.9
1.8
1.8
1.7
1.7
1.6
1.6
1.5
1.5
1.5
1.4
1.4
1.3
1.3
1.3
-73
-77
-81
-85
-89
-92
-96
-101
-105
-108
-113
-117
-121
-124
-129
-132
-136
-140
-144
-148
-152
-156
-160
-164
-168
-172
-175
-179
177
174
170
166
163
159
155
152
148
145
141
138
134
131
128
124
121
117
114
111
107
104
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.13
0.13
0.13
0.13
0.13
0.13
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.11
0.11
0.11
0.11
-72
-74
-77
-80
-83
-86
-89
-92
-94
-97
-100
-103
-106
-109
-112
-115
-118
-121
-124
-127
-130
-133
-136
-139
-142
-145
-148
-150
-153
-156
-159
-161
-164
-167
-169
-172
-174
-177
-179
178
176
173
171
168
166
164
162
159
157
155
0.26
0.27
0.28
0.30
0.31
0.32
0.33
0.35
0.36
0.37
0.38
0.40
0.41
0.43
0.44
0.45
0.47
0.48
0.50
0.51
0.52
0.54
0.55
0.56
0.57
0.58
0.60
0.61
0.62
0.63
0.64
0.64
0.65
0.66
0.67
0.68
0.68
0.69
0.69
0.70
0.70
0.71
0.71
0.72
0.72
0.72
0.73
0.73
0.73
0.74
41
37
34
31
27
23
20
17
13
10
6
3
-1
-4
-7
-11
-14
-17
-20
-24
-27
-30
-33
-36
-39
-42
-45
-48
-51
-54
-56
-59
-62
-64
-67
-70
-72
-74
-77
-79
-82
-84
-86
-88
-90
-92
-95
-97
-99
-101
S-Parameter Data Files are available online at: www.mimixbroadband.com
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 8
Characteristic Data and Specifications are subject to change without notice.
©2006
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
京公网安备 11010802033920号
EEWORLD
