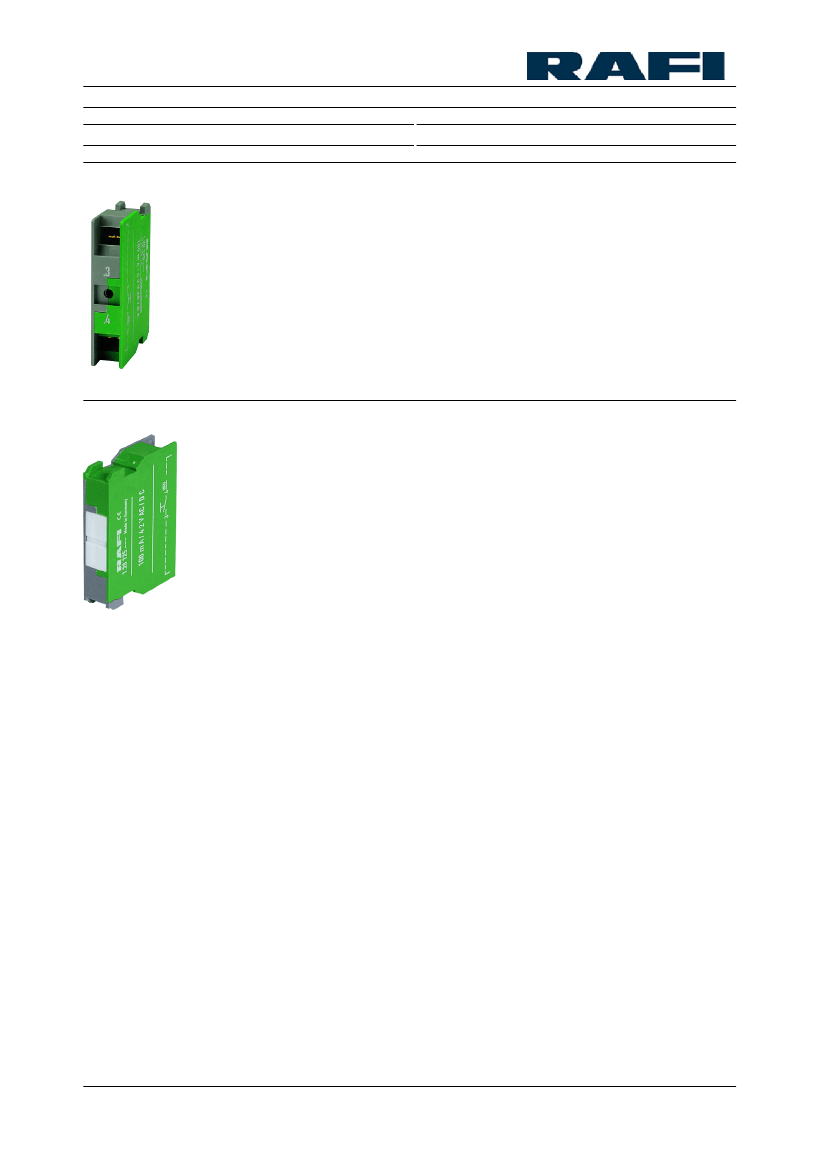

RAFIX 22 QR - Contact block with gold contacts, without
coupling, spring-type terminals, 1 NC
5.00.100.159/0000
Dimensions
Dimensions with coupling
Mounting depth without cable
Mechanical design
Mounting
Contact system
Contact materials
Contact arrangement
NC contact forcibly actuated acc. to IEC
60947-5-1
Terminals
Terminal marking
Robustness
Operating force
Wire range solid wires without wire end sleeves
Wire range stranded wires without wire end
sleeves
Stripping length, solid or stranded
Wire range with wire end sleeves
Electrical characteristics
Operating voltage AC/DC
Operating current AC/DC
Rated power max.
Lamp characteristics
Lamp socket
Other specifications
Operating life (operations)
Switching reliability at 24V/5mA DC
Robustness
Corresponding to CE
Shock resistance acc. to IEC 60068-2-27
Resistance to vibrations acc. to IEC 60068-2-6
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
39.5 x 49.9 x 30 mm
56.4 mm
snap on coupling and actuator
bridge-contact self cleaning
Au
1 NC
yes
spring type
color encoded
100 N
-N
2 x 0.75 ... 2.5 mm²
2 x 1.0 ... 1.5 mm²
8 mm
2 x 0.75 ... 1.5 mm²
1 ... 35 V
0.01 ... 100 mA
1 W (ohmic load)
-
1,000,000 (24 V DC 10 mA)
10 x 10
-6
acc. to IEC 60947-5-5
acc. EU-guideline NSR 72/73
15 g at 11 ms, amplitude half sinusoidal
5 g at 10 ... 500 Hz
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018
ROHS compliant
REACH compliant
Gold contacts, 1 NO, quick connector
yes
yes
Gold contacts, 1 NO, spring-type terminals
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
