82724016: DescriptionAC, DC & Servo Motors 3.2W 24VDC RAP: 250 3 CLASS A FLTR; CategoryTopical application Mechanical and electrical/engineering/automation; File Size138KB，3 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

82724016 Overview

AC, DC & Servo Motors 3.2W 24VDC RAP: 250 3 CLASS A FLTR

82724016 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crouzet
Product Category	AC, DC & Servo Motors

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

0.5 Nm ovoid 1.4 and 3.2 Watts 3.2 W Part number made to order

Gearbox 0.5 Nm

Motor power max. 3.2 W

Class A EMC interference suppression (radiated)

Compatible with 6 V, 9 V or 12 V battery power supply

Optional class B interference suppression

Optional 1, 5, 12 or 48 pulses/rev encoder

Part numbers

Type

82724016

3.2 W

Type

827240

Voltage

24 V

Output speed (rpm)

40

Ratios (i)

250/3

Specifications

General characteristics

Motor

Gearbox

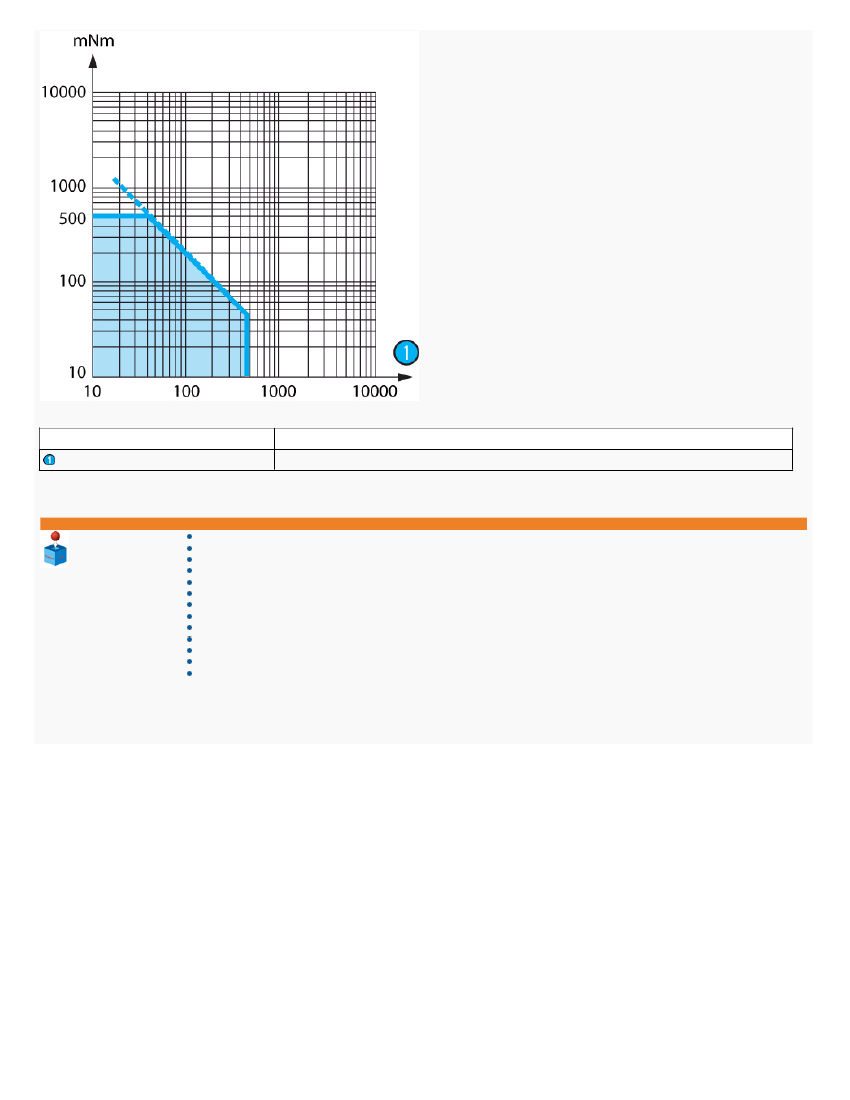

Maximum permitted torque from gearmotor under

continuous conditions for 1 million turns (Nm)

Axial load static (daN)

Radial load static (daN)

Max. output power (W)

Nominal output (W)

Gearbox case temperature rise (°C)

Weight (g)

82720002

810210

0,5

1

8

3,2

2,6

40

140

Made to order products, available on request

For more than 1000 pieces

48 pulses/rev encoder

Class B filter

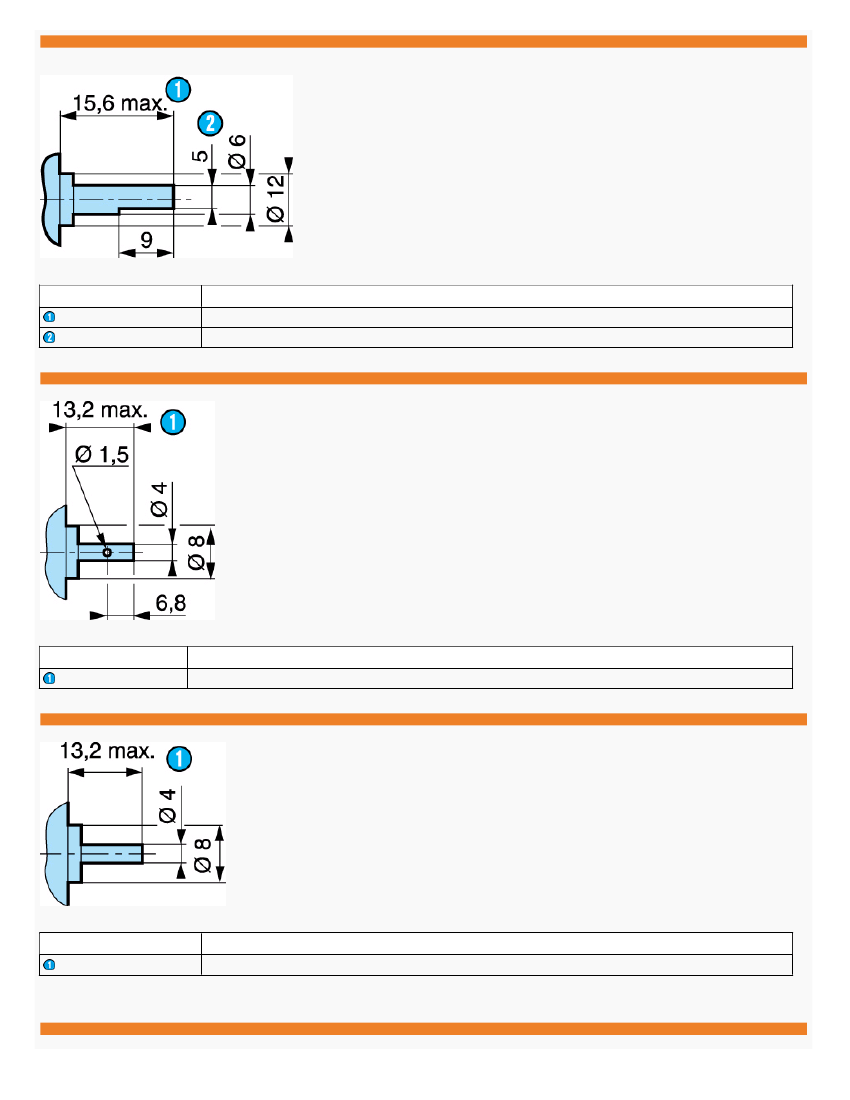

Case N°2 (for other fixing points see diagram)

Gearbox shaft

Bearings for heavy radial loads

Connections

Reinforced gears

For other types please consult Crouzet

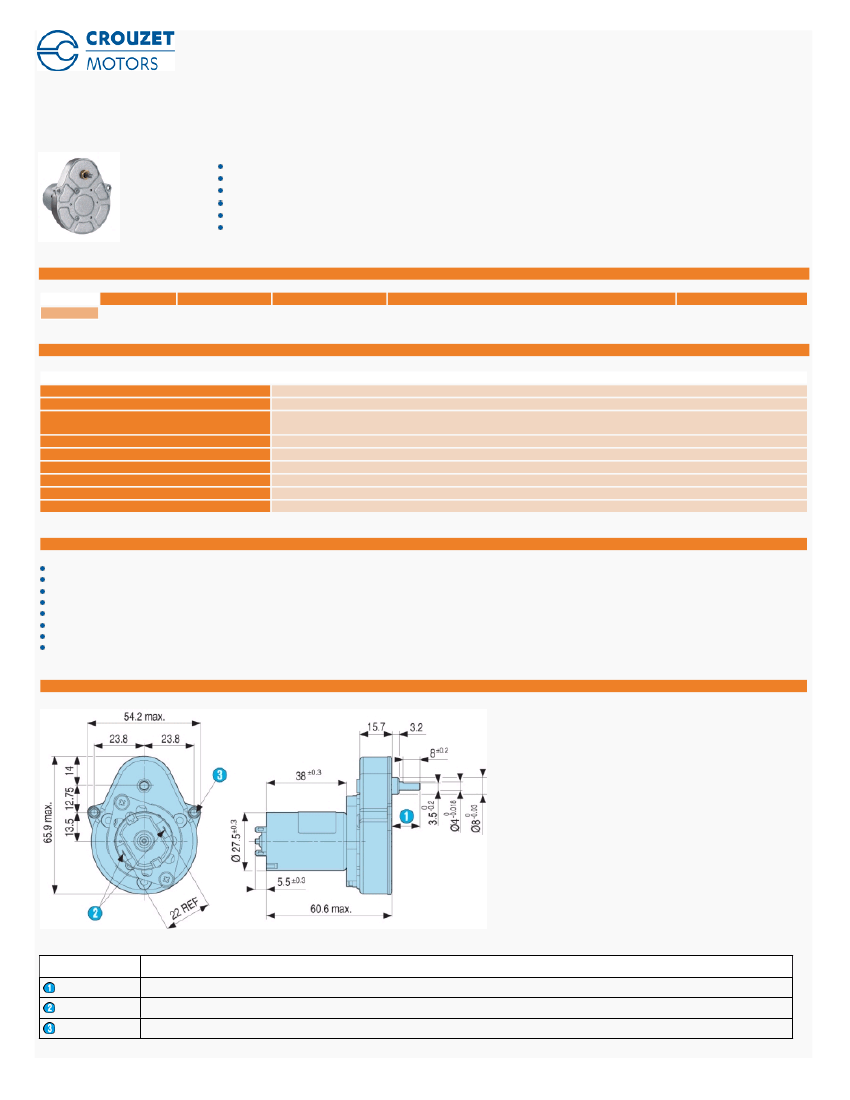

Dimensions (mm)

827240

N

o

Legend

13.2 mm max. shaft pushed-in

2 solder tags 2.8 x 0.5 mm

2 fixing holes Ø 3.2 mm

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
