LCA Series

Subminiature Snap-acting Switches

Features/Benefits

•

Compact design

•

Long life and high electrical capacity

•

Quick connect, solder terminals, PC terminals

•

Wide variety of actuator styles

•

RoHS compatible

UL61058-1

14

Typical Applications

•

Motorized equipment

•

Sump pump

•

Thermostatic controls

Specifications

CONTACT RATING: From low level to 10.1 AMPS @ 125/250 V AC

ELECTRICAL LIFE: see chart below

MECHANICAL LIFE: 300,000 cycles.

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 1,500 Vrms min. @ sea level.

OPERATING TEMPERATURE: –40ºC to +125ºC

OPERATING FORCE: 150 grams at actuator button MAX.

Forces are less at free end of lever actuators; (see ACTUATOR’S

option sections).

MOUNTING: 2-56 screws, torque 2.3 in/lbs max.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service center.

Materials

SWITCH HOUSING: Thermoplastic polyester

ACTUATOR BUTTON: Thermoplastic polyester.

SPRING: Copper alloy.

PIVOT: Copper alloy.

MOVABLE CONTACTS: Silver alloy

STATIONARY CONTACTS: Silver alloy

TERMINALS: Copper alloy.

ACTUATOR LEVER: Stainless steel.

J

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-36 thru J-39. For additional options not shown in catalog, consult Customer Service Center.

L

C

A

1

5

0

Series

LCA

SP, Mom.

Electrical Rating

Operating Force

150

150 grams

Option

Code

01

06

10

S5

UL

1054

0.1 A 125/250 V AC

1E4

6 A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

NA

UL

61058-1

0.1 A 125/250 V AC

1E4

6 A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

5 A 125/250 V AC

1E5

14

0.1 A 125/250 V AC

1E4

6 (2)A 125/250 V AC

1E4

10.1 A 125/250 V AC

1E4

NA

Actuator

P00

Pin plunger

T05

4.8 mm short lever

T06

6.8 mm lever

T09

8.8 mm lever

T12

12.9 mm lever

T16

15.2 mm lever

T18

18.1 mm lever

T21

20.1 mm lever

T23

23.4 mm lever

T43

43.5 mm lever

S06

6.0 mm simulated lever

S09

9.2 mm simulated lever

A05

5.0 mm lever roller

Terminations

S

Solder

Q

.110 Quick Connect

P

PC Thru Hole

L

Left Form PC

R

Right Form PC

Circuitry

C

SPDT

W

SPST N.C.

Y

SPST N.O.

Dimensions are shown: mm

Specifications and dimensions subject to change

J–36

www.ckswitches.com

LCA Series

Subminiature Snap-acting Switches

SERIES

LCA

19.8

7.5

2.1

3.4

2.45

7.05

2.85

2.4

ø 2.5

8.8

5.1

9.5

ø 2.4

7.3

0.6

3.3

6.4

1.0

1.86

1.2

10.6

R0.3

9.5

J

Snap-acting

ELECTRICAL RATING

RoHS

COMPLIANT *

YES

RoHS

COMPATIBLE *

YES

OPTION CODE

ELECTRICAL RATING

0.1A, 125/250 VAC

6A, 125/250 VAC

10.1A, 125/250 VAC

5A, 125/250 VAC

01

06

10

S5

* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.

OPERATING FORCE

OPTION CODE

OPERATING FORCES (grams)

150 grams max.

150

Dimensions are shown: mm

Specifications and dimensions subject to change

J–37

www.ckswitches.com

LCA Series

Subminiature Snap-acting Switches

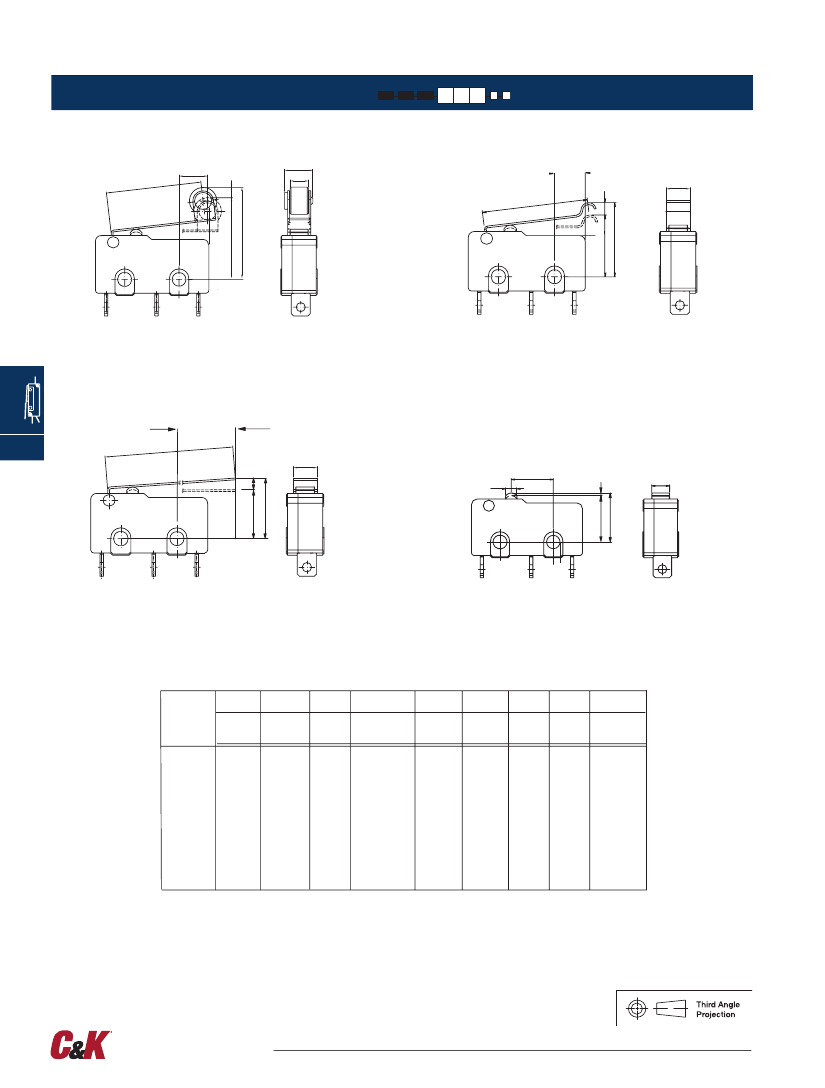

ACTUATOR

A05

LEVER ROLLER

B

A

C

4.9

3.2

A

SXX

SIMULATED ROLLER

B

4.05

C

D E

TXX

LEVER

B

P00

J

Snap-acting

A

4.05

C

2.1

7.5

C

3.4

D

E

D E

ACTUATOR

OPTION

CODE

P00

T05

T06

T09

T12

T16

T18

T21

T23

T43

S06

S09

A05

A

B ref.

C

mm

LENGTH

Lever length

PRE

OF

for front mtg.

TRAVEL

LEVER

hole to OP

(MAX)

NA

16.70

18.70

20.60

24.80

27.10

30.00

32.00

35.20

55.20

17.90

21.10

16.60

NA

4.80

6.80

9.10

12.90

15.20

18.10

20.10

23.40

43.50

6.00

9.20

5.00

1.10

3.60

4.03

5.64

3.35

7.20

7.70

8.00

8.60

10.45

3.86

5.7

3.8

D

mm

OPERATING

POSITION

8.55 ± 0.3

8.95 ± 0.8

8.9 ± 0.9

9.15 ± 1.35

8.95 ± 1.5

9.15 ± 1.7

8.95 ± 1.9

8.15 ± 1.85

8.95 ± 2.0

8.95 ± 3.0

10.85 ± 0.9

16.15 ± 1.5

14.65 ± 0.8

E

Diff. Motion

mm

max

FREE

POSITION

(MAX)

9.35

11.75

12.09

13.45

13.10

15.15

14.65

15.55

19.25

17.81

20.35

17.65

0.20

0.80

0.90

1.83

1.19

1.30

1.50

1.60

1.80

2.90

0.86

1.00

0.80

Oper.

Force

max.

grams

150

50

45

33

34

40

32

35

25

15

47

42

50

Release

Force

min.

grams

25

6

5

2

1

5

2

6

Over

Travel

min.

0.4

0.6

0.67

0.75

0.89

0.70

1.2

1.0

1.5

1.0

0.64

1.0

0.6

Dimensions are shown: mm

Specifications and dimensions subject to change

J–38

www.ckswitches.com

LCA Series

Subminiature Snap-acting Switches

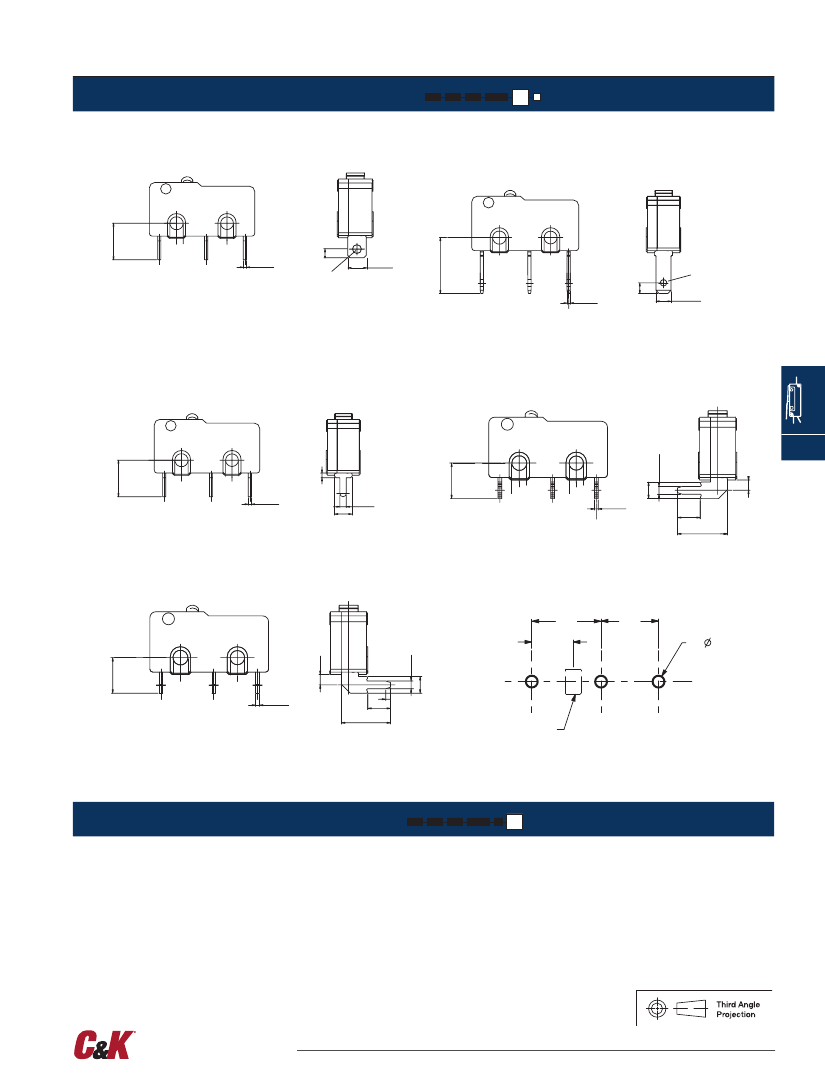

TERMINATIONS

S

SOLDER

Q

QUICK CONNECT

6.45

1.55

0.6

3.3

ø 1.6

10.5

ø 1.2

2.0

0.6

2.8

P

PC THRU HOLE

L

LEFT FORM PC

J

7.05

1.0

1.3

1.75

6.0

Snap-acting

0.6

3.3

1.2

0.6

2.80

3.8

8.35

R

RIGHT FORM PC

8,8

5,25

1.75

1.3

7,3

3X

1,50

1,35

6.0

0.6

8.2

3.8

2.8

COM

NO

NC

PLUNGER

POSITION

PC MOUNTING

CIRCUITRY

C

SPDT (Single Pole, Double Throw)

W

SPST N.C. (Single Pole, Single Throw, Normally Closed)

Y

SPST N.O. (Single Pole, Single Throw, Normally Open)

Dimensions are shown: mm

Specifications and dimensions subject to change

J–39

www.ckswitches.com
